In-Stock Galvanized Iron (GI) Pipe Fitting beaded Plug 80mm (3") | BSP Threaded Malleable Iron End Cap

In-Stock Galvanized Iron (GI) Pipe Fitting beaded Plug 80mm (3") | BSP Threaded Malleable Iron End Cap

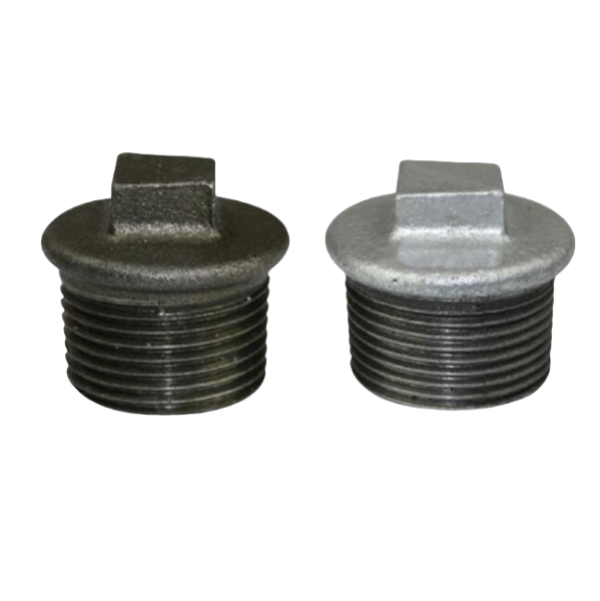

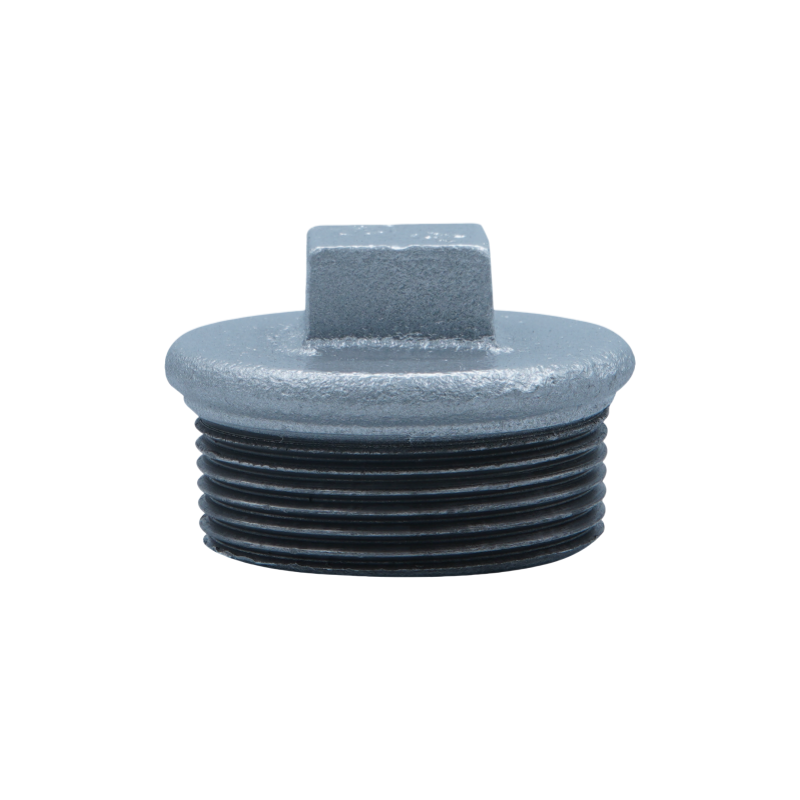

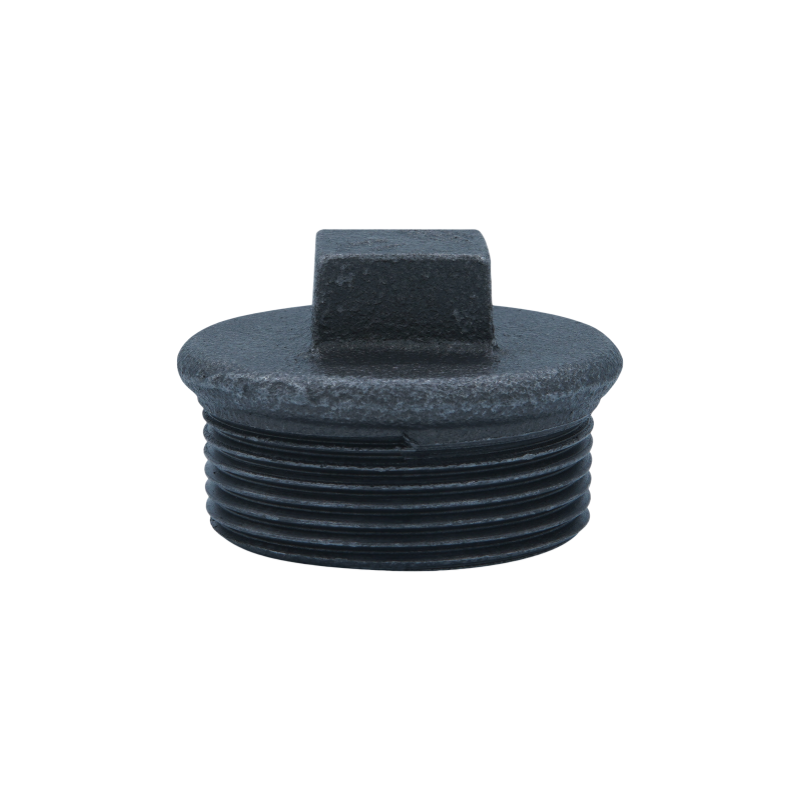

The Beaded Plug is a type of pipe fitting designed to securely seal the end of a threaded pipe. Made from high-quality malleable cast iron, it features a beaded rim for enhanced strength and a tighter grip during installation. Available in both galvanized and black finishes, this plug is corrosion-resistant and suitable for high-pressure plumbing systems. It complies with standards such as EN10242 and ISO 7-1, ensuring durability and reliability in water, gas, and fire protection systems.

Quantity:
Availability:





Inquire Add to Basket

Pipe Fitting Plug 80mm ( 3" ) Gi Pipes And Fittings Galvanized Iron (gi) Pipe Fitting Beaded The Pipe Fittings Swimming Pool Pipe Fittings Zinc Plating Black Iron Pipe Fitting Plug Black Iron Pipe Fitting Plug plumbing Pipe Fittings zinc Plating Fittings BSPT thread fitting

Product Description

The Beaded Plug is a type of pipe fitting designed to securely seal the end of a threaded pipe. Made from high-quality malleable cast iron, it features a beaded rim for enhanced strength and a tighter grip during installation. Available in both galvanized and black finishes, this plug is corrosion-resistant and suitable for high-pressure plumbing systems. It complies with standards such as EN10242 and ISO 7-1, ensuring durability and reliability in water, gas, and fire protection systems.

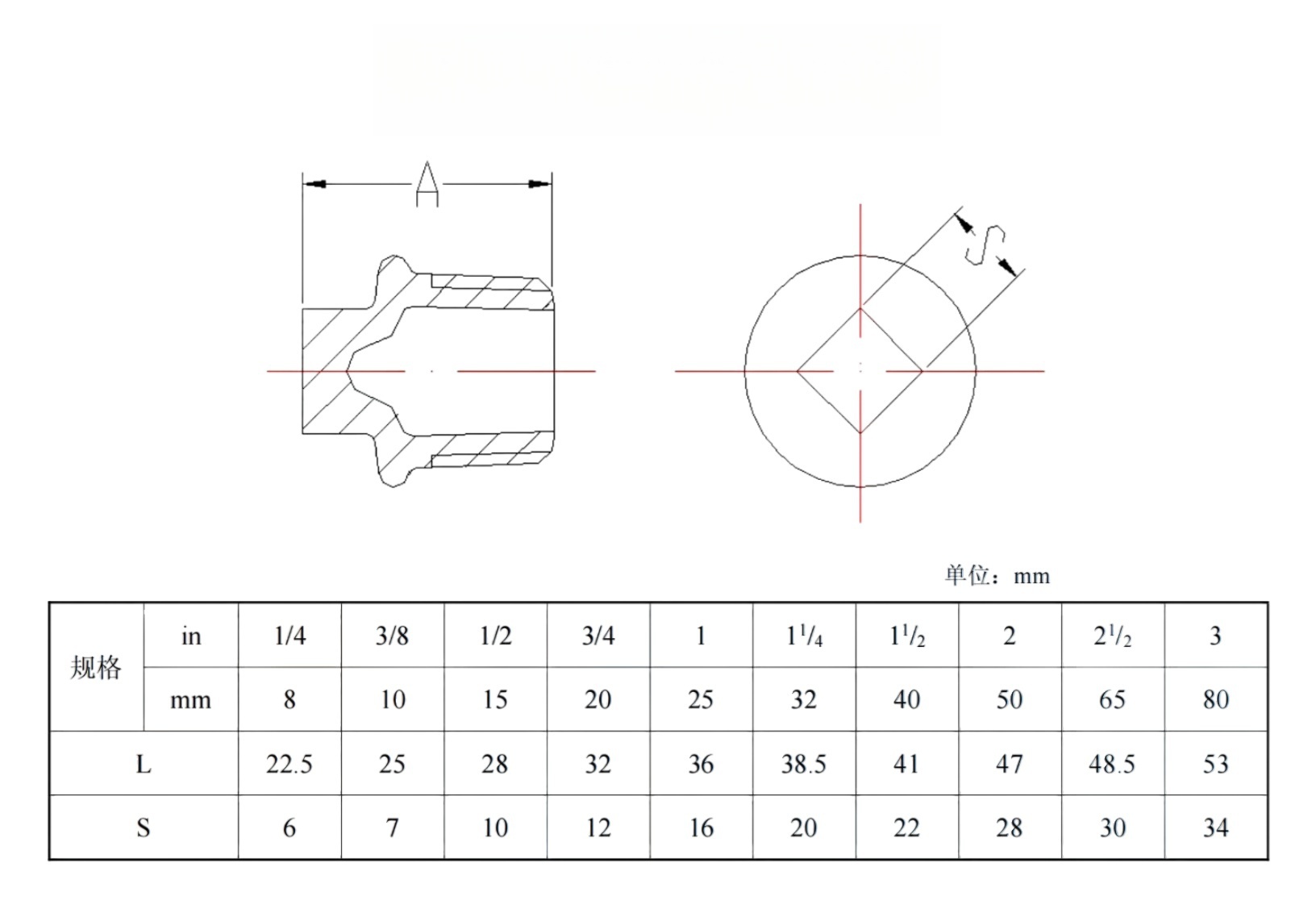

Size	1/4''-4''
Material	malleable iron
Standard	ISO 5922/ISO 049/ISO 7-1，ISO 228	EN 1562:1997/EN 10242:2003	DIN 2950/1692/2999	ANSI/ASTM A197/A197M ANSI/ASME B16.3, B16.14, B16.39
Certifacate	FM/UL/CE/ABNT/SNI/SIRM/TSE/ISI
Surface Treatment	Nature Black
	Hot Dip Galvanized
	Eletro Galvanized
Work Pressures	PN25/2.5Mpa/363PSI/class150/25bar
Max Temperature	200°C (392°F)
Tensile Strength	≥350MPA
Elongation	≥10%
Hardness	≤HB150

Product Uses

Malleable Iron Beaded Plug – Application Scenarios & Functions

Plumbing Systems
Used to securely close off unused pipe ends, preventing leaks and contamination. Ensures system integrity and ease of future maintenance.
Fire Protection Systems
Seals off branch lines or sections of sprinkler piping to maintain water pressure and system reliability. FM and UL certifications guarantee compliance with safety standards.
Industrial Piping
Applied in factories and processing plants to cap off pipes temporarily or permanently during installation, testing, or maintenance, preventing debris entry and leakage.
HVAC Systems
Used to close off heating or cooling pipes in HVAC systems, helping maintain system pressure and avoiding fluid loss.
