| Quantity: | |
|---|---|

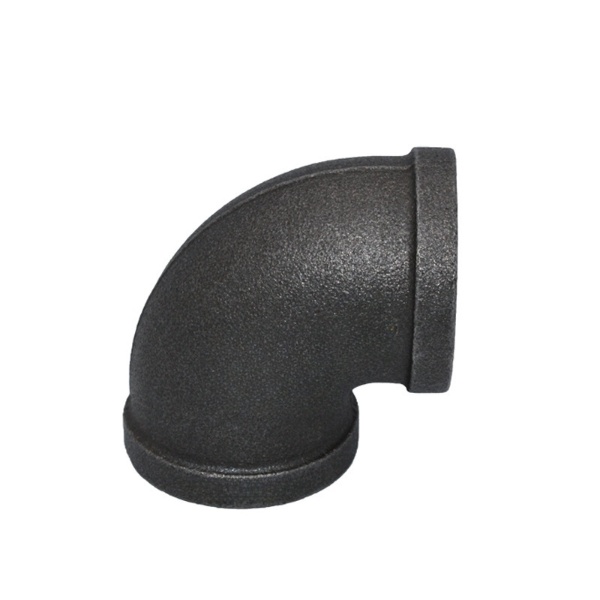

Malleable iron pipe fitting 90 elbows are mainly used to change the flow direction of pipes in pipeline systems and help pipes to be arranged at corners in space. It is widely used in fire protection systems, industrial pipelines, building water supply and drainage systems, heating, ventilation and HVAC systems, and municipal pipe networks, especially in situations where the direction of the pipe needs to be adjusted or obstacles need to be bypassed. With its excellent corrosion resistance, pressure resistance, and high temperature resistance, Elbow pipe fitting have become an indispensable key accessory in various pipeline systems.
| Size | 1/8''-6'' | |||
| Material | malleable iron | |||
| Standard | ISO 5922/ISO 049/ISO 7-1，ISO 228 | EN 1562:1997/EN 10242:2003 | DIN 2950/1692/2999 | ANSI/ASTM A197/A197M ANSI/ASME B16.3, B16.14, B16.39 |
| Certifacate | FM/UL/CE/ABNT/SNI/SIRM/TSE/ISI | |||
| Surface Treatment | Nature Black | |||
| Hot Dip Galvanized | ||||
| Eletro Galvanized | ||||
| Work Pressures | PN25/2.5Mpa/363PSI/class150/25bar | |||
| Max Temperature | 200°C (392°F) | |||
| Tensile Strength | ≥350MPA | |||
| Elongation | ≥10% | |||
| Hardness | ≤HB150 | |||

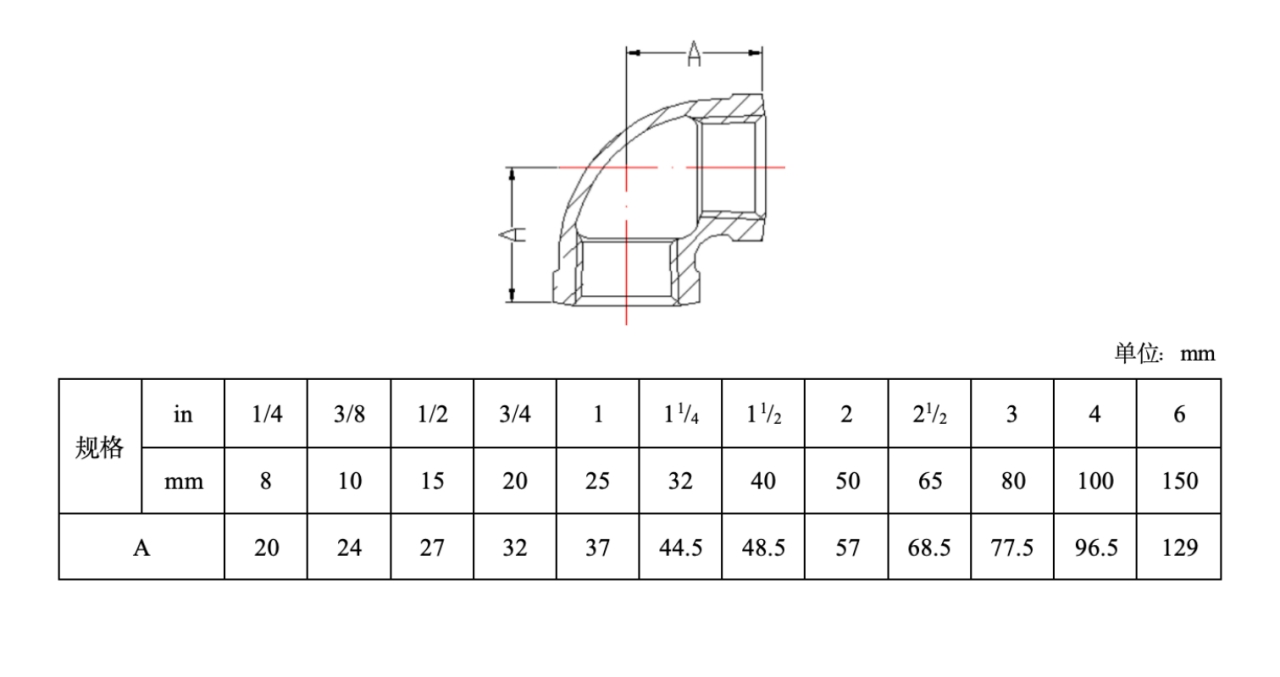

Drawing

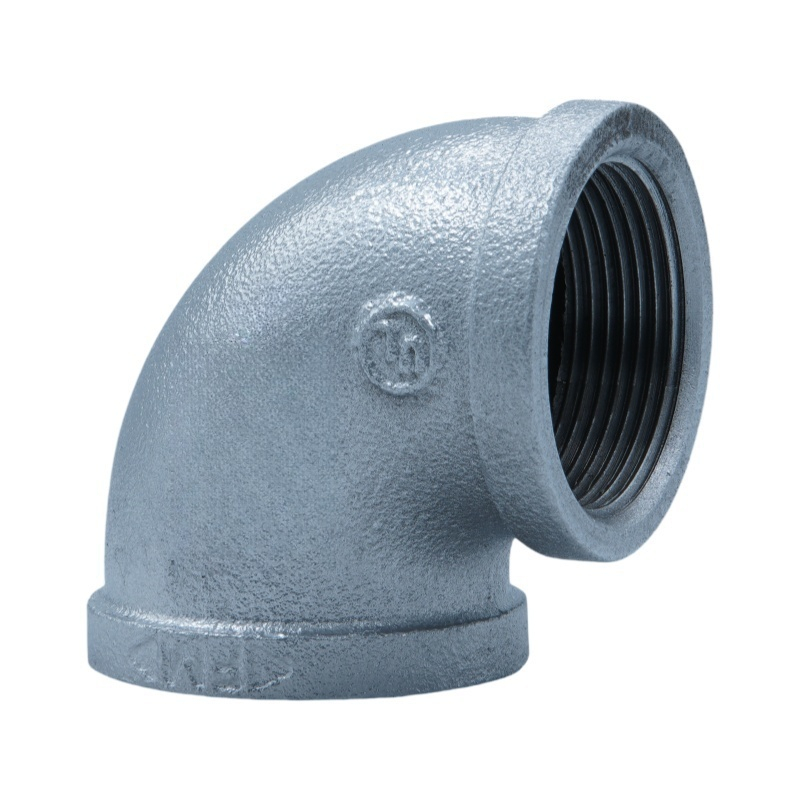

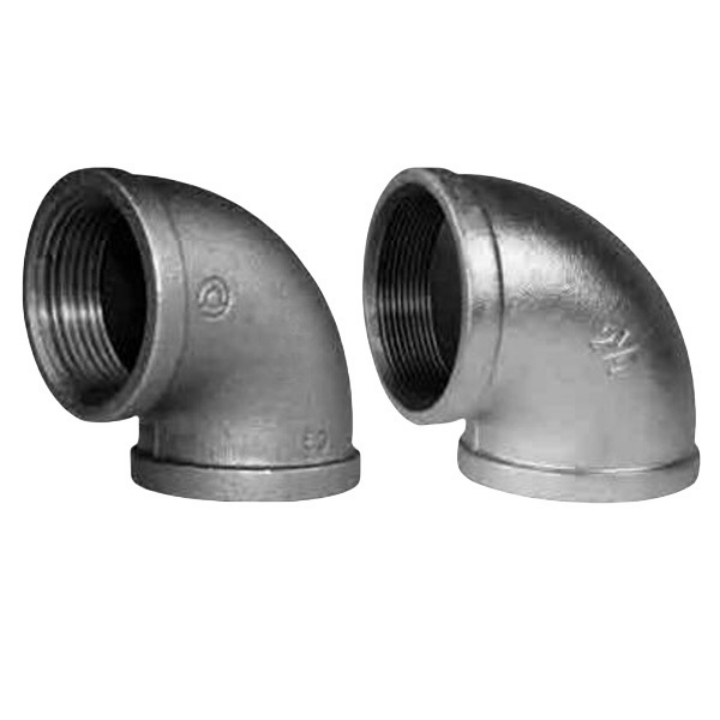

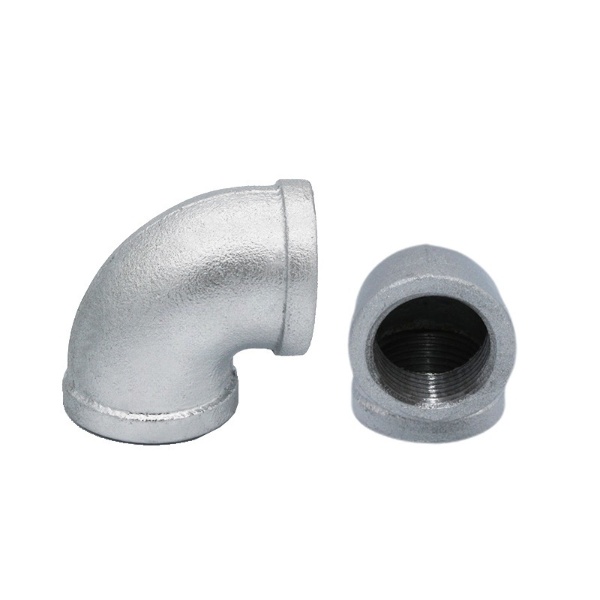

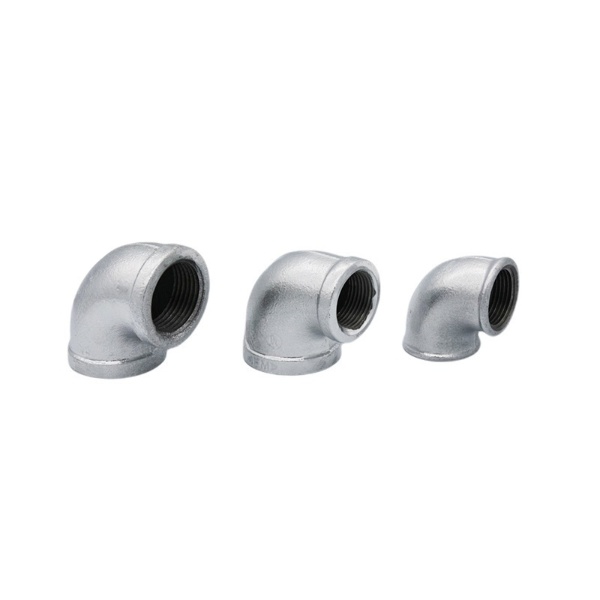

Galvanized Elbow Fittings are essential components in plumbing and piping systems, designed to change the direction of pipe runs at a 90-degree angle. These fittings are meticulously crafted from high-quality steel and undergo a galvanizing process, which involves coating the steel with a protective layer of zinc. This process not only enhances the durability and longevity of the elbow fitting but also provides excellent resistance to corrosion and rust, making it suitable for both indoor and outdoor applications. The galvanized elbow fitting is available in various sizes and threading options to accommodate different pipe specifications, ensuring a versatile solution for a wide range of industries, including construction, agriculture, and manufacturing. The smooth interior of the fitting helps to maintain high flow rates and reduce the risk of blockages, while the robust construction ensures it can withstand high pressure and temperature variations commonly encountered in fluid transfer systems.
Galvanized Elbow Fittings are renowned for their superior quality and reliability. The galvanization process provides a thick, uniform coating of zinc that adheres tightly to the steel, offering superior protection against the elements and preventing rust and corrosion. This is particularly beneficial in harsh environments where the fittings may be exposed to moisture, chemicals, or other corrosive substances. The fittings are designed with precision, ensuring a perfect fit with standard pipe sizes, and are available in both male and female threading options to suit various connection requirements. The 90-degree elbow design is efficient in redirecting flow, minimizing pressure loss and turbulence, which is crucial for maintaining the integrity of the piping system. Additionally, these fittings are easy to install and can be used with a variety of materials, including steel, iron, and copper pipes, making them a versatile choice for any project.
Galvanized Elbow Fittings are widely used in a multitude of applications across various industries. They are commonly found in residential and commercial plumbing systems, where they help to navigate pipes around obstacles and through walls, floors, and ceilings. In industrial settings, these fittings are utilized in water supply lines, HVAC systems, and in the conveyance of various fluids due to their ability to handle high pressure and temperature conditions. The agricultural sector employs these fittings in irrigation systems and livestock watering facilities, where the galvanized coating ensures the fittings can withstand exposure to fertilizers and other agricultural chemicals. Furthermore, galvanized elbow fittings are also used in fire protection systems, as their corrosion-resistant properties are critical in maintaining the integrity of the system in the event of a fire. Their versatility and durability make them an indispensable component in any piping system that requires a reliable, long-lasting solution for changing pipe directions.
1. What is the primary advantage of using galvanized elbow fittings?
The primary advantage of using galvanized elbow fittings is their superior resistance to corrosion and rust. The galvanization process provides a protective zinc coating that significantly extends the lifespan of the fitting and ensures it can withstand harsh environmental conditions.
2. Are galvanized elbow fittings suitable for all types of pipes?
Yes, galvanized elbow fittings are compatible with a variety of pipe materials, including steel, iron, and copper pipes. They are designed to provide a secure and leak-proof connection with standard pipe sizes.
3. Can galvanized elbow fittings be used in both indoor and outdoor applications?
Yes, galvanized elbow fittings are suitable for both indoor and outdoor applications. The protective zinc coating not only prevents rust but also withstands exposure to weather elements, making them ideal for outdoor installations.
4. How do I choose the correct size of galvanized elbow fitting for my project?
To choose the correct size of galvanized elbow fitting, you need to measure the outside diameter of the pipe that will be connected to the fitting. Ensure that the fitting's size matches the pipe size to guarantee a proper fit and optimal performance.
5. What is the typical lifespan of a galvanized elbow fitting?
The lifespan of a galvanized elbow fitting can vary depending on environmental conditions and usage. However, with proper installation and maintenance, these fittings can last anywhere from 25 to 50 years or more, thanks to the durable galvanized coating.
 |  |  |  |  |  |
| fire | oil pipeline | gas pipeline | water treatment | water Pipeline Systems | HVAC |
