Product Description

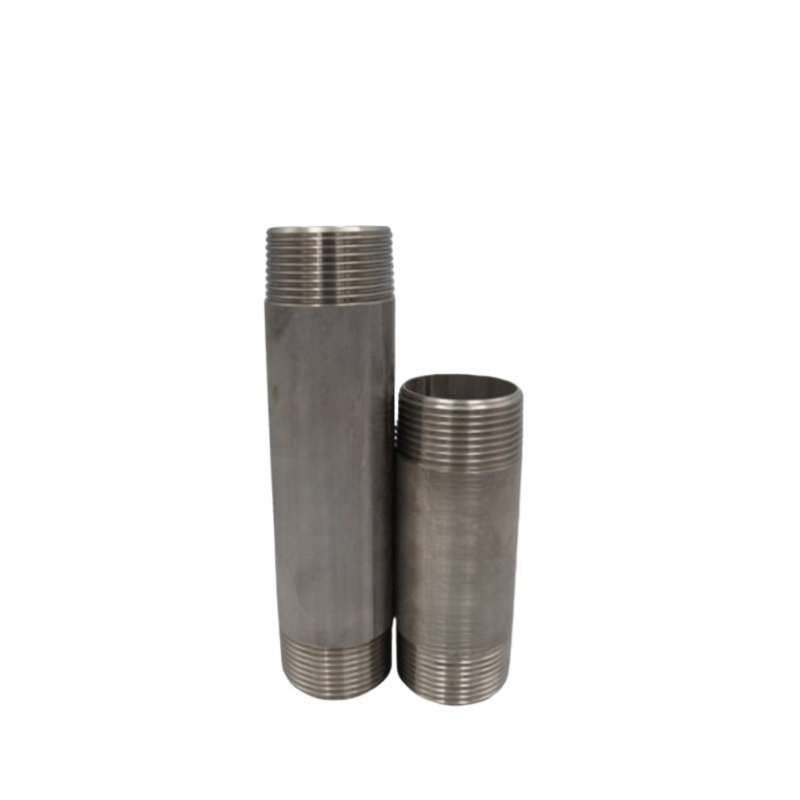

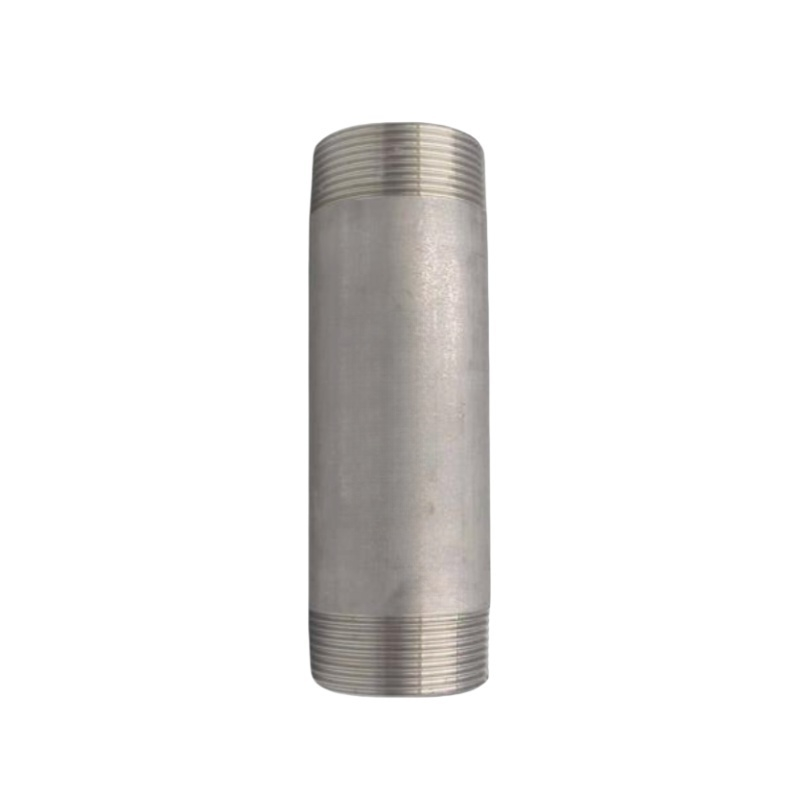

The Barrel Nipple is a type of pipe nipple characterized by equal-length threaded ends and a long, cylindrical middle section. It is commonly used to connect two female threaded pipe fittings or components in plumbing, industrial piping, and fluid handling systems.
Our Stainless Steel Barrel Nipples are manufactured from high-quality SS 304 / 316 / 316L, ensuring excellent corrosion resistance, durability, and pressure performance. Available in a variety of lengths and wall thicknesses, our barrel nipples are machined to meet ASTM / ANSI / DIN / JIS standards and offer BSP or NPT threads.
The design allows for straight-line pipe extension and is ideal for applications in oil & gas, chemical processing, water treatment, food-grade installations, and more.
| Material: | Stainless Steel 304 / 316 / 316L | ||||
| Type: | Barrel Nipple (Full-Length Threaded Nipple) | ||||
| Thread: | BSP / NPT/DIN | ||||
| Surface Finish: | Pickled / Polished / Satin | ||||
| Wall Thickness: | SCH10 / SCH40 / SCH80 | ||||
| Size Range: | 1/8” – 3” | ||||
| Standard: | ASTM A312 / A733 / ASME B1.20.1 | ||||
 |  |
 |  |
