Product Description

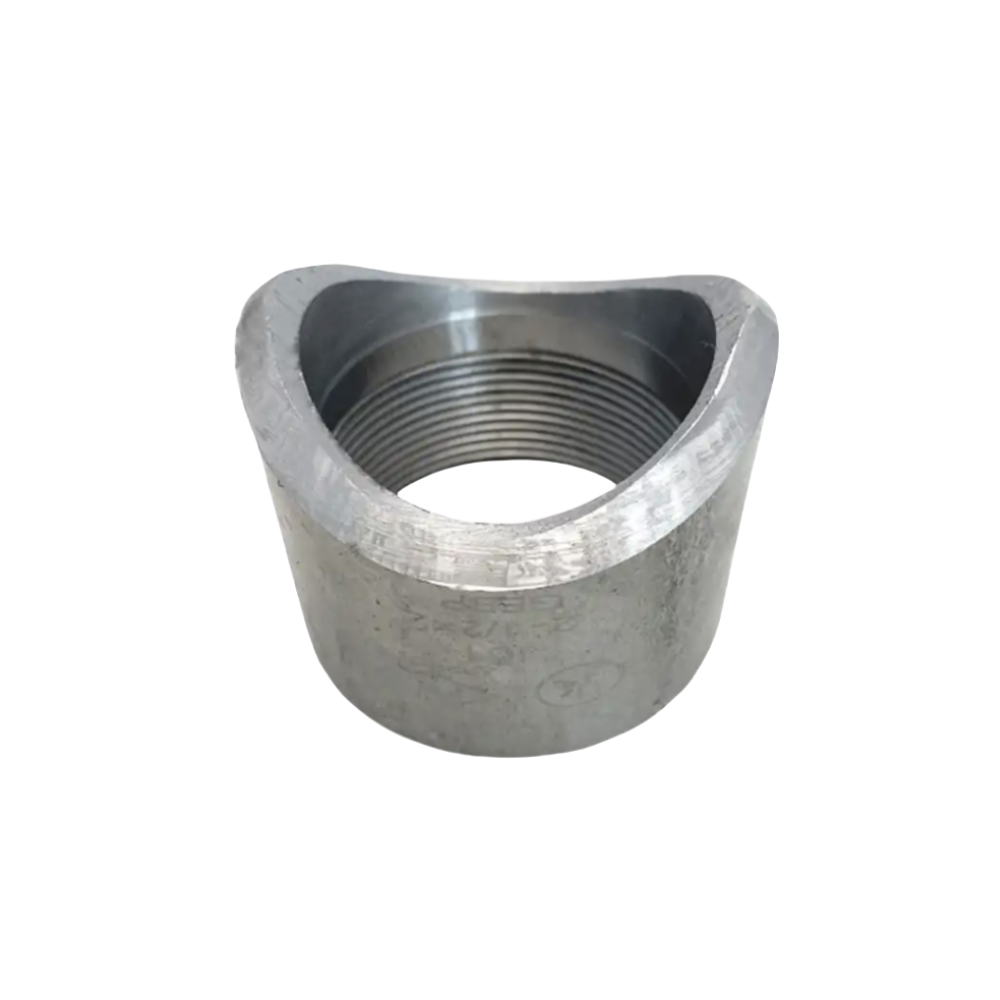

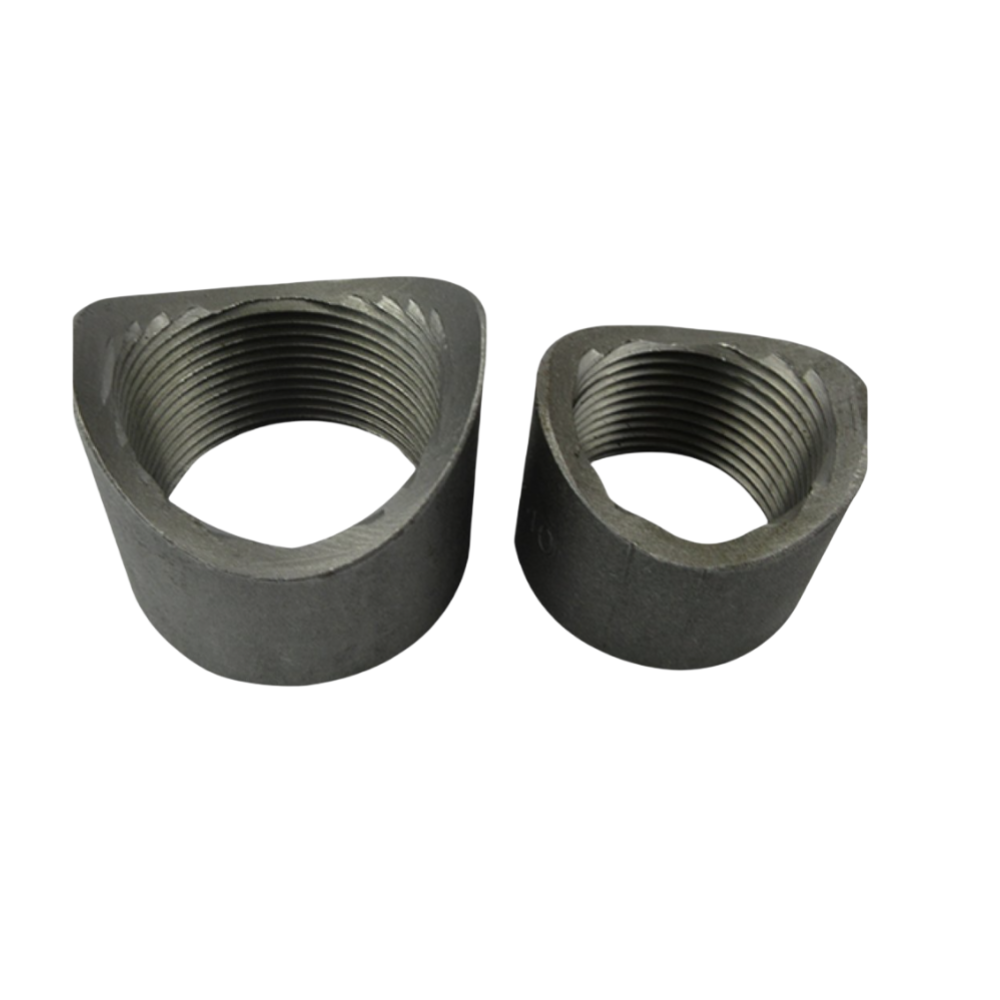

A Threaded Welded Outlet is a type of pipe fitting designed to create a branch connection from a main pipe. It features a welded base that attaches to the main pipe and a threaded outlet that allows for easy connection to a secondary pipe or fitting. This fitting provides a strong, leak-proof joint while allowing for quick installation and disassembly.
Material:ASTMA106
Threads:ASME B1.20.1,IS07/1
| ||||||||||

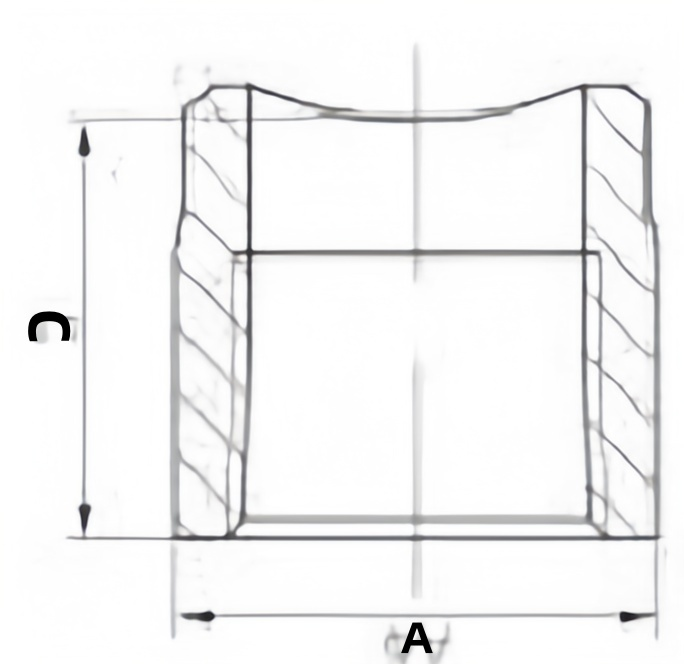

| Size | In | 1/2 | 3/4 | 1 | 11/4 | 11/2 | 2 | 21/2 | 3 | 4 |
| Pipe Run Size | In | 1 to 4 | l to 4 | 11/4 to 6 | 11/2 to 6 | 2 to 6 | 3 t0 6 | 3 to 8 | 4 to 8 | 6 to 8 |
| A | In | 1.083 | 1.331 | 1555 | 1870 | 2.165 | 2.724 | 3.209 | 3.957 | 4.961 |
| c | In | 1.063 | 1.126 | 1.248 | 1374 | 1.626 | 1.752 | 2.217 | 2.500 | 3.000 |
| Advantages of Threaded Welded Outlet | ||||||||||||||
| Strong and Durable | The welded connection ensures high structural integrity and resistance to pressure. | |||||||||||||
| Leak-Proof Design | The combination of welding and threading provides a secure, leak-resistant connection. | |||||||||||||
| Easy Installation connection. | The threaded outlet allows for quick and tool-friendly assembly without complex welding on the branch | |||||||||||||
| Versatile Applications | Compatible with various piping materials, including carbon steel, stainless steel, and alloy steel. | |||||||||||||
| High Pressure and Temperature Resistance industrial and fire protection systems. | Suitable for high-pressure and high-temperature applications, especially in | |||||||||||||
| Cost-Effective | Reduces the need for additional fittings, minimizing material and labor costs. | |||||||||||||
