Product Description

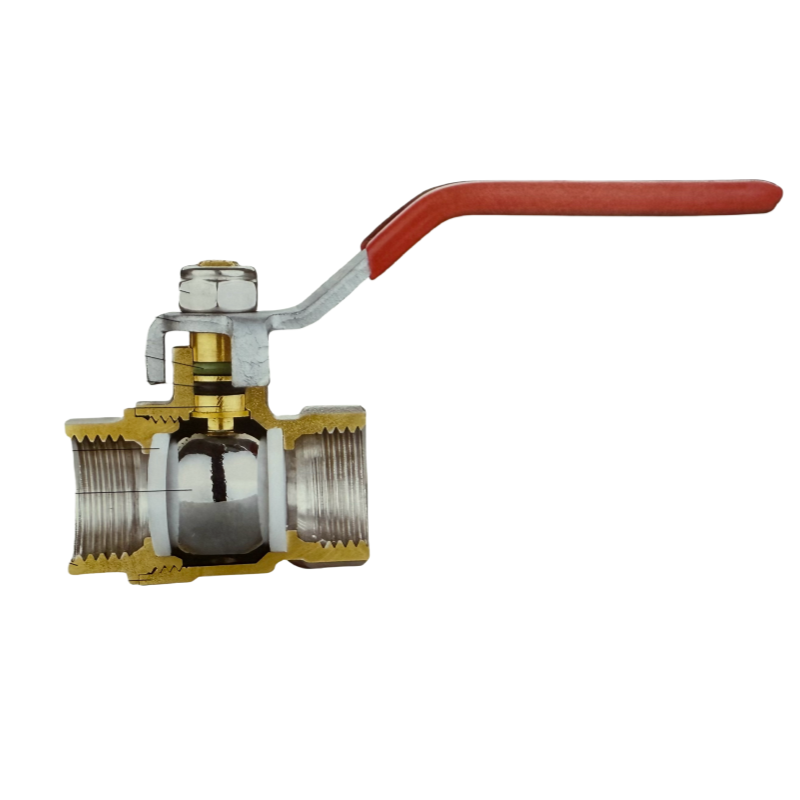

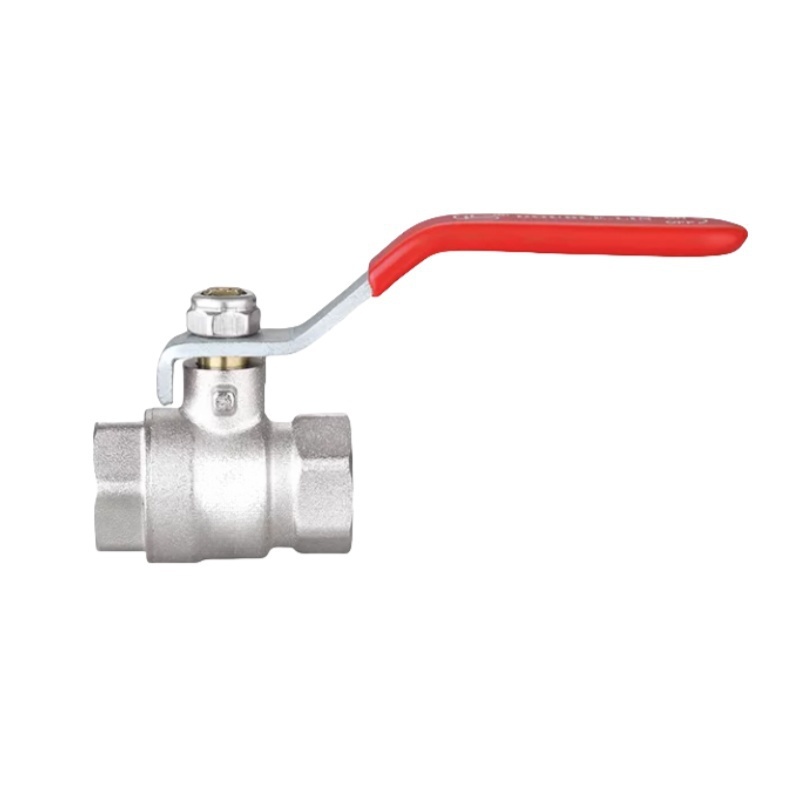

The Brass Ball Valve (1/4" to 4") is a durable and high-performance shut-off valve designed for residential, commercial, and industrial fluid control systems. Featuring a female x female threaded connection, this valve is rated for 25 bar working pressure and is suitable for applications involving water, gas, and oil.
Its flat lever handle provides smooth operation and clear open/close positioning, making it ideal for frequent use in pipeline systems. Manufactured from high-quality forged brass, the valve offers excellent corrosion resistance and long service life.
| Size: | 1/4" - 4" |  |
| working pressure | 25 bar（362.5psi） | |
| working temperature | From -10 ℃ To +120 ℃ (from 14℉ To 248℉) | |
| Thread: | ISO228 (equivalent To DIN 259 And BS2779) | |
| Opening/closing Test: | 10,000 Times |
Technical Specification
 | |||||||||||

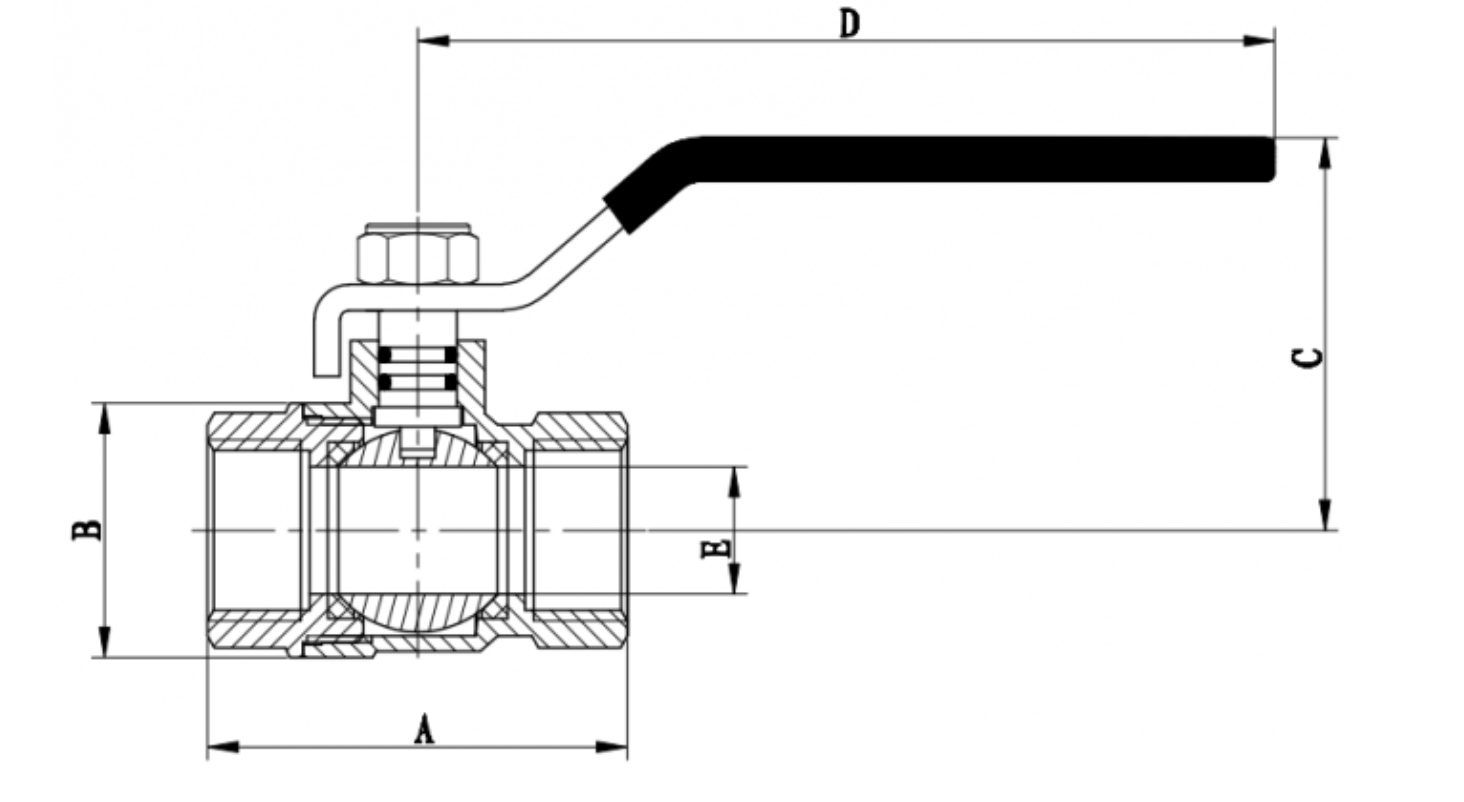

| Dimension mm | 1/4" | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" | 2-1/2" | 3" | 4" |
| A | 40 | 41 | 48.4 | 56 | 65 | 76 | 85 | 99 | 132 | 152 | 178 |
| B | 23 | 23 | 29.5 | 35.5 | 42.7 | 53 | 63 | 79 | 102.5 | 120.5 | 144.5 |
| C | 39.2 | 39.8 | 54.2 | 57.6 | 60.6 | 75.8 | 81.3 | 88.5 | 121.5 | 129.5 | 141 |
| D | 87 | 87 | 95 | 95 | 126 | 140 | 140 | 165 | 224 | 224 | 283.5 |
| E | 9 | 10 | 14.8 | 19 | 24 | 30.2 | 37 | 47 | 62 | 74 | 90 |
| PN | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
Optional Customization:
Handle color & material (plastic-coated, stainless, etc.)
Logo printing or OEM branding
Surface finish (nickel-plated / natural brass)
FAQ
Q: How long is your product guarantee period?
A: We have three-year guarantee and 24 hours full-time service.
Q: What is your MOQ?
A: We have no MOQ. We have a large warehouse and we promise "Instant Order, Immediate Delivery and No MOQ".
Q: How long is your delivery time?
A: For the items if we have enough stocks, we can send to you immediately. For mass production, we can promise 30-35 days.
