Product Description

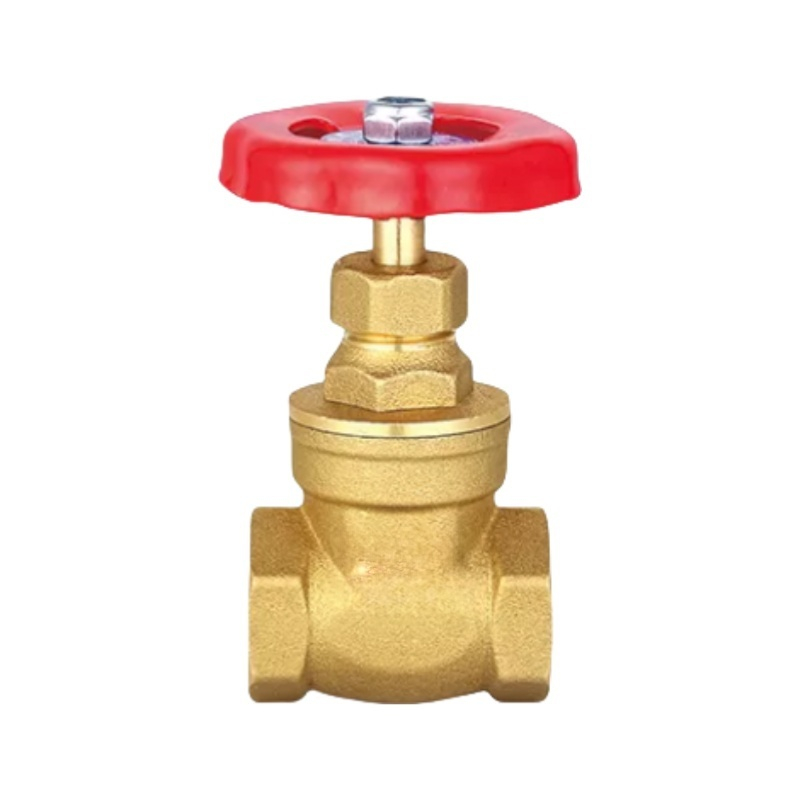

This Brass Gate Valve is designed for reliable shut-off control in water, oil, and gas piping systems. Available in sizes from 1/2" to 4", it is built with durable forged brass for corrosion resistance and a cast iron handwheel for firm, smooth operation.
Rated for 16 bar working pressure, this valve ensures long-lasting performance in residential, commercial, and light industrial applications. The rising stem and full-port design provide efficient flow control, while the threaded connections (BSP or NPT) ensure easy installation.
| working pressure | 16 Bar(232 Psi) |  |  |
| working temperature | From -10 ℃ To +120 ℃ (from 14℉ To 248℉) | ||
| Thread: | ISO228 (equivalent To DIN 259 And BS2779) |

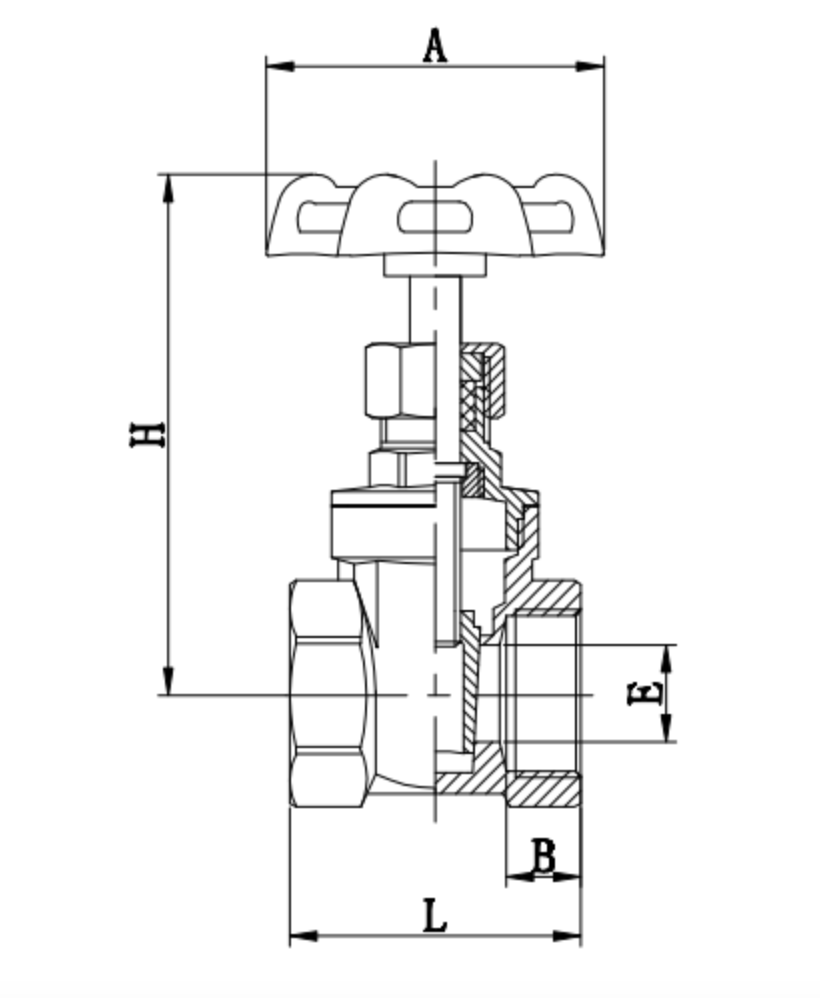

Technical Specification
| Dimension mm | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" | 2-1/2" | 3" | 4" |  |
| A | 54 | 54 | 60 | 73 | 73 | 80 | 100 | 108 | 144 | |
| B | 11 | 12 | 12.5 | 13.5 | 13.5 | 14.5 | 21 | 21 | 21 | |
| H | 71 | 74 | 81 | 99 | 110 | 129 | 168 | 176 | 206 | |
| L | 41 | 43 | 48 | 53 | 55.5 | 61 | 80 | 84.5 | 90 | |
| E | 14 | 15 | 20 | 25 | 31 | 40 | 53 | 60 | 75 | |
| PN | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 |
Optional Customization:
Handle color & material (plastic-coated, stainless, etc.)
Logo printing or OEM branding
Surface finish (nickel-plated / natural brass)
FAQ
Q: How long is your product guarantee period?
A: We have three-year guarantee and 24 hours full-time service.
Q: What is your MOQ?
A: We have no MOQ. We have a large warehouse and we promise "Instant Order, Immediate Delivery and No MOQ".
Q: How long is your delivery time?
A: For the items if we have enough stocks, we can send to you immediately. For mass production, we can promise 30-35 days.
