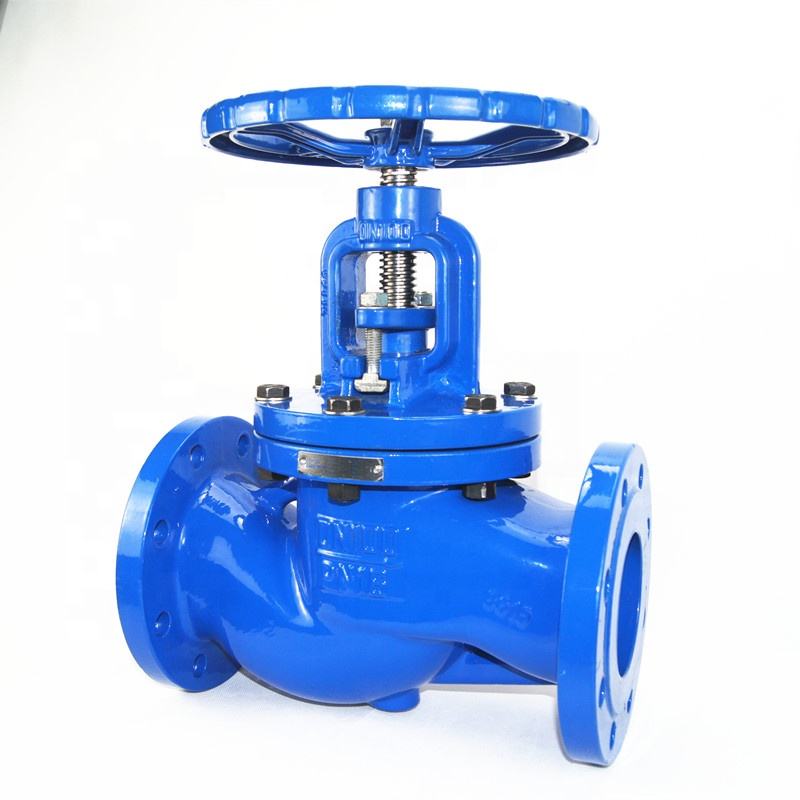

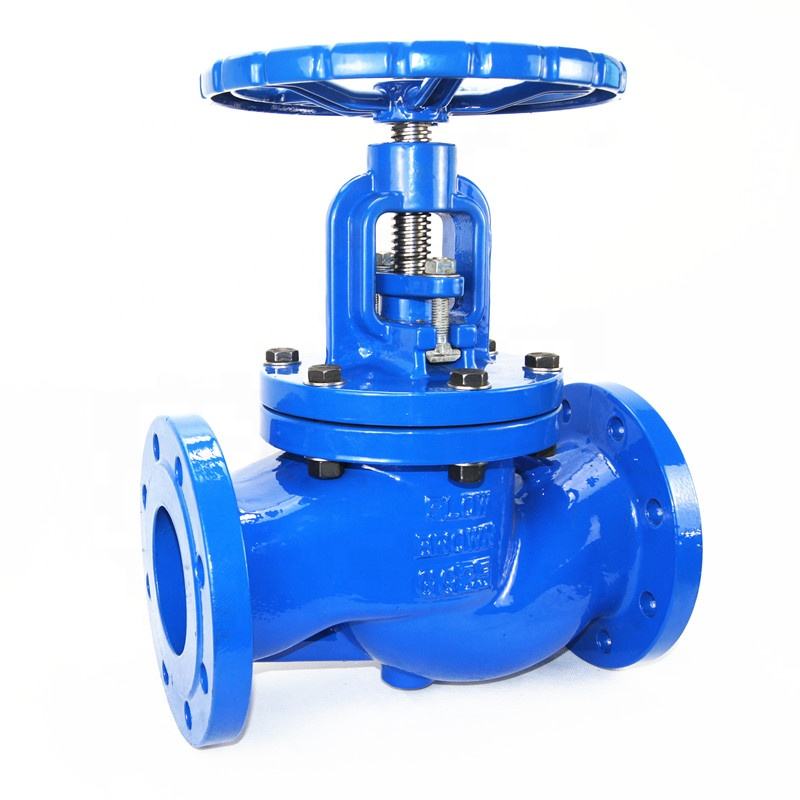

Cast Iron Globe Valve

Overview

Cast Iron Flange Type Globe Valve is designed for regulating and shutting off fluid flow in piping systems. Manufactured in accordance with ANSI, BS and MSS standards, this valve features reliable sealing performance, stable operation, and wide media compatibility. It is widely used in water supply, sewage treatment, industrial pipelines, and general utility systems.

Product Description

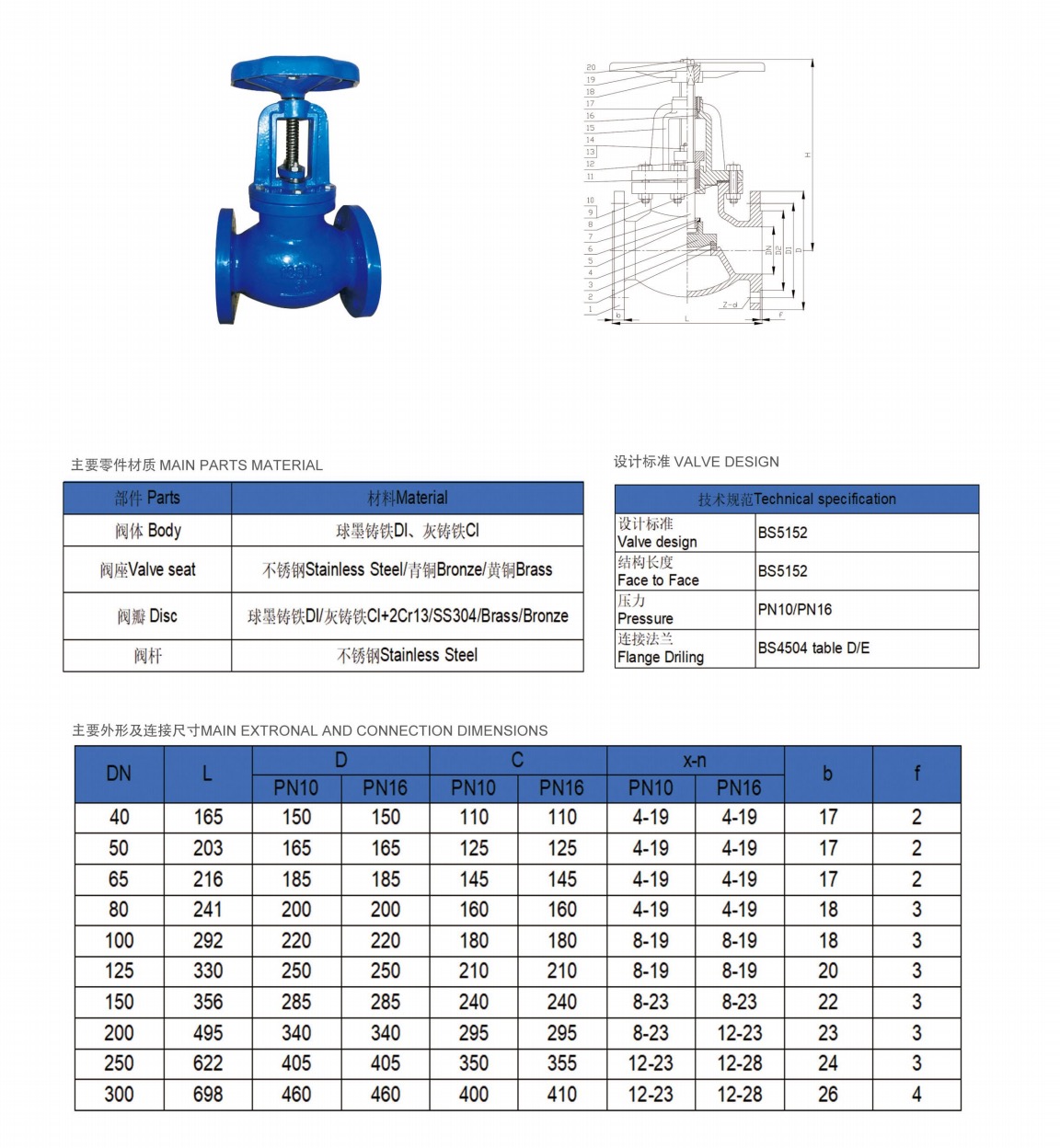

The Cast Iron Flange Type Globe Valve adopts a compact and robust cast iron body with flanged ends for secure installation and easy maintenance. Designed according to ANSI B16.10 / BS 5152 standards, it ensures accurate face-to-face dimensions and interchangeability.

With pressure ratings up to PN16 and nominal sizes ranging from DN50 to DN600, this valve is suitable for a wide range of low- and medium-pressure applications. Multiple operation modes, including manual, worm gear, pneumatic, and electric actuators, are available to meet different control requirements.

Standards:

Features & Functions

• Compact structure & lightweight design
  Small size and reduced weight make installation and maintenance easier.

• Reliable sealing performance
  Tight sealing ensures no leakage under pressure water testing.

• Fast and stable closing action
  Prevents medium backflow and effectively reduces water hammer effects.

• Short face-to-face length
  Saves installation space while maintaining good rigidity and strength.

• Wide pressure and size range
  Nominal diameter from DN50 to DN600, pressure class PN10 / PN16.

• Multiple operation options
  Available in manual, worm gear, pneumatic, and electric operation.

• High operational safety
  Stable performance with strong resistance to system interference.

Applications

Cast Iron Flange Type Globe Valves are widely used in:

• Water supply and drainage systems

• Sewage and wastewater treatment plants

• Industrial pipelines

• HVAC systems

• Chemical processing

• Steam, air, and oil pipelines

• Food, pharmaceutical, and general utility services

Applicable media include fresh water, sewage, sea water, air, vapor, oils, acids, alkalis, and other non-corrosive or mildly corrosive fluids.

Faq

Q1: What standards does this globe valve comply with?
A: The valve is designed and manufactured according to MSS SP-70, with flange connection and face-to-face dimensions complying with ANSI B16.10 (125LB) or BS 5152 PN16.

Q2: What pressure ratings are available?
A: The valve is available in PN10 and PN16, with corresponding shell and sealing test pressures meeting international standards.

Q3: What is the maximum working temperature?
A: The maximum applicable temperature is 150°C.

Q4: What operation types can be selected?
A: Manual operation is standard. Worm gear, pneumatic, and electric actuators are available upon request.

Q5: What industries commonly use this valve?
A: It is commonly used in water works, industrial factories, HVAC systems, chemical plants, and general infrastructure projects.
