Seismic Bracing Systems: Core Technology for Building Safety

Article Overview

In earthquake-prone regions, a building’s seismic performance is directly related to the safety of occupants and the stability of critical infrastructure. Seismic bracing systems play a crucial role in protecting mechanical, electrical, and plumbing (MEP) systems such as pipelines, cable trays, and ventilation ducts from earthquake damage, ensuring the continued functionality of buildings. This article explores the working principles, key technical aspects, and practical applications of seismic bracing systems, providing insights for engineers and construction professionals.

1. Function and Working Principle of Seismic Bracing

The primary function of a seismic bracing system is to provide lateral and longitudinal support during an earthquake, effectively dispersing and absorbing seismic energy to reduce the risk of structural damage.

✅ Structural Stability: Seismic braces use anchors, connectors, and rigid supports to transfer external forces evenly to the building structure.

✅ Shock Absorption: Specifically designed support configurations help minimize vibrations, preventing pipes and equipment from breaking or detaching.

✅ Load Distribution Optimization: The system ensures a balanced distribution of gravity and seismic forces, enhancing overall earthquake resistance.

2. Key Technical Aspects

✅ Design Standards: Seismic bracing must comply with national or international standards, such as GB 50981 (China’s seismic design code for MEP systems) or NFPA 13 (U.S. fire protection standard).

✅ Rigid Connections: High-strength materials and secure anchoring systems ensure a firm connection between the bracing and the building structure.

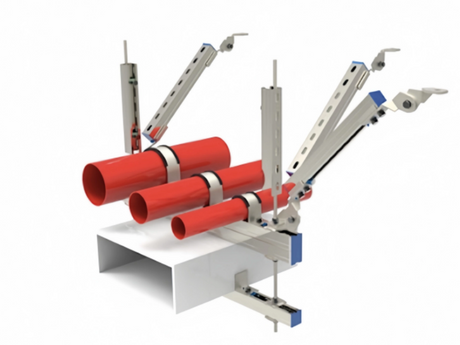

✅ Multi-Directional Support: Seismic braces often use rigid diagonal bracing to provide bidirectional or tridirectional reinforcement, improving overall stability.

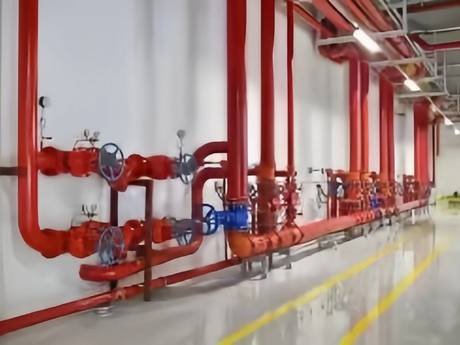

✅ Adaptability Across Systems: Seismic bracing systems can be applied to fire protection piping, plumbing, HVAC, and cable trays, with designs optimized based on load requirements.

3. Applications and Advantages

✅ High-Rise Buildings: Enhances the earthquake resistance of MEP systems, reducing potential damage.

✅ Hospitals & Data Centers: Ensures the continuous operation of critical life-support and communication systems.

✅ Industrial & Infrastructure Projects: Suitable for large factories, transportation hubs, and other facilities requiring high seismic performance.

4. Conclusion

Seismic bracing systems are a vital technology for improving building safety, effectively protecting MEP infrastructure from earthquake damage. Proper design and installation not only ensure compliance with modern building codes but also significantly reduce disaster-related losses, providing long-term stability and reliability for building operations.
