Products Description
Malleable Iron Pipe Fittings – EN10242 Standard (Galvanized & Black)
We supply a complete range of EN10242 certified malleable iron pipe fittings, available in electro-galvanized, hot-dip galvanized and black finishes to meet different installation environments.Our products are certified according to ISO, UL/FM (optional), and meet ASTM A197 / DIN EN 10242 standards.
Available Grades
Type A – Medium Duty
Type B – Heavy Duty
Heavy Plus
Thread Standards
BSPT (Primary Standard, widely used in Europe & Middle East)
NPT (Optional for North America, South America & Middle East markets)

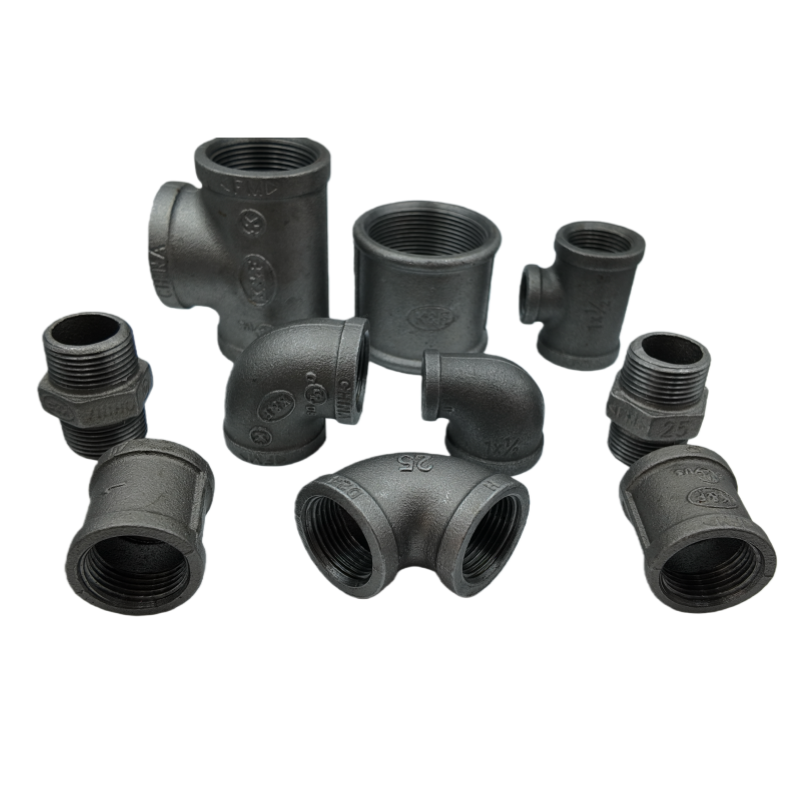

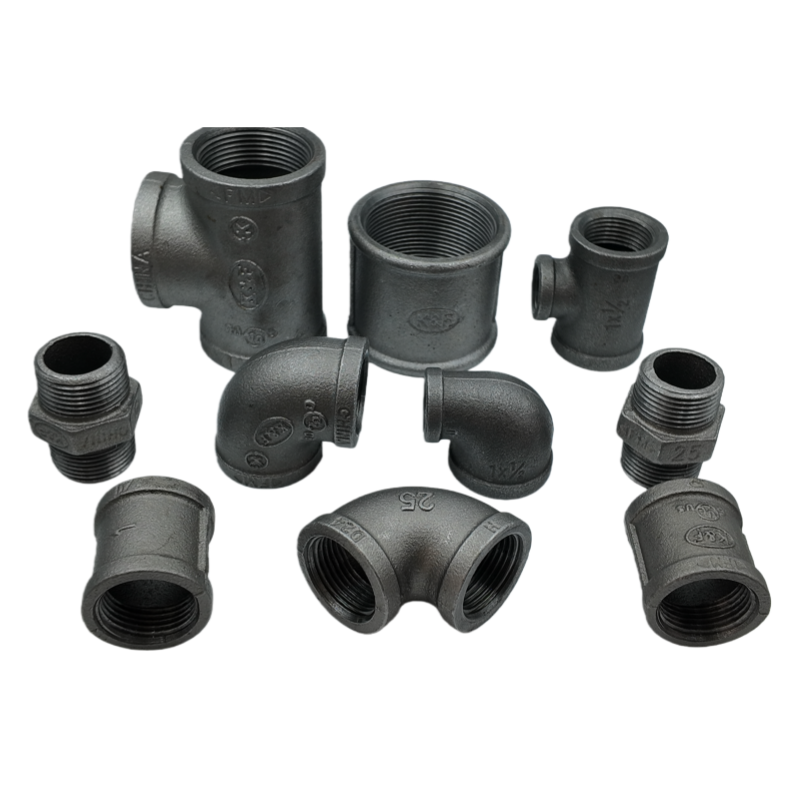

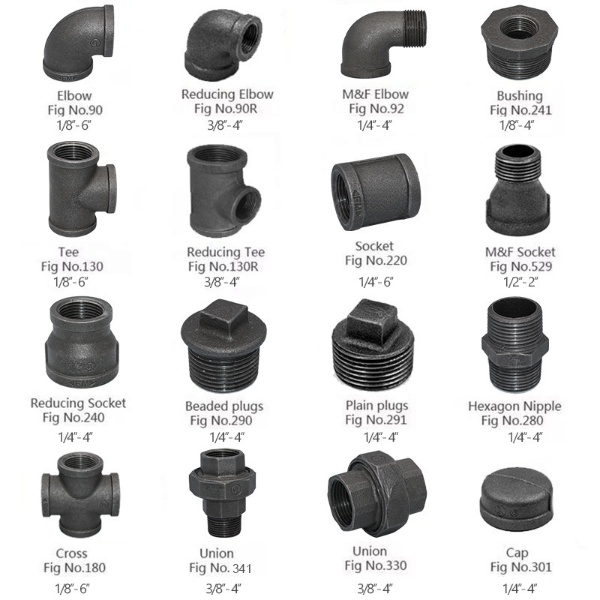

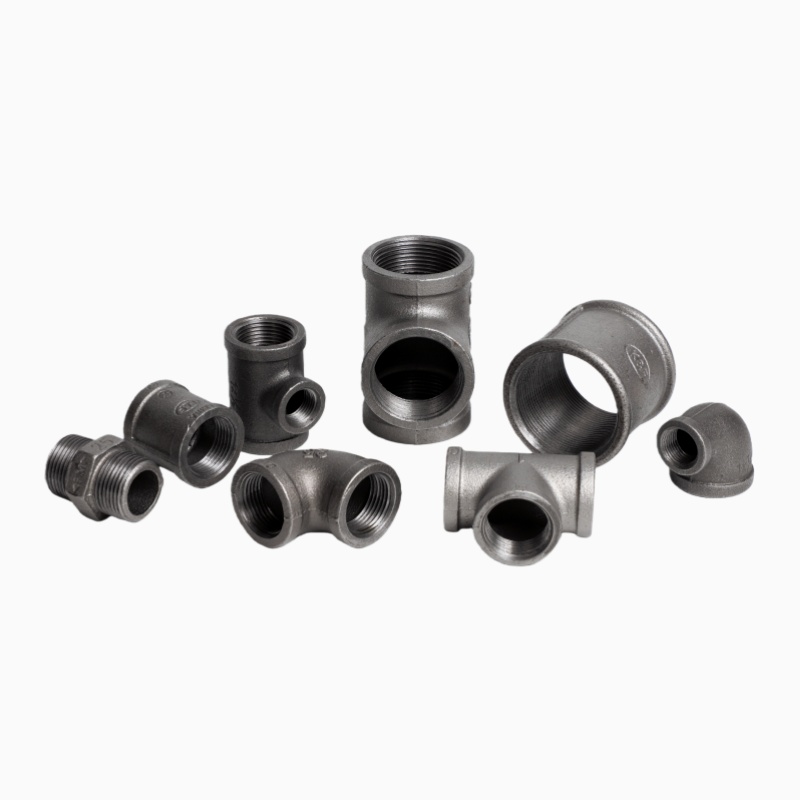

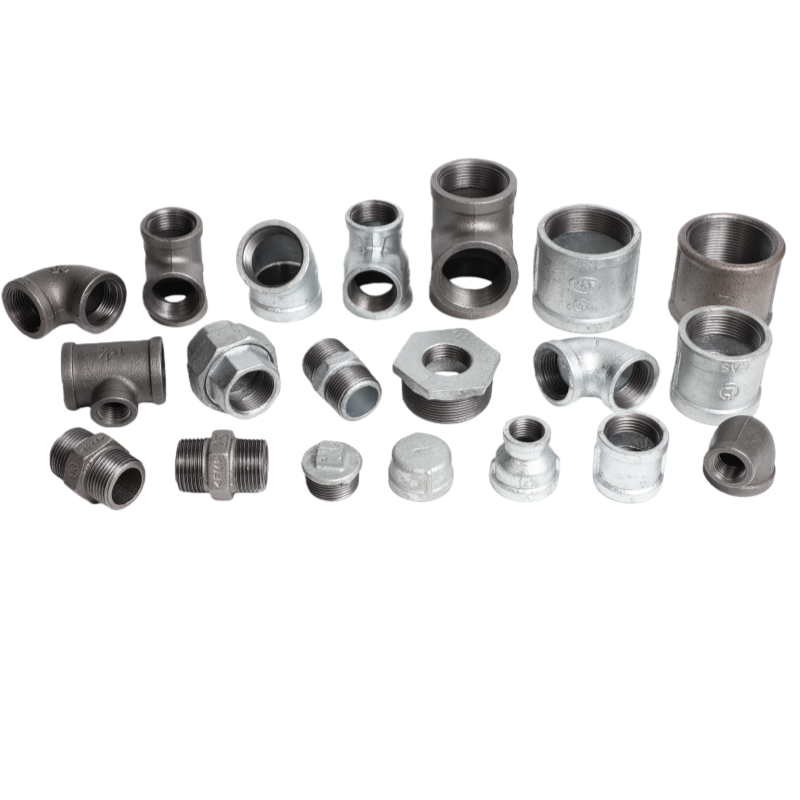

Available Fitting Types

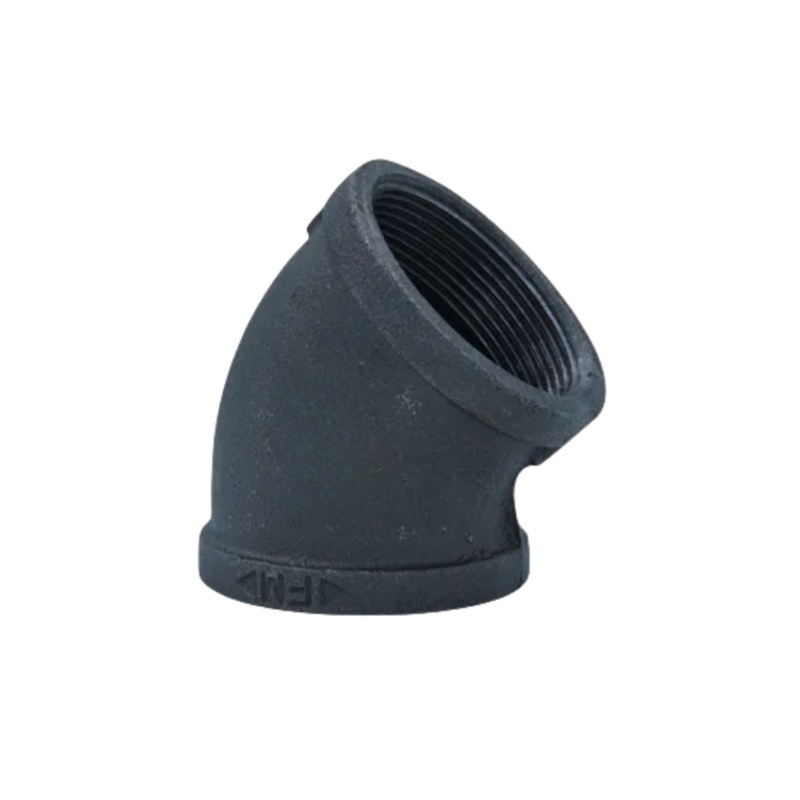

90° Elbow / 45° Elbow
Equal Tee / Reducing Tee
Socket / Coupling / Reducing Coupling
Union
Hex Nipple / Barrel Nipple / Close Nipple
Cap / Plug
Street Elbow / Male Elbow / Female Elbow
Cross / Reducing Cross
Reducer / Bush
Long Bend
Surface Treatment
Electro-Galvanized (Zinc Plated)
Hot-Dip Galvanized
Black (Anti-Rust Oiled)
Packaging Options
Woven Bag
Carton
Carton + Pallet (Recommended for long-distance shipping and forklift loading)
Applications
Widely used in firefighting systems, water supply networks, HVAC installations, gas pipelines and industrial fluid connections.
We support OEM branding, customized packaging and mixed loading to help distributors, wholesalers and contractors grow their business.
| size | 1/8''-6'' |
| Material | malleable iron |
| standard | ISO 5922/ISO 049/ISO 7-1,ISO 228/EN 1562:1997,EN 10242:2003/DIN 2950/1692/2999,ANSI/ASTM A197/A197M ANSI/ASME B16.3, B16.14, B16.39 |
| certifacate | FM/UL/CE/ABNT/SNI/SIRM/TSE/ISI |
| Surface Treatment: | Nature Black/Hot Dip Galvanized/Eletro Galvanized/ |
| work pressures | PN25/2.5Mpa/363PSI/class150/25bar |
| Max Temperature: | 200°C (392°F) |
| Tensile Strength: | ≥350MPA |
| Elongation: | ≥10% |
| Hardness: | ≤HB150 |

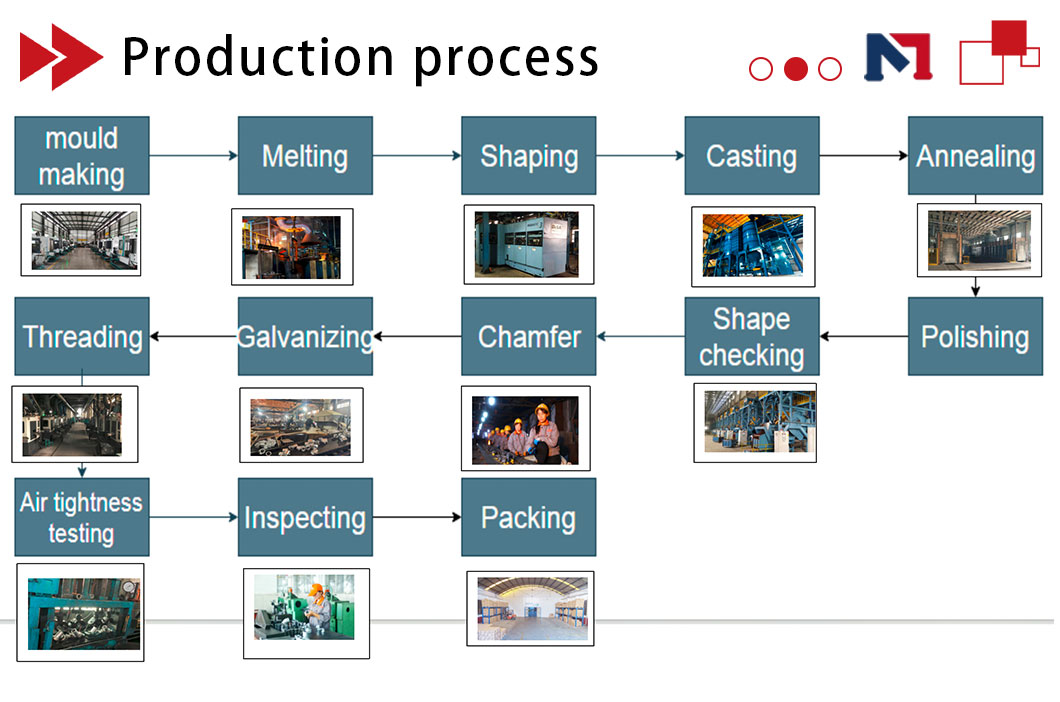

Main production process
FAQ
1. Product Certifications & Standards
Q1: Are your products compliant with international certifications (e.g., UL, FM, CE)?
A: Yes, our core products hold the following certifications:
Fire Protection Products: UL/FM
Pipes & Valves: CE-PED
Seismic Bracing: UL/FM
Regional certifications available (e.g., SASO for Saudi Arabia, GOST for Russia) upon request.
Q2: Can you provide third-party test reports or certification documents?
A: Absolutely! We supply with each shipment:
Factory inspection reports (material composition, pressure test data)
Original certifications (ISO 9001, lab accreditation)
2. Export Packaging & Logistics
Q3: Is your export packaging suitable for long-distance shipping or extreme climates?
A: We use 3-level protective packaging:
Anti-rust treatment: Vacuum sealing + anti-corrosion oil (metal parts)
Reinforced packaging: Moisture-proof wooden crates/steel strapping (<10% humidity)
Container solutions: Desiccants/shock-absorbing fillers (loading guidance video available)
Q4: Do you support EXW/FOB/CIF/DDP Incoterms?
A: Flexible options:
EXW (pickup at factory): Client arranges logistics
FOB (major Chinese ports): Includes export clearance
CIF/DDP: Partner with preferred freight forwarders (door-to-door quotes available)
Q5 What is your production and delivery timeline?
A:Standard products: 15-20 days (after order confirmation)
Customized products: 25-30 days (subject to drawing approval)
Q6: Can you provide complete customs clearance documents?
A: Each shipment includes:
Commercial Invoice
Packing List
Certificate of Origin (CO/Form F)
Material Test Certificate (MTC)
Special documents upon request
