Product Description

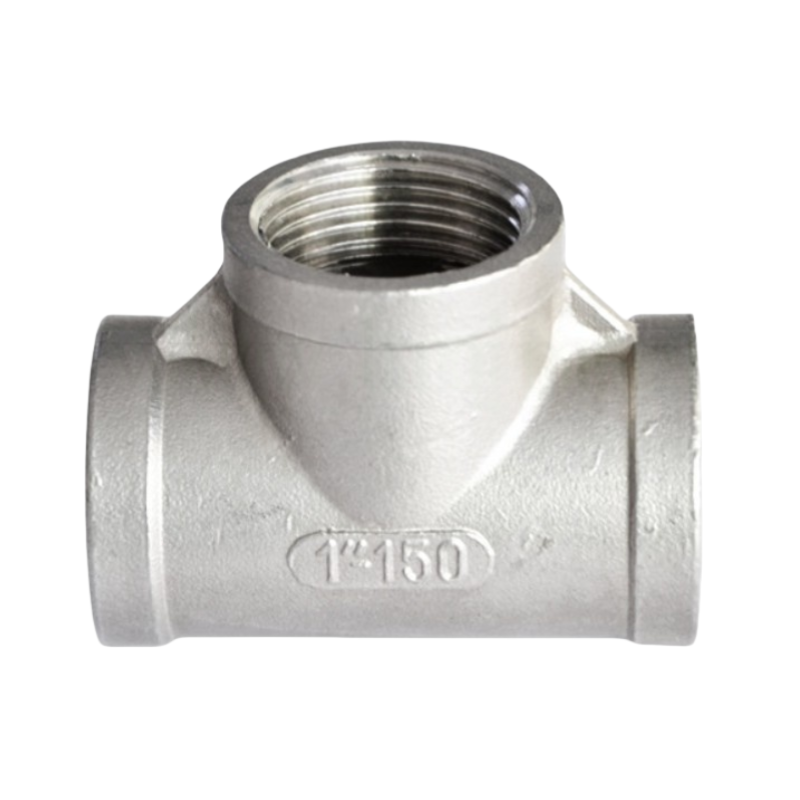

The Stainless Steel Tee Pipe Fitting is designed for splitting or combining flow in industrial piping systems. Available in both equal and reducing configurations, this tee is made from high-quality 304 or 316 stainless steel, offering excellent resistance to corrosion, high temperatures, and pressure.
FEATURES:
The thread ends conform to：
ASME B1.20.1(NPT)
DIN2999&BS21
ISO228/1&ISO7/1
Dimension conform to：
ISO4144
150LBS
Material conform to：ASTM A351-CF8M/1.4408
ASTM A351-CF8/1.4401
AISI 304,316
| Size I.P.S | 90º Elbow | 45º Elbow | 90º Street Elbow | Tee | Cross | Couplings | Half Coupling | Hex Bushings | Caps | Square Head Plug | Hex Head Plug | Unions | Reducing Coupling |
| 1/8 | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ |
|
|
| 1/4∨√ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ |
|
|
| 3/8 | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | √ |
| 1/2 | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | √ |
| 3/4 | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | √ |
| 1 | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | √ |
| 1 1/4 | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | √ |
| 1 1/2 | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | √ |
| 2 | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | √ |
| 2 1/2 | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | √ |
| 3 | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | √ |
| 4 | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | √ | ∨ | ∨ | ∨ | ∨ | √ |
