Product Description

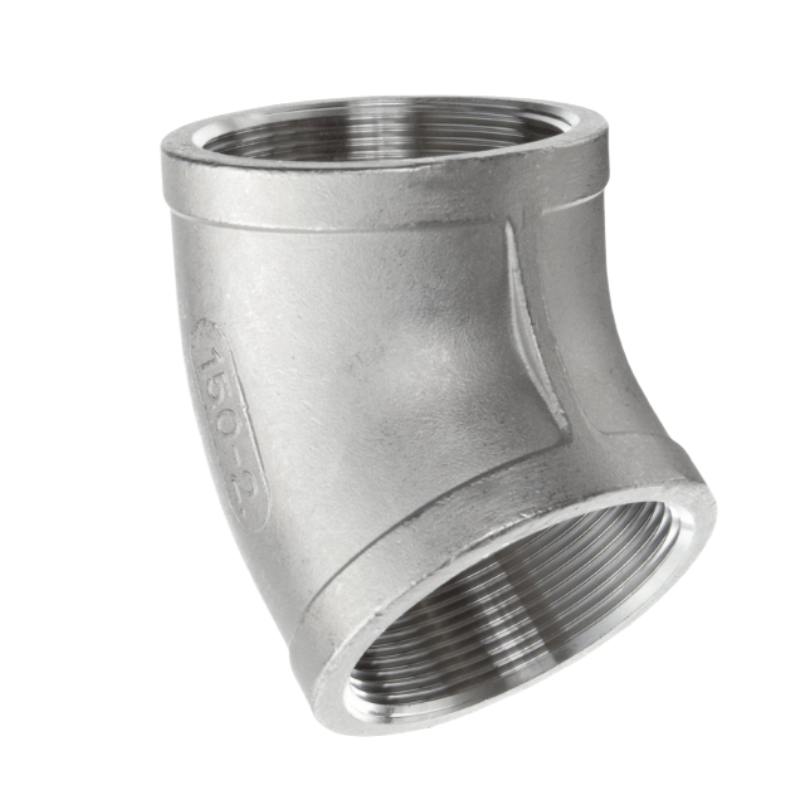

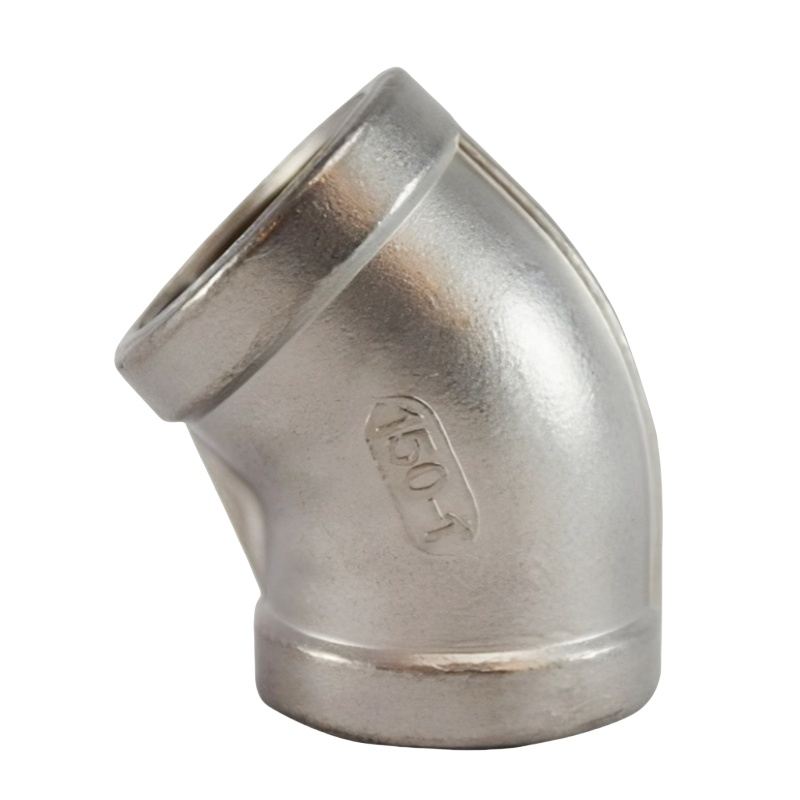

Our Stainless Steel 45 Degree Elbow is designed for redirecting flow at a 45° angle in piping systems, providing a smooth directional change while maintaining optimal flow dynamics. Manufactured from high-grade 304 or 316 stainless steel, this elbow offers outstanding corrosion resistance, strength, and durability for demanding environments.
FEATURES:
The thread ends conform to：
ASME B1.20.1(NPT)
DIN2999&BS21
ISO228/1&ISO7/1
Dimension conform to：
ISO4144
150LBS
Material conform to：ASTM A351-CF8M/1.4408
ASTM A351-CF8/1.4401
AISI 304,316
| Size I.P.S | 90º Elbow | 45º Elbow | 90º Street Elbow | Tee | Cross | Couplings | Half Coupling | Hex Bushings | Caps | Square Head Plug | Hex Head Plug | Unions | Reducing Coupling |
| 1/8 | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ |
|
|
| 1/4∨√ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ |
|
|
| 3/8 | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | √ |
| 1/2 | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | √ |
| 3/4 | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | √ |
| 1 | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | √ |
| 1 1/4 | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | √ |
| 1 1/2 | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | √ |
| 2 | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | √ |
| 2 1/2 | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | √ |
| 3 | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | √ |
| 4 | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | √ | ∨ | ∨ | ∨ | ∨ | √ |
