Product Description

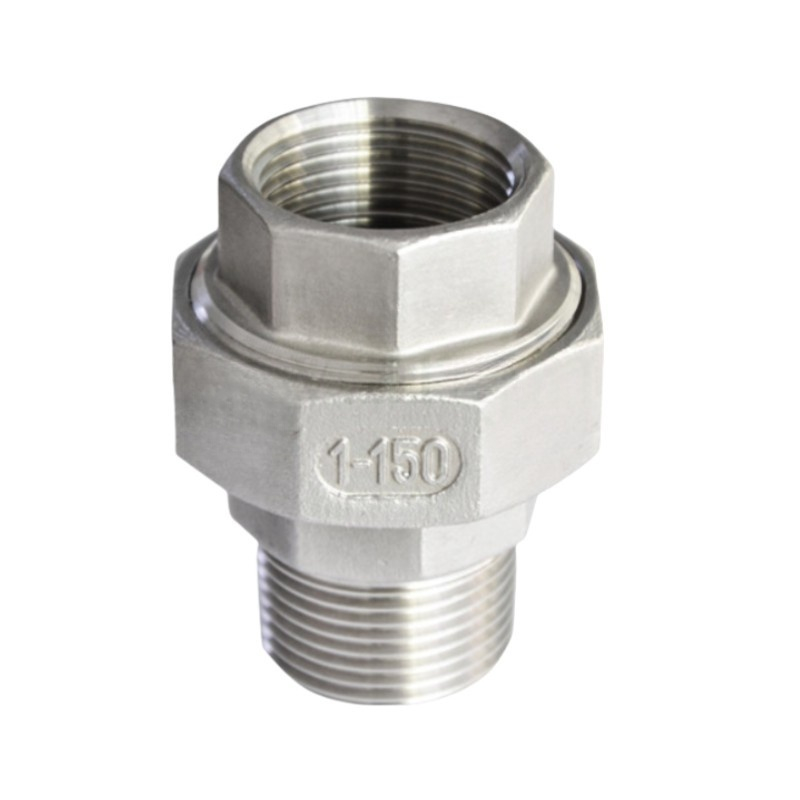

Stainless Steel Union Male/Female (M/F) is a high-quality threaded pipe fitting designed to connect pipes or components with male and female threads securely. Manufactured from 304 or 316 stainless steel, this union fitting provides excellent corrosion resistance, durability, and leak-tight performance in demanding plumbing, industrial, and chemical applications.
The thread ends conform to：
ASME B1.20.1(NPT)
DIN2999&BS21
ISO228/1&ISO7/1
Dimension conform to：
ISO4144
150LBS
Material conform to：ASTM A351-CF8M/1.4408
ASTM A351-CF8/1.4401
AISI 304,316
| Size I.P.S | 90º Elbow | 45º Elbow | 90º Street Elbow | Tee | Cross | Couplings | Half Coupling | Hex Bushings | Caps | Square Head Plug | Hex Head Plug | Unions | Reducing Coupling |
| 1/8 | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ |
|
|
| 1/4∨√ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ |
|
|
| 3/8 | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | √ |
| 1/2 | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | √ |
| 3/4 | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | √ |
| 1 | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | √ |
| 1 1/4 | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | √ |
| 1 1/2 | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | √ |
| 2 | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | √ |
| 2 1/2 | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | √ |
| 3 | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | √ |
| 4 | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | ∨ | √ | ∨ | ∨ | ∨ | ∨ | √ |
