In piping systems, thread type is one of the most important details when selecting pipe fittings, valves, and threaded accessories. A wrong thread standard may cause leakage, installation failure, or mismatch with the local piping system.
Among international markets, the three most commonly used thread types are BSPT, BSPP, and NPT. They are widely used in water supply, fire protection, HVAC, gas, industrial piping, and mechanical equipment connections.
This article explains the key differences between BSPT, BSPP, and NPT threads, their sealing methods, common applications, and suitable markets.
BSPT stands for British Standard Pipe Taper Thread.
It is a tapered thread, which means the thread diameter gradually changes along the thread length. When the male and female threads are tightened together, the tapered design creates a sealing effect.
BSPT threads usually require sealing materials such as PTFE tape, pipe sealant, or thread compound to improve sealing performance.

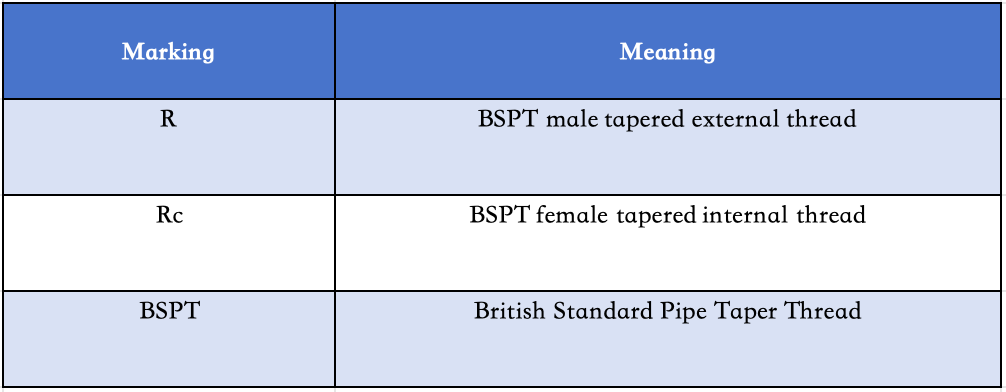

BSPT threads are commonly marked as:

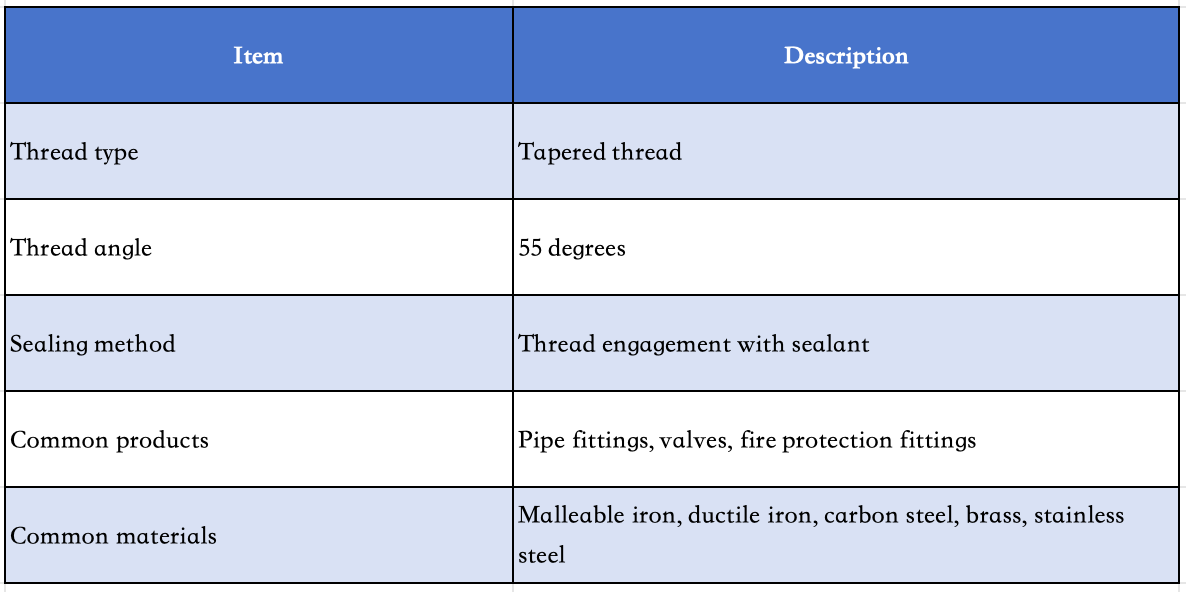

Main Features of BSPT Thread
BSPP threads are often used for:
Hydraulic fittings
Pressure gauges
Instrument connections
Mechanical equipment
Valve accessories
Pneumatic components
Special pipe connections requiring gasket sealing
For ordinary threaded pipe fittings, BSPP is less common than BSPT, but it is very important in hydraulic and equipment connection systems.

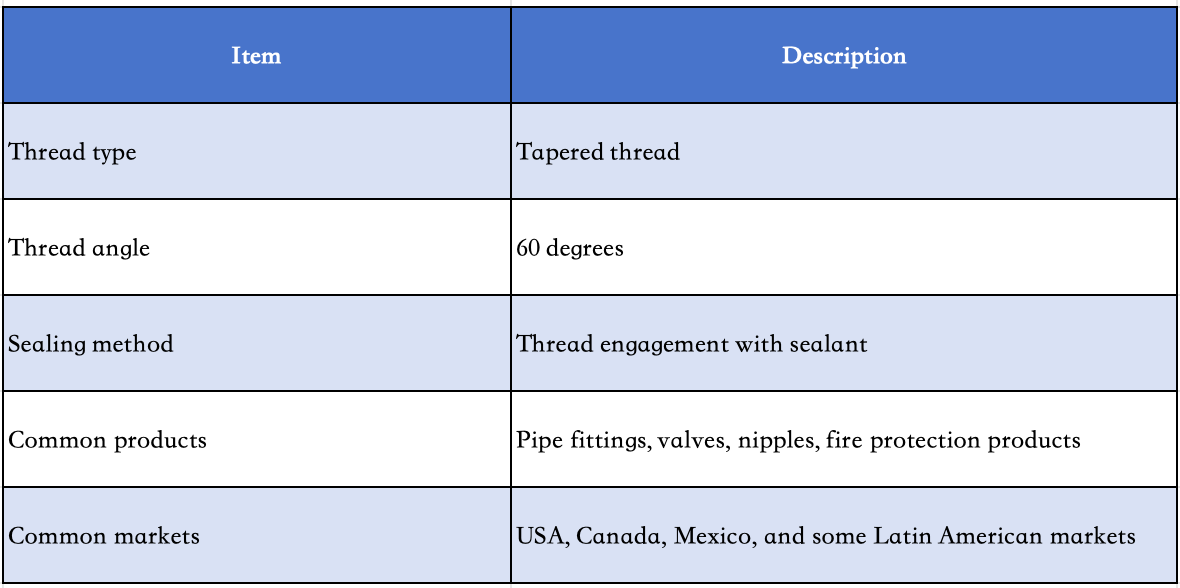

NPT stands for National Pipe Thread.
It is an American standard tapered pipe thread. Similar to BSPT, NPT is also a tapered thread, but the thread angle and thread form are different.
NPT threads are designed to create a seal through thread interference. In most applications, PTFE tape or pipe sealant is also used to ensure better sealing performance.
NPT threads are commonly used for:
Threaded pipe fittings
Fire protection systems
Industrial piping systems
Oil and gas pipelines
Water treatment systems
Valves and pipe nipples
Mechanical and equipment connections
NPT is especially common in North American markets and projects based on American standards.

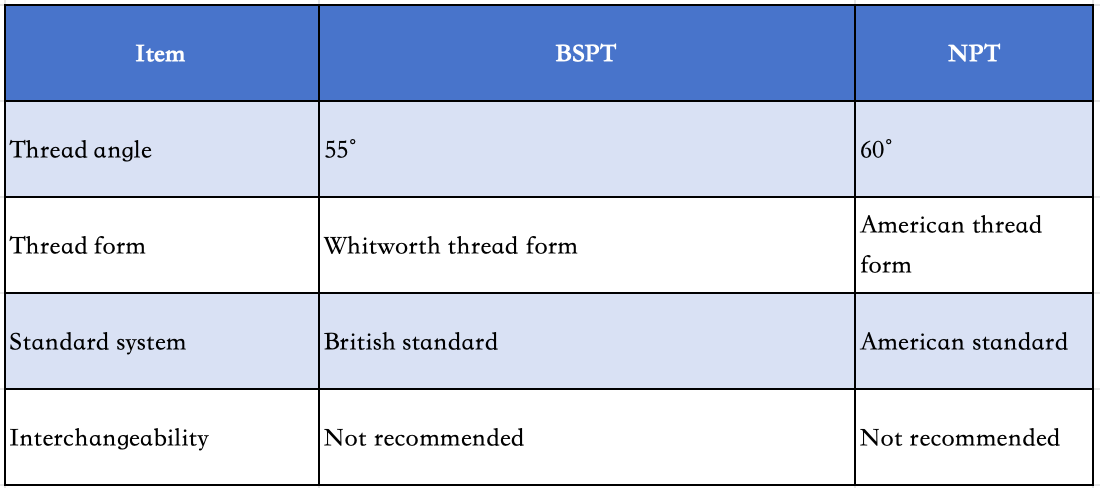

No. BSPT and NPT threads are not recommended to be used interchangeably.

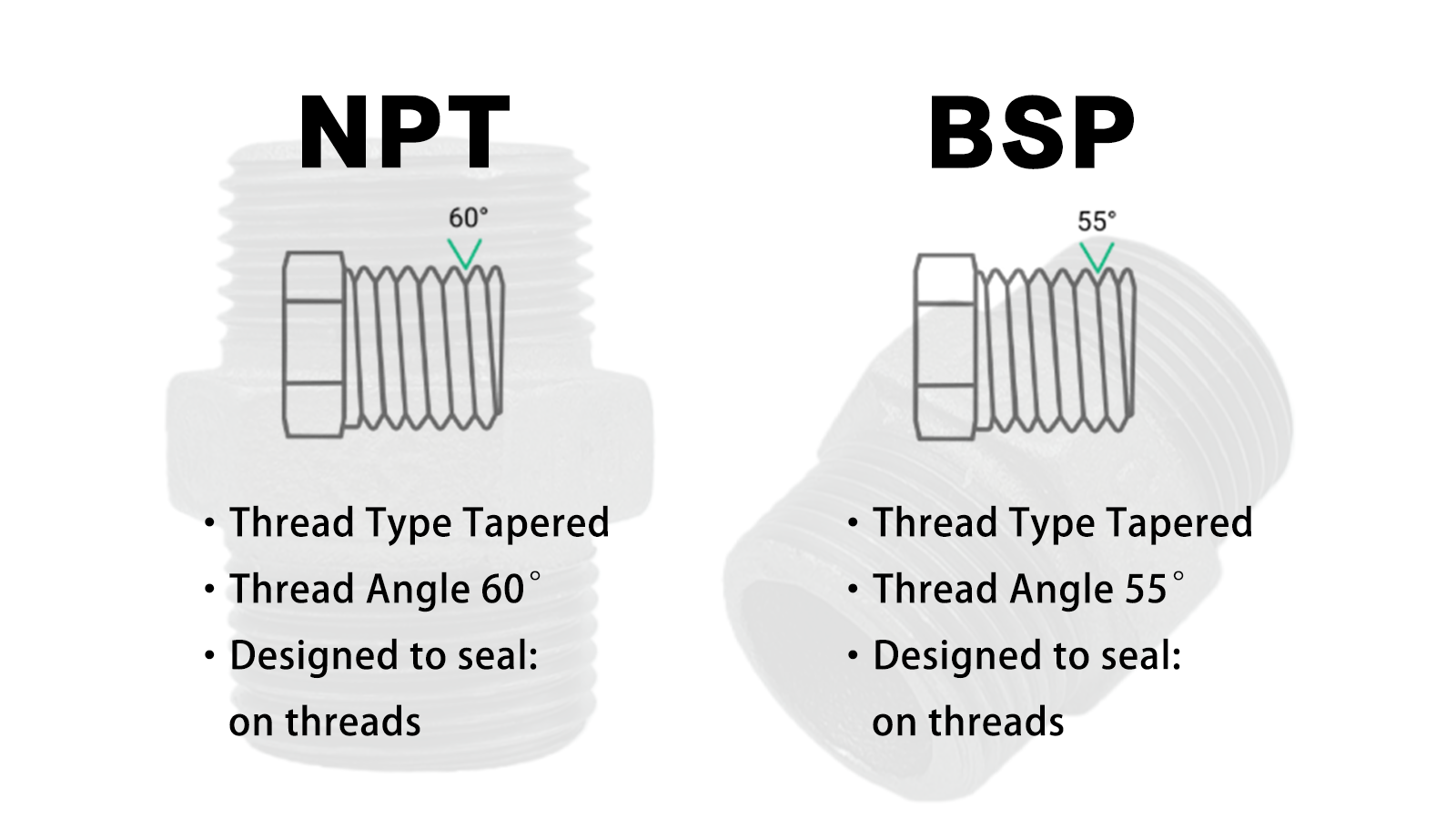

Although both BSPT and NPT are tapered threads, they have different thread angles and thread profiles.
Using BSPT and NPT together may cause poor sealing, thread damage, leakage, or installation failure.
For international orders, buyers should always confirm the required thread type before production.

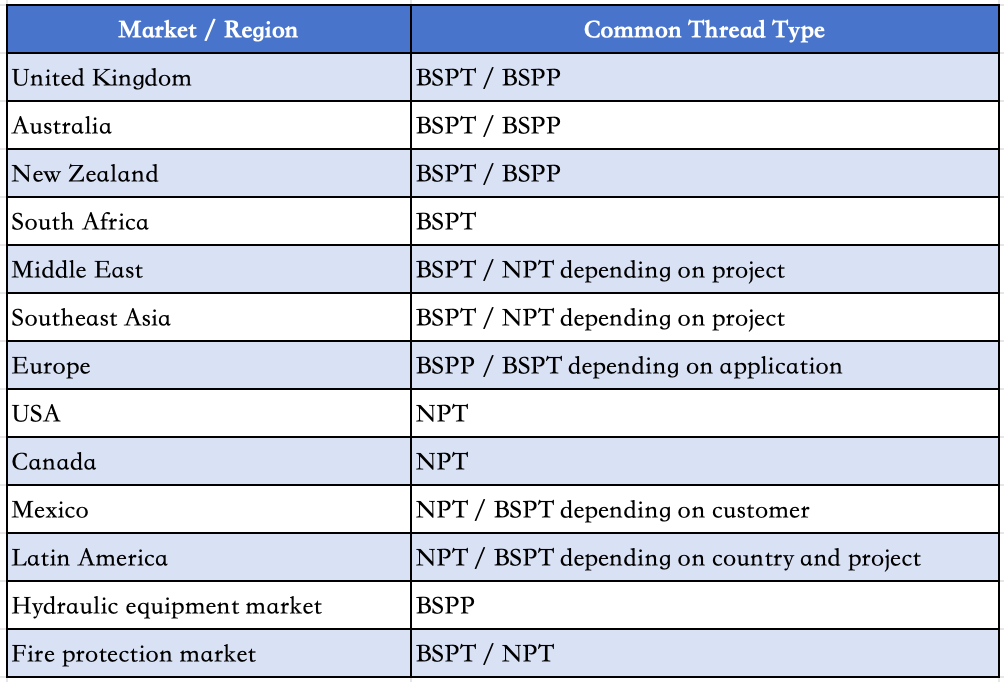

The correct thread type depends on the project standard, product type, and target market.
For malleable iron pipe fittings, the most common thread types are:
BSPT
NPT
BSPT is widely used in British standard markets, while NPT is mainly used in American standard markets.
For fire protection piping systems, thread type should follow the project specification. Common options include:
BSPT for British standard projects
NPT for American standard projects
In fire protection projects, thread accuracy and sealing performance are especially important because the system must maintain pressure and safety during operation.
For threaded valves, the required thread type depends on the market and installation system. Common options include:
BSPT threaded ends
NPT threaded ends
BSPP threaded ends for special applications
For valves used in fire protection, water supply, HVAC, and industrial systems, BSPT and NPT are more common than BSPP.
For hydraulic fittings, pressure gauges, and instrument connections, BSPP is often more common because it uses gasket or O-ring sealing.
For international trade, the safest method is to confirm the exact thread standard with the customer before quotation and production.
Choosing the correct thread type can help avoid:
Leakage during pressure testing
Thread mismatch during installation
Product rejection at the project site
Extra cost for replacement
Delays in project delivery
Safety risks in fire protection and pressure piping systems
For importers, distributors, and contractors, confirming the thread standard is a small step but very important for successful installation.

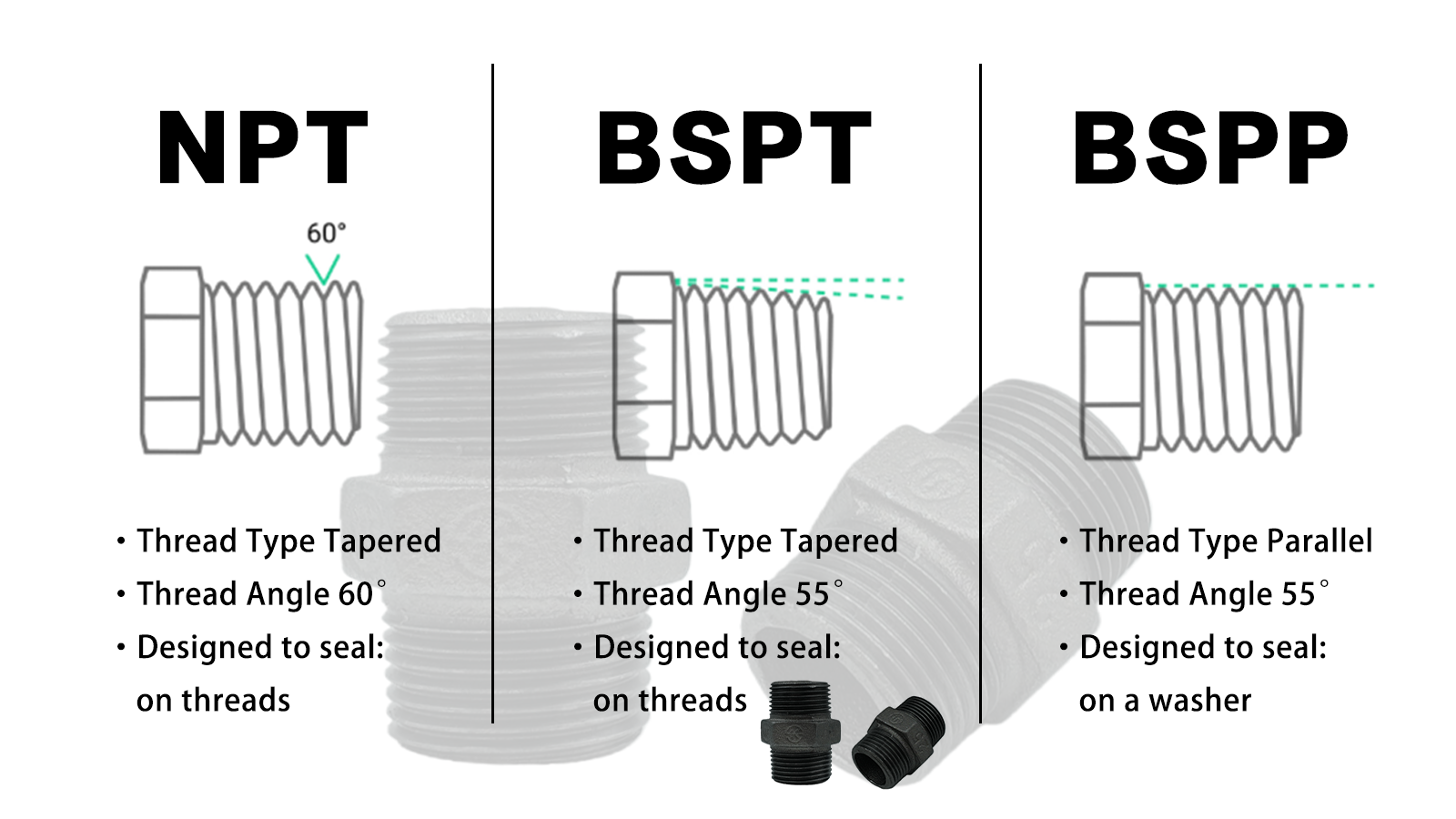

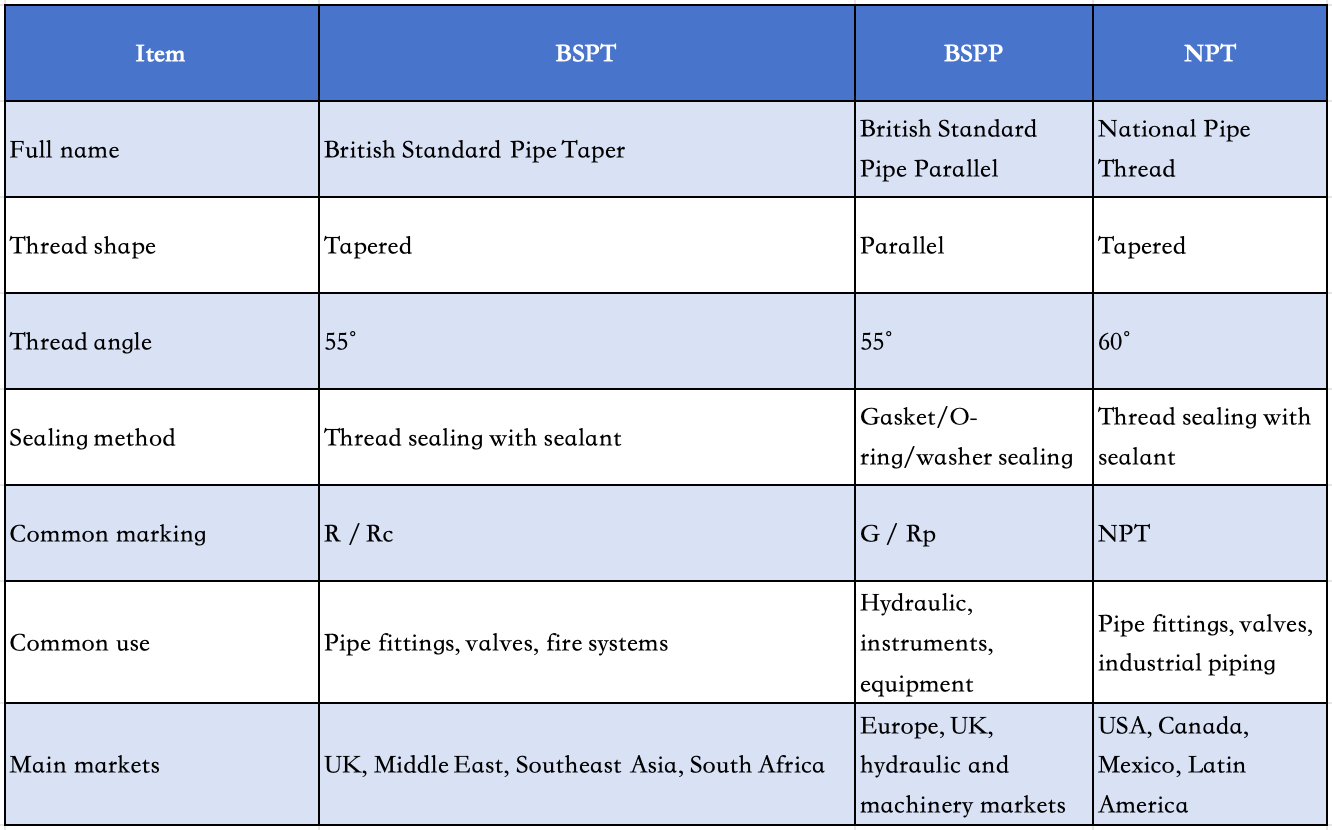

BSPT, BSPP, and NPT are three important pipe thread standards used in global piping systems.
BSPT is a British standard tapered thread, commonly used in pipe fittings, valves, and fire protection piping systems. BSPP is a British standard parallel thread, commonly used in hydraulic, instrument, and equipment connections. NPT is an American standard tapered thread, widely used in North America and American standard projects.
For pipe fittings, valves, and fire protection systems, the thread type should always be confirmed before production to ensure correct connection, reliable sealing, and smooth installation.
As a professional supplier of pipe fittings, valves, and fire protection piping products, we can provide different thread options according to customer requirements, including BSPT, BSPP, and NPT threads.
BSPT is a tapered thread and seals mainly through thread engagement with sealant. BSPP is a parallel thread and usually seals with a gasket, O-ring, or washer.
No. BSPT and NPT are both tapered threads, but they have different thread angles and thread forms. BSPT has a 55-degree thread angle, while NPT has a 60-degree thread angle.
It is not recommended. Using BSPT and NPT together may cause leakage, thread damage, or poor sealing performance.
BSPT and NPT are the most common thread types for malleable iron pipe fittings. BSPT is common in British standard markets, while NPT is common in American standard markets.
It depends on the project standard. BSPT is common in many British standard markets, while NPT is common in American standard fire protection projects.
BSPP can be used in some piping applications, but it is more common in hydraulic fittings, instruments, valve accessories, and mechanical equipment where gasket or O-ring sealing is required.
