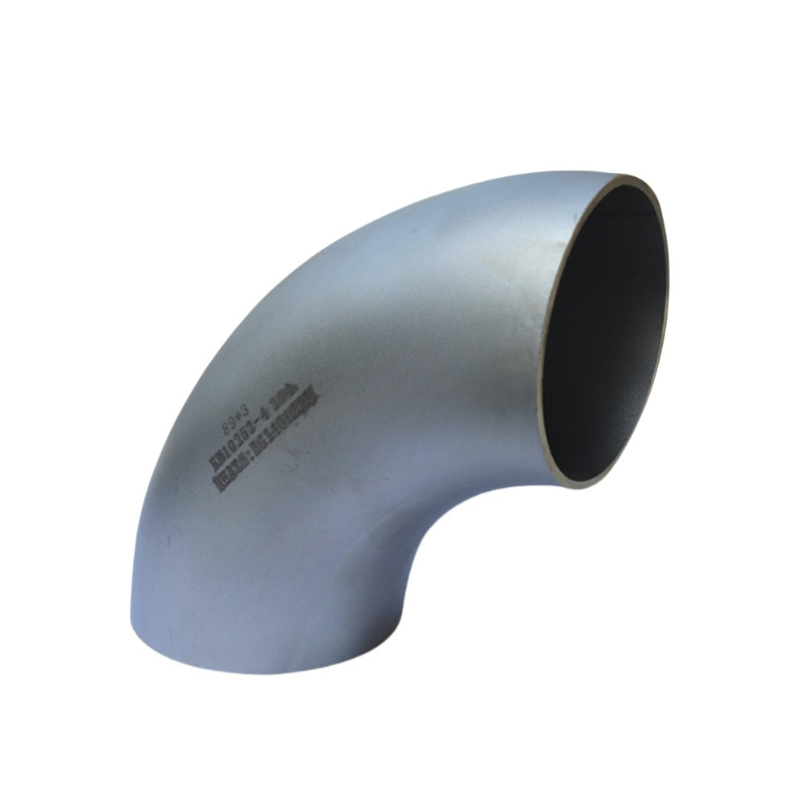

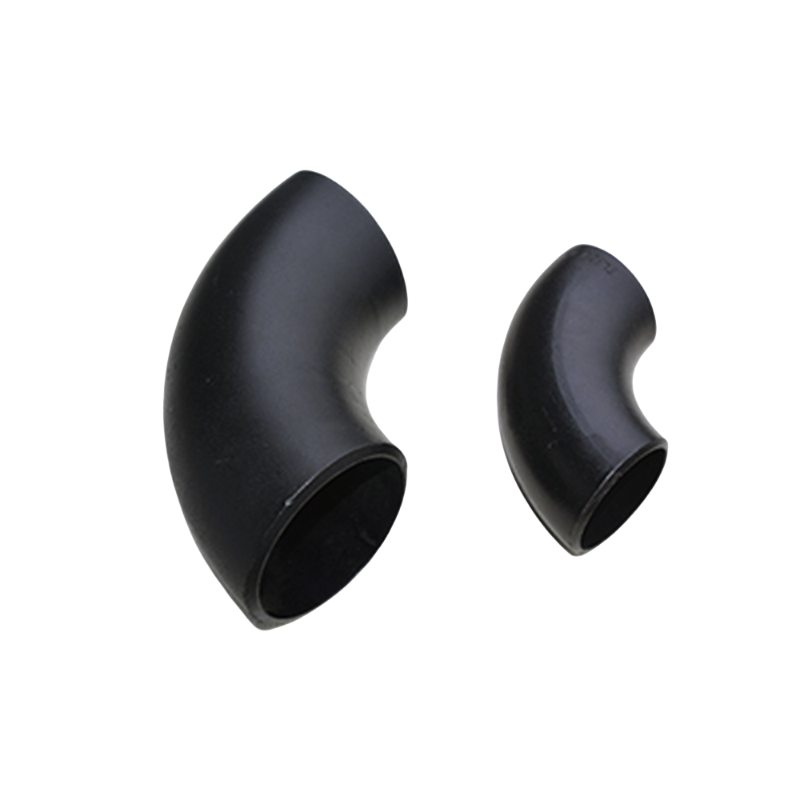

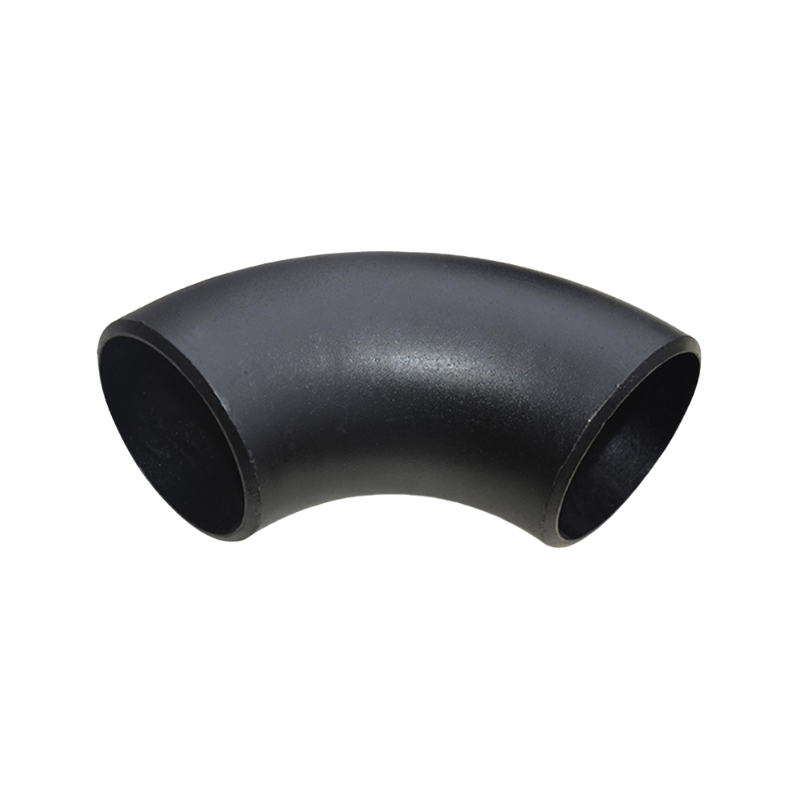

Butt Weld Elbow

Product Description

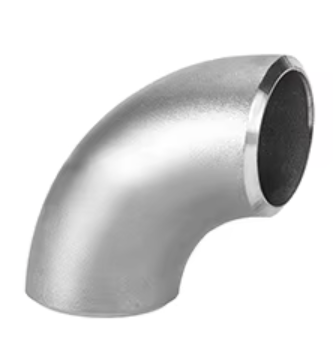

The ASME B16.9 90 Degree Butt Weld Elbow is engineered to deliver outstanding performance across a wide range of industrial applications. Designed to change the direction of flow by 90 degrees in a pipeline system, this elbow ensures smooth and leak-free operation. Manufactured in accordance with ASME B16.9 standards, our elbows are available in various sizes, materials (such as stainless steel, carbon steel, and alloy steel), and wall thicknesses (SCH10 to SCH80 and beyond) to meet project-specific requirements.

We offer a comprehensive selection of 90° Butt Weld Elbows through our global network of stockholding branches, ensuring fast delivery and reliable sourcing.

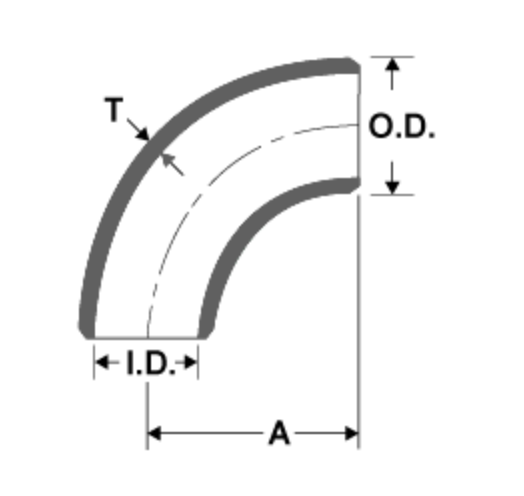

Technical Drawings

Nominal	Outside	Inside	Wall	Center	Pipe	Weight
Pipe Size	Diameter	Diameter	Thickness	To End	Schedule	Pounds
1/2	0.84	0.622	0.109	1.5	40	0.16
3/4	1.05	0.824	0.113	1.5	40	0.17
1	1.32	1.049	0.133	1.5	40	0.4
1 1/4	1.66	1.38	0.14	1.88	40	0.55
1 1/2	1.9	1.61	0.145	2.25	40	0.8
2	2.38	2.07	0.154	3	40	1.6
2 1/2	2.88	2.47	0.203	3.75	40	3.2
3	3.5	3.07	0.216	4.5	40	4.8
3 1/2	4	3.55	0.226	5.25	40	6.6
4	4.5	4.03	0.237	6	40	8.9
5	5.56	5.05	0.258	7.5	40	15.1
6	6.62	6.07	0.28	9	40	24
8	8.62	7.98	0.322	12	40	47.8
10	10.75	10.02	0.365	15	40	83.4
12	12.75	12	0.375	18	*	123
14	14	13.25	0.375	21	30	155
16	16	15.25	0.375	24	30	206
18	18	17.25	0.375	27	*	262
20	20	19.25	0.375	30	20	324
24	24	23.25	0.375	36	20	466
30	30	29.25	0.375	45	*	720
36	36	35.25	0.375	54	*	1,039
42	42	41.25	0.375	63	*	1,420
48	48	47.25	0.375	72	*	2,000

Applications of 90° Butt Weld Elbow

✔ Oil and Gas Pipelines

✔ Chemical Processing Plants

✔ Plumbing and HVAC Systems

✔ Heating and Cooling Systems

✔ Water Supply and Distribution Networks

✔ Power Generation Facilities

✔ Pulp and Paper Industry

✔ Food and Beverage Processing

✔ Structural Piping and Fabrication
