Product Description

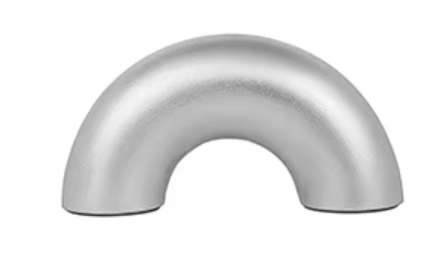

We are trusted manufacturers, suppliers, and exporters of Buttweld 180° Pipe Elbows, also known as return elbows, which are designed to change the direction of flow by a full 180 degrees in a pipeline system. These fittings provide an efficient solution for space-constrained piping layouts and are widely used in process and control systems.
Our SS 304 Buttweld 180° Elbows are available in standard as well as customized sizes, offering greater flexibility and ease of installation. Engineered to perform reliably under a wide range of temperatures, pressures, and flow conditions, these elbows are manufactured in compliance with ANSI/ASME B16.9 standards.
We proudly export our stainless steel 180-degree elbows to clients in various sectors including chemical processing, engineering, power generation, and industrial infrastructure, across Africa, Europe, the Middle East, and Southeast Asia.
| Size： | 1/2″ – 48″ | |||||||
| Connect Type: | Butt Welded | |||||||
| Certification: | ISO, CE | |||||||
| Standard: | ANSI B16.9、 ANSI B16.28、 DIN2605/ 2615/ 2616/ 2617、 JIS B2311、 GOST 17375/ 17376/ 17377/ 17378. | |||||||
| Wall Thickness: | SCH10, SCH20, SCH30, STD, SCH40, SCH60, XS, SCH80, SCH100, SCH120, SCH140, SCH160, XXS, JIS, DIN | |||||||
| Surface Treatment: | Black paint, light oil, hot dip Galvanized. | |||||||
| Material: | Stainless steel: 304/304L, 316/316L；Carbon steel: ASTM A234 WPB / 20#/ P265GH/ST37.2 | |||||||
 |

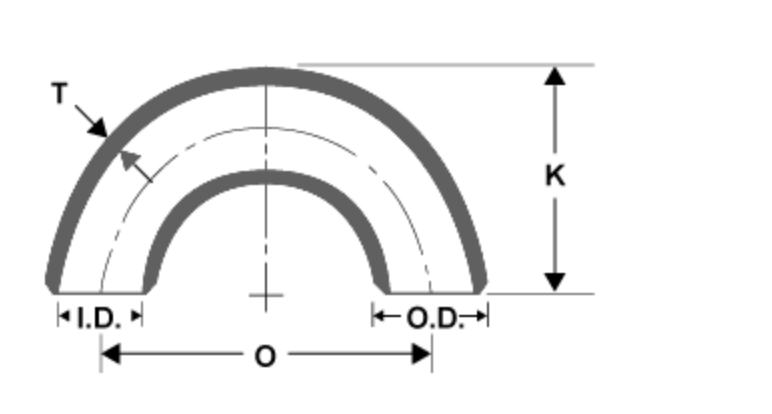

| Nominal | Outside | Inside | Wall | Center | Back | Pipe | Weight |
| Pipe Size | Diameter | Diameter | Thickness | To Center | To Face | Schedule | Pounds |
| 1/2 | 0.84 | 0.622 | 0.109 | 3 | 1.88 | 40 | 0.32 |
| 3/4 | 1.05 | 0.824 | 0.113 | 2.25 | 1.69 | 40 | 0.34 |
| 1 | 1.31 | 1.049 | 0.133 | 3 | 2.19 | 40 | 0.74 |
| 1 1/4 | 1.66 | 1.38 | 0.14 | 3.75 | 2.75 | 40 | 1.1 |
| 1 1/2 | 1.9 | 1.61 | 0.145 | 4.5 | 3.25 | 40 | 1.6 |
| 2 | 2.38 | 2.067 | 0.154 | 6 | 4.19 | 40 | 3.2 |
| 2 1/2 | 2.88 | 2.469 | 0.203 | 7.5 | 5.19 | 40 | 6.1 |
| 3 | 3.5 | 3.068 | 0.216 | 9 | 6.25 | 40 | 9.4 |
| 3 1/2 | 4 | 3.548 | 0.226 | 10.5 | 7.25 | 40 | 12.8 |
| 4 | 4.5 | 4.026 | 0.237 | 12 | 8.25 | 40 | 17.5 |
| 5 | 5.56 | 5.047 | 0.258 | 15 | 10.31 | 40 | 29.3 |
| 6 | 6.63 | 6.065 | 0.28 | 18 | 12.31 | 40 | 47 |
| 8 | 8.63 | 7.981 | 0.322 | 24 | 16.31 | 40 | 87 |
| 10 | 10.75 | 10.02 | 0.365 | 30 | 20.38 | 40 | 164 |
| 12 | 12.75 | 12 | 0.375 | 36 | 24.38 | * | 237 |
| 14 | 14 | 13.25 | 0.375 | 42 | 28 | 30 | 311 |
| 16 | 16 | 15.25 | 0.375 | 48 | 32 | 30 | 408 |
| 18 | 18 | 17.25 | 0.375 | 54 | 36 | * | 514 |
| 20 | 20 | 19.25 | 0.375 | 60 | 40 | 20 | 636 |
Applications:
✔ Oil and Gas Pipelines
✔ Chemical Processing Plants
✔ Plumbing and HVAC Systems
✔ Heating and Cooling Systems
✔ Water Supply and Distribution Networks
✔ Power Generation Facilities
✔ Pulp and Paper Industry
✔ Food and Beverage Processing
✔ Structural Piping and Fabrication
