| Quantity: | |
|---|---|
| Size | 1"-8'' |
| Material | carton steel |
| Certification | UL & FM & CE approved |
| Finish | Galvanized. Other finish available upon |

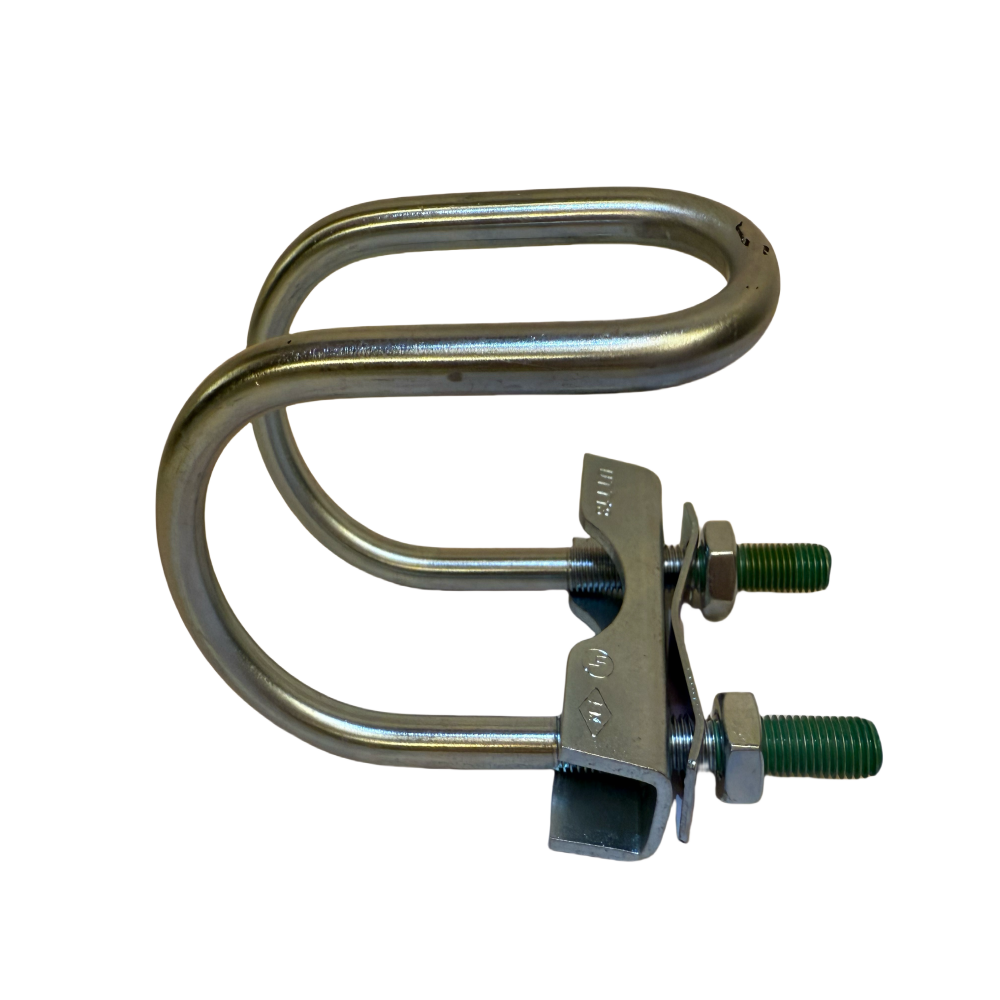

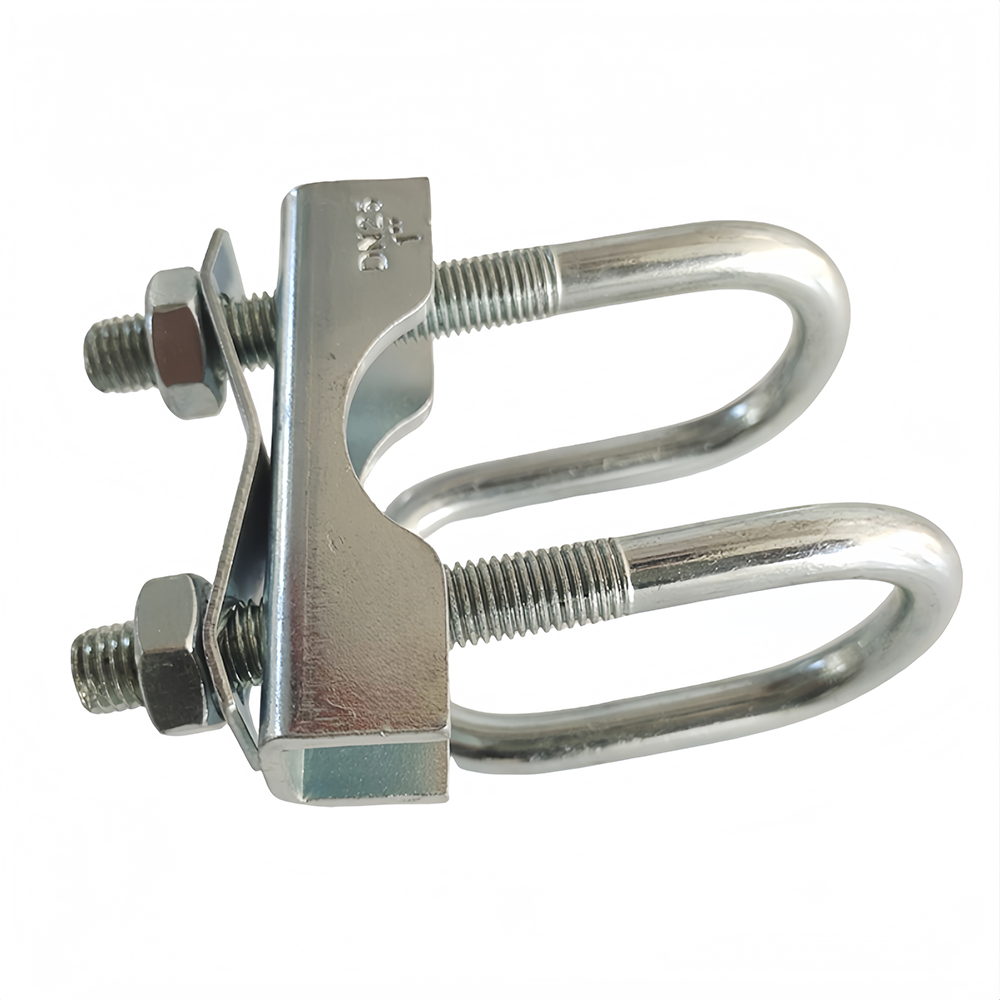

Designed to meet the rigorous demands of seismic and lateral bracing systems, our U Quick Lateral Bracing Clamp offers a fast, compliant solution for securing pipes in high-risk environments. Constructed from high-strength carbon steel with a zinc-rich epoxy coating, the clamp combines rapid installation with superior structural integrity. The unique U-shaped design features a pre-engineered pivot joint that automatically aligns with the pipe axis, while the quick-lock lever mechanism eliminates the need for threaded fasteners during initial positioning. Compatible with pipe diameters from 2" to 10", the clamp includes adjustable friction pads that provide 360° rotational restraint without damaging the pipe surface.
Seismic Compliance: Meets ASCE 7-16 and IBC 2021 standards for seismic bracing, with a tested displacement capacity of ±6" (150mm) to absorb earthquake-induced movements.
Tool-Less Installation: The patent-pending lever lock allows one-person installation in under 30 seconds, significantly reducing labor costs compared to traditional bolted braces.
Adaptive Load Distribution: The dual-wedge friction pads apply uniform pressure across the pipe surface, rated for dynamic loads up to 2,000 lbs and static loads up to 4,500 lbs.
Environmental Durability: The epoxy coating (250μm thickness) resists UV radiation, chemical spills, and abrasive dust, making it suitable for both indoor and outdoor installations.
Critical for code-compliant seismic bracing, this clamp is used in:
High-Rise Buildings: Secures sprinkler pipes and mechanical ductwork in elevator shafts and utility cores.
Transportation Infrastructure: Supports pipeline systems in tunnels, bridges, and metro stations exposed to ground vibrations.
Data Centers: Ensures stability of cooling water pipes in raised-floor environments with strict seismic requirements.
Industrial Warehouses: Braces compressed air lines and conveyor support structures in earthquake-prone regions.
Q: Does this clamp require professional engineering for installation?
A: While installation guidelines follow standard seismic codes, a licensed engineer should approve the bracing design for each project.
Q: Can it be reused after initial installation?
A: Yes, the lever lock mechanism allows easy repositioning without damaging the clamp or pipe, ideal for system modifications.
Q: What is the minimum spacing between clamps in seismic applications?
A: Spacing depends on pipe diameter and seismic zone, but typical spacing ranges from 4' to 8' (1.2m to 2.4m) as per ASCE 7-16 guidelines.
Q: Is it compatible with insulated pipes?
A: Yes, the friction pads can be adjusted to accommodate insulation thickness up to 2" (50mm) without compromising grip.
