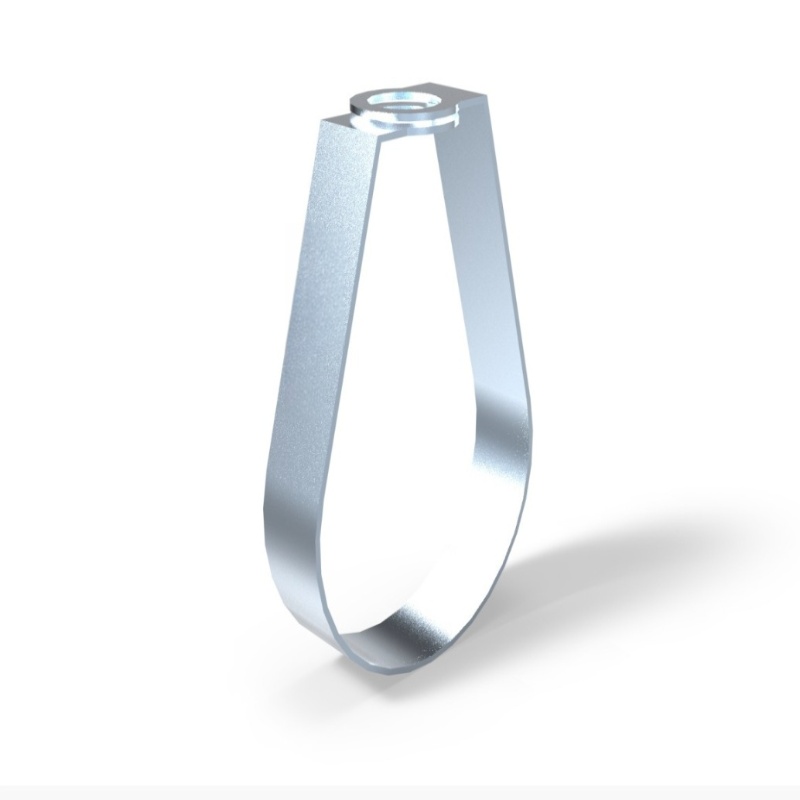

Swivel Hanger

Product Description

Swivel Hangers are an innovative solution in the realm of pipe support systems, designed to provide a high degree of flexibility and support for piping installations. These hangers are characterized by their ability to swivel 360 degrees, allowing for the accommodation of pipe movements due to thermal expansion, contraction, or vibration. The swivel feature ensures that the pipe remains properly aligned and supported, even under dynamic conditions.

The Swivel Hanger is constructed from high-grade materials, such as steel or stainless steel, to ensure durability and resistance to environmental factors. It is engineered to distribute the load evenly across the support structure, which helps to prevent stress on the pipe and reduces the risk of failure or leaks. The versatility of Swivel Hangers makes them suitable for a wide range of applications in both commercial and industrial settings.

Features

· 360-Degree Swivel Action: Allows for pipe movement in any direction, ensuring continuous support and alignment.

· Load Distribution: The design evenly distributes the weight of the pipe, minimizing stress and potential damage.

· Durable Materials: Constructed from steel or stainless steel for long-lasting performance and resistance to corrosion.

· Versatile: Suitable for a variety of pipe sizes and load capacities, making it adaptable to different systems.

· Easy Installation: Simple design allows for quick and straightforward mounting on structures or walls.

· Corrosion Resistant: Stainless steel options are available for enhanced durability in harsh environments.

Application

Swivel Hangers are utilized in a broad spectrum of applications where the ability to accommodate pipe movement is crucial. They are commonly found in:

· HVAC systems to support ductwork and piping that experiences thermal expansion and contraction.

· Power plants for the secure suspension of pipes carrying steam or water.

· Industrial piping systems that transport chemicals, oil, or gases, where vibration and movement are common.

· Commercial kitchens and food processing facilities where frequent cleaning and temperature changes can cause pipe movement.

· Pharmaceutical and biotech industries where precise alignment and support of critical piping systems are essential.

The Swivel Hanger's ability to maintain pipe alignment and support under dynamic conditions makes it an invaluable component in any piping system that experiences movement or vibration.

Faq

1. How does the swivel feature benefit my piping system?

The swivel feature allows the pipe to move naturally with temperature changes or vibrations without causing undue stress on the pipe or hanger. This reduces the risk of leaks, damage, and system failure.

2. Are Swivel Hangers suitable for all pipe materials?

Yes, Swivel Hangers are compatible with a wide range of pipe materials, including steel, copper, PVC, and CPVC. However, the specific model chosen should match the pipe material and system requirements.

3. Can Swivel Hangers be used in outdoor applications?

Yes, Swivel Hangers are available in materials that are suitable for outdoor use, including stainless steel options that offer excellent resistance to weathering and corrosion.

4. What is the maximum load capacity of a Swivel Hanger?

The load capacity varies by model and size. It is important to select a hanger that matches the specific requirements of your piping system, including the weight of the pipe and its contents.

5. How do I install a Swivel Hanger?

Installation is straightforward. Position the hanger where required, thread the pipe through the swivel assembly, and secure it with the provided hardware. Ensure that the hanger is properly aligned and tightened to maintain the pipe's support and alignment.

Hanger  Installation  Instruction

Pear Hanger(1,2) Clevis Hanger(3,4) Cup Nut Hanger(5,6) Ring Hanger(7,8)

1.Disassemble the   hanger  before installation.	2. Use the hanger clamp the pipe,as this picture    shows.Insert the bolt,the bolt must over through the nut.	3. Disassemble the   hanger   before installation.Use   the hanger   clamp   the pipe,as  this  picture shows.	4. Use the bolt lock the  hanger.Insert  the bolt,the     bolt     must over  through  the  nut.
5. Disassemble the hanger before installation.Use the hanger clamp the pipe,as this picture shows.	6. Use the  nut lock the    hanger.Insert    the bolt,the  bolt  must  over through the nut.	7. Disassemble the   hanger   before installation.Use   the hanger   clamp   the pipe,as  this  picture shows.	8. Use the nut lock the hanger.insert the bolt,the bolt must over through the nut.
