Heavy-Duty Pipe Clamp Industrial Pipe Fixation Solution

Product Description

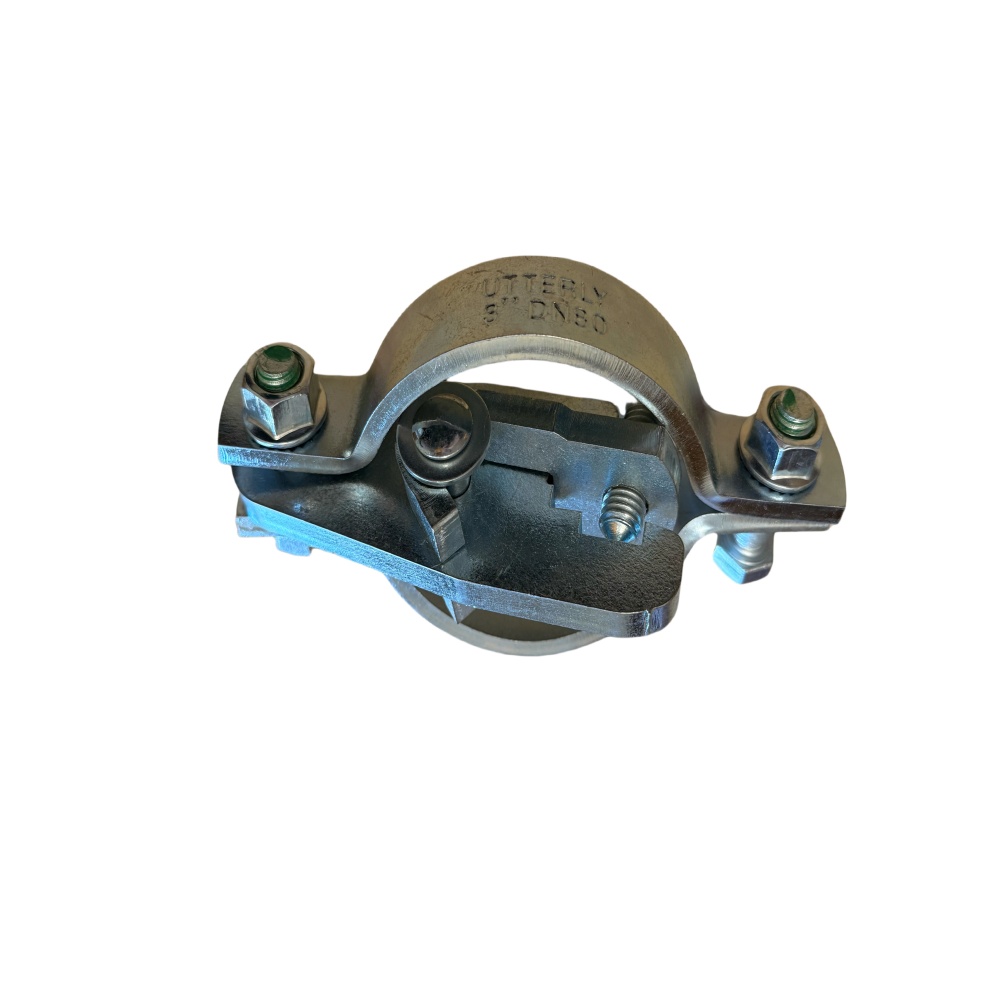

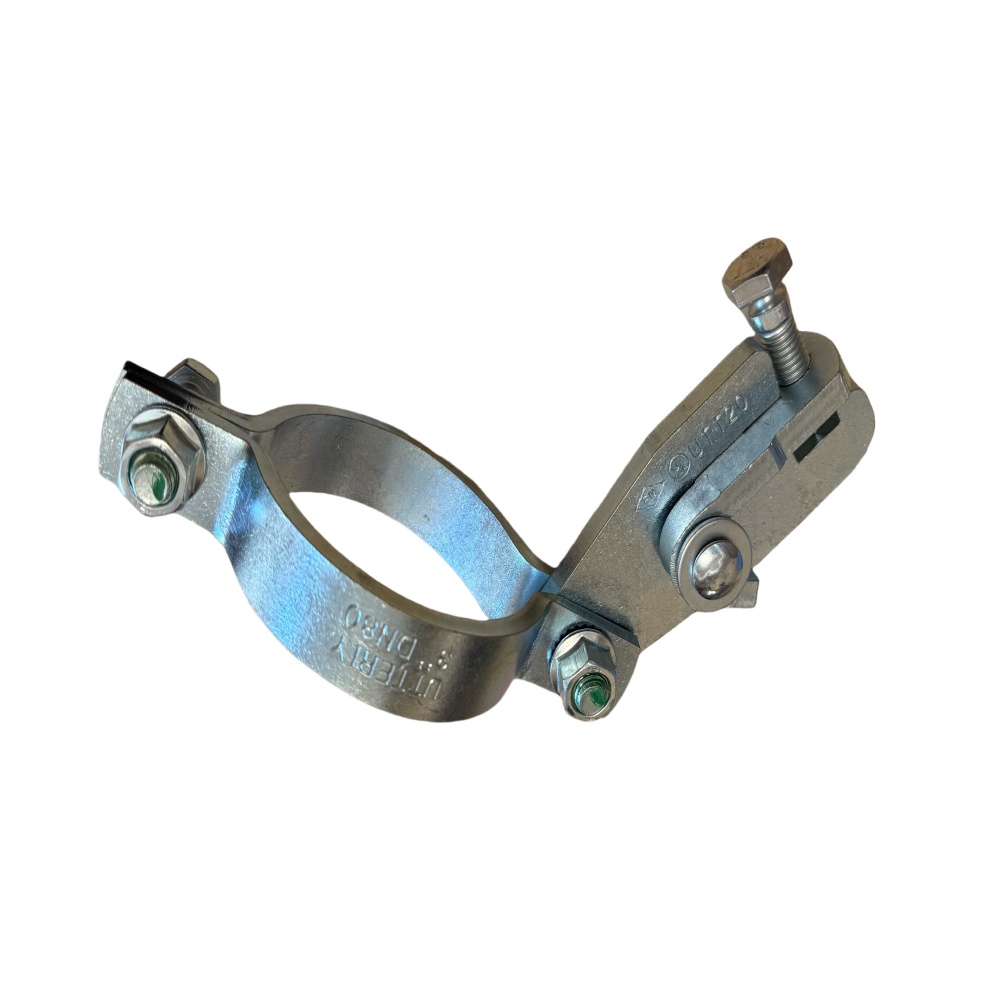

Engineered for secure and reliable pipe fixation in industrial applications, our Heavy-Duty Pipe Clamp provides a robust solution for holding pipes of various diameters in static or dynamic environments. Constructed from high-grade ductile iron with a hot-dip galvanized finish, the clamp offers exceptional resistance to corrosion and mechanical stress. The split-type design features two symmetrical halves connected by heavy-duty stainless steel bolts, ensuring uniform pressure distribution around the pipe circumference. Available in nominal pipe sizes from 1/2" to 12", the clamp accommodates both rigid steel pipes and flexible hoses, with an adjustable inner diameter range to compensate for minor dimensional variations. The precision-machined contact surface minimizes friction-induced wear, while the ergonomic bolt heads facilitate easy tightening with standard wrenches.

Features

Superior Load-Bearing Capacity: Rated for axial loads up to 5,000 lbs and lateral loads up to 3,000 lbs, the clamp maintains stability in high-vibration environments such as pump rooms, compressor stations, and manufacturing plants.

Corrosion Resistance: The hot-dip galvanized coating (ISO 1461 compliant) provides a 50+ year service life in outdoor and coastal environments, while the stainless steel fasteners resist oxidation in humid or chemical-laden atmospheres.

Universal Compatibility: Designed to fit ASME B36.10 welded steel pipes, ASTM A53 black iron pipes, and ANSI/NSF 61 plastic pipes when used with optional rubber isolation pads (sold separately).

Tool-Free Adjustment (Optional): For applications requiring frequent pipe realignment, a spring-loaded quick-release variant is available, reducing adjustment time by 70% compared to traditional bolted clamps.

Application

Ideal for industrial pipe systems, this clamp is widely used in:

Oil & Gas Infrastructure: Secures pipeline connections in refineries, offshore platforms, and chemical storage terminals.

Water Treatment Plants: Provides leak-proof fixation for high-pressure water mains and wastewater discharge lines.

Power Generation Facilities: Supports steam pipes in boiler rooms and cooling water lines in thermal power plants.

Manufacturing Plants: Stabilizes conveyor lubrication lines and compressed air pipelines in automated production environments.

FAQ

Q: Can this clamp be used for underground pipelines?A: Yes, the galvanized finish and corrosion-resistant materials make it suitable for buried applications when paired with protective polyethylene sleeves.

Q: What is the temperature rating?A: The clamp operates reliably from -40°F to 400°F (-40°C to 204°C), with optional high-temperature variants available for up to 800°F (427°C).

Q: How do I choose the correct clamp size?A: Select the clamp based on the nominal pipe diameter (NPS). For metric pipes, refer to the conversion chart in the technical datasheet.

Q: Are vibration-damping pads included?A: Standard clamps do not include pads, but neoprene or EPDM isolation pads can be added to reduce noise and protect non-metallic pipes.

Hanger Installation Instruction

Pipe Clamp(1,2) Universal C-type Clamp(3,4,5,6)

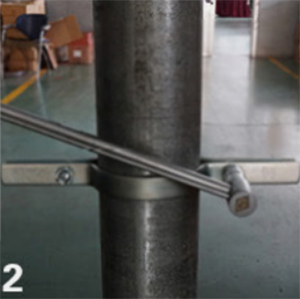

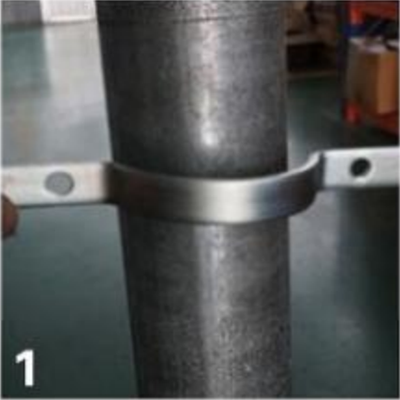

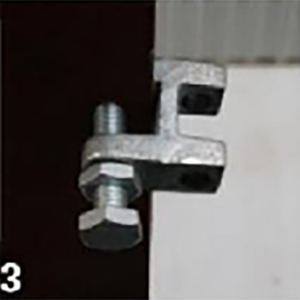

1. Fix the clamp to a proper level	2. T ighten  the   nuts  with the   right  torque   (torque specifications as following blank)	3. Install the C-type Clamp properly on H steel or other fixed hanging beam

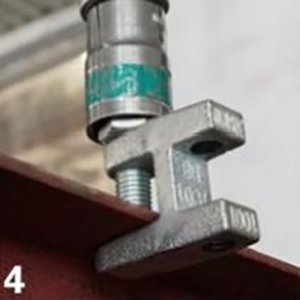

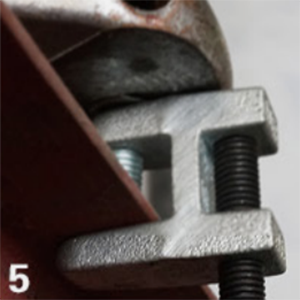

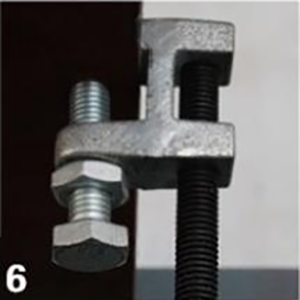

4. Adjust  the  bolt  to  the required torque value then fasten the lock nut.	5. Use the nut lock the bolt	6. Insert the threaded rod.The rod must reach the bottom of the clamp.
