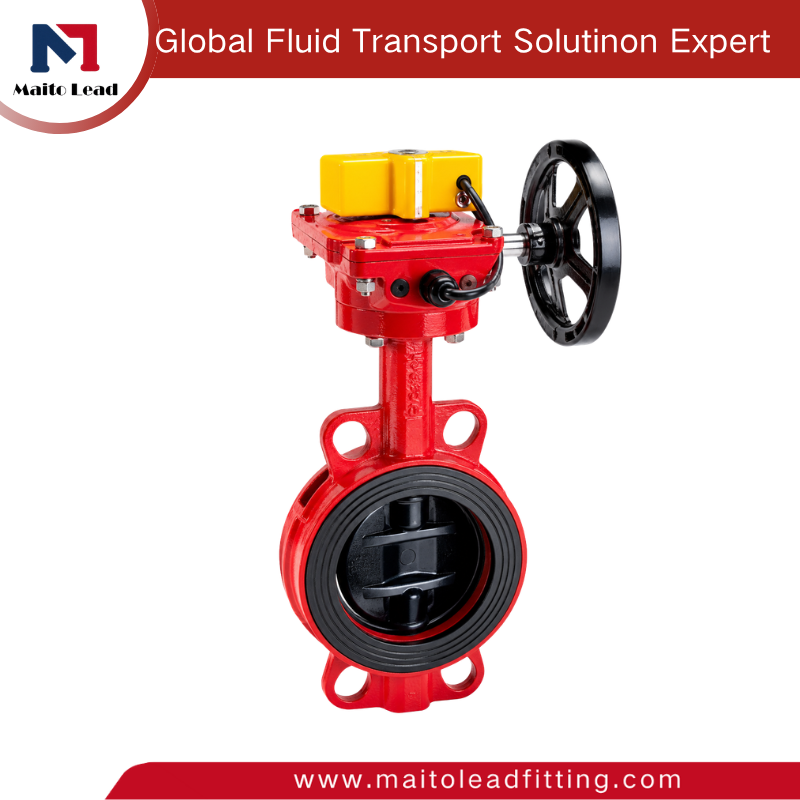

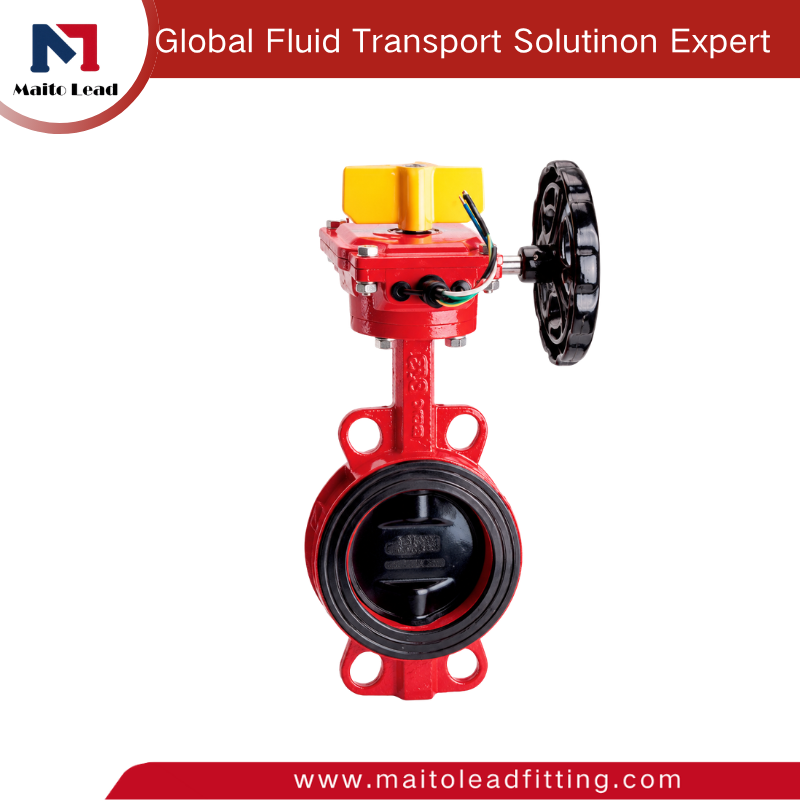

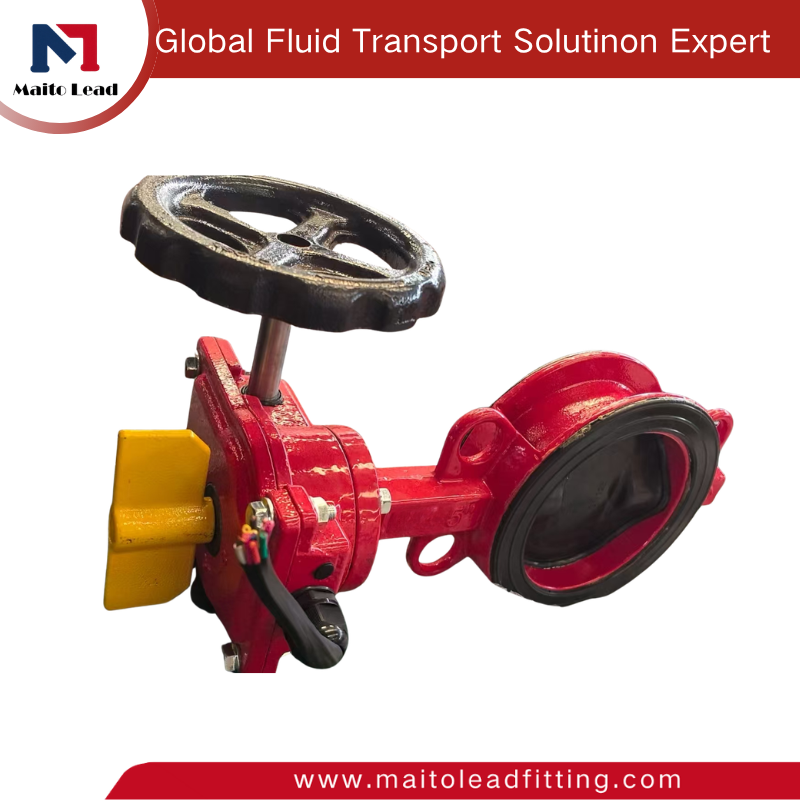

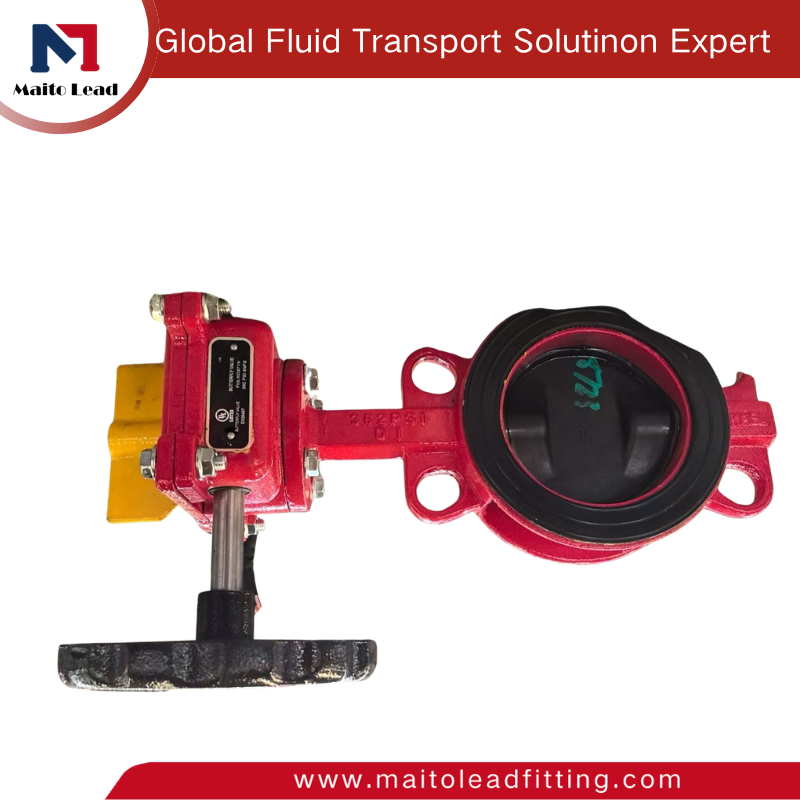

Fire Protection Grooved Butterfly Valve with Electrical Position Monitoring (Tamper Switch) , Indoor/Outdoor Use

MaitoLead Group is a professional supplier of piping system products from China, focusing on fire protection, water supply, HVAC, and industrial pipeline applications.

We supply a wide range of valves and pipe fittings, including butterfly valves, gate valves, check valves, grooved fittings, malleable iron fittings, steel pipes, butt weld fittings, flanges, and related pipeline accessories.

For butterfly valves, we can provide different connection types and operation options, such as wafer butterfly valves, grooved butterfly valves, butterfly valves with tamper switch, and butterfly valves with lever handle. Our products are designed for reliable performance, easy installation, and stable project supply.

Our valve products are commonly used in fire protection systems, sprinkler systems, pump rooms, commercial buildings, water supply lines, HVAC systems, and industrial piping projects.

We can support customers with technical datasheets, product drawings, certificates, inspection reports, packing solutions, and export documents according to project requirements.

With stable supply capacity, quality control, and one-stop procurement service, MaitoLead Group helps customers save sourcing time, reduce communication costs, and complete project purchasing more efficiently.

We welcome customers to send us their product list, drawings, standards, or project requirements. Our team will check carefully and provide a suitable purchasing solution.

PRODUCT INFORMATION

The fire groove butterfly valve is a quick installation valve connected by groove type clamps, designed specifically for fire pipeline systems, with the characteristics of earthquake resistance, good sealing, and quick disassembly and assembly.

It achieves pipeline connection through groove clamps and rubber sealing rings, without welding, and is suitable for fire pipe network systems that require frequent maintenance and emergency operations.

Product Name	Grooved Butterfly Valve with Tamper Switch
Connection Type	Grooved End
Size Range	DN50–DN200
Working Pressure	DN50–DN150: 362 psi; DN200: 232 psi
Valve Standard	MSS SP-67
Grooved Standard	AWWA C606
Top Flange Standard	EN ISO 5211
Temperature Range	0–80°C
Application	Fire protection, sprinkler system, water piping
Installation	Indoor and outdoor use
Operation	Gear operator with tamper switch
Body Material	Ductile Iron
Sealing Material	EPDM
Disc Material	Ductile Iron and EPDM
Shaft Material	1Cr17Ni2
Bearing Bush	Bronze
O-rings	EPDM
Gear Operator	Ductile Iron and Steel
Temperature Range	0–80°C
Application	Fire Protection, Sprinkler System, Water Supply, HVAC, Industrial Pipeline
Suitable Medium	Water and neutral liquid
Installation	Indoor and outdoor use
Available Options	Lever handle, tamper switch, gear operator, different pressure ratings

Q1: What is a grooved butterfly valve with tamper switch used for?

It is mainly used in fire protection and sprinkler piping systems to control water flow and monitor the valve position. The tamper switch helps indicate whether the valve is open or closed.

Q2: Why is a tamper switch important in fire protection systems?

The tamper switch provides valve position supervision. If the valve is closed or moved from its normal position, the switch can send a signal to the fire alarm or monitoring system, helping improve system safety.

Q3: What is the connection standard for this valve?

The valve uses grooved end connections according to AWWA C606. It can be installed with grooved couplings for faster installation and maintenance.

Q4: What material is used for the valve body?

The valve body is made of ductile iron, which provides good strength and durability for fire protection and water piping applications.

Q5: What is the sealing material?

The sealing parts are made of EPDM, which is commonly used for water service and fire protection piping systems.

Q6: What sizes are available?

The standard size range is DN50 to DN200, equal to 2 inch to 8 inch.

For DN50 to DN150, the working pressure is 362 psi. For DN200, the working pressure is 232 psi.

Q8: Can this valve be used outdoors?

Yes. According to the technical data, this valve is suitable for both indoor and outdoor use.

Q9: What standard does this butterfly valve follow?

The valve standard is MSS SP-67, and the grooved end standard is AWWA C606.

Q10: Can you provide technical documents for projects?

Yes. We can provide product drawings, technical datasheets, material information, inspection documents, and other project support

documents according to customer requirements.
