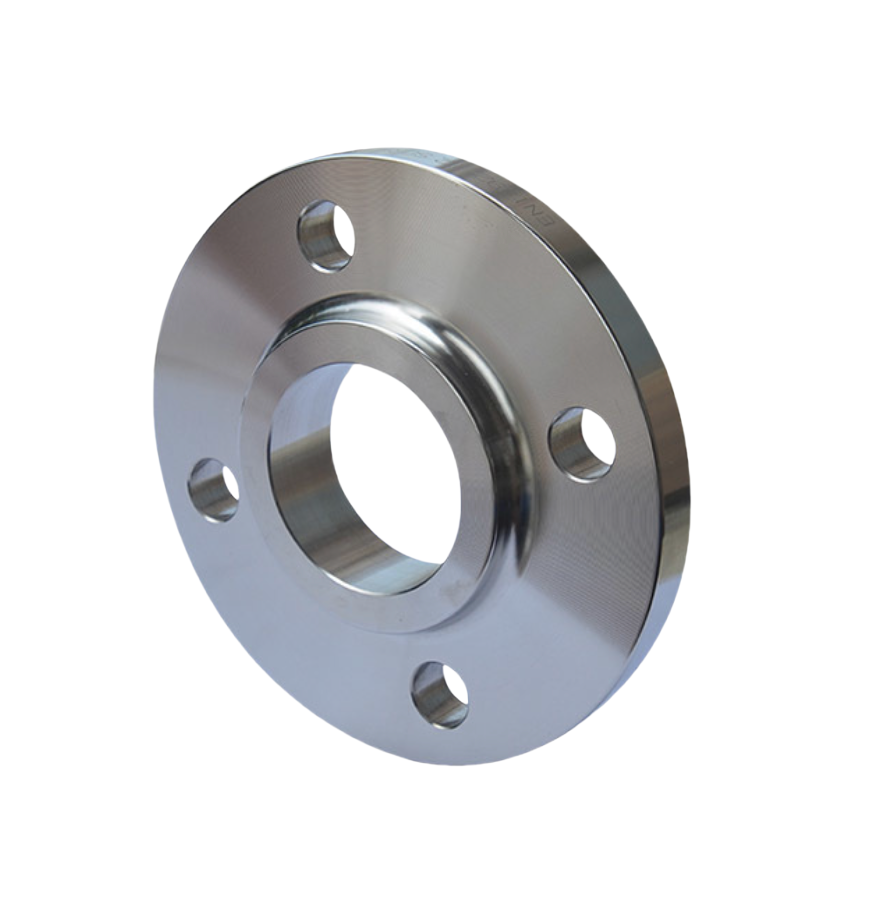

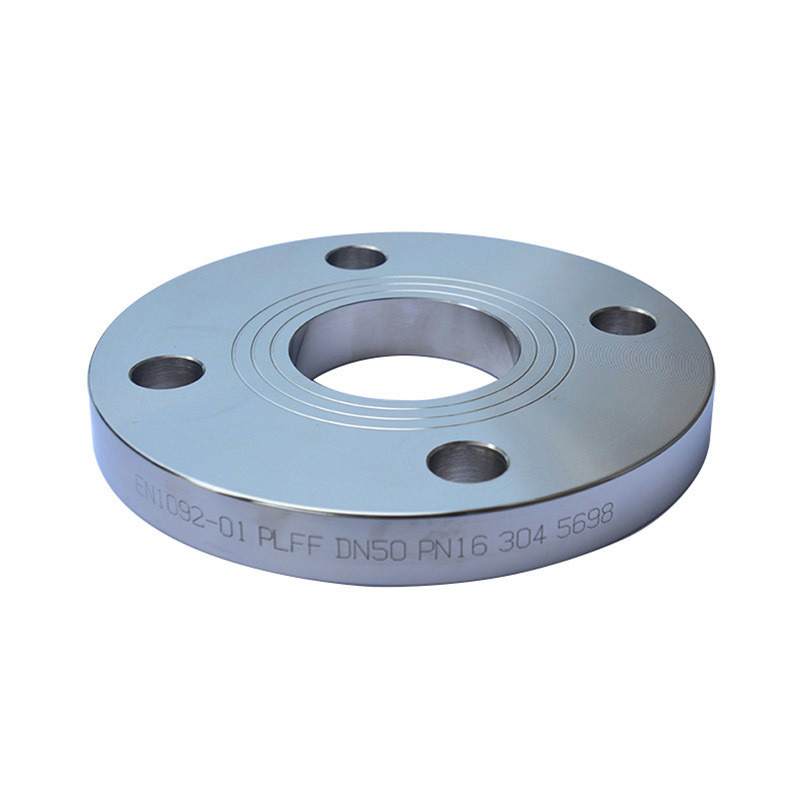

EN 1092-1 Type 01 Plate Flange is a flat plate welding flange manufactured in accordance with the European standard EN 1092-1, issued by the European Committee for Standardization (CEN).
It is designed to be welded directly to steel pipes and bolted to a mating flange using a gasket to form a secure and leak-tight connection.
Type 01 plate flanges are widely used due to their simple structure, cost efficiency, and reliable performance in low to medium pressure piping systems.
Product Description
| Standard: | EN 1092-1:2007 | |||||||||
| Flange type： | welding neck, slip on,blind,lap joint,threaded,socket welding | |||||||||
| Size: | 1/2''-24'' | |||||||||
| Pressure class: | 150LB,300LB,400LB,600LB,900LB,1500LB,2500LB | |||||||||
| Sealing type： | Flat face（FF),Raised face(RF),Ring Joint（RTJ) | |||||||||
| Material： | Carbon steel ASTM A 105/A 105N,A694 F42-F70,A-350LF1/LF2, | |||||||||
| Stainless steel ASTM A 182 F304/304L,F316/316L | ||||||||||
|
Flat Plate Design
Simple construction with excellent cost-performance ratio.
Compliance with EN 1092-1
Dimensions, bolt holes, bolt circle, and thickness strictly follow the EN standard.
Welding-Type Connection
Typically connected to pipes by fillet welding, ensuring stable installation.
Wide Material Selection
Carbon Steel: P235GH, S235JR, P265GH
Stainless Steel: 1.4301 (304), 1.4404 (316L)
Multiple Pressure Ratings
Available in PN6, PN10, PN16, PN25, and PN40.
EN 1092-1 Type 01 Plate Flanges are commonly used in:
Fire protection piping systems
Industrial piping systems
Water supply and HVAC systems
Oil, gas, and petrochemical applications
Pumps, valves, and equipment connections
The flange is welded to the pipe, usually by fillet welding.
Ensure the pressure rating, size, and gasket type match the system requirements.
Bolts should be tightened evenly in a cross (diagonal) pattern to ensure proper sealing.

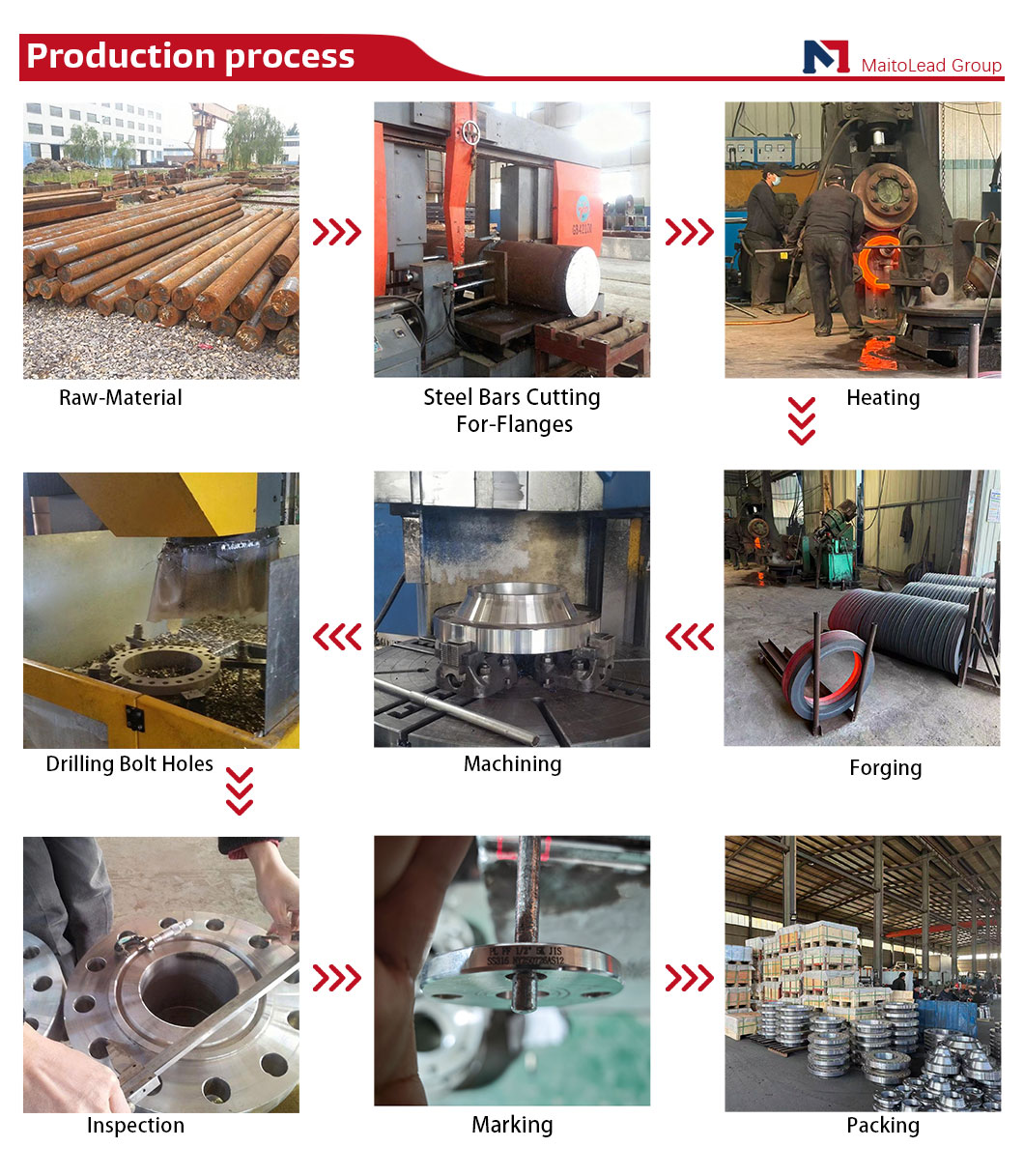

Flange production process
 |
