Material: ASTM A536, GRADE 65-45-12, QT450-10
Threads: ASME B1.20.1,ISO 7-1,BS21,BSPT,NPT,GB 7306
Size: ISO6182,AWWA C606
Size Available: 1"-24"
Surface Treatment: Electrophoretic painted
Air pressure and holding pressure schedule | ||||
NO. | Size | Pressure | Time to keep the pressure | Remark |
1 | ≤DN50 | ≥0.5MPa | ≥5s | Air pressure |
2 | >DN50~DN350 | ≥0.5MPa | ≥10s | Air pressure |
3 | >DN350 | 1.5times the rated working pressure | 5min | water pressure |
Rubber gasket | |||
Name | Recommended Application Medium | Related Standards | Recommended Application Temperature Range |
E:EPDM | water supply,drainage, sewage,normal temperature air,weak acid,and weak alkali | GB5135.11 | -30℃~+130℃ |
GB/T 21873 | -22°F~+266°F | ||
continuous supply of 110℃ hot water | GB/T 27572 | ||
D:NITRILE | petroleum,vegetable oil, mineral oil | GB5135.11 | -20℃~+80℃ |
GB/T 23658 | -4°F~+176°F | ||
S:SIUCON | drinking water | GB/T 28604 | -40℃~+180℃ |
high-temperature dry air and some high-temperature chemicals | GB5135.11 | -40°F~+356°F | |
F:FLUORINE | the acid,alkaline solution,and hot lubricating oil | HG/T 2181 | -20℃~+180° |
-4°F~+356F | |||
V:NEOPRENE | seawater | '-20°℃~+100℃ -4°F~+212°F |

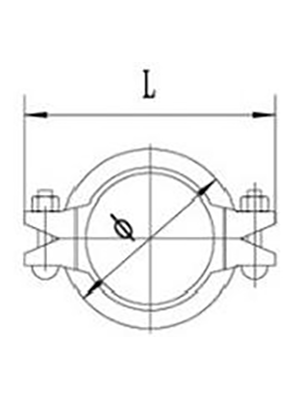

Nominal Size mm/in | Pipe O.Dmmin | Working Pressure PSVMPa | Bolt Size | Dimensions L mm/in | UL | FM | ||
No.-Size mm | φ | L | H | |||||
25 1 | 33.7 1.327 | 500 3.45 | 2-M10x45 | 57.5 2.264 | 99 3.898 | 43.5 1.713 | UL | FM |
32 1-1/4 | 42.4 1.669 | 500 3.45 | 2-M10x45 | 70 2.756 | 106 4.173 | 44 1.732 | UL | FM |
40 1-1/2 | 48.3 1.900 | 500 3.45 | 2-M10x45 | 73 2.874 | 108 4.252 | 44 1.732 | UL | FM |
50 2 | 60.3 2.375 | 500 3.45 | 2-M10x55 | 87 3.425 | 123 4.843 | 44 1.732 | UL | FM |
65 2-1/2 | 73.0 2.875 | 500 3.45 | 2-M10x55 | 100 3.937 | 138 5.433 | 44 1.732 | UL | FM |
65 2-1/2 | 76.1 3.000 | 500 3.45 | 2-M10x55 | 103 4.055 | 142 5.591 | 45 1.772 | UL | FM |
80 3 | 88.9 3.500 | 500 3.45 | 2-M12x60 | 117 4.606 | 166 6.535 | 45 1.772 | UL | FM |
100 4 | 108.0 4.250 | 500 3.45 | 2-M12x65 | 137 5.393 | 188 7.401 | 48 1.889 | UL | FM |
100 4 | 114.3 4.500 | 500 3.45 | 2-M12x65 | 139 5.472 | 190 7.480 | 49 1.929 | UL | FM |
125 5 | 133.0 5.250 | 300 2.07 | 2-M12x75 | 162.6 6.401 | 216 8.504 | 48 1.889 | UL | FM |
125 5 | 139.7 5.500 | 400 2.75 | 2-M12x75 | 168 6.614 | 218 8.583 | 49 1.929 | UL | FM |
125 5 | 141.3 5.563 | 400 2.75 | 2-M12x75 | 167 6.575 | 219 8.622 | 49 1.929 | UL | FM |
150 6 | 159.0 6.250 | 300 2.07 | 2-M12x75 | 189.4 7.456 | 240 9.448 | 48 1.889 | UL | FM |
150 6 | 165.1 6.500 | 400 2.75 | 2-M12x75 | 193 7.598 | 241 9.488 | 49 1.929 | UL | FM |
150 6 | 168.3 6.625 | 400 2.75 | 2-M12x75 | 198.5 7.815 | 249 9.803 | 50 1.969 | UL | FM |
200 8 | 219.1 8.625 | 300 2.07 | 2-M1ArA | 253 9.961 | 320 12.598 | 59 2.323 | UL | FM |
250 10 | 273 10.748 | 300 2.07 | 2-M22x130 | 335 13.189 | 426 16.772 | 68 2.677 | UL | FM |
300 12 | 323.9 12.752 | 300 2.07 | 2-M22x130 | 380 14.96 | 470 18.504 | 65 2.559 | UL | FM |
Flexible Couplings are mechanical devices designed to transmit torque from one shaft to another while accommodating various degrees of misalignment between the two shafts. They are engineered to provide flexibility in motion, allowing for angular, parallel, and axial misalignments without transferring undue stress to the connected machinery. These couplings are typically made from materials that can endure high torque loads and are resistant to wear and tear.
· Misalignment Compensation:Flexible couplings can handle significant angular, parallel, and axial misalignments, reducing the stress on connected equipment.
· Vibration Dampening:They absorb and reduce vibrations, which helps in extending the life of the machinery.
· Shock Load Absorption:Flexible couplings can absorb sudden shock loads, protecting the connected shafts from damage.
· Material Options:Available in a variety of materials, including rubber, polyurethane, and metallic alloys, to suit different application requirements.
· Easy Installation:Designed for simple installation and maintenance, often requiring no lubrication.
Flexible couplings are widely used in various industries, including manufacturing, automotive, aerospace, and marine. They are ideal for applications where shaft misalignment is common due to thermal expansion, manufacturing tolerances, or other factors. Some typical applications include pumps, compressors, conveyors, and general machinery.
1. How do I choose the right flexible coupling for my application?
Selecting the right flexible coupling involves considering factors such as torque requirements, misalignment compensation needed, environmental conditions, and the type of connected equipment.
2. Can flexible couplings be used in high-speed applications?
Yes, many flexible couplings are designed to operate efficiently at high speeds, but it is important to choose a coupling that is balanced and rated for such applications to avoid vibrations.
3. What are the signs of a failing flexible coupling?
Common signs of wear include increased vibration, noise, and heat. Regular inspection can help identify cracks, tears, or other damage to the coupling material.
![]() | ![]() | ![]() |

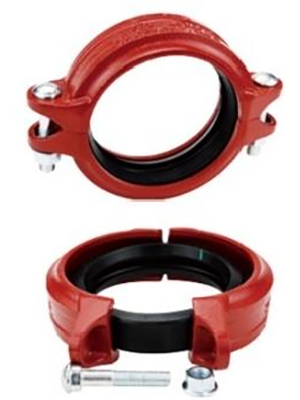

Installation instruction for Flexible coupling &Rigid coupling
![]() | ![]() | ![]() | ![]() |
1Take out the Flexible &Rigid coupling | 2Split the Flexible &Rigid coupling | 3pipe preparation | 4Lubricate gasket |
![]() | ![]() | ![]() | ![]() |
5Gasket installation | 6Housing installation | 7Tighten nuts | 8installation completed Grooved coupling |
