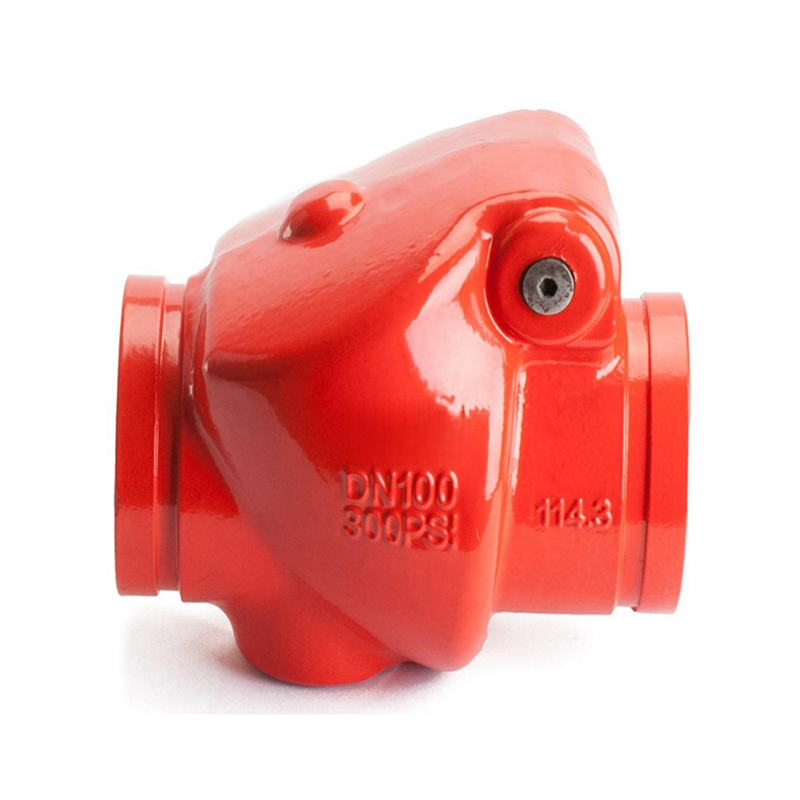

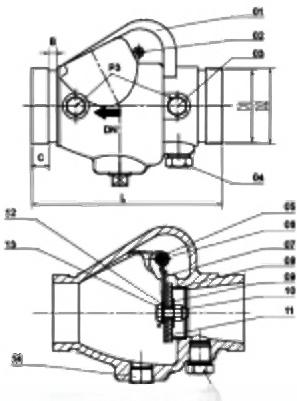

The Grooved Swing Check Valve is a critical component in piping systems, designed exclusively for backflow prevention. Its operation centers on a gravity-driven swing disc that opens only when fluid flows in the intended direction; during reverse flow, the disc automatically closes—securing the system against contamination, pressure loss, and equipment damage. What sets this valve apart is its grooved connection, which replaces cumbersome flange or threaded fittings with a tool-friendly design that streamlines installation. Ideal for systems where one-way fluid flow is non-negotiable, the Grooved Swing Check Valve balances reliability and practicality for diverse industrial and commercial applications.
Unlike spring-loaded check valves, the gravity-driven swing disc requires no external power to operate. It responds instantly to flow direction changes, creating a tight seal against reverse flow without relying on mechanical components that can wear out over time.
The valve’s grooved connection eliminates the need for welding or complex threading, allowing installation by general workers in minimal time. This design reduces labor costs and ensures consistent, error-free connections—even in tight or hard-to-reach spaces.
Equipped with a precision-engineered seating surface, the swing disc forms a tight seal when closed. Combined with durable gasket materials, this design prevents leaks that could compromise system efficiency or contaminate fluids, making it ideal for potable water and critical processes.
The swing disc’s smooth, gradual closing action reduces water hammer—a common issue with abrupt-closing valves that can damage pipes and equipment. This gentle operation extends the lifespan of the entire piping system while minimizing noise.
Constructed from ductile iron, cast iron, or stainless steel, the Grooved Swing Check Valve withstands corrosion, pressure fluctuations, and harsh environmental conditions. Its exterior and interior epoxy coating adds an extra barrier against chemical erosion, ensuring long-term performance.
Parameter | Details |
Sizes | 2''-12'' |
Connection Ends | Groove, compliant with AWWA C606 standards |
Working Pressure | 175PSI, 200PSI, 250PSI, 300PSI, 363PSI (custom options available) |
Maximum Working Temperature | 80°C (176°F) |
Approvals | FM, UL certified |
Coating | Interior and exterior coated with epoxy via electrostatic spray (custom coatings available upon request) |
In water treatment facilities, the valve prevents cross-contamination between treated and untreated water. It is also used in municipal distribution pipelines to maintain unidirectional flow, protecting water quality and system pressure.
Heating and cooling systems rely on the valve to maintain proper airflow and fluid direction. By preventing reverse flow, it ensures consistent temperature and pressure balance, optimizing HVAC efficiency and reducing energy waste.
Fire protection systems demand uncompromising reliability—this valve delivers by ensuring water flows only toward sprinklers or hydrants during emergencies. It prevents pressure loss that could weaken fire suppression efforts, making it FM and UL certified for critical safety applications.
In manufacturing plants, the Grooved Swing Check Valve protects equipment from damage caused by reverse flow of chemicals, water, or other process media. It is commonly used in pipelines for food processing, pharmaceuticals, and general manufacturing.

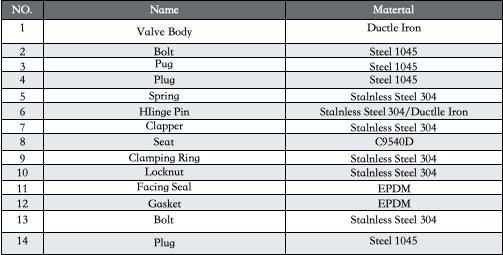

The valve body is available in ductile iron, cast iron, or stainless steel—materials selected for their strength, durability, and compatibility with diverse fluids. The swing disc is engineered for wear resistance, ensuring smooth operation over thousands of cycles.
Both interior and exterior surfaces are coated with epoxy via electrostatic spray, providing uniform protection against corrosion, rust, and chemical damage. Custom coating options are available for specialized environments.
The valve is certified by FM and UL, validating its performance in safety-critical applications such as fire protection systems. These certifications ensure compliance with global safety standards, giving users confidence in its reliability.
Yes. The valve must be installed with the flow direction matching the arrow marked on the valve body. This ensures the swing disc opens correctly with forward flow and closes securely during reverse flow.
It depends on the chemical type and concentration. The valve’s stainless steel option is suitable for mild chemicals, while specialized coatings and gaskets can be requested for aggressive media. Always consult the manufacturer to confirm compatibility.
Unlike lift check valves, which use a vertical piston to block reverse flow, the Grooved Swing Check Valve’s horizontal swing disc allows smoother flow with less pressure drop. It also operates more quietly and reduces water hammer risk, making it ideal for large pipelines and noise-sensitive environments.
Maintenance is minimal due to its simple structure. Routine visual inspections every 12 months to check for debris buildup or gasket wear are recommended. If leaks occur, replace the gasket or swing disc—tasks that can be completed quickly thanks to the grooved connection’s easy disassembly.
