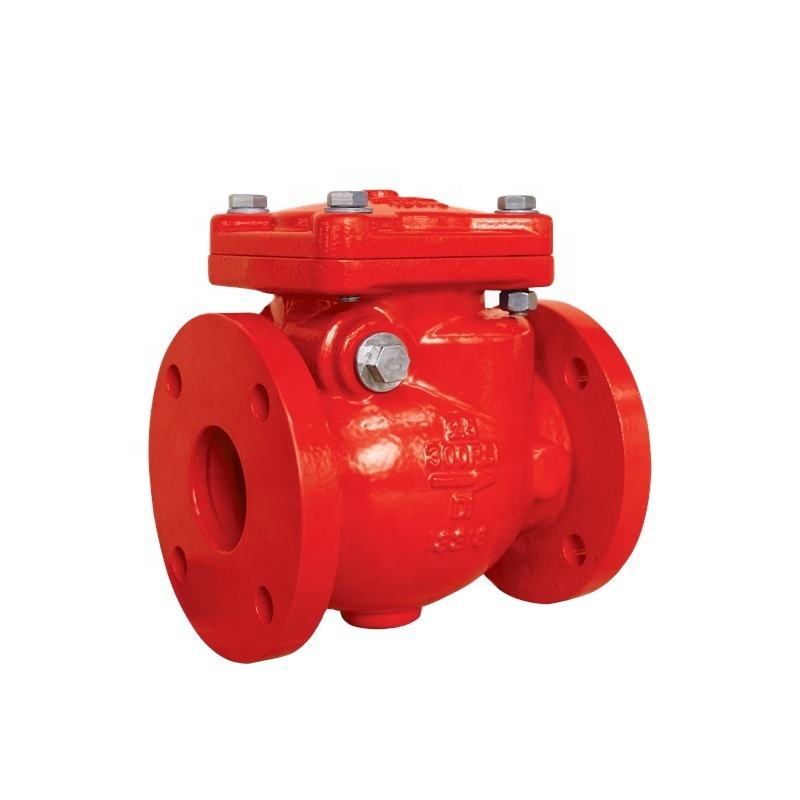

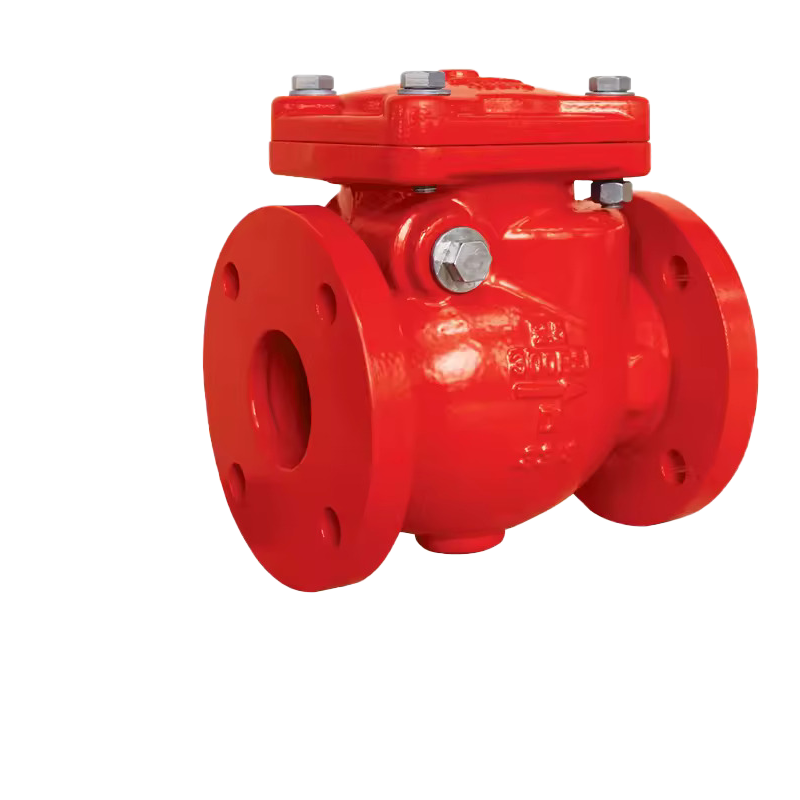

Flanged Swing Check Valve Flanged End

Overview

The 300 PSI Flanged Swing Check Valve is designed to prevent reverse flow in fire protection, water supply, and industrial piping systems.
With a swing-type disc and flanged end connections, this valve provides reliable one-way flow control, low pressure loss, and stable performance under high working pressure.

Engineered in accordance with recognized international standards, it is suitable for both horizontal and vertical installations where dependable backflow prevention is required.

Product Description

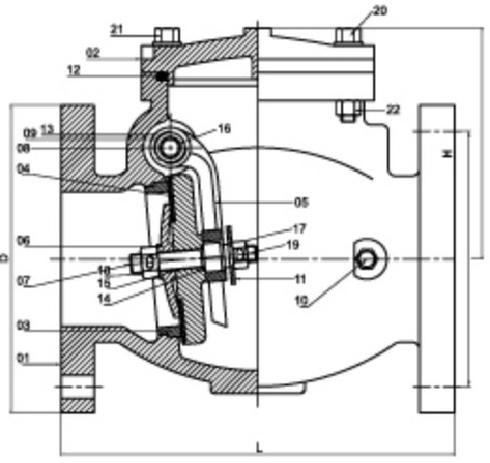

This swing check valve features a hinged disc design that automatically opens with forward flow and closes quickly when flow stops or reverses, effectively preventing backflow and protecting pumps, pipelines, and system components.

The flanged end configuration ensures secure and leak-tight connections, while the straight-through flow path minimizes pressure drop during normal operation.
With a robust body structure and corrosion-resistant epoxy coating, the valve is built for long service life in demanding fire protection and water distribution systems.

Technical Features

Features

• Swing Disc Check Design
  Automatically allows forward flow and closes instantly to prevent reverse flow without manual operation.

• Flanged End Connection
  Provides strong, secure, and leak-resistant connections suitable for high-pressure applications.

• Compliance with International Design Standards
  Designed in accordance with AWWA C508, ensuring reliable performance and structural integrity.

• Multiple Flange Standards Supported
  Compatible with:

• ASME/ANSI B16.1 Class 125

• ASME/ANSI B16.42 Class 150

• BS EN 1092-2 PN16

• GB/T 9113.1

• Standardized Face-to-Face Dimensions
  Face-to-face dimensions conform to ASME B16.10, allowing easy replacement and system compatibility.

• High Pressure Capability

• Maximum working pressure: 300 PSI

• Maximum testing pressure: 800 PSI

• Pressure performance conforms to UL 312 / FM Class 1210

• Wide Size Range
  Available in sizes from 2” to 12”, suitable for various system capacities.

• Wide Operating Temperature Range
  Designed for working temperatures from 0°C to 80°C (32°F to 176°F).

• Durable Epoxy Coating
  Internal and external epoxy coating provides excellent corrosion resistance. Alternative coating options are available upon request.

• Flexible Installation Orientation
  Suitable for both horizontal and vertical installations, depending on system design requirements.

Application

• Fire protection systems (sprinkler and water-based fire fighting pipelines)

• Municipal water supply and distribution systems

• Underground and buried piping installations

• Commercial and industrial buildings

• Pump stations and mechanical rooms

• Infrastructure and utility projects

• Retrofit projects combining flanged and grooved piping systems

Faq

Q1: What is the function of a swing check valve?
A: A swing check valve prevents reverse flow by allowing fluid to pass in one direction and automatically closing when flow stops or reverses.

Q2: Can this valve be installed vertically?
A: Yes. The valve can be installed in both horizontal and vertical pipelines, provided proper flow direction is maintained.

Q3: Is this valve suitable for fire protection systems?
A: Yes. The valve meets pressure and performance requirements commonly used in fire protection applications and is approved accordingly.

Q4: What pressure ratings does the valve support?
A: The valve supports a maximum working pressure of 300 PSI and a maximum testing pressure of 800 PSI.

Q5: What standards does this valve comply with?
A: The valve is designed in accordance with AWWA C508, with face-to-face dimensions per ASME B16.10, and pressure performance conforming to UL 312 / FM Class 1210.

Q6: What coating options are available?
A: Standard epoxy coating is provided for corrosion protection. Additional coating options are available upon request.

Q7: What systems is this valve typically used in?
A: It is commonly used in fire protection, water supply, pump discharge, and industrial systems where reliable backflow prevention is required.
