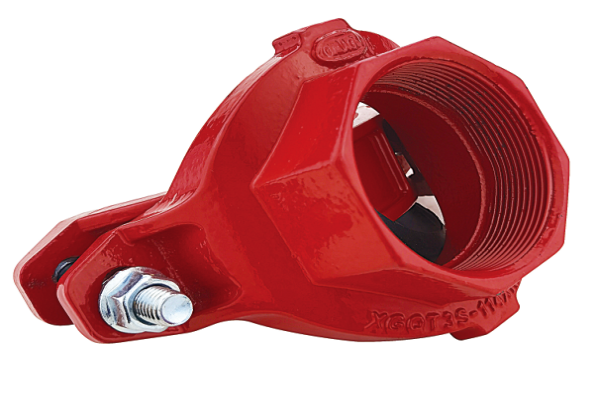

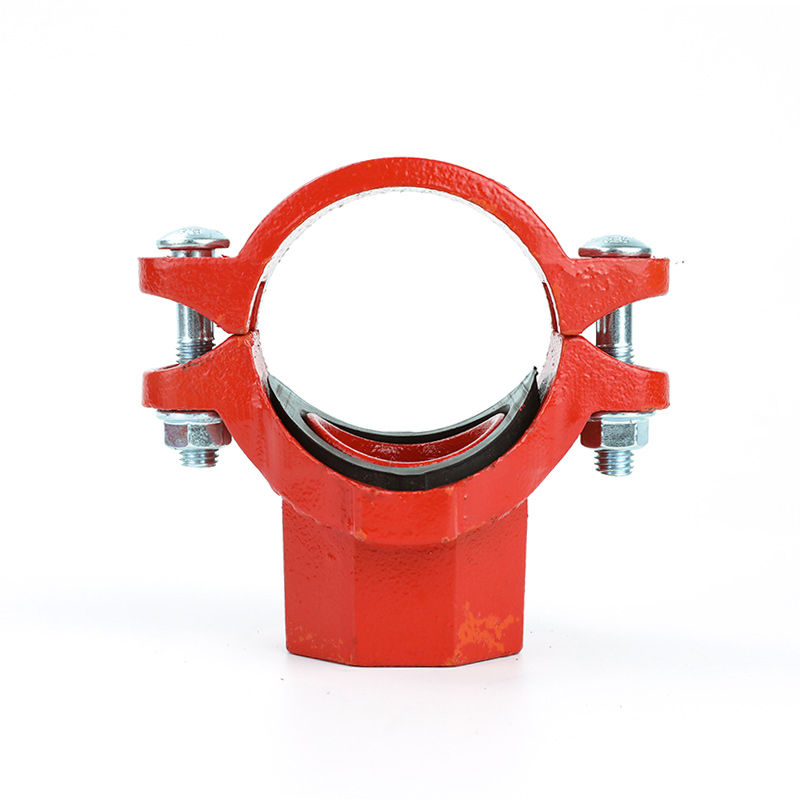

Threaded Mechanical Tee | UL/FM | XGQT03S | 1½″–10″ Sch10/40

The XGQT03S Threaded Mechanical Tee creates a fast, reliable branch connection on steel pipe without welding. Designed for Schedule 10, Schedule 40 and GB/T 3091 pipe, it delivers a pressure-responsive seal around a hole-cut opening and provides a female threaded outlet (NPT or BSPT) for sprinklers, valves, gauges, or instruments.

Quantity:
Availability:





Inquire Add to Basket

mechanical tee threaded outlet XGQT03S mechanical tee UL FM mechanical tee ductile iron mechanical tee mechanical tee NPT outlet mechanical tee BSPT outlet mechanical tee for Schedule 40 mechanical tee for Schedule 10 GB/T 3091 mechanical tee hole cut mechanical tee

Product Description

Production equipment

Packaging and Shipping

Key Features

Sizes: DN40–DN250 (1½″–10″) threaded outlet

Compliance: Working pressures conform to UL and FM listings for the XGQT03S series (check size-specific table)

Materials: High-strength ductile iron (ASTM A536) housings; EPDM gasket for water service (NBR optional for oils/fuels)

Compatibility: Suited to hole-cut branches on roll- or cut-grooved steel piping; integrates with grooved systems for fast installation

Finishes: Standard orange coating; hot-dip galvanized option available

Threads: NPT (ANSI B1.20.1) or BSPT (ISO 7-1) female outlet

Applications

dustrial water, mining, and general mechanical services where a quick threaded branch is required without welding.

Note: Working pressure is size- and pipe-wall dependent. For orders and approvals, reference the UL/FM listing table for XGQT03S.

Material:ASTM A536,GRADE 65-45-12,QT450-10

Threads:ASME B1.20.1,ISO 7-1,BS21,BSPT,NPT,GB 7306

Size:ISO6182,AWWA C606

Size Available:2"-10"

Surface Treatment: Electrophoretic painted

Electroplated, Epoxy, Hot-dip Galvanized

2242701d-6a6f-4c6e-ae90-71fe928a5db9 product

Air pressure and holding pressure schedule
NO.	Size	Pressure	Time to keep the pressure	Remark
1	≤DN50	≥0.5MPa	≥5s	Air pressure
2	>DN50~DN350	≥0.5MPa	≥10s	Air pressure
3	>DN350	1.5times the rated working pressure	5min	water pressure

Rubber gasket
Name	Recommended Application Medium	Related Standards	Recommended Application Temperature Range
E:EPDM	water supply,drainage, sewage,normal temperature air,weak acid,and weak alkali	GB5135.11	-30℃~+130℃
		GB/T 21873	-22°F~+266°F
	continuous supply of 110℃ hot water	GB/T 27572
D:NITRILE	petroleum,vegetable oil, mineral oil	GB5135.11	-20℃~+80℃
D:NITRILE	petroleum,vegetable oil, mineral oil	GB/T 23658	-4°F~+176°F
S:SIUCON	drinking water	GB/T 28604	-40℃~+180℃
S:SIUCON	high-temperature dry air and some high-temperature chemicals	GB5135.11	-40°F~+356°F
F:FLUORINE	the acid,alkaline solution,and hot lubricating oil	HG/T 2181	-20℃~+180°
F:FLUORINE	the acid,alkaline solution,and hot lubricating oil	HG/T 2181	-4°F~+356F
V:NEOPRENE	seawater		'-20°℃~+100℃ -4°F~+212°F

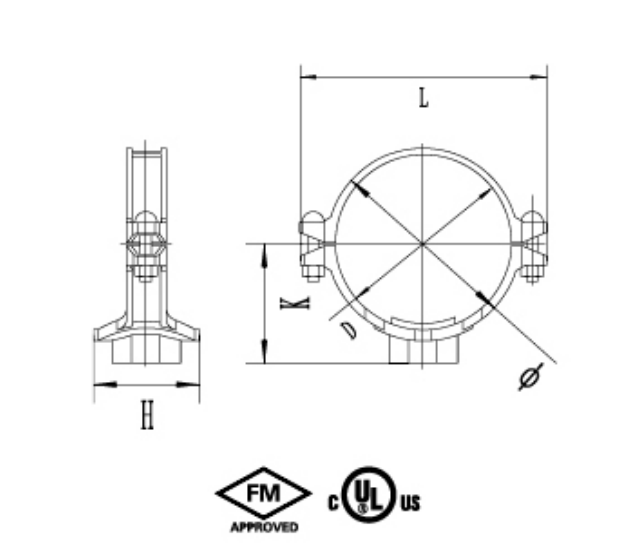

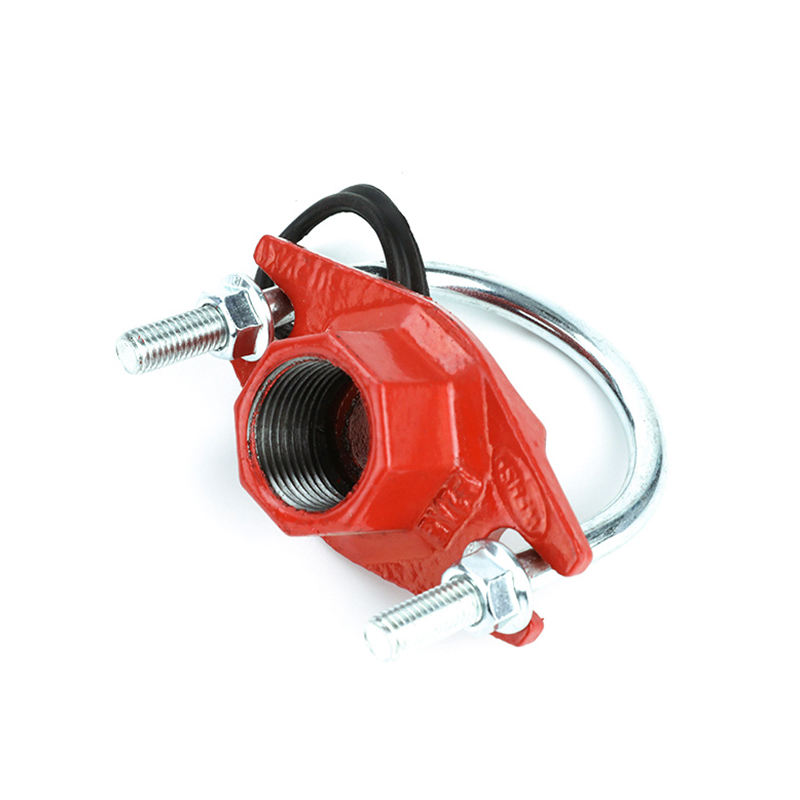

Nominal Size mm/n	Pipe O.D mm/in	Working Pressure PSI/MPa	U Bolt Size	Dimensions L mm/in				Hole cuting dimensions
Nominal Size mm/n	Pipe O.D mm/in	Working Pressure PSI/MPa	No.-Size mm	Φ	L	K	H	Hole cuting dimensions
50x25 2x1	60.3x33.7 2.375x1.327	300 2.07	2-M10x55	75 2.953	116 4.567	64 2.520	72 2.835	38 1.496
50x32 2x1-1/4	60.3x42.4 2.375x1.669	300 2.07	2-M10x55	75 2.953	116 4.566	65 2.559	72 2.835	46 1.811
50x32 2x1-1/4	60.3x42.4 2.375x1.669	300 2.07	2-M10x55	75 2.953	116 4.566	65 2.559	72 2.835	46 1.811
50x40 2x1-1/2	60.3x48.3 2.375x1.900	300 2.07	2-M10x55	75 2.953	116 4.566	65 2.559	72 2.835	46 1.811
65x25 2-1/2/x1	73x33.7 2.874x1.327	300 2.07	2-M12x60	93 3.661	136 5.354	80 3.150	77 3.031	38 1.496
65x32 2-1/2/x1-1/4	73x42.4 2.874x1.669	300 2.07	2-M12x60	93 3.661	136 5.354	80 3.150	83 3.268	46 1.811
65x40 2-1/2/x1-1/2	73x48.3 2.874x1.900	300 2.07	2-M12x60	93 3.661	136 5.354	80 3.150	83 3.268	51 2.007
65x25 2-2/1x1	76.1x33.7 2.996x1.327	300 2.07	2-M12x60	102 4.016	144 5.669	78 3.071	77 3.031	38 1.496
65x32 2-1/2x1-1/4	76.1x42.4 2.996x1.669	300 2.07	2-M12x60	102 4.016	144 5.669	78 3.071	83 3.267	46 1.811
65x40 2-1/2/x1-1/2	76.1x48.3 2.996x1.900	300 2.07	2-M12x60	102 4.016	144 5.669	78 3.071	83 3.267	51 2.077
80x25 3x1	88.9x33.7 3.500x1.327	300 2.07	2-M12x65	114 4.488	152 5.984	83 3.268	77 3.031	39 1.496
80x32 3x1-1/4	88.9x42.4 3.500x1.669	300 2.07	2-M12x65	114 4.488	152 5.984	85 3.346	83 3.268	46 1.811
80x40 3x1-1/2	88.9x48.3 3.500x1.900	300 2.07	2-M12x65	114 4.488	152 5.984	85 3.346	93 3.661	51 2.007
80x50 3x2	88.9x60.3 3.500x2.375	300 2.07	2-M12x65	114 4.488	152 5.984	85 3.346	99 3.898	61 2.402
80x65 3x2-1/2	88.9×73 3.500x2.874	300 2.07	2-M12x65	114 4.488	152 5.984	85 3.346	99 3.898	81 3.189
80x65 3x2-1/2	88.9x76 3.500x2.996	300 2.07	2-M12x65	114 4.488	152 5.984	85 3.346	99 3.898	81 3.189
100x25 4x1	114.3x33.7 4.500x1.327	300 2.07	2-M12x65	140 5.512	180 7.187	97 3.819	77 3.031	38 1.496
100×32 4x1-1/4	114.3x42.4 4.500x1.669	300 2.07	2-M12x65	140 5.512	180 7.187	97 3.819	83 3.268	46 1.811
100x40 4x1-1/2	114.3x48.3 4.500x1.900	300 2.07	2-M12x65	140 5.512	180 7.187	98 3.858	92 3.622	51 2.007
100x50 4x2	114.3x60.3 4.500x2.375	300 2.07	2-M12x65	140 5.512	180 7.087	99 3.898	98 3.858	61 2.402
100x65 4x2-1/2	114.3x73 4.500x2.874	300 2.07	2-M12x65	140 5.512	180 7.087	99 3.898	122 4.803	81 3.189
100x65 4x2-1/2	114.3x76.1 4.500x2.996	300 2.07	2-M12x65	140 5.512	180 7.087	99 3.898	122 4.803	81 3.189
100x65 4x2-1/2	114.3x76.1 4.500x2.996	300 2.07	2-M12x65	140 5.512	180 7.087	99 3.898	122 4.803	81 3.189
100x80 4x3	114.3x88.9 4.500x3.500	300 2.07	2-M12x65	140 5.512	180 7.087	98 3.858	123 4.843	86 3.386
125x50 5x2	139.7x60.3 5.500x2.375	300 2.07	2-M16x75	168 6.614	220 8.661	112 4.409	99 3.819	61 2.402
125x50 5x2	139.7x60.3 5.500x2.375	300 2.07	2-M16x75	168 6.614	220 8.661	112 4.409	99 3.819	61 2.402
125×65 5x2-1/2	139.7x76.1 5.500x2.996	300 2.07	2-M16x75	168 6.614	220 8.661	112 4.409	122 4.409	81 3.189
125x80 5x3	139.7x88.9 5.500x3.500	300 2.07	2-M16x75	168 6.614	220 8.661	113 4.449	136 5.354	86 3.386
125x80 5x3	139.7x88.9 5.500x3.500	300 2.07	2-M16x75	168 6.614	220 8.661	113 4.449	136 5.354	86 3.386
150x65 6x2-1/2	159.0x76.1 6.260x2.996	300 2.07	2-M16×85	187 7.362	237 9.331	121 4.764	122 4.409	81 3.189
150x80 6x3	159.0x88.9 6.260x3.500	300 2.07	2-M16x85	187 7.362	237 9.331	121 4.764	136 5.354	86 3.386
150x100 6x4	159.0x108.0 6.260x4.252	300 2.07	2-M16x85	187 7.362	237 9.331	125 4.921	158 6.220	114 4.488
150x100 6x4	159.0x114.3 6.260x4.500	300 2.07	2-M16x85	187 7.362	237 9.331	125 4.921	158 6.220	114 4.488
150x50 6x2	165.1x60.3 6.500x2.375	300 2.07	2-M16x85	194 7.638	247 9.724	123 4.842	99 3.898	61 2.402
150x65 6x2-1/2	1651x76.1 6.500x2.996	300 2.07	2-M16x85	194 7.638	247 9.724	123 4.842	123 4.843	81 3.189
150x80 6x3	165.1x88.9 6.500×3.500	300 2.07	2-M16x85	194 7.638	247 9.724	125 4.921	136 5.354	86 3.389
150x100 6x4	165.1x114.3 6.500x4.500	300 2.07	2-M16x85	194 7.638	247 9.724	125 4.921	158 6.220	114 4.488
150x25 6x1	168.3x33.7 6.625x1.327	300 2.07	2-M16x85	198 7.795	248 9.764	125 4.921	79 3.110	38 1.496
50x32 6x1-1/4	168.3x42.4 6.625x1.669	300 2.07	2-M16x85	198 7.795	248 9.764	125 4.921	84 3.701	46 1.811
150x40 6x1-1/2	168.3x48.3 6.625x1.900	300 2.07	2-M16x85	198 7.795	248 9.764	125 4.921	94 3.701	51 2.007
150x50 6x2	168.3x60.3 6.625x2.375	300 2.07	2-M16x85	198 7.795	248 9.764	125 4.921	99 3.898	61 2.401
150x65 6x2-1/2	168.3x73 6.625x2.874	300 2.07	2-M16x85	198 7.795	248 9.764	128 5.039	122 4.409	81 3.189
150x65 6x2-1/2	168.3x76.1 6.625x2.996	300 2.07	2-M16x85	198 7.795	248 9.764	128 5.039	122 4.409	81 3.189
150x80 6x3	168.3x88.9 6.625x3.500	300 2.07	2-M16x85	198 7.795	248 9.764	130 5.118	136 5.354	86 3.385
150x80 6x3	168.3x88.9 6.625x3.500	300 2.07	2-M16x85	198 7.795	248 9.764	130 5.118	136 5.354	86 3.385
50x100 6x4	168.3x114.3 6.625x4.500	300 2.07	2-M16×85	198 7.795	248 9.764	128 5.039	157 6.181	114 4.488
200x65 8x2-1/2	216x76.1 8.504x2.996	300 2.07	2-M16x100	247 9.724	302 11.890	150 5.906	127 5.000	81 3.189
200x50 8x2	219.1x60.3 8.625x2.375	300 2.07	2-M16x100	250 9.843	302 11.890	152 5.984	99 3.898	61 2.402
200x65 8x2-1/2	219.1x73 8.625x2.874	300 2.07	2-M16x100	250 9.843	302 11.890	152 5.984	130 5.118	81 3..189
200x65 8x2-1/2	219.1x73 8.625x2.874	300 2.07	2-M16x100	250 9.843	302 11.890	152 5.984	130 5.118	81 3..189
200x65 8x2-1/2	219.1x76.1 8.625x2.996	300 2.07	2-M16x100	250 9.843	302 11.890	152 5.984	130 5.118	81 3.189
200x80 8x3	2191x88.9 8.625x3.500	300 2.07	2-M16x100	250 9.843	302 11.890	152 5.984	137 5.394	86 3.386
200x80 8x3	2191x88.9 8.625x3.500	300 2.07	2-M16x100	250 9.843	302 11.890	152 5.984	137 5.394	86 3.386
200x100 8x4	219.1x114.3 8.625x4.500	300 2.07	2-M16x100	250 9.843	304 11.969	153 6.024	162 6.378	114 4.488
200x150 8x6	219.1x168.3 8.625x6.625	300 2.07	2-M16x100	250 9.843	304 11.969	158 6.850	210 8.425	160 6.299
25065 102-1/2	273.073 10.7482.874	300 2.07	2-M22*130	307 12.087	376 14.803	186 7.323	131 5.157	81 3.189
250100 104	273.0114.3 10.7484.500	300 2.07	2-M22*130	307 12.087	376 14.803	186 7.323	161 6.339	144 4.488
250100 104	273.0114.3 10.7484.500	300 2.07	2-M22*130	307 12.087	376 14.803	186 7.323	161 6.339	144 4.488

Installation Instruction For Threaded &Grooved Mechanical Tee





1.Take out the Rigid &Flexible Coupling Clean the gasket sealing surface within 16mm of the hole and visually inspect the sealing surface for defects that may prevent proper sealing of the gasket.Don't drill the hole on weld line.	2.Split the Rigid &Flexible Coupling If any burrs or slug exists at the pipe hole,please remove them before assembly,to protect the gasket and avoid leakage.	3.Pipe preparation Insert the gasket into outlet housing making sure the tab in the gasket line up with the tab recesses in the housing.Align outlet housing over the pipe hole making sure that the locating collar is in the pipe hole.	4.Lubricate gasket Align the strap around the pipe,inser the bolts and tighten the nuts finger tight.




5.Gasket installation Alternatively and evenly tighten the nuts to the specified bolt torque.	6.Housing installation There should be even gaps on two sides between upper and lower housings.
