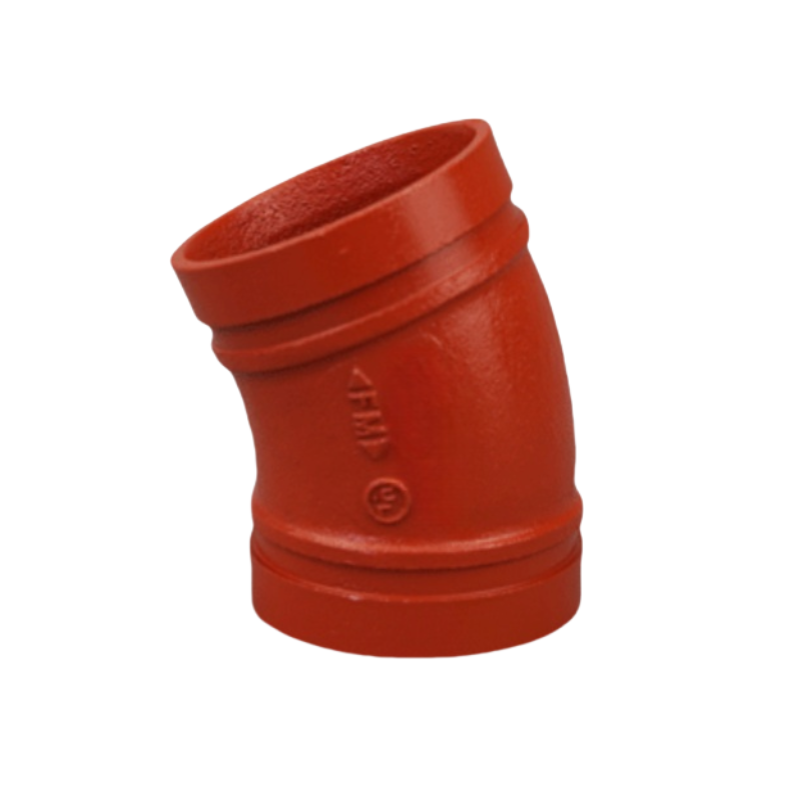

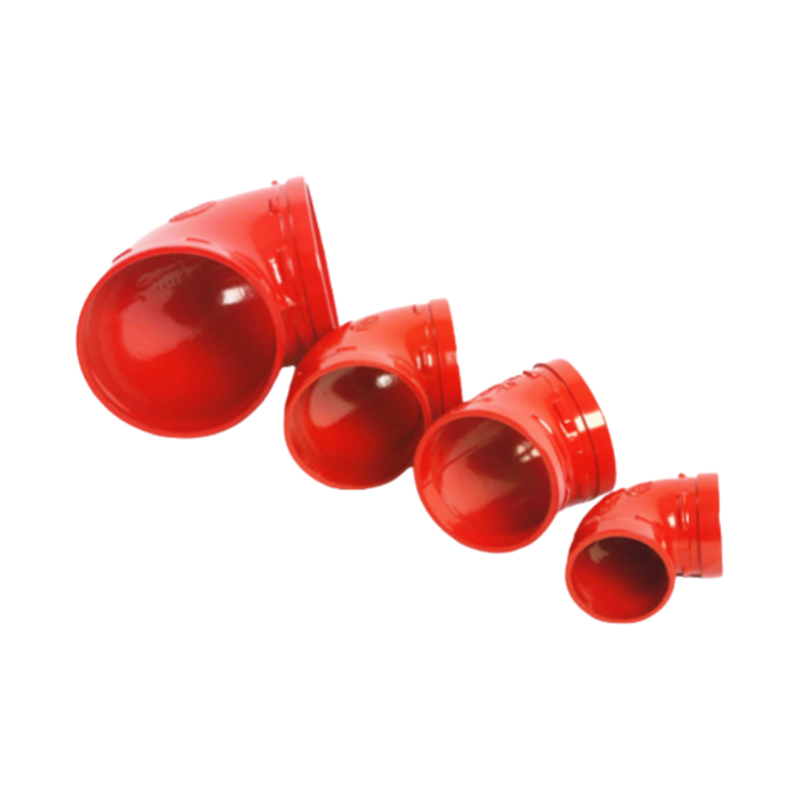

22.5 Degree Grooved Elbow | Ductile Iron 1″–12″

The 22.5° Grooved Elbow provides a smooth change in direction for grooved-end piping systems while maintaining full flow. Manufactured from ductile iron (ASTM A536) with corrosion-resistant coating, it mates with roll-grooved or cut-grooved steel pipe and installs quickly using standard grooved couplings.

Quantity:
Availability:





Inquire Add to Basket

22.5 degree grooved elbow grooved elbow 22.5° ductile iron grooved elbow AWWA C606 elbow EPDM gasket grooved elbow NBR gasket grooved elbow 1 inch grooved elbow 2 inch grooved elbow 4 inch grooved elbow 6 inch grooved elbow

Product Description

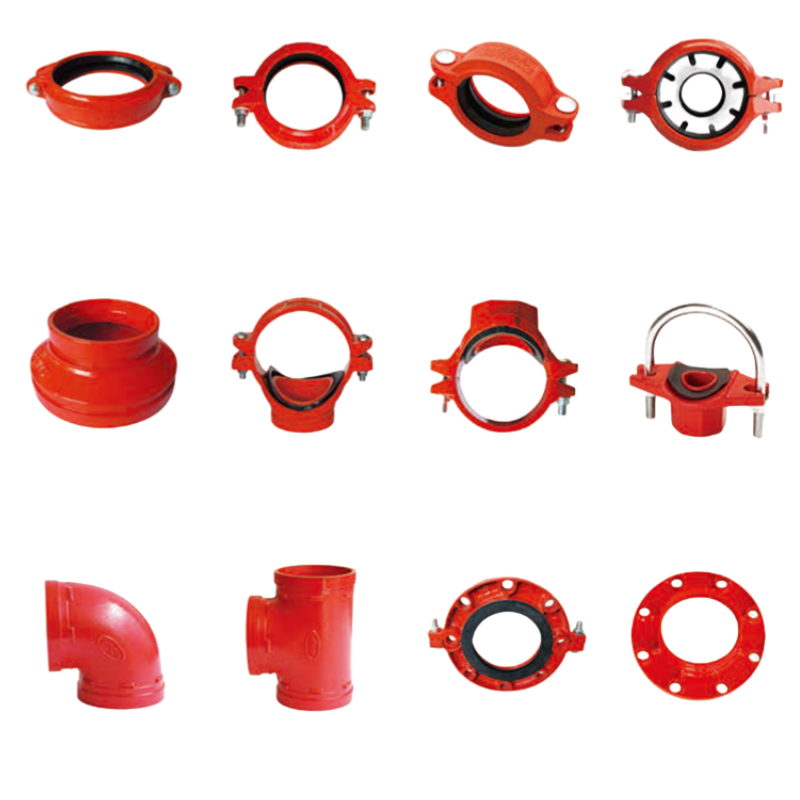

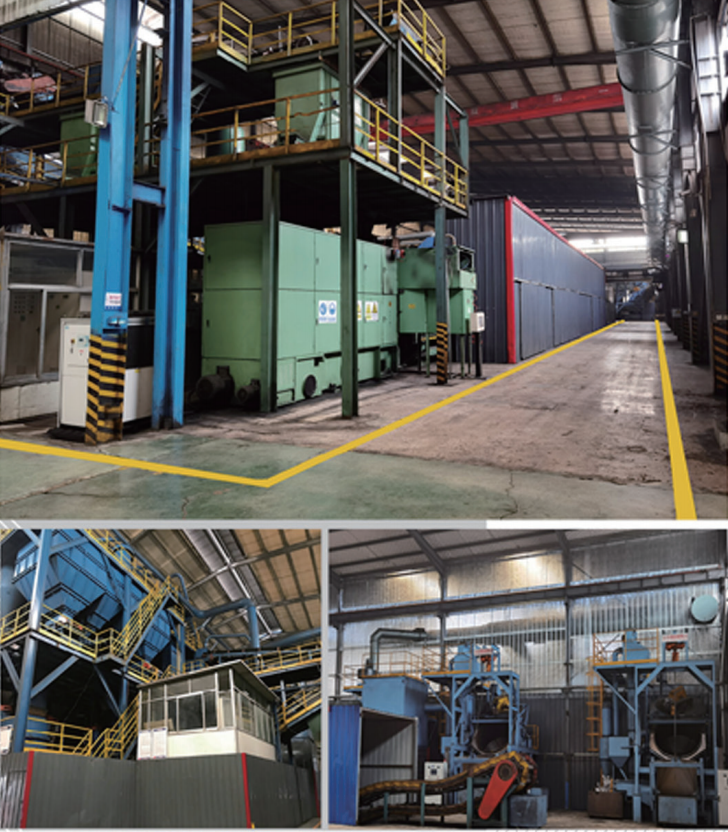

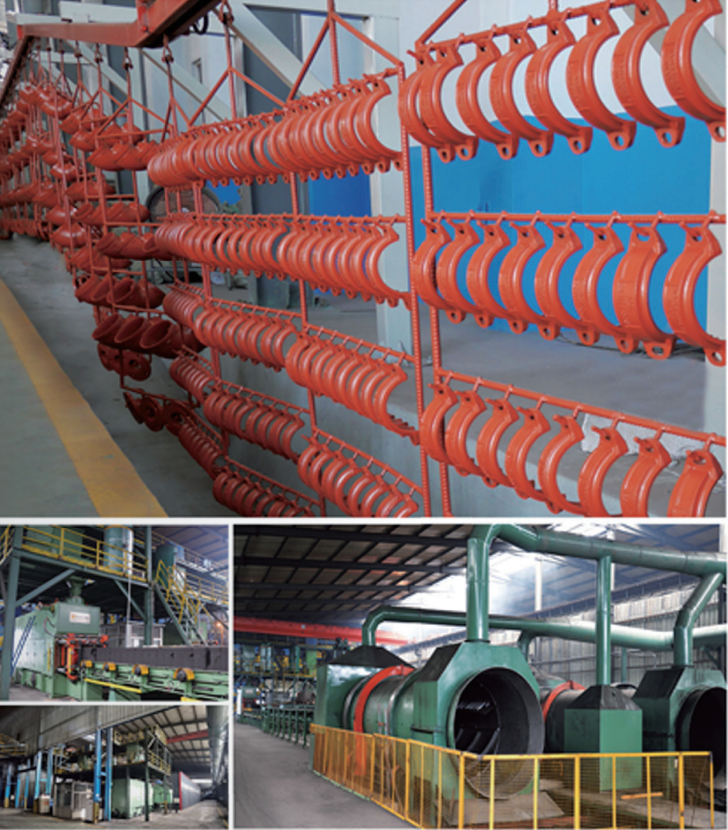

Production equipment

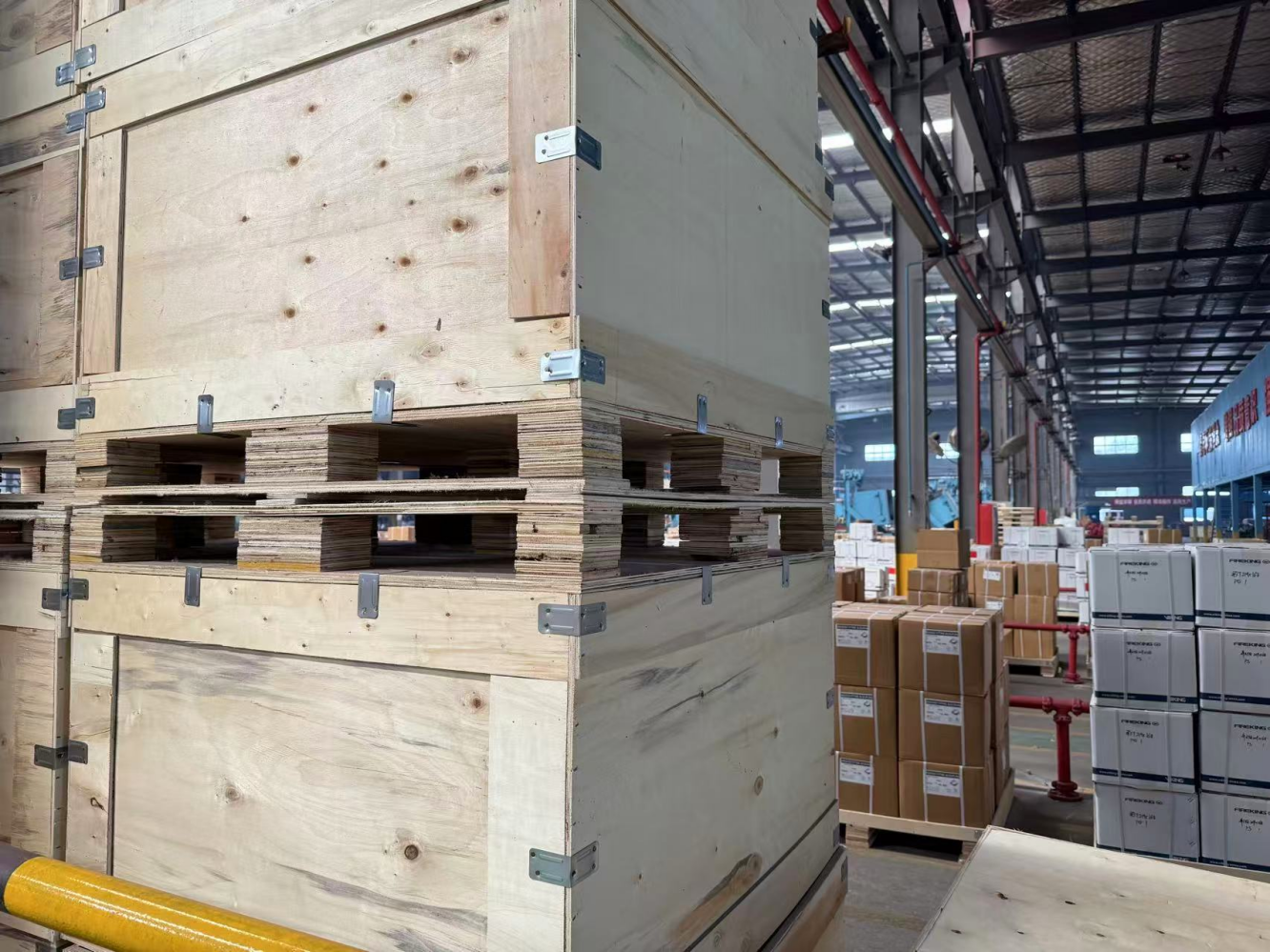

Packaging and Shipping

Product describe

Dimensions follow AWWA C606 groove requirements and fitting pressure capability conforms to the installed coupling’s rating (size-dependent). Gasket options include EPDM for water service and NBR for oils/fuels. Finishes are available in orange paint or hot-dip galvanized for enhanced corrosion resistance.
Sizes: DN25–DN300 (1″–12″) standard; larger diameters may be available upon request. Industry catalogs commonly cover from ¾″ up to 24″, with elbows offered in 11.25°, 22.5°, 45° and 90° variants. Working pressure is determined by the coupling series and pipe schedule. Please refer to your coupling’s table for the exact rating per size.

Applications

fire protection mains and branches, HVAC chilled/condensing water, industrial water, and general mechanical services where a controlled 22.5° deflection is needed with minimal pressure drop. Typical market literature specifies ASTM A536 ductile iron for cast fittings and alignment with AWWA C606 groove geometry.

Material:ASTM A536,GRADE 65-45-12,QT450-10

Threads:ASME B1.20.1,ISO 7-1,BS21,BSPT,NPT,GB 7306

Size:ISO6182,AWWA C606

Size Available:1"-12"

Surface Treatment: Electrophoretic painted

Electroplated, Epoxy, Hot-dip Galvanized

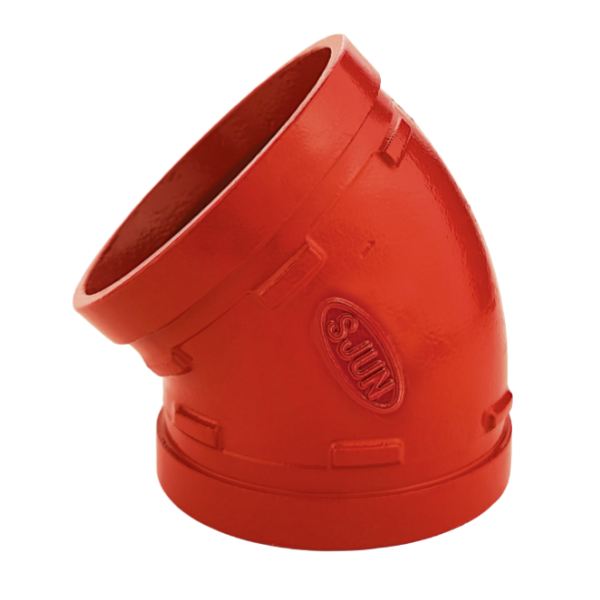

WechatIMG541 product

Air pressure and holding pressure schedule
NO.	Size	Pressure	Time to keep the pressure	Remark
1	≤DN50	≥0.5MPa	≥5s	Air pressure
2	>DN50~DN350	≥0.5MPa	≥10s	Air pressure
3	>DN350	1.5times the rated working pressure	5min	water pressure

Rubber gasket
Name	Recommended Application Medium	Related Standards	Recommended Application Temperature Range
E:EPDM	water supply,drainage, sewage,normal temperature air,weak acid,and weak alkali	GB5135.11	-30℃~+130℃
		GB/T 21873	-22°F~+266°F
	continuous supply of 110℃ hot water	GB/T 27572
D:NITRILE	petroleum,vegetable oil, mineral oil	GB5135.11	-20℃~+80℃
D:NITRILE	petroleum,vegetable oil, mineral oil	GB/T 23658	-4°F~+176°F
S:SIUCON	drinking water	GB/T 28604	-40℃~+180℃
S:SIUCON	high-temperature dry air and some high-temperature chemicals	GB5135.11	-40°F~+356°F
F:FLUORINE	the acid,alkaline solution,and hot lubricating oil	HG/T 2181	-20℃~+180°
F:FLUORINE	the acid,alkaline solution,and hot lubricating oil	HG/T 2181	-4°F~+356F
V:NEOPRENE	seawater		'-20°℃~+100℃ -4°F~+212°F

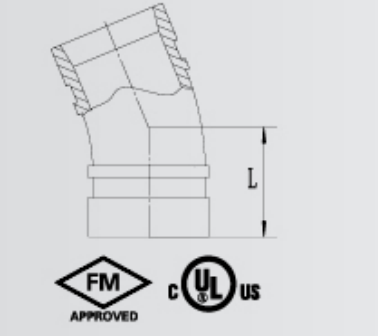

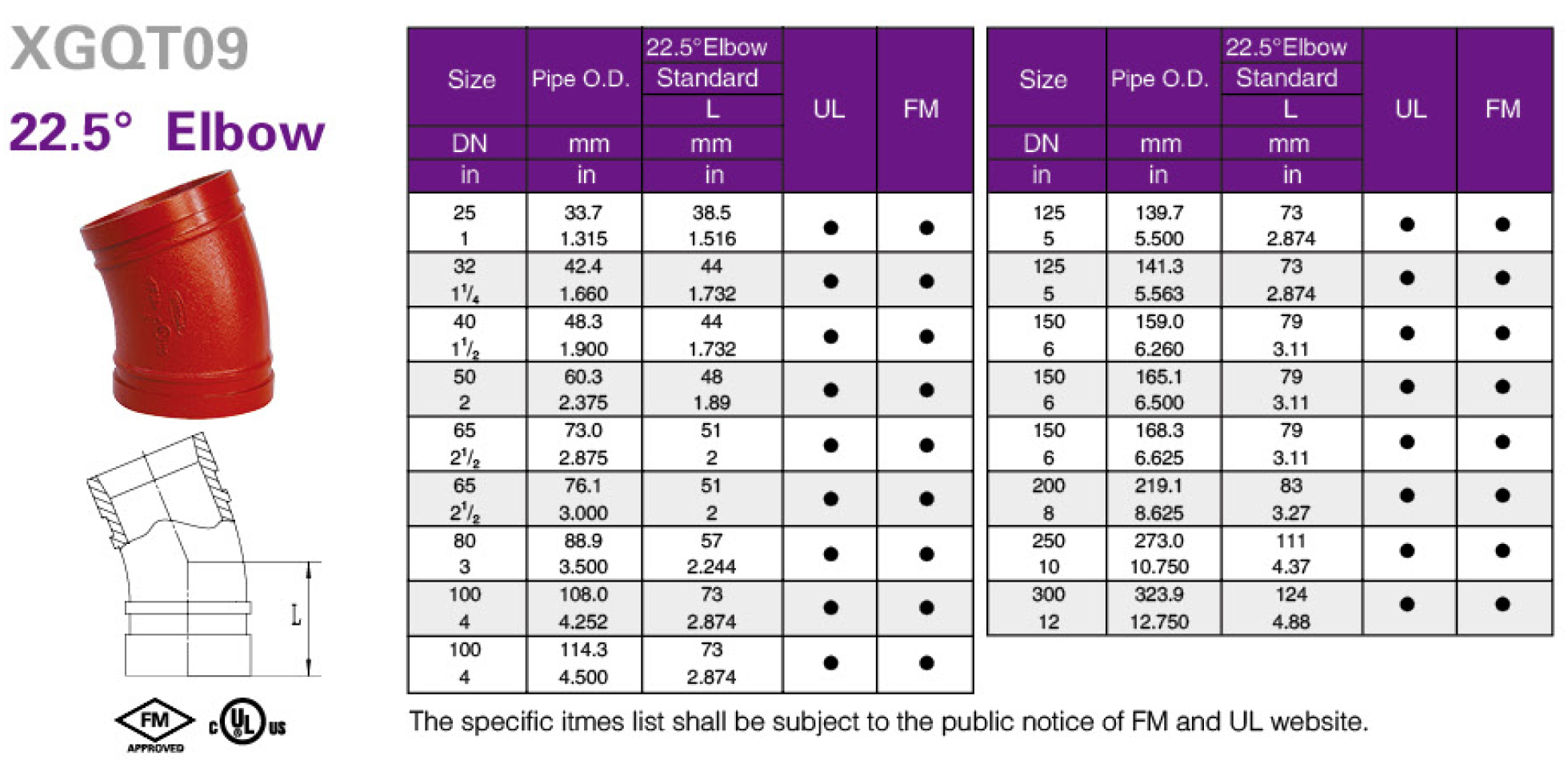

Size	Pipe O.D.	45°EIbow L	UL	FM

DN in	mm in	mm in


25 1	33.7 1.315	38 1.516	UL	FM
32 1-1/4	42.4 1.66	44 1.732	UL	FM

40 1-1/2	48.3 1.900	44 1.732	UL	FM

50 2	60.3 2.375	48 1.89	UL	FM

65 2-1/2	73.0 2.875	51 2	UL	FM
65 2-1/2	76.1 3.000	51 2	UL	FM
80 3	88.9 3.500	57 2.244	UL	FM
100 4	108.0 4.252	73 2.874	UL	FM
100 4	114.3 4.500	73 2.874	UL	FM
125 5	133.0 5.500	73 2.874	UL	FM
125 5	139.7 5.500	73 2.874	UL	FM
150 6	159.0 6.260	79 3.11	UL	FM

150 6	165.1 6.500	79 3.11	UL	FM

150 6	168.3 6.625	79 3.11	UL	FM
200 8	216.3 8.516	108 4.251	UL	FM
200 8	219.1 8.625	83 3.27	UL	FM
250 10	267.4 10.528	111 4.37	UL	FM
300 12	323.9 12.750	124 4.88	UL	FM
