In the world of piping systems, the importance of choosing the right connection method cannot be overstated. One of the most popular and reliable methods of connecting pipes is through the use of grooved couplings. A grooved coupling is a mechanical connector that joins pipes, ensuring a secure and flexible connection. Unlike traditional pipe joining methods, such as threading or flanged connections, grooved couplings offer multiple advantages including faster installation, reduced maintenance costs, and increased flexibility. This article will delve into the different aspects of grooved couplings, their applications, benefits, and how they compare to other traditional methods of pipe joining.
A grooved coupling consists of two halves, each featuring a groove that fits into the corresponding groove of the opposite half when joined. The connection is secured by an elastomeric gasket that forms a seal between the two pipes or shafts, ensuring a leak-proof and secure bond. This unique design allows for a quick and easy installation process without the need for welding or threading.
Grooved couplings are typically made from materials such as ductile iron, which provides durability and resistance to corrosion. They are versatile and can be used for a wide range of pipe materials, including steel, PVC, and HDPE pipes.
The operation of a grooved coupling is simple yet highly effective. The grooved halves of the coupling fit into each other, and when brought together, the grooves interlock, securing the pipes. The gasket placed inside the coupling creates a tight seal, preventing leaks even under high pressure. This system does not require special tools for installation and can be easily disconnected for maintenance or repair.
Grooved couplings are designed for both rigid and flexible pipe couplings, offering flexibility while still maintaining a strong mechanical bond between the pipes.
One of the primary advantages of grooved couplings is the speed with which they can be installed. Traditional methods such as welding or threading require significant labor and time, while a grooved coupling can be installed in a fraction of the time. The simplicity of the installation process is one of the key reasons why grooved couplings are often preferred for large-scale plumbing, HVAC, and fire protection systems.
Unlike traditional pipe connections, grooved couplings allow for a certain degree of movement. This flexibility is important in systems where pipes might expand or contract due to thermal changes, pressure fluctuations, or external forces. The ability of the coupling to accommodate these movements reduces the risk of damage and leaks.
Maintaining a grooved coupling is significantly easier compared to other types of connections. If repairs are needed, a grooved coupling can be quickly disconnected without the need for specialized tools. This ease of maintenance translates to reduced downtime and lower repair costs, making grooved couplings an attractive option for industries that rely on continuous operation.
Grooved couplings provide a secure, leak-free connection that ensures the safety and reliability of piping systems. The robust design reduces the likelihood of pipe failures, which is especially crucial in high-stakes applications like fire fighting systems where reliability is paramount. The durable materials, such as ductile iron, used in grooved fittings further enhance the reliability of these couplings.
In fire fighting systems, the need for reliable and quick pipe connections is critical. Grooved couplings are widely used in fire protection systems because they offer easy installation, reliable connections, and the ability to withstand high-pressure environments. The ability to quickly install and replace parts ensures that fire protection systems remain functional and efficient.
In HVAC (Heating, Ventilation, and Air Conditioning) systems, grooved couplings are utilized for both their flexibility and durability. The quick rigid coupling feature of grooved couplings allows for easy installation of ventilation pipes and air ducts, while also allowing the system to adapt to pressure changes and thermal expansion.
Grooved couplings are extensively used in water systems where the conveyance of water must be done efficiently and safely. These systems often experience fluctuating pressures and are exposed to various external conditions. Grooved couplings offer a secure seal that prevents leaks, ensuring that water systems remain operational without the risk of contamination or leakage.

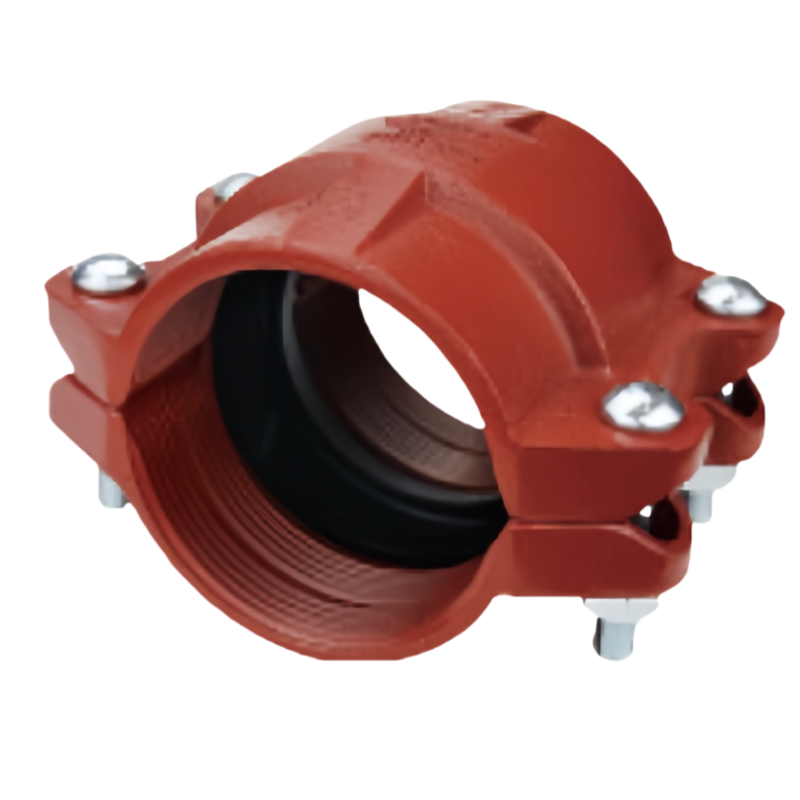

Grooved couplings are available in a variety of materials, with the most common being ductile iron, stainless steel, and carbon steel. Ductile iron is especially popular due to its strength, corrosion resistance, and long lifespan. Other materials like HDPE coupling options are available for systems that require more flexibility and resistance to certain chemicals or environmental conditions.
Grooved couplings can be divided into rigid and flexible pipe couplings. A rigid coupling creates a solid connection between two pipes, while a flexible coupling allows for movement and flexibility between the pipes. The choice between the two depends on the specific requirements of the application, such as the need for flexibility or the ability to withstand high pressure.
Grooved couplings come in various pressure ratings to accommodate different applications. They are classified into low-pressure, medium-pressure, and high-pressure couplings, making them suitable for use in everything from residential plumbing systems to high-pressure industrial pipelines.
For specialized applications like fire protection, HVAC, or water systems, grooved fittings are tailored to meet the unique needs of these industries. Each application may require different materials, pressure ratings, and coupling types, ensuring that the coupling chosen is perfectly suited for the task at hand.
Threaded connections require cutting threads onto pipes and using fittings that match those threads. This process is time-consuming and may involve the use of special tools. In contrast, grooved couplings require no threading and can be quickly installed, saving both time and labor costs. Additionally, grooved couplings provide a more reliable, leak-free seal.
Flanged connections involve bolting two flanges together, a process that can be slow and complex. While grooved couplings also require a secure connection, they can be installed much more quickly. The grooved coupling is also less expensive than a flanged connection, making it a cost-effective option for many industries.
Because grooved couplings are easier and faster to install, they are often more cost-effective than traditional methods like welding or flanging. The reduced installation time and lower labor costs make grooved couplings an attractive option for large-scale industrial projects.
Grooved couplings are designed to provide a secure, leak-proof seal, which is essential in applications where leaks could be dangerous, such as in fire fighting or water systems. Their reliable performance in high-pressure environments ensures that there is little risk of system failure.
With materials such as ductile iron and stainless steel, grooved couplings are built to last. Their resistance to corrosion, wear, and environmental factors makes them ideal for use in harsh conditions, ensuring that they will continue to perform effectively for years.
Although grooved couplings are easy to install, improper installation can still lead to leaks or system failure. It is essential to ensure that the coupling is aligned correctly, and the gasket is seated properly to form a leak-proof seal.
Using the wrong material or incorrect size for a grooved coupling can cause system inefficiencies or failures. It is important to choose the right coupling based on the material of the pipes, the pressure requirements, and the specific application.
Consider the size of your pipes, the application (e.g., HVAC, fire fighting, water systems), and the pressure requirements. Grooved couplings are ideal for flexible, low-maintenance systems that require quick installation.
Industries such as fire fighting, HVAC, water systems, and power generation make extensive use of grooved couplings.
Yes, grooved couplings can be customized based on material, size, pressure rating, and application-specific requirements.
With proper installation and maintenance, grooved couplings can last for decades, providing long-term durability and reliability.
Yes, grooved couplings are designed to withstand high-pressure environments, making them safe and reliable for use in critical applications such as fire protection systems.
In summary, grooved couplings are a highly efficient, cost-effective, and reliable method of connecting pipes. Their flexibility, ease of installation, and ability to accommodate movement make them an ideal choice for a wide range of applications, including HVAC, fire fighting, and water systems. By choosing the right grooved coupling for your system, you can ensure long-term performance, safety, and reduced maintenance costs. Whether you're working on a commercial plumbing project, a fire protection system, or a high-pressure water pipeline, grooved couplings provide the perfect solution for your piping needs.
