What is a malleable iron pipe fitting?

A malleable iron pipe fitting is designed to join pipes in both plumbing and industrial applications. Each malleable iron pipe fitting is crafted from malleable iron, a material known for its superior strength and flexibility compared to regular cast iron. This ensures that a malleable iron pipe fitting resists cracking and maintains its shape even under high pressure or rapid temperature changes. Malleable iron pipe fittings are suitable for water, steam, and gas lines, making them versatile for various systems. Galvanized malleable iron pipe fittings provide excellent rust resistance, further enhancing their durability. Overall, a malleable iron pipe fitting is a reliable choice for a wide range of uses.

Key Takeaways

• Malleable iron pipe fittings are strong. They are also flexible. This makes them good for plumbing and industry.

• These fittings do not crack easily. They keep their shape when pressure is high. They also stay strong when temperatures change.

• Always check quality standards like EN 1562. Also check ISO 5922 when buying fittings. This helps keep things safe and reliable.

• Galvanized malleable iron fittings resist rust very well. This makes them good for wet places or where chemicals are used.

• Pick the right fitting type for your pipes. Choose elbows or tees based on what you need. This helps the flow and connection work well.

• Use proper installation methods. Using thread sealant stops leaks. It also makes the fit secure.

• Malleable iron fittings last a long time. They are cost-effective because they are durable. You do not need to replace them often.

• These fittings can be used in many ways. They work for water transport, gas pipelines, and fire protection systems.

Malleable Iron Pipe Fitting: Definition and Material

What is malleable iron?

You might wonder why malleable iron is different. Malleable iron is strong and can bend without breaking. Makers change regular cast iron into malleable iron by using annealing. Annealing is a process that heats and cools the iron slowly. This makes the iron less likely to break and easier to shape. Malleable iron works well where you need both strength and bending. It is great for pipe fittings because it can take hits and pressure without cracking.

If you check what is inside malleable iron, you will see it has special elements. These elements help malleable iron pipe fittings stay tough and last long in many places.

This mix of elements gives malleable iron its useful features.

How malleable iron pipe fittings are made

You may ask how malleable iron pipe fittings are created. The process begins with white cast iron. Workers heat this iron until it is very hot but not melted. Then, they let it cool down slowly. This is called annealing. During this time, carbon in the iron changes and forms small nodules. These nodules are in a ferritic matrix, which makes the iron strong and bendy.

Here is what happens during annealing:

• Workers heat white cast iron until it is very hot.

• They cool it down slowly.

• Carbon changes and forms temper carbon nodules.

• The iron becomes less likely to break and more flexible.

• The finished malleable iron pipe fitting can handle stress and hits.

This process helps the fittings last longer and not crack easily.

Key material standards

When picking malleable iron pipe fittings, you should check if they meet certain standards. These standards make sure the fittings work well and are safe to use. Here is a table with some important standards for malleable iron pipe fittings:

These standards help you find good quality fittings. If you see these standards on a product, you know it passed tough tests for strength and safety.

Tip: Always look for these standards when buying malleable iron pipe fittings. This helps you get fittings you can trust for your plumbing or industrial job.

Now you know what malleable iron is, how the pipe fittings are made, and which standards are important. This information helps you pick the right fittings for your next project.

Main Features of Malleable Iron Fittings

Strength and ductility

You want fittings that are strong and flexible. Malleable iron pipe fitting gives you both. Its special structure lets it bend but not break. This helps when pipes shake or face stress. You can count on malleable iron fittings to stay safe.

Here is a table with the main properties:

Tensile strength is usually between 50,000 and 90,000 psi. Malleable iron is more flexible than gray cast iron. It is less flexible than ductile iron. Still, it works well for most pipe systems. Malleable iron threaded fittings can handle tough jobs.

Corrosion resistance and surface treatments

You want your fittings to last a long time. Malleable iron fittings fight rust, especially with coatings. There are three main surface treatments:

• Black finish: This is the plain surface.

• Hot-dip galvanizing: This covers the fitting with thick zinc. It gives great rust protection and lasts longer.

• Electro-galvanizing: This uses electricity to add a thin zinc layer. It protects some but does not last as long.

Here is a table comparing these treatments:

Galvanized malleable iron fittings are good for wet or chemical places. You can use threaded galvanized iron pipes with these fittings for extra safety.

Tip: Hot-dip galvanized fittings last much longer than electro-galvanized ones.

Pressure and temperature ratings

You need fittings that can handle high pressure and heat. Malleable iron pipe fitting does this well. You can use them for water, steam, or gas. The ratings depend on the fitting class.

Here is a table showing typical ratings:

Malleable iron fittings work in many places. They stay safe even when heat or pressure goes up.

Threading standards and sealing

When you connect pipes, you want a tight and secure fit. Threading standards help you get this result every time. These standards tell you how the threads on the ends of pipes and fittings should look and fit together. If you use the right standards, you can avoid leaks and make your work easier.

You will find three main threading standards for malleable iron pipe fittings:

Each standard has its own rules for thread shape, angle, and depth. For example, ISO 7-1 and EN 10226 use tapered threads. These threads get tighter as you screw them together. This helps you make a seal that keeps water or gas from leaking out. ISO 228-1 uses parallel threads. These threads need a gasket or O-ring to make a good seal.

You should always check which standard your project needs. If you mix different thread types, you might get leaks or weak joints. Using the right standard also makes it easier to find replacement parts in the future.

Here are some tips for getting a good seal with malleable iron threaded fittings:

• Clean the threads before you start. Dirt or metal shavings can stop the threads from sealing.

• Use thread sealant or PTFE tape. This fills small gaps and helps prevent leaks.

• Tighten the fitting by hand first. Then use a wrench, but do not overtighten. Too much force can damage the threads.

Tip: Always match the threading standard of your fitting to the pipe. This helps you avoid leaks and keeps your system safe.

Threading standards play a big role in the safety and reliability of your piping system. When you follow these standards, you make sure your malleable iron threaded fittings work as they should. You get strong, leak-free connections that last for years.

Types of Malleable Iron Pipe Fittings

Elbows (90° and 45°)

You often need to change the direction of your pipes. Elbows help you do this. These fittings come in two main angles: 90° and 45°. You use a 90° elbow when you want your pipe to turn sharply. A 45° elbow gives you a gentler turn. Both types help you fit pipes into tight spaces or around corners.

You can find elbows in many sizes. Most malleable iron elbows range from 1/8 inch to 6 inches. This makes them useful for both small and large projects. Elbows work well in water, gas, and steam systems. You can choose black or galvanized elbows depending on your needs.

Here is a table showing the size range for elbows:

Tip: Use elbows to redirect fluid flow and make your piping system fit your space.

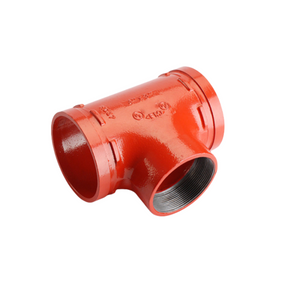

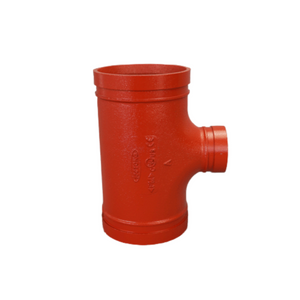

Tees and crosses

You sometimes need to branch your pipes. Tees and crosses help you do this. A tee has three openings. You can connect one pipe to two others. This lets you split the flow or join pipes at a junction. Crosses have four openings. You use them when you need to connect four pipes at one point.

Tees and crosses come in different sizes. Tees usually range from 1/8 inch to 6 inches. Crosses range from 1/4 inch to 3 inches. You can use these fittings in plumbing, heating, and industrial systems.

Here is a table showing the shape and function:

Note: Tees and crosses make it easy to change the direction of flow or create branches in your system.

Couplings and unions

You need to join two pipes together. Couplings and unions help you do this. A coupling is a short piece that connects two pipes. You can use it to join pipes of the same or different sizes. Unions let you connect pipes but also make it easy to take them apart later. This is helpful when you need to repair or replace a section.

Couplings and unions come in many sizes. Couplings range from 1/8 inch to 6 inches. Unions range from 1/8 inch to 4 inches. You can use these fittings in water, gas, and oil systems.

Here is a table showing the size range:

Tip: Use unions when you want easy maintenance or quick pipe replacement.

You can see that elbows, tees, crosses, couplings, and unions are important fittings. They help you build strong and flexible piping systems. You can choose the right fitting based on your project needs.

Caps, plugs, and flanges

You will often need to close off the end of a pipe or connect it to another system. Caps, plugs, and flanges help you do this. Each type has a special job in your piping system.

Caps
Caps fit over the end of a pipe. You use a cap when you want to stop the flow in a pipe. For example, if you plan to extend a pipeline later, you can use a cap to seal it for now. Caps come in many sizes, so you can find one that matches your pipe. Most caps have female threads, which means you screw them onto the outside of the pipe.

Plugs
Plugs also close off the end of a pipe, but you screw them inside the pipe fitting. Plugs have male threads. You use a plug when you want to seal a fitting or a pipe opening. Plugs work well for temporary or permanent seals. You can remove a plug easily if you need to open the pipe again.

Here is a table to help you see the difference:

Tip: Use caps for sealing the outside of a pipe. Use plugs for sealing the inside of a fitting.

Flanges
Flanges help you connect pipes to other pipes, valves, or equipment. You bolt flanges together to make a strong joint. Flanges work well when you need to take the system apart for cleaning or repairs. You can find flanges in many shapes and sizes. Most malleable iron flanges have threaded holes, so you can screw them onto the pipe.

Here are some common uses for flanges:

• Joining two pipes together

• Connecting pipes to pumps or tanks

• Making a system easy to take apart

You will see flanges in water, gas, and fire protection systems. Flanges give you a tight seal and strong connection.

Why choose malleable iron for these fittings?
Malleable iron caps, plugs, and flanges give you strength and reliability. They resist cracking and can handle high pressure. You can use them in many places, from homes to factories.

Note: Always check the size and threading standard before you buy caps, plugs, or flanges. This helps you get a perfect fit and a leak-free seal.

You now know how caps, plugs, and flanges work in your piping system. Each fitting has a clear purpose. When you choose the right one, you make your system safer and easier to maintain.

Applications of Malleable Iron Pipe Fittings

Water and fluid transport

You often need strong and reliable connections for water and fluid transport. Malleable iron pipe fittings help you build safe systems for drinking water, wastewater, and industrial fluids. These fittings resist shock and corrosion. When you use galvanized fittings, you protect the water from rust and keep it clean. You can trust these fittings to hold up under pressure. They work well in both homes and large buildings. You will see them in water supply lines, irrigation systems, and treatment plants. The fittings make sure your pipes do not leak and your water stays safe.

Gas and oil pipelines

You need special fittings for gas and oil pipelines. These systems face high pressure and temperature changes. Malleable iron pipe fittings give you the strength and flexibility you need. The heat treatment process makes these fittings tough. They absorb energy from vibrations and thermal changes. This helps prevent cracks or breaks in your pipeline. You can use them for natural gas transport, oil lines, and even in harsh environments. The fittings resist wear and corrosion, so they last a long time. You can count on them for leak-free and safe operation. Many gas distribution networks use these fittings because they keep the system strong and reliable.

Fire protection systems

You want your fire protection system to work every time. Malleable iron fittings play a key role in fire sprinkler systems. They can handle high pressure and sudden changes in flow. You can use these fittings to create complex piping layouts. This helps your system respond quickly in an emergency. Most commercial buildings use these fittings for fire safety. The fittings must meet strict standards. Look for FM and UL certifications. These show that the fittings passed tough tests for safety and performance. You can trust them to work when you need them most.

Tip: Always check for FM and UL marks on your fittings. This ensures your fire protection system meets safety rules.

You can see that malleable iron pipe fittings serve many important roles. They help you move water, gas, oil, and protect buildings from fire. You get strength, safety, and long-lasting performance in every application.

HVAC and industrial uses

You see malleable iron pipe fittings in many HVAC and industrial systems. These fittings help make strong and safe pipe connections. HVAC means Heating, Ventilation, and Air Conditioning. People use HVAC in homes, offices, factories, and big buildings.

HVAC systems move hot or cold water, steam, or air. Malleable iron pipe fittings connect pipes that carry these fluids. You can use elbows, tees, couplings, and flanges to build the right path. These fittings handle high pressure and temperature changes. You do not need to worry about leaks or cracks.

Factories and plants also use malleable iron pipe fittings. You see them in power plants and chemical plants. These places need strong pipes for steam, oil, gas, and chemicals. Malleable iron fittings resist shock and vibration. They keep your system safe even when machines run all day.

Here is a table that shows where you use malleable iron pipe fittings:

Tip: Always check the pressure and temperature ratings before picking a fitting for your HVAC or industrial project.

You can install malleable iron fittings quickly. The threaded design makes pipes easy to connect or disconnect. This helps you save time during repairs or upgrades. You can find these fittings in different finishes. Hot-dip galvanized fittings work well in places with moisture or chemicals.

You want your HVAC and industrial systems to last a long time. Malleable iron pipe fittings give you strength and reliability. You can trust them to keep your system running safely and smoothly.

Advantages of Malleable Iron Pipe Fittings

Durability and reliability

You want your piping system to last for years without problems. Malleable iron pipe fittings give you this peace of mind. These fittings can handle high pressure, often up to 300 psi, which makes them a strong choice for many jobs. You can use them in places where pipes face shocks or vibrations. The special structure of malleable iron lets these fittings bend a little without breaking. This means you get fewer leaks and less damage, even when your system faces stress. Malleable iron also resists rust, so your fittings stay strong and safe for a long time. Compared to regular steel, malleable iron fittings often last longer in wet or tough environments.

Note: For very high-pressure or high-temperature jobs, some people choose forged iron. Still, malleable iron fittings work well for most plumbing and industrial needs.

Easy installation and maintenance

You do not need special tools or skills to install malleable iron threaded fittings. The threads on these fittings make it easy to screw them onto pipes. You can connect or disconnect them quickly, which saves you time during repairs or upgrades. If you need to change part of your system, you can unscrew the fitting and replace it without cutting the pipe. This makes maintenance simple and fast. You also reduce the risk of leaks because the threads create a tight seal. Clean threads and a little sealant help you get a leak-free connection every time.

• You save time during installation.

• You can fix or replace parts easily.

• You do not need welding or special equipment.

Cost-effectiveness and versatility

You want to get the best value for your money. Malleable iron pipe fittings give you a good balance between cost and performance. While they may cost more than plastic at first, they last much longer. This means you spend less on repairs and replacements over time. You also avoid the extra cost of using stronger materials, like carbon steel, when you do not need them. These fittings work in many places, such as water, gas, oil, and fire protection systems. You can use them in homes, factories, or large buildings.

Here is why these fittings are a smart choice:

• They last a long time, even under pressure or heat.

• They resist rust, so you do not need to replace them often.

• You can use them in many types of piping systems.

Tip: Choosing the right fitting for your job helps you save money and avoid problems later.

You can trust malleable iron pipe fittings to give you strength, easy use, and good value. They help you build safe and reliable piping systems for many different needs.

Malleable Iron vs. Other Pipe Fittings

Malleable iron vs. cast iron

Malleable iron and cast iron are not the same. Malleable iron is tough and can bend without breaking. Cast iron is strong but cracks easily if dropped or hit. You should use malleable iron when pipes might move or face shocks. Cast iron works best when you need a part that stays still.

Here is a table showing how they are different:

• Malleable iron bends and does not crack easily.

• It is easier to work with and tougher than cast iron.

• Cast iron is good for parts that do not need to move.

Tip: Pick malleable iron fittings if you want strength and flexibility.

Malleable iron vs. ductile iron

Malleable iron and ductile iron are both strong. Ductile iron bends and stretches more before breaking. This makes ductile iron good for heavy loads or moving pipes. Malleable iron is strong and can handle force, but it does not bend as much.

Ductile iron can take repeated stress better than malleable iron. If your system shakes or moves a lot, ductile iron is a smart choice. Malleable iron works well for most jobs where you want strength and a good price.

Note: Ductile iron’s special structure keeps it from cracking under tough conditions.

Malleable iron vs. steel and plastic

You have different choices for pipe fittings. Malleable iron, steel, and plastic each have their own strengths. Malleable iron is strong, lasts long, and resists heat. Steel is also strong and handles high pressure, but it can rust and costs more.

Plastic fittings are light and easy to put in. They do not rust and cost less than metal. But plastic does not handle high heat or pressure as well as malleable iron. Plastic may wear out faster in hard places.

Here is a table comparing them:

Tip: Use malleable iron fittings for strong, long-lasting connections that handle heat and pressure.

Now you know how malleable iron compares to other pipe fitting materials. This helps you pick the best one for your project.

Choosing the Right Malleable Iron Pipe Fitting

Factors to consider

You need to think about a few things before picking malleable iron fittings. Each factor helps you make a safe and strong system.

• Application requirements: Check pipe size, pressure, and temperature. Think about what fluid or gas goes through the pipes.

• Fitting type: Choose elbows, tees, couplings, or unions. Each fitting does a different job in your system.

• Material and coatings: Pick black iron or galvanized fittings. Galvanized fittings fight rust and last longer in wet places.

• Standards and certifications: Make sure fittings meet ASTM, ANSI, ISO, or EN standards. These standards show the fittings are good quality and fit well.

• Installation and maintenance: Choose fittings that are easy to put in and fix. This saves time and money later.

• Strength and ductility: Look for malleable iron with heat treatment. This makes the fittings stronger and more flexible.

• Pressure and temperature ratings: Check how much pressure and heat the fittings can take. This keeps your pipes safe and working.

Tip: Always match the fitting’s pressure rating to your system. This stops leaks and keeps your pipes safe.

When to use malleable iron fittings

You should use malleable iron fittings when you need strong and tight connections. These fittings work well in many places. Here is a table to help you choose:

You will see malleable iron fittings in fire systems, gas pipes, water lines, and HVAC. These fittings are important when you want safety and strength. They also work well in factories, farms, and homes.

If your project faces high pressure or changing heat, malleable iron is a smart pick. You get strong and lasting results. You can trust these fittings to keep your system working.

Note: Ask an expert if your project has special needs. This helps you pick the right fittings every time.

A malleable iron pipe fitting joins pipes for water, gas, and oil. These fittings are made with special casting and strong materials. They can handle shaking and changes in pressure. This makes them good for plumbing and factories. If you pick certified fittings, you stay safe and your system lasts longer. Always look for quality marks and certifications.

• Malleable iron pipe fittings stay strong when stressed.

• Fittings that are not standard can break and leak.

• Papers like MTRs and CoCs show the fittings are reliable.

FAQ

What is the main use of malleable iron pipe fittings?

You use malleable iron pipe fittings to connect, change direction, or seal pipes in plumbing, gas, oil, and fire protection systems. These fittings help you build safe and strong pipelines.

Can you use malleable iron fittings outdoors?

Yes, you can use them outdoors. Choose hot-dip galvanized fittings for the best rust protection. These fittings last longer in wet or harsh weather.

How do you know if a fitting meets quality standards?

Look for markings like EN 1562, ISO 5922, or EN 10242 on the fitting. These show the fitting passed strict tests. You can also ask for certificates from your supplier.

Are malleable iron fittings safe for drinking water?

Yes, you can use them for drinking water. Pick fittings with a galvanized coating. This helps prevent rust and keeps your water clean.

How do you seal threaded malleable iron fittings?

You should clean the threads first. Then, wrap PTFE tape or apply thread sealant. This helps you get a tight, leak-free connection.

What sizes do malleable iron pipe fittings come in?

You can find sizes from 1/8 inch up to 6 inches. This range lets you use them in small home projects or large industrial systems.

Can you reuse malleable iron pipe fittings?

Yes, you can reuse them if the threads and body stay in good shape. Always check for damage before reinstalling.

What is the difference between black and galvanized malleable iron fittings?

Black fittings have no coating. You use them indoors or where rust is not a problem. Galvanized fittings have a zinc layer. You use them where you need extra rust protection.
