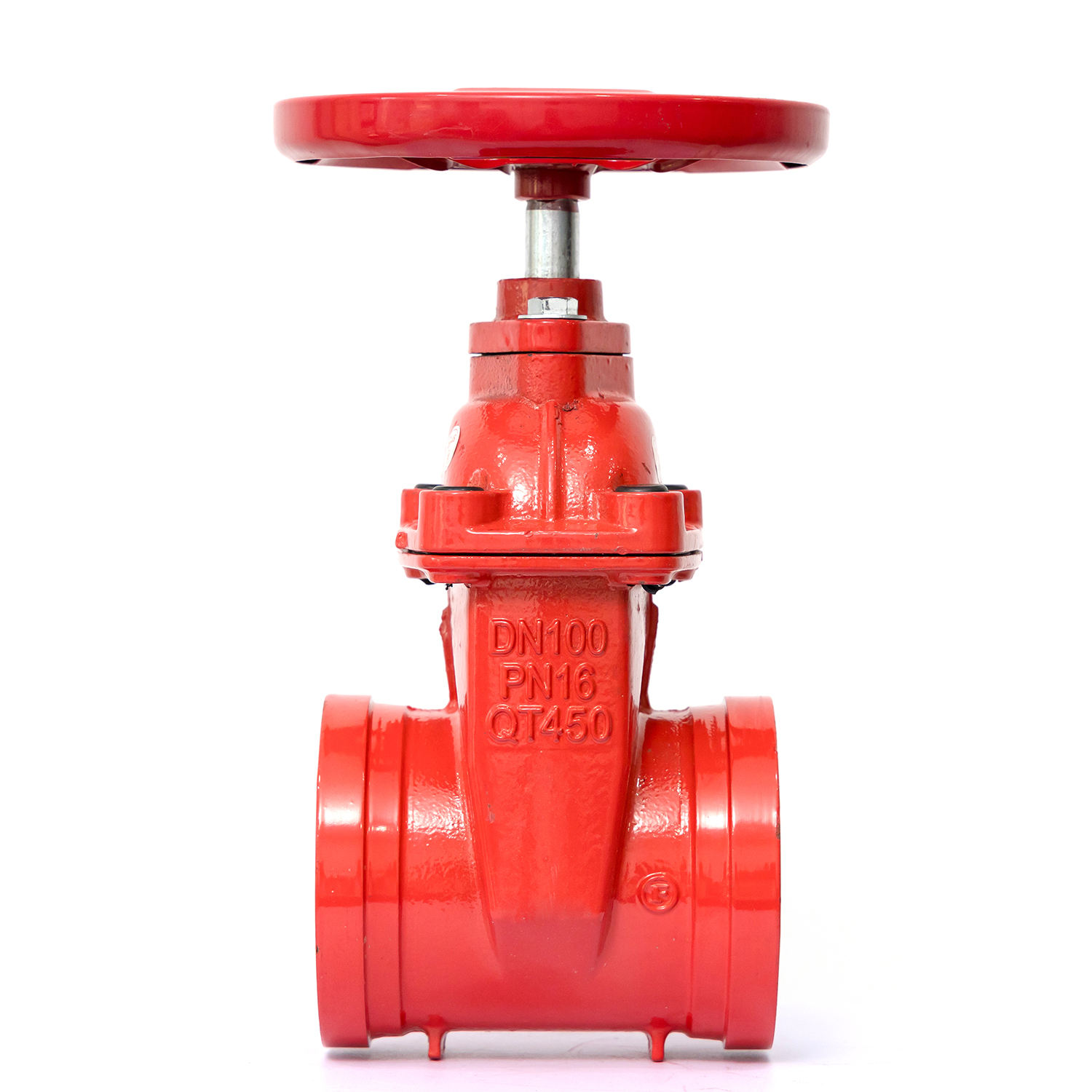

How does a gate valve work?

When you use a gate valve, you move a gate up or down inside it. This lets you start or stop the flow of liquid or gas. Turning the handwheel or using an actuator makes the stem go up or down. The gate opens so fluid can move, or it closes to block the flow. Gate valves are very important in many industries. You can find them in water treatment plants, oil and gas pipelines, and fire protection systems. The table below shows places where gate valves are used:

Knowing how these valves work and what happens inside helps you pick the right one for your system.

Key Takeaways

• Gate valves work by moving a gate up or down. You should use them fully open or fully closed for best results.

• They do not slow down the flow much. This lets fluids move through easily and saves energy.

• Gate valves can be used in many places. People use them in water treatment, oil and gas, and factories.

• Pick the right material for your gate valve. Think about the fluid and the environment to make sure it lasts.

• It is important to take care of gate valves. Check for leaks and add oil to moving parts to keep them working well.

• Do not use gate valves to control flow speed. They are made to turn flow on or off, not to change how fast it goes.

• Think about how much space you need when putting in gate valves. Rising stem types need more space above them.

• Automatic gate valves work fast and can be controlled from far away. This makes them good for complicated systems.

Gate Valve Working Principle

How It Works: Open and Close

Gate Movement

When you use a gate valve, you move a gate up or down. This controls how much fluid can go through the valve. The main idea is simple. Here is what happens step by step:

1. You turn the handwheel or use an actuator.

2. The stem moves the gate inside the valve.

3. If the gate goes up, it gets out of the way. Fluid can flow easily with little resistance.

4. If the gate goes down, it blocks the path. This stops the fluid from moving.

The gate is usually flat, rectangular, or shaped like a wedge. It slides up and down to control the flow. In manual valves, you turn the handwheel. This makes the stem go up or down. For rising stem types, you can see the stem move up when opening. Turning the handwheel the other way lowers the stem and closes the valve.

Flow Path and Sealing

A gate valve gives a straight path for fluid when open. This lets fluid move freely and keeps pressure loss low. When closed, the gate pushes tight against the seat. This seals the valve and stops leaks. The strong seal is why many industries use gate valves as on-off valves.

Tip: Always use a gate valve fully open or fully closed. Leaving it partly open can cause trouble.

If you leave the valve partly open, problems can happen:

• The inside parts may wear out faster and unevenly.

• Vibration can hurt the seat surfaces.

• The valve does not control flow well, so it is hard to manage fluid.

Manual vs. Automatic Operation

Handwheel Mechanism

Manual gate valves have a handwheel on the stem. Turning the handwheel moves the gate up or down. This gives you control, but it takes time to open or close. Manual valves are good if you do not need to change them often.

Actuator Control

Automatic gate valves use electric, pneumatic, or hydraulic actuators. These move the stem and gate quickly and exactly. You can control these valves from far away or use them in automated systems. This is helpful in hard-to-reach places or when you need fast action.

Here is a table comparing manual and automatic gate valves:

Automatic valves make things safer and more efficient, especially in big or complex systems.

Gate Valve Structure and Parts

Understanding the structure of a gate valve helps you choose the right valve for your system. Each part plays a specific role in making sure the valve works smoothly and reliably. Let’s look at the main components and their functions.

Main Components

Body and Bonnet

The body forms the main shell of the gate valve. It holds all the internal parts and connects directly to the piping. The bonnet sits on top of the body. It covers and protects the stem and gate. You can remove the bonnet for maintenance or inspection.

Gate/Wedge

The gate, sometimes called the wedge, moves up and down inside the valve. When you open the valve, the gate lifts out of the flow path. When you close the valve, the gate drops down to block the flow. The shape of the gate can be flat, wedge-shaped, or even knife-like, depending on the application.

Stem Types

The stem connects the handwheel or actuator to the gate. When you turn the handwheel or activate the actuator, the stem moves the gate up or down. Some stems rise as you open the valve, making it easy to see if the valve is open or closed. Other stems stay in place, which saves space.

Seat and Gasket

The seat is the surface inside the valve where the gate presses down to create a seal. The gasket helps prevent leaks between the body and bonnet. Both parts are important for keeping the system tight and safe.

Handwheel/Actuator

You use the handwheel to open or close the gate valve manually. In automated systems, an actuator does this job. Actuators can be electric, pneumatic, or hydraulic. They allow you to control the valve from a distance or as part of an automated process.

Here is a table that summarizes the main components and their functions:

Note: Each part must work together for the gate valve to provide reliable on-off control.

Material Options

The material you choose for your gate valve affects how well it performs and how long it lasts. Here are some common materials and their benefits:

• Brass and bronze resist corrosion and work well in water systems.

• Iron offers strength and is often used in large industrial valves.

• Stainless steel provides excellent resistance to rust and chemicals, making it ideal for harsh environments.

• Plastic valves are lightweight and resist many chemicals, but they may not handle high pressure.

• Special alloys can handle extreme temperatures or aggressive fluids.

Selecting the right material ensures your gate valve stands up to the demands of your application. High-quality materials like stainless steel and brass help prevent leaks and reduce maintenance needs.

Types of Gate Valves

There are different types of gate valves you can pick. Each type works best for certain jobs or industries. Knowing the differences helps you choose the right one.

Wedge Gate Valve

Wedge gate valves are used the most. They have a wedge-shaped gate to stop or let fluid flow. This shape makes a strong seal and works well.

Solid Wedge

A solid wedge gate valve has one solid gate piece. It gives:

1. Great sealing, even with high pressure or heat.

2. Simple design with fewer parts, so less fixing is needed.

3. Very reliable for turning flow on or off in many places.

4. Saves money because it lasts long and is easy to make.

Solid wedge gate valves are common in oil, chemical, and power plants. They are good when you need a tight seal and long use.

Flexible Wedge

A flexible wedge has a groove or cut in the gate. This lets the gate bend a little. You get:

• Better sealing when temperatures go up or down.

• Less chance of the gate getting stuck.

• Works better when pipes get hot or cold.

Flexible wedge gate valves are good for steam lines and places with changing heat.

Double Wedge

Double wedge gate valves have two pieces that push on the seat. This design:

• Fixes small pipe misalignment.

• Makes a good seal in big or old pipes.

• Is used for water and wastewater systems.

Parallel and Resilient Types

Parallel and resilient gate valves have special designs for certain needs. The table below shows how wedge and parallel gate valves compare:

Parallel Gate

A parallel gate valve has two flat gates that slide between seats. You get:

• No thermal binding, so it works in hot systems.

• Good for pipes with steam or fluids with bits in them.

• Seals well both ways.

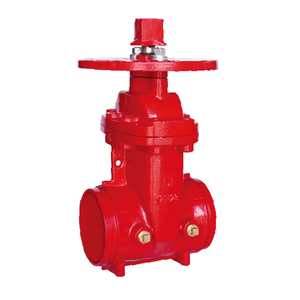

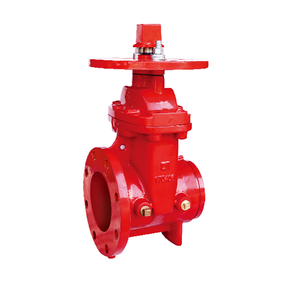

Resilient Gate

A resilient gate valve has a gate covered in soft material like rubber. This gives you:

• Better sealing, even if there is dirt on the seat.

• Lasts long in water supply systems.

• Easy to open or close with little force.

Knife Gate Valve

Knife gate valves have a sharp gate that cuts thick or dirty fluids. These are used in places with slurries, pulp, or wastewater. Here is a table about their features and uses:

• Knife gate valves open wide so thick fluids can pass.

• You can pick manual, pneumatic, or electric ways to move them.

• These valves shut off flow well, even with low pressure.

Tip: Use a knife gate valve if you need to stop flow in pipes with solids or thick fluids.

Rising vs. Non-Rising Stem

When picking a gate valve, you must choose between rising stem and non-rising stem. This choice changes how you install, use, and fix the valve. Each type has special features that work best in certain places.

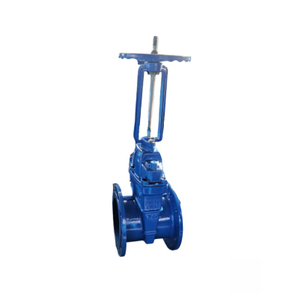

A rising stem gate valve has a stem that goes up and down when you turn the handwheel. You can see the stem move up as you open the valve. It goes down when you close it. This lets you easily check if the valve is open or closed. You do not need extra tools to know the position. The stem is out in the open, so it is simple to add oil and keep it working well. But you need more space above the valve to install it. The stem sticks up when the valve is open, so plan for extra height. The stem can get rusty from rain or wet air, especially outside.

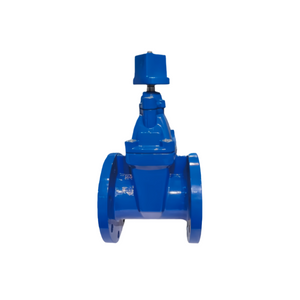

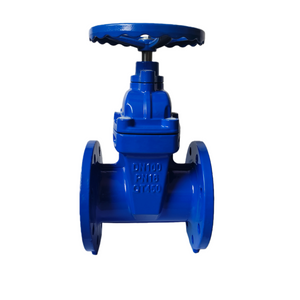

A non-rising stem gate valve works in another way. The stem stays in one spot while you turn the handwheel. The gate moves up and down inside the valve as the stem nut turns. You cannot tell if the valve is open or closed just by looking at the stem. You may need to add a position marker to help. This design saves space, so it fits well in tight or underground spots. The stem is inside the valve body, which keeps it safe from rust. It is harder to fix because the stem is hidden.

Here is a table to compare both designs:

Tip: If you want to check the valve quickly and have enough space, pick a rising stem. For small or underground places, a non-rising stem is usually better.

Always match the stem type to your system’s needs. Think about where you will put the valve, how often you will use it, and how easy you want fixing to be. This helps you get the best performance and longest life from your gate valve.

Advantages of Gate Valves

Minimal Flow Resistance

Gate valves let fluid move easily through the system. The inside is wide open when the valve is fully open. This means water or gas can go straight through. There is almost nothing blocking the flow. Because of this, pumps do not have to work as hard. Energy use goes down, and the system stays efficient. Other valves might slow down the flow or make it rough. Gate valves keep the flow smooth and fast. This is helpful in pipes where you need a lot of fluid to move quickly. Using a gate valve helps save energy and money. It is best for turning flow on or off without wasting power.

Tip: To get the best flow, always open the gate valve all the way.

Strong Sealing

A gate valve can stop leaks and keep your system safe. It uses different ways to make a tight seal:

• Metal-to-Metal Sealing: The gate pushes hard against the valve body. This works well when pressure or heat is high.

• Soft Sealing: A soft material makes the seal. This is good for lower pressure and clean fluids.

• Parallel Slide Sealing: The gate moves next to the flow. It often uses metal-to-metal contact for better leak protection.

You can trust a gate valve to work in tough places. The strong seal keeps your equipment safe and stops fluid from leaking out. Many jobs need this kind of safety and depend on gate valves.

Bi-Directional Use

Gate valves let fluid move in both directions. You do not have to worry about which way the fluid goes. The valve works even if the flow changes direction. This is important in systems where flow might go backward. You can put the valve in any way you want. It makes the system easier to use and fix. This helps in water plants, fire safety, and factories. The valve’s two-way use makes your system better and easier to manage.

• Gate valves let fluid go both ways.

• You can change the flow direction if needed.

• This is important when fluid must move in different ways.

• You do not have to worry about how you install the valve.

• Your system works better when flow direction is not certain.

You will see this help in many places, like water treatment and fire systems. Being able to use the valve both ways saves time and makes changes easy.

Note: Bi-directional use lets you change your system fast if you need to.

Application Versatility

Gate valves give you lots of choices in many places. You can trust them to work well almost anywhere. Their design lets you use them for many fluids and pressures. Gate valves are used where reliability and efficiency are important.

You see gate valves in these industries:

• Oil and gas pipelines

• Water and wastewater treatment plants

• Power generation facilities

• Chemical processing plants

• Mining operations

• Food and beverage processing

Gate valves can handle liquids, gases, and slurries. The straight flow path lets thick or rough fluids pass without blocking. You get full flow, so pressure loss is low. This helps your system stay efficient and saves energy.

Gate valves are great at isolation. You can shut off parts of a pipeline fast and safely. Their strong sealing stops leaks, even in high-pressure systems. This protects your equipment and keeps things running smoothly.

Gate valves work with different temperatures and chemicals. Manufacturers make them from stainless steel, brass, iron, and special alloys. You pick the right material for your job, so the valve lasts longer.

Tip: Use gate valves when you need reliable on-off control for many fluids and conditions.

Gate valves are also easy to use in different ways. You can put them in horizontal or vertical pipelines. You do not need to worry about flow direction because gate valves work both ways. This makes your system easier to design and maintain.

Here is a table showing how gate valves fit different jobs:

You can feel sure that gate valves will meet your system’s needs. Their versatility makes them a smart pick for many projects. You save time and money by using a valve that fits your needs.

Disadvantages of Gate Valves

Slow Operation

A gate valve takes longer to open or close than other valves. The gate must move a long way from closed to open. You have to turn the handwheel many times to move the gate. Even with an actuator, it still takes more time than other valves. This slow movement can be a problem if you need to stop or start flow fast.

Here is a table that shows how much effort and time different valves need:

If your system needs quick action, a gate valve’s slow speed can be hard to work with.

Not for Throttling

You should only use a gate valve when you want it fully open or fully closed. It is not good for changing how much fluid flows. If you try to use it to control flow, you can have problems:

• The seat and disc can wear out fast because of strong flow.

• The valve can shake and bubbles can form, which can hurt the valve and pipes.

• The stem or actuator can get bent or worn out, which may cause leaks.

Tip: Use a gate valve only to turn flow on or off. Do not use it to adjust flow. This keeps your valve safe and working well.

Wear and Maintenance

You need to check your gate valve often to keep it working right. Many things can cause the inside to wear out:

• The seat can wear down or lose its coating, which can cause leaks or make the valve hard to turn.

• Galling can happen if metal parts rub together without enough oil.

• Rust or pitting can show up if the valve faces harsh chemicals.

• Debris or bad alignment can scratch the sealing surfaces.

• Leaks can start from wear, bad alignment, or mistakes when putting the valve back together.

How much care your valve needs depends on how often you use it, what fluid goes through it, and where it is used. You should look at the valve often to check for problems. Most experts say to do a full check every month or once a year, depending on your system.

Checking your valve often helps you find problems early and makes your valve last longer.

Space Requirements

When you design your piping, think about how much room a gate valve needs. These valves are tall and can be bulky. The gate inside must move a long way to open or close. The stem connects the handwheel or actuator to the gate. It moves up and down when you use the valve. Sometimes, the stem sticks out above the valve body when open. You need extra space above the valve for this.

If you pick a rising stem gate valve, the stem will stick out more as you open it. This helps you see if the valve is open or closed. But you must leave enough space above for the stem to move. In small places, like underground vaults or crowded rooms, this can be hard.

Non-rising stem gate valves save vertical space. The stem stays inside the valve body, so you do not see it move. Even with this, the valve body is still longer than many other valves. You need enough room along the pipe for the valve to fit.

Here are some important things to remember about space:

• Height: Rising stem valves need more space above. Always check the tallest stem height when the valve is open.

• Length: Gate valves are longer than ball or butterfly valves. Plan for this extra length in your piping.

• Access: Leave space around the valve for fixing it. Workers need to reach the handwheel, actuator, or bonnet for repairs.

• Installation: Sometimes, you must put the valve in a pit or vault. Make sure the area is big enough for safe work and future repairs.

Note: If you work in a place with little space, like a ship, basement, or underground area, always measure before picking a gate valve. You might need a different valve if space is very tight.

The table below shows how much space different valves need:

You can see that gate valves often need more room than others. This does not mean you cannot use them in small spaces, but you must plan ahead. Always check the valve size and compare it to your space. Careful planning helps you avoid problems when you install it.

If you want a valve that is easy to fix and check, leave enough space around it. This will help your system work well and make repairs easier later.

Gate Valve Selection, Installation, and Maintenance

Choosing, installing, and maintaining a gate valve requires careful attention to detail. You want your system to run smoothly and last as long as possible. This section guides you through the key steps for selection, installation, and ongoing care.

Selection Criteria

Size and Pressure Rating

When you select a gate valve, start by checking the size and pressure rating. Make sure the valve matches your pipe size and can handle the pressure in your system. If you pick the wrong size, you might see poor flow or extra pressure loss. Always look at the temperature, pressure, and flow rate in your application. This helps you avoid problems later.

Material and Application Fit

Next, think about the materials. Choose a valve made from materials that resist corrosion and can handle your fluid’s temperature. For example, stainless steel works well with chemicals, while brass is good for water. Also, decide if you need a rising stem or non-rising stem design. Rising stems make it easy to see if the valve is open or closed, but they need more space. Non-rising stems fit better in tight spots. Make sure the valve meets industry standards and has the right end connections for your pipes.

Tip: Always check for certifications and standards before buying a valve.

Installation Steps

Threaded Valve Installation

Proper installation helps prevent leaks and keeps your system safe. Follow these steps for a threaded valve:

1. Inspect the valve and pipes for damage or debris.

2. Confirm the valve type fits your needs.

3. Apply sealant or Teflon tape to the pipe threads.

4. Hand-tighten the valve, then use a wrench for a snug fit—do not overtighten.

5. Align the valve with the flow direction marked on the body.

Alignment and Leak Testing

After installing the valve, make sure it lines up with the pipeline. Misalignment can cause leaks or make the valve hard to operate. Once installed, slowly turn on the system and check for leaks. Tighten connections if needed. Test the valve by opening and closing it to ensure smooth movement.

Maintenance Tips

Inspection and Lubrication

Regular maintenance keeps your valve working well. Clean the valve to remove dirt and debris. Check for leaks around the body and stem. Lubricate the stem and moving parts to ensure smooth operation. If you see worn seals, replace them right away.

Common Issues and Solutions

You may face some common problems with gate valves:

• Leakage: This can happen at the stem or flange. Tighten packing glands and replace gaskets if needed.

• Corrosion: Look for rust or pitting, especially in harsh environments. Clean and protect the valve as needed.

• Wear and Scratches: The gate and seat can wear down over time. If you notice rough movement or leaks, inspect the sealing surfaces and repair or replace them.

Note: Keep a maintenance log and train your team on proper care. Quick action on small issues helps prevent bigger problems.

By following these steps, you help your gate valve last longer and keep your system running safely.

Gate Valve vs. Other Valves

Gate vs. Ball Valve

Gate valves and ball valves work in different ways. A ball valve opens or closes with a quick turn. You only need to turn the handle 90 degrees. This makes it much faster than a gate valve. A gate valve needs many turns to move the gate up or down. Ball valves are good if you want to change the flow a little. They can be used for some flow control. Gate valves work best when you want them all the way open or closed.

Ball valves seal very well. They use soft seats that press against the ball. This stops leaks and gives a tight shutoff. The seal stays strong even after many uses. Gate valves use metal-to-metal sealing. This can be strong, but it can wear out. Dirt or debris can also cause leaks over time. If you need a valve that seals every time, a ball valve is often better.

Ball valves are easy to control. The handle position matches the flow rate. You can see how much fluid moves by looking at the handle. Gate valves let the most fluid pass when open. But they are not good for changing the flow. If you want fast action and tight sealing, pick a ball valve. If you want low flow resistance and just on/off use, a gate valve is a good choice.

Gate vs. Globe Valve

Gate valves and globe valves do different jobs. Gate valves let fluid move with almost no resistance when open. They are great for starting or stopping flow. Globe valves are made for controlling flow. You can use a globe valve to adjust how much fluid moves. This is helpful in steam lines or when you need to control temperature.

Here is a table to compare them:

• Gate valves have low flow resistance, so they are best for on/off use.

• Globe valves help you control flow well, so they are good for fine adjustments.

If you need to change flow or pressure, use a globe valve. For simple shutoff with little pressure loss, use a gate valve.

Gate vs. Butterfly Valve

Butterfly valves and gate valves both control flow, but in different ways. A butterfly valve is smaller and lighter than a gate valve. You can put a butterfly valve in tight spaces. This makes it easy to use in big piping systems. Most butterfly valves do not need extra support, even when large.

Butterfly valves open and close quickly. You can also use them to adjust flow, not just turn it on or off. Gate valves take longer to use and are heavier. They need more space and sometimes extra support.

• Butterfly valves are small and light, so they are easy to install.

• Gate valves are bigger and heavier, so installation can be harder.

• Butterfly valves let you open or close flow fast.

• Gate valves give a tight shut-off and let fluid move easily when open.

If you need a valve for a small space or want to change flow quickly, use a butterfly valve. If you want a valve with a straight path and strong shut-off, use a gate valve.

Application Suitability

You must pick the right valve for your system. Each valve type works best for certain jobs. Gate valves are used in many places because they give a straight flow path and strong shutoff. You can find gate valves in water treatment, gas pipelines, and factories. Their design lets lots of fluid move with little resistance.

When choosing a valve, think about the fluid, pressure, temperature, and how you will install it. Gate valves are best for starting or stopping flow completely. Do not use them to adjust flow. Their strong seal and low pressure loss make them good for isolation.

Here are some times when gate valves work well:

• Water and gas systems: You get a clear path and low pressure loss. This keeps your system efficient and saves energy.

• Above-ground and below-ground installations: Gate valves handle different fluids and fit many installation needs. You can use them in pipes that are exposed or buried.

• High viscosity or pressure fluids: Rising stem gate valves work efficiently. You can see if the valve is open or closed, which helps with maintenance and safety.

• High temperatures or sediment: Non-rising stem gate valves have fewer parts and cost less. They are easier to install in small spaces.

The table below shows how gate valves compare in different jobs:

Tip: Always match the valve type to your system’s needs. Think about the fluid, pressure, and space you have.

You should also think about maintenance and access. Rising stem valves make it easy to see if the valve is open or closed. Non-rising stem valves fit better in tight spaces. You can put gate valves in horizontal or vertical pipes. This makes it easier to design your system without worrying about flow direction.

Gate valves give reliable performance in many industries. You can trust them for isolation, safety, and efficiency. When you need a valve for tough conditions and smooth operation, gate valves are a smart pick.

You now know how a gate valve works and why it is important. The table below shows the main points:

To get the best results, do these things:

• Pick strong materials so your valve lasts longer.

• Check and fix your valve often to keep it working well.

• Install the valve carefully so you do not get leaks or pressure problems.

FAQ

What is the main purpose of a gate valve?

You use a gate valve to start or stop the flow of liquid or gas in a pipeline. It works best for full open or full closed positions, not for adjusting flow.

Can you install a gate valve in any direction?

You can install a gate valve horizontally or vertically. Always keep the stem upright for best performance and sealing. Avoid tilting the valve during installation.

How do you know if a gate valve is open or closed?

If you use a rising stem gate valve, you see the stem move up when open and down when closed. For non-rising stem types, check the handwheel position or use a position indicator.

Why should you avoid throttling with a gate valve?

Gate valves are not designed for throttling. If you leave the valve partly open, you risk vibration, uneven wear, and possible leaks. Always use it fully open or closed.

How often should you maintain a gate valve?

You should inspect and operate your gate valve regularly. Check for leaks, corrosion, and smooth movement every few months. Lubricate moving parts and replace worn seals as needed.

What materials work best for gate valves?

You choose materials based on your fluid and environment. Stainless steel resists corrosion. Brass works well for water. Iron suits large industrial systems. Always match the material to your application.

Can a gate valve handle high pressure?

You can use gate valves in high-pressure systems. Always check the valve’s pressure rating before installation. Choose a valve that matches or exceeds your system’s maximum pressure.

What should you do if your gate valve leaks?

Tip: First, tighten the packing nut or replace the gasket. If the leak continues, inspect the seat and gate for damage. Replace worn parts to restore a tight seal.
