Gate valves are essential for controlling water flow in various systems. They provide reliable isolation, crucial for water-management applications. In this guide we’ll explore how gate valves function in water systems, from large-scale municipal networks to small irrigation setups. You’ll learn about the different types of gate valves, their benefits, and best-practice tips for selecting, installing and maintaining them.

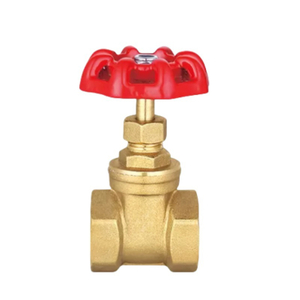

Gate valves are linear-motion isolation devices used in fluid-control systems. A resilient-seated OS&Y gate valve, for example, raises or lowers a rubber-encapsulated wedge inside the valve body to give either full flow or 100 % shut-off. This straight-through action makes them ideal when a simple on/off function is required.
Gate valves are simple to operate and function in a basic, intuitive manner:
Turning the hand-wheel (or motor) rotates the rising stem, which lifts or drops the gate inside the body.
When the gate is fully up, water flows through the full 100 % port with almost zero head-loss (K ≈ 0.07).
When the gate is fully down, the EPDM resilient sleeve compresses around the wedge to create a drop-tight seal rated to zero-leakage EN 1074-2 / AWWA C509.
This clear-cut operational design makes gate valves ideal for use in situations where full shut-off or unrestricted flow is needed. They are not used for regulating flow, meaning they should only be employed in systems that require total isolation or full opening, such as isolation valves in treatment plants, irrigation, and industrial water processes.
Gate valves offer several advantages that make them suitable for a variety of water applications:
Simple design: only one moving part in water (the wedge), giving low torque and minimal maintenance.
Full-port: DN50–DN600 with internal diameter identical to the pipe; pressure loss is negligible.
Pressure rating: PN10 / PN16 water working pressure, hydrostatic shell test 1.5 × rating, seat test 1.1 × rating.
Temperature range: 0 °C–80 °C with standard EPDM sleeve; optional NBR or Viton for higher temperature.
Corrosion protection: fusion-bonded epoxy ≥250 µm both inside & out, salt-spray test ≥1 000 h; stainless-steel AISI 416 stem for extra durability.
End connections: EN1092-2 PN10/16 or ANSI B16.1 Class 125/150 flanged, face-to-face conforms to EN558 Series 3 / ANSI B16.10.
Standards & approvals: ISO9001, WRAS, ACS, NSF/ANSI 61, NSF/ANSI 372 low-lead; certified to EN 1074-2, AWWA C509.
Options: bypass, indicator, chain-wheel, gearbox, electric actuator (multiple voltages), extension spindle, position-limit switches.
These features collectively contribute to the gate valve's reputation as an essential tool for controlling the flow of water in various industrial and municipal applications.
Gate valves are versatile components used in numerous water systems. From controlling the water supply to isolating sections of piping during maintenance, gate valves ensure smooth operation in both large-scale and smaller systems. Below, we outline some of the most common water applications where gate valves are used effectively.
Water treatment plants rely heavily on gate valves to manage water flow throughout the purification process. These plants need to control the flow at different stages of water treatment, and gate valves provide an efficient way to achieve this.
● Isolation During Maintenance: Gate valves allow sections of the pipeline to be isolated when repairs or upgrades are needed without disrupting the entire water treatment process.
● Control During Filtration: Gate valves are used to control the flow of water in filtration and chemical treatment stages, ensuring that water is properly treated before entering the distribution system.
Gate valves’ ability to quickly isolate sections of the water treatment system is crucial for maintaining system integrity and ensuring high water quality.
Gate valves are commonly used in irrigation systems to regulate the flow of water, ensuring crops receive the proper amount of water without waste. This is especially important in agricultural settings where water management can significantly impact crop yield and efficiency.
● Flow Control: Gate valves allow farmers to easily control the amount of water reaching different parts of their land.
● Efficiency: Proper control of water flow helps prevent overwatering and ensures that water is used effectively, reducing waste.
From large-scale agricultural operations to smaller gardens, gate valves ensure that irrigation systems operate efficiently and deliver consistent results.
Fire protection systems require precise and reliable water flow control to ensure that firefighting operations can be carried out effectively in emergencies. Gate valves play a pivotal role in controlling the flow of water to fire suppression systems.
● Rapid Activation: Gate valves can quickly shut off or open the water supply to fire protection systems, ensuring a prompt response in emergency situations.
● Isolation for Maintenance: Gate valves can isolate specific sections of the system for maintenance without interrupting the overall fire protection network.
Gate valves' ability to quickly isolate sections of a fire protection system is crucial for ensuring that firefighters can access water when they need it most.
In wastewater and sewer systems, gate valves are used to isolate sections of piping, divert water flows, or control the flow of effluent. These valves are essential for ensuring safe operation and proper maintenance of sewage treatment and distribution systems.
● Isolation During Maintenance: Gate valves allow sections of sewer pipelines to be isolated during maintenance, preventing disruptions to the entire system.
● Safe Flow Control: They ensure that hazardous or untreated water is safely contained, and that flow can be controlled as needed.
Gate valves ensure that sewage systems operate reliably, even when system maintenance or repairs are required.
In industrial applications, gate valves are used to control water flow in systems where water is needed for cooling, cleaning, or other processes. Gate valves are critical in ensuring that water is available in the right quantity and at the right pressure.
● Cooling Systems: Gate valves regulate the flow of water in industrial cooling systems, ensuring machinery and equipment remain at safe operating temperatures.
● Process Water: Many manufacturing processes require a steady and reliable water supply, which gate valves can provide.
Gate valves offer a reliable means of controlling water flow in industrial environments, ensuring that the manufacturing process runs smoothly and efficiently.
Gate valves come in various types, each designed to suit different applications and environments. The type of gate valve chosen depends on factors such as the pressure and temperature of the water, the level of automation required, and the specific system requirements. Below are some common types of gate valves used in water applications.
Wedge gate valves are the most common type of gate valve used in water systems. They feature a wedge-shaped gate that creates a tight seal when lowered, making them ideal for handling high-pressure conditions.
● High Pressure Resistance: Wedge gate valves are designed to withstand high pressures, making them ideal for municipal water systems and other large-scale applications.
● Reliable Seal: The wedge shape ensures a tight seal, preventing water leakage even under pressure.
These valves are widely used in municipal water systems and large-scale industrial applications.
Parallel gate valves feature a flat gate that slides between two parallel seats. These valves are simpler in design compared to wedge gate valves and are commonly used in smaller-scale systems like irrigation or fire protection.
● Simple Design: The flat gate design allows for a more straightforward, cost-effective valve solution for smaller systems.
● Effective Control: They provide efficient on/off control in less complex systems where high pressure or complex flow control is not necessary.
These valves are ideal for systems where simplicity and cost-effectiveness are key considerations.
Resilient seated gate valves are equipped with a rubber or elastomer seat that ensures a tight seal, even in systems with dirty or contaminated water. These valves are commonly used in municipal water distribution systems.
● Superior Sealing: The resilient seat ensures that water doesn’t leak, even when suspended solids are present in the water.
● Ease of Maintenance: The resilient seat material is durable and makes the valve easier to maintain.
These valves are ideal for water systems dealing with suspended solids, such as wastewater treatment plants and systems with high sediment levels.
Non-rising stem gate valves are designed for use in spaces where vertical clearance is limited, such as underground systems or pumping stations. Unlike standard gate valves, the stem of a non-rising stem valve does not rise when the valve is opened.
● Compact Design: The stem remains stationary, making these valves ideal for confined spaces.
● Efficient Operation: These valves operate effectively even in space-constrained environments.
Non-rising stem gate valves are typically used in underground installations where space is at a premium.
When selecting a gate valve for your water system, it is crucial to consider factors such as pressure, temperature, and the specific needs of the system. Below are some considerations to help ensure that you choose the right gate valve for your application.
Different gate valves are rated to handle different pressure and temperature conditions. When choosing a valve, ensure that it is suitable for the operational conditions of your water system.
● Pressure Rating: Choose a gate valve that is rated for the specific pressures in your system. Stainless steel valves are often used for high-pressure applications.
● Temperature Range: Some gate valves are designed to withstand higher temperatures. Make sure the valve selected can handle the temperature fluctuations in your water system.
Water systems that deal with corrosive fluids or harsh environments require gate valves made from materials that resist corrosion. Common materials include stainless steel, cast iron, and epoxy-coated cast iron.
● Corrosion-Resistant Materials: Stainless steel is an excellent choice for systems exposed to corrosive elements, while epoxy-coated cast iron valves provide a more cost-effective solution for less extreme environments.
● Longevity: Corrosion-resistant materials help prolong the valve's lifespan, reducing the need for frequent replacements and minimizing maintenance costs.
Gate valves are relatively low-maintenance compared to other types of valves, but regular inspections are essential for ensuring long-term performance.
● Minimal Maintenance: Resilient seated gate valves, for example, have a longer lifespan due to their superior sealing capabilities.
● Periodic Inspections: Check for leaks, wear, and corrosion to avoid unexpected failures and ensure that the valve operates effectively.
Proper installation and maintenance are essential to maximize the performance and longevity of gate valves in water systems. Below are some best practices to follow during installation, maintenance, and troubleshooting.
● Correct Alignment: Ensure that the valve is installed according to the correct flow direction, as indicated by the arrow on the valve body.
● Avoid Over-Tightening: Over-tightening bolts during installation can damage the valve body and cause leaks.
● Inspect Regularly: Regularly inspect gate valves for signs of wear or damage, including leaks or corrosion.
● Lubricate the Valve Stem: Lubricate the valve stem periodically, especially for non-rising stem valves, to ensure smooth operation.
● Hard-to-Operate Valve: If the valve is difficult to operate, lubricate the stem or remove debris that may be blocking the valve.
● Leaky Valve: If a gate valve is leaking, inspect the seals and consider replacing them to restore proper functionality.
Gate valves are crucial for managing water flow across various systems, from municipal to industrial applications. They ensure safe and efficient isolation and flow control. By understanding the types of gate valves and following best practices for installation and maintenance, you can enhance the reliability of your water infrastructure. Maitolead Pipeline Technology (Tianjin) Co., Ltd offers high-quality gate valves designed to meet diverse needs, providing durable solutions for water management systems.
A: A gate valve is primarily used to control the flow of water by either fully stopping or allowing it to pass. It is essential for isolating sections of water pipelines in various systems like municipal, industrial, and irrigation networks.
A: A gate valve operates by lifting or lowering a "gate" or wedge inside the valve body to start or stop water flow. It is designed for on/off control, not for regulating flow.
A: Gate valves are critical in water treatment plants to isolate sections of the system during maintenance or emergencies, ensuring smooth operation and effective water treatment.
A: No, a gate valve is not designed to regulate flow. It is primarily used for complete shut-off or full flow, making it ideal for isolation in water systems.
A: Gate valves offer reliability and durability, allowing for efficient control of water flow. Their simple design and resilience make them perfect for industrial applications where system isolation is required.
A: When selecting a gate valve, consider factors like system pressure, temperature, material compatibility, and specific application requirements to ensure optimal performance and longevity.
