What is a stainless steel elbow?

You need a strong way to turn the flow in your pipes. A stainless steel elbow joins two pipes at an angle. This helps liquid or gas move easily and quickly. This tough part keeps your system safe and holds pressure steady. Pick it if you want something that lasts and works well in hard places.

Key Takeaways

• A stainless steel elbow turns the flow in pipes. This helps liquids or gases move well. These elbows do not rust or corrode easily. This makes them good for tough places like chemical plants and ships. Stainless steel elbows have different grades. Grade 316 works best in hard conditions because it fights corrosion well. Picking the right angle, like 90 or 45 degrees, keeps the flow smooth. It also stops your pipes from wearing out fast. It is important to install elbows the right way. Make sure they are lined up and clean to stop leaks and damage. Clean them often with mild soap to keep them working well. This also helps them last longer. Stainless steel elbows can be used in many places. You can find them in food factories, plumbing, HVAC, and electrical systems. If you follow industry rules, you will get good elbows. These elbows will be safe and work well.

Stainless Steel Elbow Basics

Definition and Function

You want your pipes to work well. A stainless steel elbow helps change the way liquids move. This fitting is different from other pipe fittings. It does not just connect pipes. It turns liquids or gases at exact angles. You can count on it to keep your system safe and working right. It is strong and does not rust easily. That is why it is great for hard jobs.

A stainless steel elbow is made to turn fluid flow in pipes. Other fittings do other things. Its special features, like not rusting and being strong, make it different.

Key Features

You need parts that work well and last long. Stainless steel elbows do both. They do not rust, can handle high pressure, and last longer than other elbows. You can use them in tough places, like chemical plants or near the ocean.

You get better results because of how they are made. Stainless steel elbows use top materials and careful shaping. Chromium in stainless steel makes a shield that stops rust. If you pick elbows with molybdenum, you get even more safety from pitting and crevice corrosion. This is very helpful in places with chloride.

• Stainless steel elbows stop pitting and crevice corrosion from chloride.

• They keep your pipes safe from wearing away.

• They help your pipes last longer and need less fixing.

Common Materials and Grades

You want the best material for your job. Stainless steel elbows come in many grades. Each grade has its own good points. The most used grades are 304, 316, and 321. Grade 304 is good at stopping rust for most uses. Grade 316 has molybdenum, so it works well in hard places like the sea or chemical plants. Grade 321 has titanium, which helps it stay strong when it gets hot.

• 304 Stainless Steel: 18% - 20% chromium, 8% - 10.5% nickel.

• 316 Stainless Steel: 16% - 18% chromium, 10% - 14% nickel, 2% - 3% molybdenum.

• 321 Stainless Steel: 17% - 19% chromium, 9% - 12% nickel, has titanium.

You feel sure when you pick the right grade. Stainless steel elbow fittings give you great results, trust, and long life. You can count on them to keep your pipes working, even in hard places.

Types of Stainless Steel Elbows

Angle Types (22.5°, 45°, 60°, 90°, 180°)

You want your piping system to fit your needs. The angle of your elbow fitting decides how your pipes turn. Each angle serves a special purpose. Choose the right angle, and you get smooth flow and fewer problems.

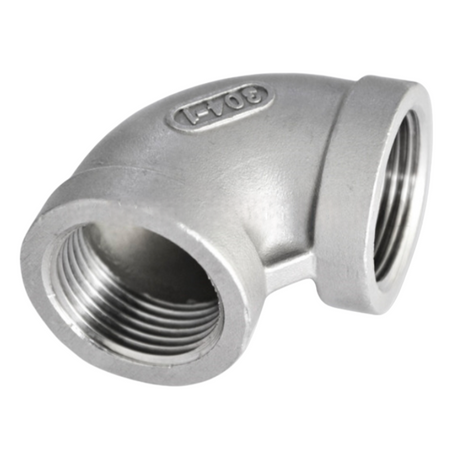

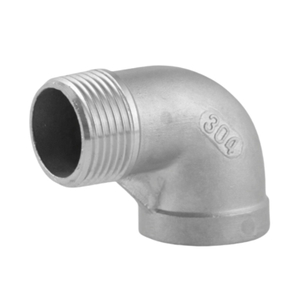

• 90-degree elbows: Use these for sharp, right-angle turns. They work best when you need a quick change in direction. You see them in chemical plants, oil and gas pipelines, and construction projects.

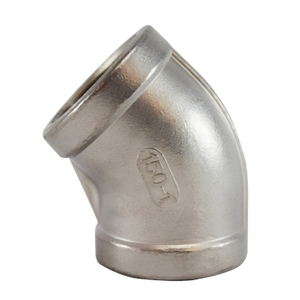

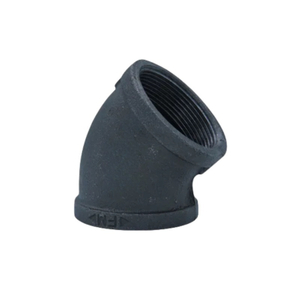

• 45-degree elbows: Pick these for gentle turns. They help you avoid sudden changes in flow. You often find them in plumbing and food processing.

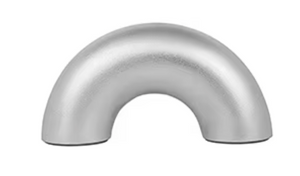

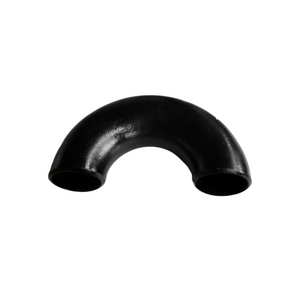

• 180-degree elbows: These make a full U-turn. Use them when you need to reverse the flow or loop back in tight spaces.

• 22.5-degree and 60-degree elbows: These give you even more control. Use them for custom layouts or when you need a unique angle.

Tip: The right angle keeps your system efficient and safe. Think about your space and flow needs before you choose.

Radius Types (Long vs. Short)

The radius of your elbow affects how fluids move through your pipes. You want to pick the right type for your pressure and space needs. Here’s how they compare:

• Long radius elbows help you reduce turbulence and pressure loss. They work best in high-pressure systems, like chemical plants and oil refineries.

• Short radius elbows fit in tight spaces. They create more resistance, so use them in low-pressure systems or where space is limited.

Note: Long radius elbows can lower pressure drop by up to 50%. Choose them when you want steady flow and less wear on your pipes.

Connection Types (Butt-Weld, Threaded, Socketed)

You need the right connection for your job. The way you connect your elbow affects strength, speed, and maintenance.

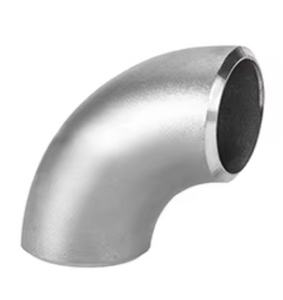

• Butt-weld elbows: Weld these directly to your pipes. They give you a strong, leak-proof joint. Use them in high-pressure or critical systems.

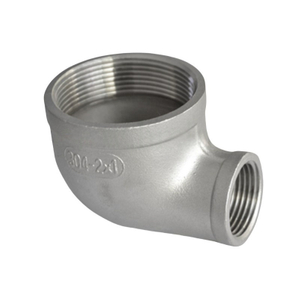

• Threaded elbows: Screw these onto your pipes. They make installation fast and easy. Choose them for small pipes or places where you may need to take things apart.

• Socketed elbows: Push your pipe into the socket and weld or glue it. These work well for medium-pressure jobs and give you a clean look.

Pick the connection that matches your pressure, installation, and maintenance needs. The right choice saves you time and keeps your system running longer.

Standards and Classifications

You want your pipes to follow important rules. Picking the right stainless steel elbow gives you good quality and safety. International standards help you choose wisely. These rules tell how elbows are made, tested, and used. You can trust elbows that meet these rules.

When you shop for elbows, you see names like ASTM, ASME, DIN, and JIS. Each group makes rules for different jobs. ASTM means American Society for Testing and Materials. ASME stands for American Society of Mechanical Engineers. DIN is from Germany. JIS is the Japanese Industrial Standards Organization. These rules cover size and strength.

Standards keep your system safe. They make sure elbows fit well and last long.

You need to pick the standard that fits your job. ASTM elbows work in high heat and pressure. ASME elbows fit big and small pipes. DIN elbows are good for normal and tough jobs. JIS elbows handle low and high pressure. You get the best elbow for your project by checking these rules.

Here is a simple guide to help you:

You want elbows that match your pipes and your place. Standards help you avoid mistakes. They make elbows last longer and keep your system safe. If you work with oil, gas, food, or chemicals, you need elbows that follow these rules. You save money and time by picking elbows with the right label.

You can spot good quality by looking at the marks on each elbow. Standards need clear labels. You see the grade, size, and code. This helps you put in the elbow right and keep records for later.

Tip: Always ask for elbows with real certification. This shows they meet the rules and helps you feel safe.

You make your system stronger and safer by following standards. You get better flow, less risk, and more value. Pick a stainless steel elbow with the right label. Your pipes will work better.

Production and Quality

Manufacturing Process

You want your pipes to last a long time. Making a stainless steel elbow is important. Each step helps make the elbow strong and safe. The process builds trust in your system. You get a part that works well in tough places.

Here is how the process goes:

Each step uses good tools and careful checks. This makes sure your elbow fits your needs. You can trust every fitting you use.

Tip: Ask about how elbows are made. A good process means your elbow will last longer.

Quality Control and Standards

You want to trust the parts in your pipes. Quality control checks make sure elbows work right every time. This helps you avoid leaks and repairs.

Here is what happens during checks:

• Inspectors look at welds to make sure they are strong.

• Experts pick the best materials for each elbow.

• Workers use good methods to keep every piece the same.

• Technicians polish the surface for better hygiene and to stop rust.

• Every elbow gets tested for leaks and pressure before leaving the factory.

• The factory follows strict rules for every step.

You also get extra checks:

• Teams test materials when they arrive.

• Staff watch the process from start to finish.

• Labs run tests for strength and accuracy.

International rules keep you and your pipes safe. These rules cover materials, size, and surface finish. You get elbows that fit well and last longer.

You feel safe when you pick elbows that meet these rules. Your pipes stay strong, safe, and work well.

Advantages of Stainless Steel Elbows

Corrosion Resistance

You want your pipes to stay strong. Stainless steel elbows protect against rust and corrosion. Nickel and molybdenum make a shield. This keeps pipes safe in tough places. These elbows resist pitting and crevice corrosion. They work well with chemicals and saltwater.

Look at how stainless steel and carbon steel compare:

You feel good knowing your system lasts longer. You fix pipes less often. Stainless steel elbows help you avoid expensive downtime. Your work keeps going smoothly.

Durability and Strength

You need elbows that handle hard jobs. Stainless steel elbows take high pressure and heat. Seamless designs remove weak spots. This gives you strong and reliable elbows. You can use them in oil, gas, and chemical plants.

Stainless steel elbows last longer than other materials. In normal places, they last 20 to 50 years. In perfect spots, they last over 100 years. Even in harsh places, they work for 5 to 10 years. You save money because you do not replace them often.

• Stainless steel elbows are used in chemical, oil, gas, and biopharmaceutical jobs.

• You get low maintenance and long-lasting use.

• You avoid leaks and failures, even with high pressure.

Hygiene and Maintenance

You want your pipes to stay clean and safe. Stainless steel elbows meet strict hygiene rules. They are good for food and drink jobs. The 3-A Sanitary Standards say stainless steel is safe. These rules focus on easy cleaning and good design. This stops contamination and keeps food safe.

• 304 and 316 stainless steel fittings are made for food jobs.

• Smooth surfaces make cleaning simple and stop bacteria.

• You can clean elbows with warm water or mild soap.

• Regular checks and cleaning keep elbows working well.

• Storing elbows in a dry, airy place keeps them good.

You spend less time fixing stainless steel elbows. They resist rust, so you do not repair them often. Your system stays safe and works well.

Pick stainless steel elbows for great corrosion resistance, strength, and hygiene. You protect your pipes and make sure your system works its best.

Applications

Food and Beverage

You want your food and drinks to stay safe and clean. A stainless steel elbow helps you reach the highest standards in food and beverage processing. This fitting keeps your products pure and your equipment easy to clean. You can trust it to protect your business and your customers.

• Stainless steel is non-porous. It does not soak up bacteria, moisture, or food particles.

• The smooth surface makes cleaning simple. You can wash it often and keep germs away.

• You meet health rules because stainless steel elbows help you keep everything sanitary.

• Grade 316L resists corrosion. This stops rust and keeps your food safe from contamination.

• You get strong performance, even in tough environments with heat, chemicals, or moisture.

Choose stainless steel elbows for your food and beverage lines. You keep your products safe, your equipment strong, and your cleaning easy.

Plumbing and HVAC

You need plumbing and HVAC systems that last. Stainless steel elbows give you the strength and reliability you want. They work well in homes, offices, and factories. You can count on them to handle water, air, and even chemicals.

You avoid leaks and costly repairs. You get a system that stays strong year after year. Stainless steel elbows help you build safe, efficient, and long-lasting plumbing and HVAC networks.

Pick stainless steel elbows for your next project. You will see the difference in quality and performance.

Electrical and Other Fields

You want your electrical systems to be safe and work well. Stainless steel elbows help protect wires and cables in tough places. These elbows let you turn electrical conduits around corners and obstacles. You get a strong and neat look that lasts a long time.

Stainless steel elbows are great for electrical conduit systems. You can use them in factories, outside, and near the sea. The stainless steel mix helps stop rust and damage. Chromium makes a thin layer on the surface. This layer fixes itself if it gets scratched, so elbows keep fighting rust. You do not need extra paint or coatings. Stainless steel stays strong with little care.

You save time and money because these elbows are light and easy to use. You can move and install them without trouble. You spend less on work and shipping. You get good results without paying more. Grade 316L stainless steel is very good against chemicals, water, and salt. You can trust these elbows in hard places like chemical plants, outdoor power systems, and by the sea.

Tip: Pick stainless steel elbows for your electrical conduits. You get strong protection and a nice finish.

You also see stainless steel elbows in other jobs. Food and drink factories use them because smooth surfaces are easy to clean. Medicine and chemical plants use them to stay strong with water and chemicals. Outside and sea jobs use them because they fight salt, wetness, and bad weather.

• Food & Beverage Processing Facilities: Smooth surfaces are easy to clean and meet health rules.

• Pharmaceutical and Chemical Plants: Elbows stay strong with water and chemicals.

• Outdoor and Marine Installations: Elbows fight salt, wet air, and rough weather.

You want to do less work and keep things running. Stainless steel elbows do not need much care or checking. Owners and workers spend less time and money fixing them. You feel good knowing your elbows protect your wires and pipes.

Stainless steel elbows give you strong, rust-proof, and easy-to-care-for parts. You make your electrical and other systems safer and cleaner. Pick stainless steel elbows to make your systems better and last longer.

Choosing the Right Stainless Steel Elbow

Application Needs

You want your system to work well. First, think about what your pipes need. Check the size of your pipes and see how much pressure they hold. Some jobs need more strength or reliability. Forged elbows are best for hard jobs because they are very strong. Think about where you will use the elbow. Some stainless steel grades fight chemicals and heat better. Make sure the elbow fits your pipes. Check the size and details so everything matches.

• Check your pipe’s diameter and pressure rating.

• Decide if you need forged or regular elbows for strength.

• Think about the place, like if there are chemicals or heat.

• Make sure the elbow fits with your other pipe parts.

Tip: Always check what your system needs before you buy. This helps your pipes work better and have fewer problems.

Size and Angle Selection

You need the right size and angle for your job. Stainless steel elbows come in many angles, like 45 and 90 degrees. These angles help you plan your pipes. Bigger angles turn more but need more space. Use 90-degree elbows for sharp turns in water and drain pipes. Pick 45-degree elbows for smoother turns in small spaces. These elbows help fluids move better and make your system work well.

• Pick the angle that fits your pipe plan.

• Use 90-degree elbows for up and down or side turns.

• Choose 45-degree elbows for tight spots or equipment links.

• Match the angle to your pipe layout.

Note: The right angle keeps things flowing and stops extra wear on your pipes.

Material Grade Choice

You want your elbow to last a long time. The stainless steel grade is important. Different grades stop rust and damage in different ways. Pick a grade that keeps your pipes safe from rust. Think about how much heat and pressure your pipes get. Grades like 304 and 316 fight rust and work in tough places. How the elbow is made also matters. Make sure your elbow follows the rules for your job.

• Look for grades that stop rust.

• Check if it is strong enough.

• See if it is easy to weld.

• Think about how hot or cold it gets.

• Make sure the grade fits your job.

Pick the right stainless steel grade for your elbow. You get better safety, longer use, and less fixing.

Compatibility and Installation Tips

You want your piping system to work without problems. Choosing the right stainless steel elbow is only the first step. You must make sure your elbows fit your pipes and install them the right way. If you skip these steps, you risk leaks, damage, or even system failure. You can avoid these issues by following a few simple tips.

Start by checking if your elbow matches your pipeline. Look at the pressure rating and temperature range. Make sure the elbow and the pipe have the same size and material. If you use the wrong type, you may see leaks or cracks. Always use elbows that fit your system’s needs.

When you install your elbows, pay attention to these common issues:

• Misalignment can cause cracks or leaks. Line up the pipes and elbows before you tighten anything.

• Poor welding can weaken the joint. Use the right welding method for stainless steel.

• Dirt or oil on the surface can damage the protective layer. Clean all parts before you connect them.

• The wrong gasket or seal can lead to leaks. Pick gaskets that work with stainless steel.

• Over-tightening bolts can bend the connection. Tighten bolts evenly and do not use too much force.

• Forgetting about heat changes can stress your pipes. Allow for thermal expansion in your design.

• Not enough support near elbows can cause sagging. Add supports to keep everything in place.

You want your elbows to last a long time. Follow these steps for a reliable installation:

1. Check that all fittings match your system’s pressure and temperature needs.

2. Clean pipe ends and elbows to remove dirt and oil.

3. Use lubricant or Teflon tape on threaded joints for a tight seal.

4. Tighten fittings with the right tools. Do not over-tighten.

5. Inspect your system often for leaks, rust, or damage.

6. Clean elbows with mild soap. Stay away from harsh chemicals.

7. Handle elbows with care during installation and transport.

8. Ask a professional for help if you are unsure.

Tip: Careful installation and regular checks keep your system safe and strong. You save money and avoid repairs.

You want peace of mind. By following these tips, you make sure your stainless steel elbows work well for years. You protect your investment and keep your system running smoothly.

You want your pipes to be strong and last long. Stainless steel elbows help your system resist rust and stay tough. They also last a long time and are very strong. You can pick from different types and grades for your needs. Check the table below to see how grades 304 and 316 make elbows better:

Stainless steel elbows are used in food, plumbing, and electrical work. Use the tips to choose the best elbow for your job. Make your pipes safer and work better now.

FAQ

What is the main purpose of a stainless steel elbow?

You use a stainless steel elbow to change the direction of flow in your piping system. This fitting helps you create safe, efficient layouts and keeps your pipes strong.

Which stainless steel grade should you choose?

Pick grade 316 for harsh environments. Choose grade 304 for general use. Grade 316 resists salt and chemicals better. You get longer life and less maintenance.

How do you install a stainless steel elbow?

Clean the pipe ends. Align the elbow with your pipes. Use the right welding or threading method. Tighten fittings carefully. Inspect for leaks after installation.

Where can you use stainless steel elbows?

You use stainless steel elbows in food factories, chemical plants, plumbing, HVAC, and electrical systems. These elbows work well in places with high pressure, heat, or moisture.

How do you maintain stainless steel elbows?

Wash elbows with mild soap and warm water. Inspect for rust or damage. Store in a dry place. Regular cleaning keeps your system safe and strong.

What are the benefits over carbon steel elbows?

Stainless steel elbows resist rust and last longer. You spend less on repairs. You get better performance in tough environments. Choose stainless steel for reliability.

Can you use stainless steel elbows for drinking water?

Yes! Stainless steel elbows meet hygiene standards. You keep your water clean and safe. Smooth surfaces stop bacteria and make cleaning easy.
