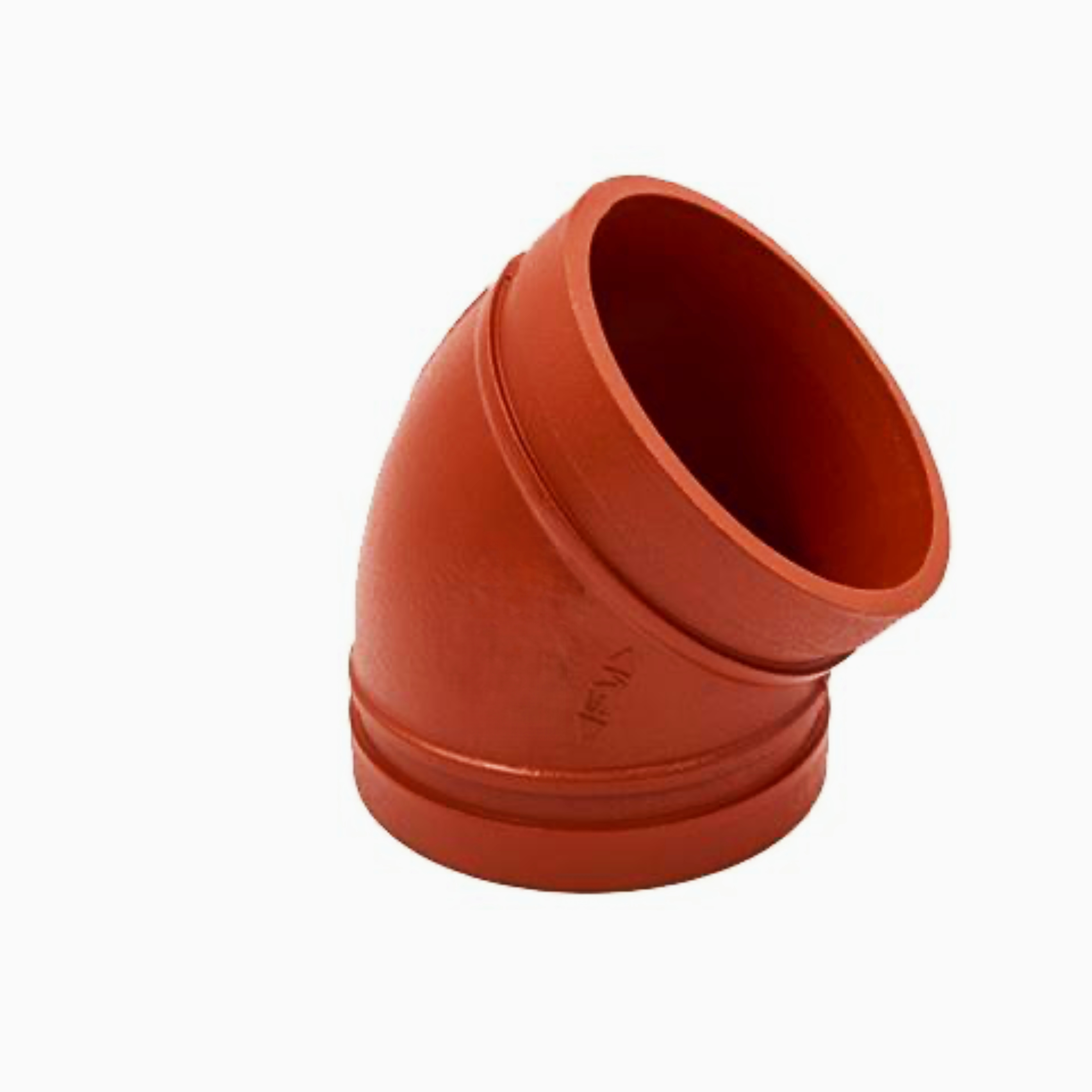

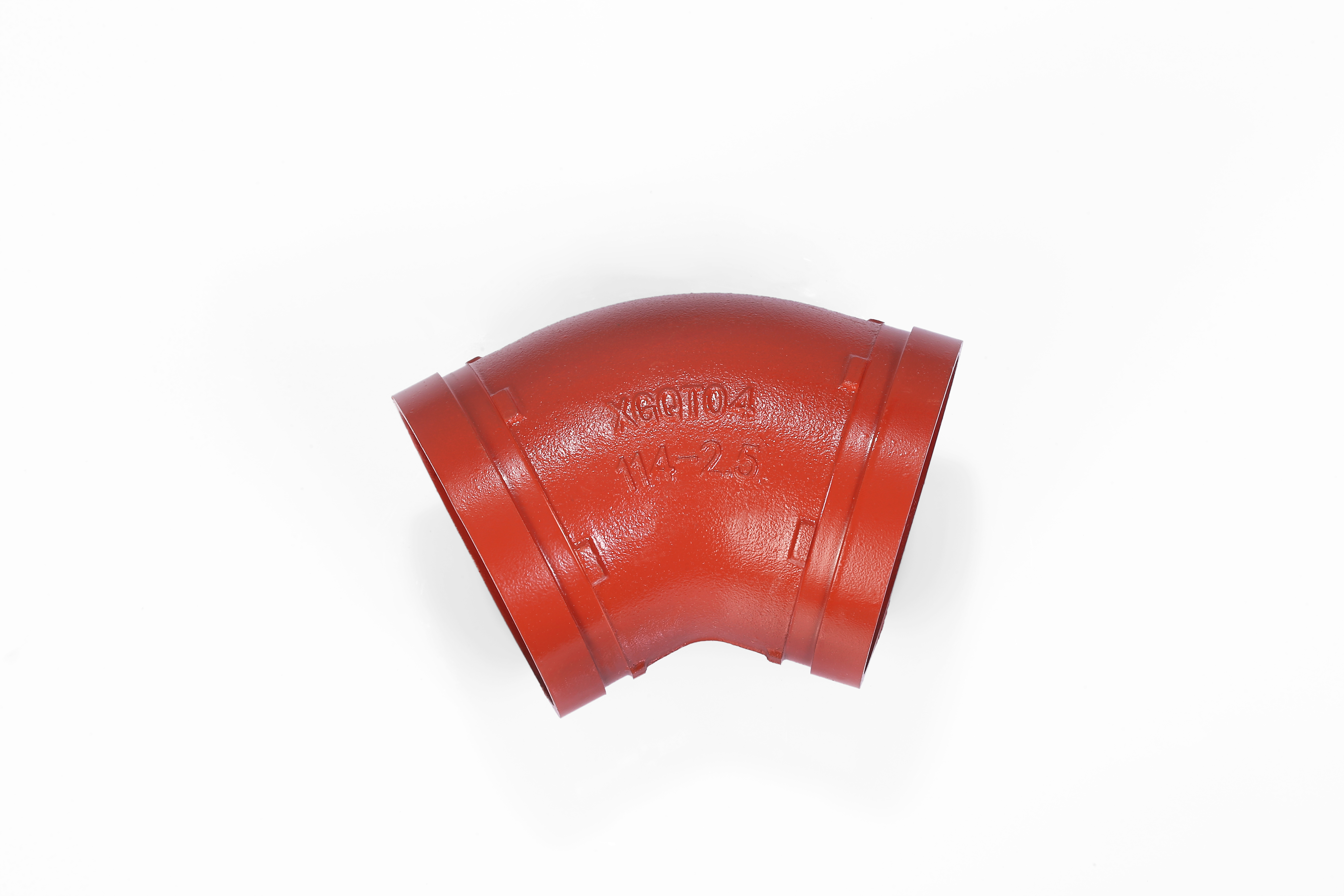

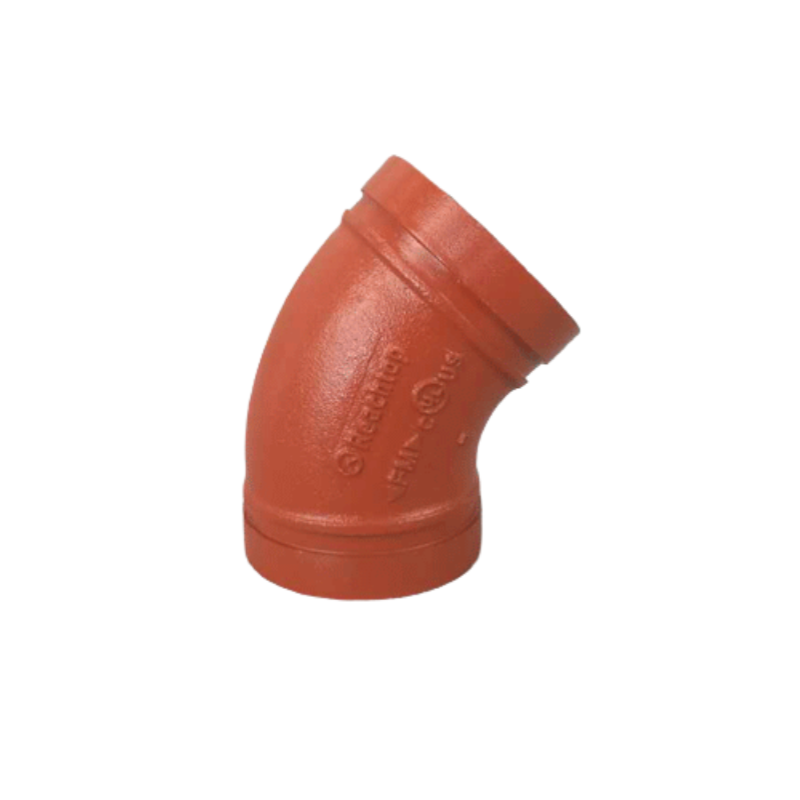

45° elbow in the groove is to change the direction of the pipe, and it is usually used in places where a small angle is required. It can bend the pipe at a 45-degree angle, which is suitable for slight changes in the direction of fluid flow. Compared with the 90-degree elbow, the 45-degree elbow can reduce the fluid resistance in the pipe, maintain a relatively smooth flow, and can effectively adjust the pipe layout in a small space. Due to its easy installation and good flow performance, the 45° elbow is widely used in fire protection systems, water supply pipelines and other fields.
Material: ASTM A536,GRADE 65-45-12,QT450-10
Threads: ASME B1.20.1,ISO 7-1,BS21,BSPT,NPT,GB 7306
Size: ISO6182,AWWA C606
Size Available: 1"-24"
Surface Treatment: Electrophoretic painted
| Air pressure and holding pressure schedule | ||||
| NO. | Size | Pressure | Time to keep the pressure | Remark |
| 1 | ≤DN50 | ≥0.5MPa | ≥5s | Air pressure |
| 2 | >DN50~DN350 | ≥0.5MPa | ≥10s | Air pressure |
| 3 | >DN350 | 1.5times the rated working pressure | 5min | water pressure |
| Rubber gasket | |||
| Name | Recommended Application Medium | Related Standards | Recommended Application Temperature Range |
| E:EPDM | water supply,drainage, sewage,normal temperature air,weak acid,and weak alkali | GB5135.11 | -30℃~+130℃ |
| GB/T 21873 | -22°F~+266°F | ||
| continuous supply of 110℃ hot water | GB/T 27572 | ||
| D:NITRILE | petroleum,vegetable oil, mineral oil | GB5135.11 | -20℃~+80℃ |
| GB/T 23658 | -4°F~+176°F | ||
| S:SIUCON | drinking water | GB/T 28604 | -40℃~+180℃ |
| high-temperature dry air and some high-temperature chemicals | GB5135.11 | -40°F~+356°F | |
| F:FLUORINE | the acid,alkaline solution,and hot lubricating oil | HG/T 2181 | -20℃~+180° |
| -4°F~+356F | |||
| V:NEOPRENE | seawater | '-20°℃~+100℃ -4°F~+212°F | |

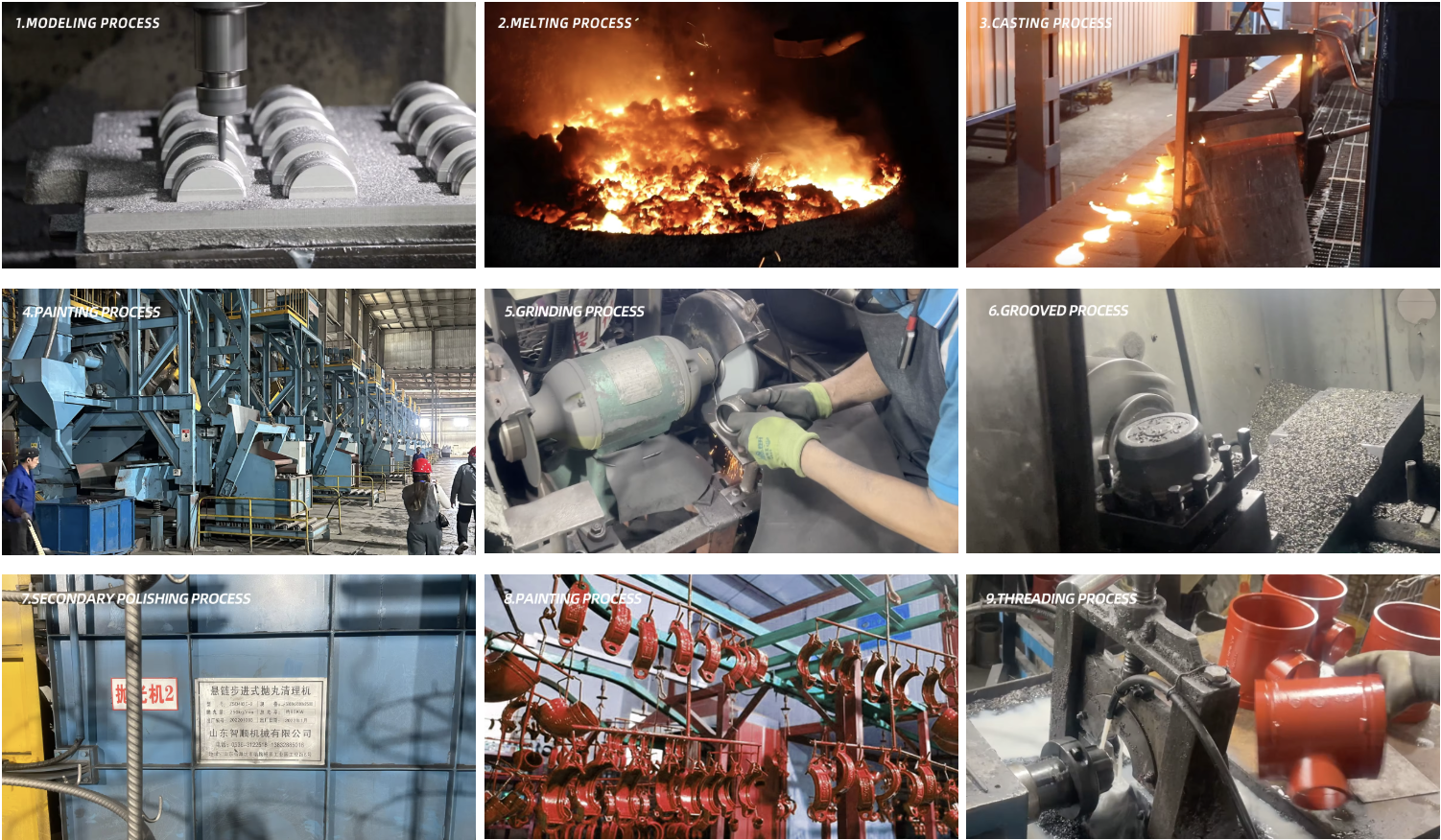

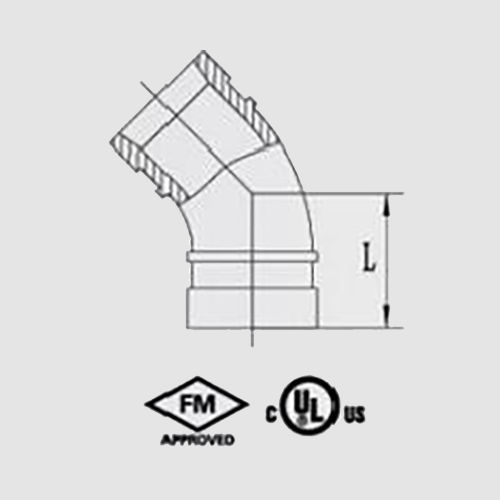

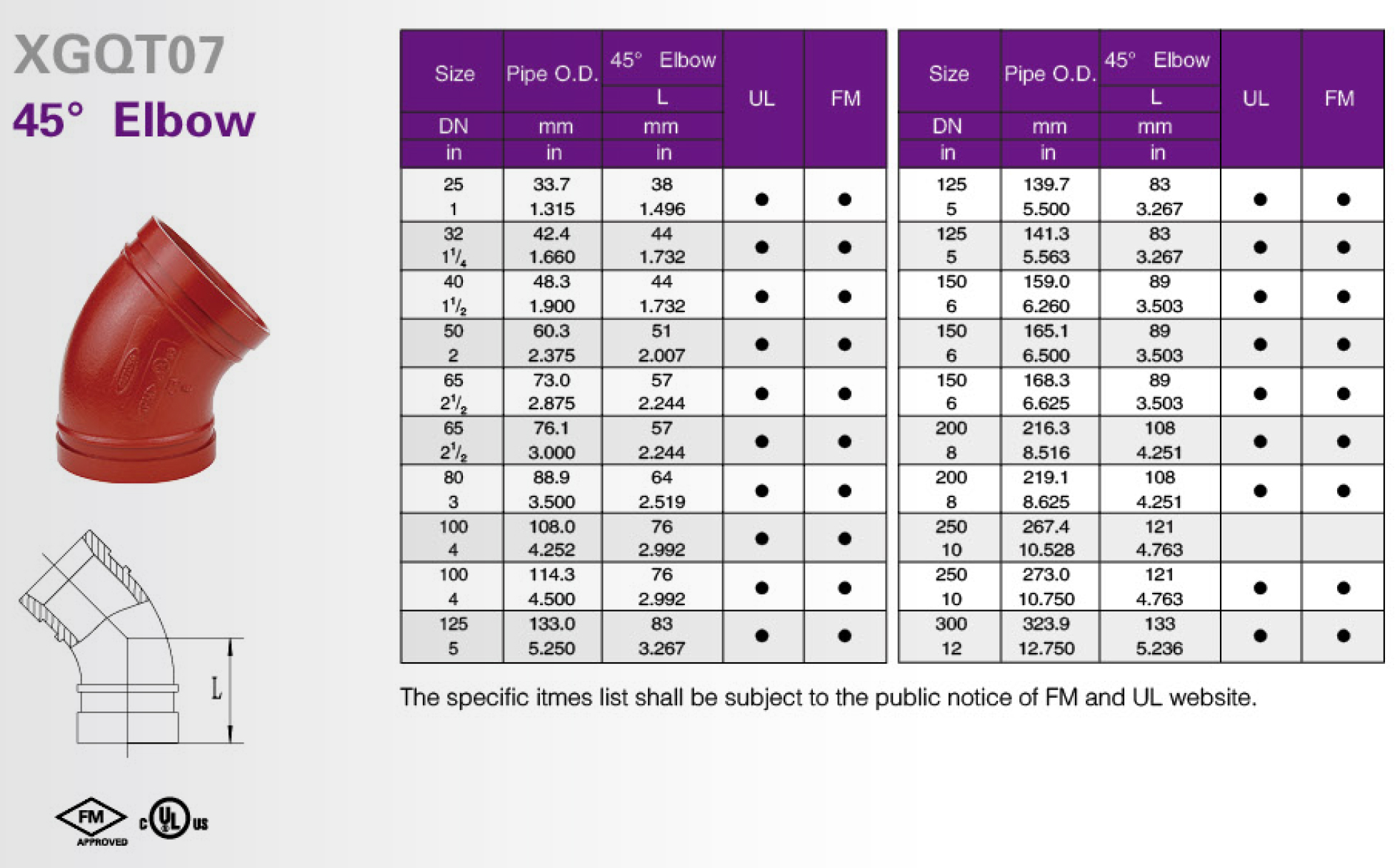

| Size | Pipe O.D. | Working Pressure | 45°EIbow L | UL | FM |
| DN in | mm in | PSI MPa | mm in | ||
| 25 1 | 33.7 1.315 | 300 2.07 | 38 1.496 | UL | FM |
| 32 1-1/4 | 42.4 1.66 | 300 2.07 | 44 1.732 | UL | FM |
| 40 1-1/2 | 48.3 1.900 | 300 2.07 | 44 1.732 | UL | FM |
| 50 2 | 60.3 2.375 | 300 2.07 | 51 2.007 | UL | FM |
| 65 2-1/2 | 73.0 2.875 | 300 2.07 | 57 2.244 | UL | FM |
| 65 2-1/2 | 76.1 3.000 | 300 2.07 | 57 2.244 | UL | FM |
| 80 3 | 88.9 3.500 | 300 2.07 | 64 2.519 | UL | FM |
| 100 4 | 108.0 4.252 | 300 2.07 | 76 2.992 | UL | FM |
| 100 4 | 114.3 4.500 | 300 2.07 | 76 2.992 | UL | FM |
| 125 5 | 133.0 5.250 | 300 2.07 | 83 3.267 | UL | FM |
| 125 5 | 139.7 5.500 | 300 2.07 | 83 3.267 | UL | FM |
| 125 5 | 1413 5.563 | 300 2.07 | 83 3.267 | UL | FM |
| 150 6 | 159.0 6.260 | 300 2.07 | 89 3.503 | UL | FM |
| 150 6 | 165.1 6.500 | 300 2.07 | 89 3.503 | UL | FM |
| 150 6 | 168.3 6.625 | 300 2.07 | 89 3.503 | UL | FM |
| 200 8 | 216.3 8.516 | 300 2.07 | 108 4.251 | UL | FM |
| 250 10 | 267.4 10.528 | 300 2.07 | 121 4.763 | ||
| 250 10 | 273.0 10.750 | 300 2.07 | 121 4.763 | UL | FM |
| 300 12 | 323.9 12.750 | 300 2.07 | 133 5.236 | UL | FM |
