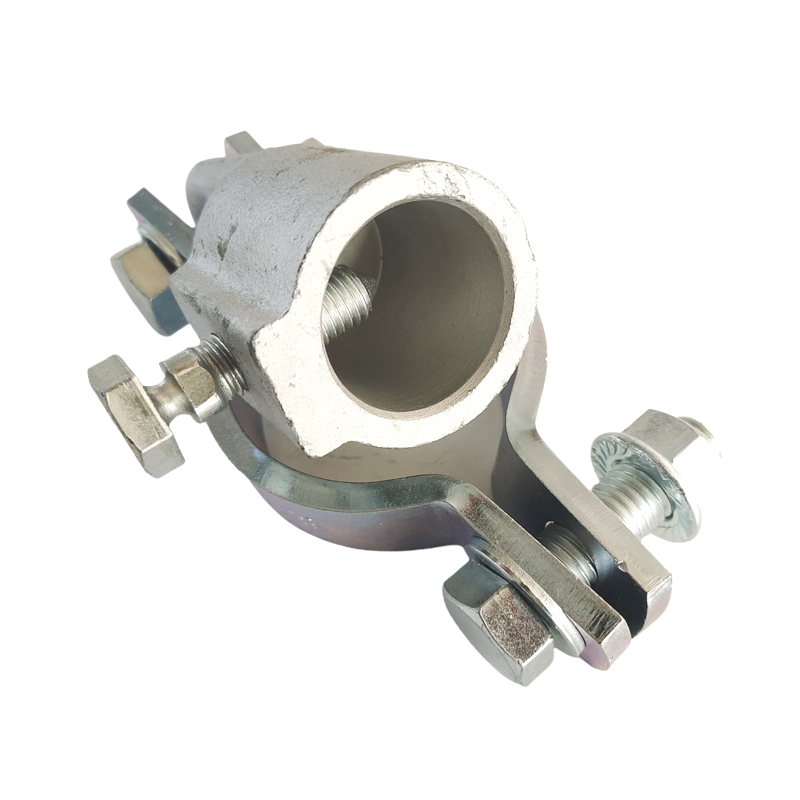

Product Overview
The structure attachment is a seismic bracing component used to connect sway brace assemblies to the building structure. It is designed to improve the stability of suspended piping systems by helping transfer lateral loads during seismic activity or external vibration.
This product is suitable for use in fire sprinkler systems, HVAC piping, plumbing systems, and other mechanical service piping where seismic restraint is required. The catalog indicates that it is compatible with Sch 10, Sch 40, GB/T 3091, and JIS G3454 pipe systems, and that one size fits brace pipe up to 8 inches. The product body is made of ductile iron QT450 and finished with electro-galvanized treatment for better corrosion resistance.
Product Parameters
| Item | Description |
|---|---|

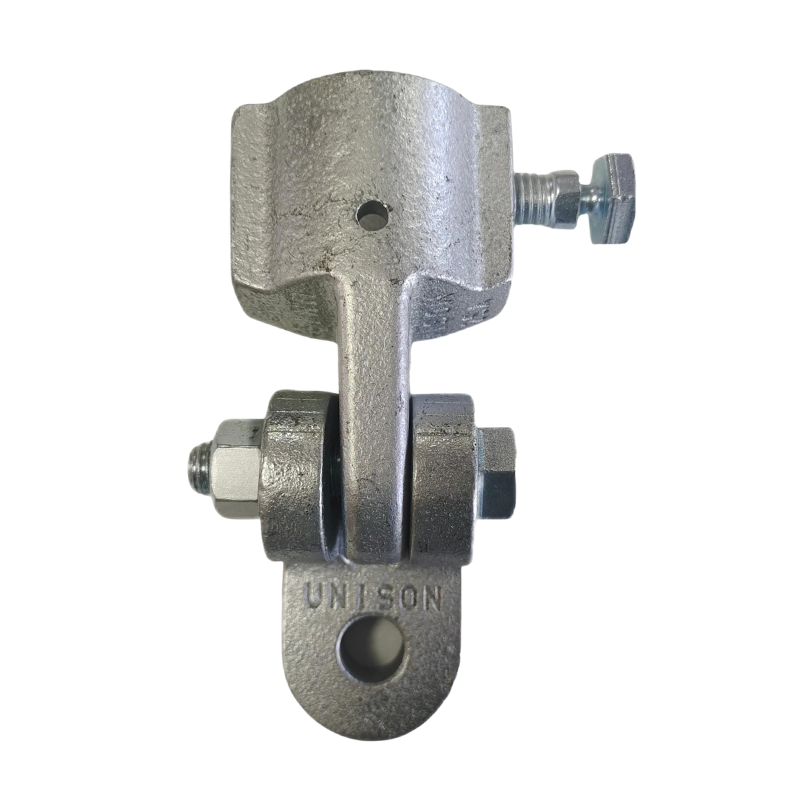

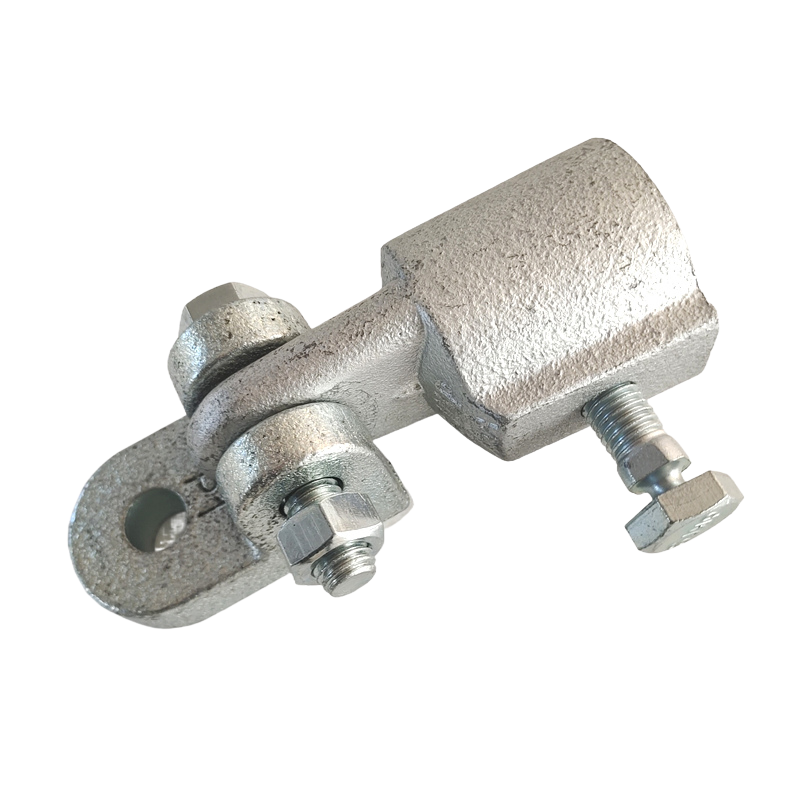

| Product Name | Universal Rotation Swivel Sway Brace Attachment |
| Product Type | Structure Attachment |
| Application | Seismic sway bracing for piping systems |
| Typical Use | Fire protection, HVAC, plumbing, mechanical piping |
| Pipe Standards | Sch10, Sch40, GB/T 3091, JIS G3454 |
| Pipe Size Range | Up to 8" |
| Bolt Hole | 1/2" hole or M12 bolt hole |
| Main Material | QT450 ductile iron and carbon steel components |
| Surface Finish | Electro-galvanized |
| Certifications | UL / FM / CE |

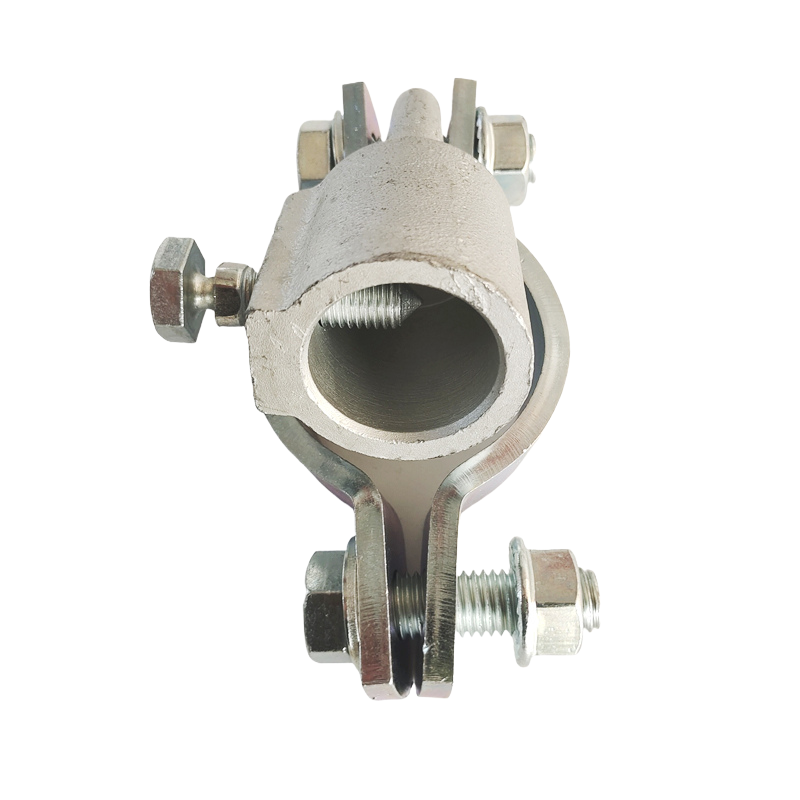

The swivel mechanism allows the attachment to rotate during installation, helping installers achieve proper brace alignment more efficiently.
The product is designed to form a stable connection between the seismic brace and the building structure, improving system restraint against lateral movement.
It is intended for use in pipe sway bracing systems where resistance to vibration and seismic disturbance is required.
The electro-galvanized finish helps improve durability in indoor service environments.
Fire sprinkler piping systems
HVAC pipe support systems
Mechanical piping systems
Plumbing installations
Commercial and industrial buildings requiring seismic restraint
It is used to connect a sway brace assembly to the building structure and help restrain suspended piping against lateral movement during vibration or seismic disturbance.
It is commonly used in fire sprinkler systems, HVAC piping, plumbing installations, and other mechanical piping systems that require seismic restraint.
Yes. Structural attachments are a key part of complete seismic bracing assemblies used in fire protection systems.
According to the catalog, it is suitable for Sch 10, Sch 40, GB/T 3091, and JIS G3454 pipe systems.
The catalog states that one size fits brace pipe up to 8 inches.
It is made of ductile iron QT450, which offers reliable strength for seismic bracing applications.
The product uses an electro-galvanized finish to improve corrosion resistance in service environments.
The catalog indicates 1/2" or M12 bolt hole configuration.
It transfers the load from the bracing member to the building structure, helping reduce sway and improve piping stability during seismic events.
Yes. The catalog page shows UL & CE approved for this product type. Final project compliance should still be checked against local code and project requirements.
