FM/UL Black Casting BMI Pipe Fittings Reducing 90 Degrees Elbow

Overview

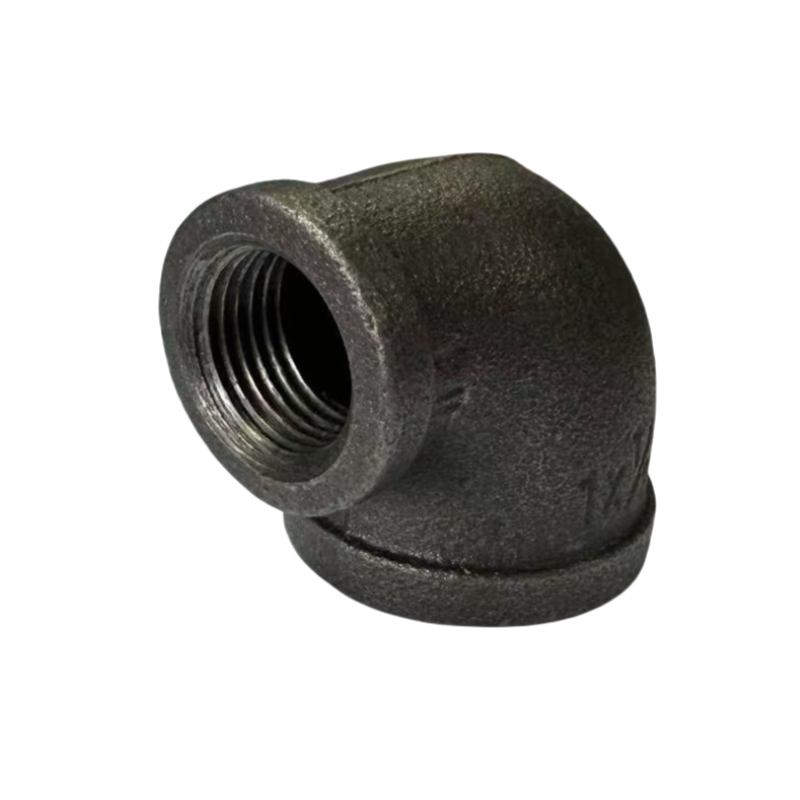

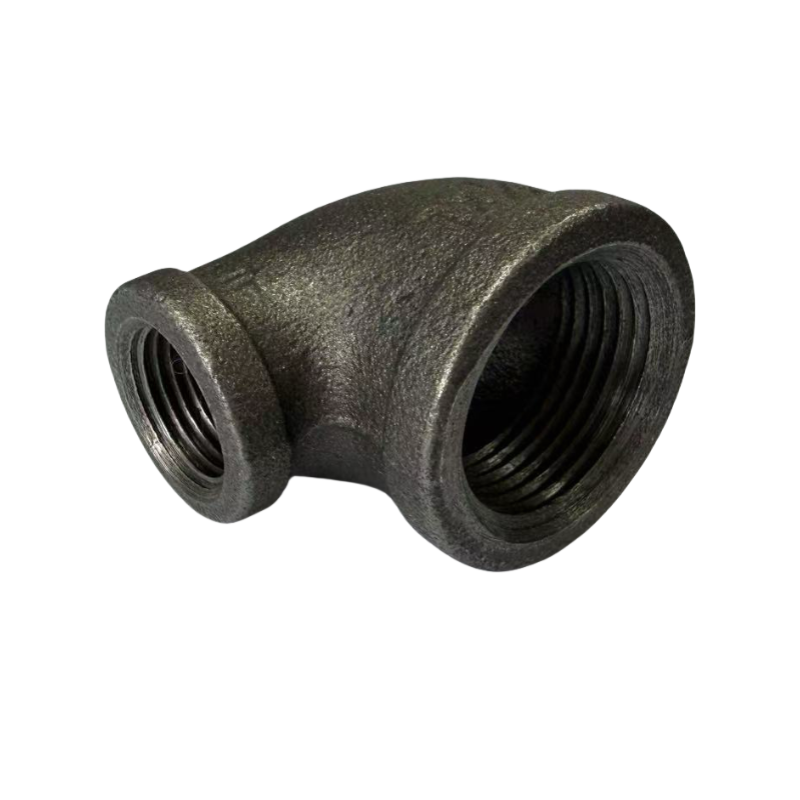

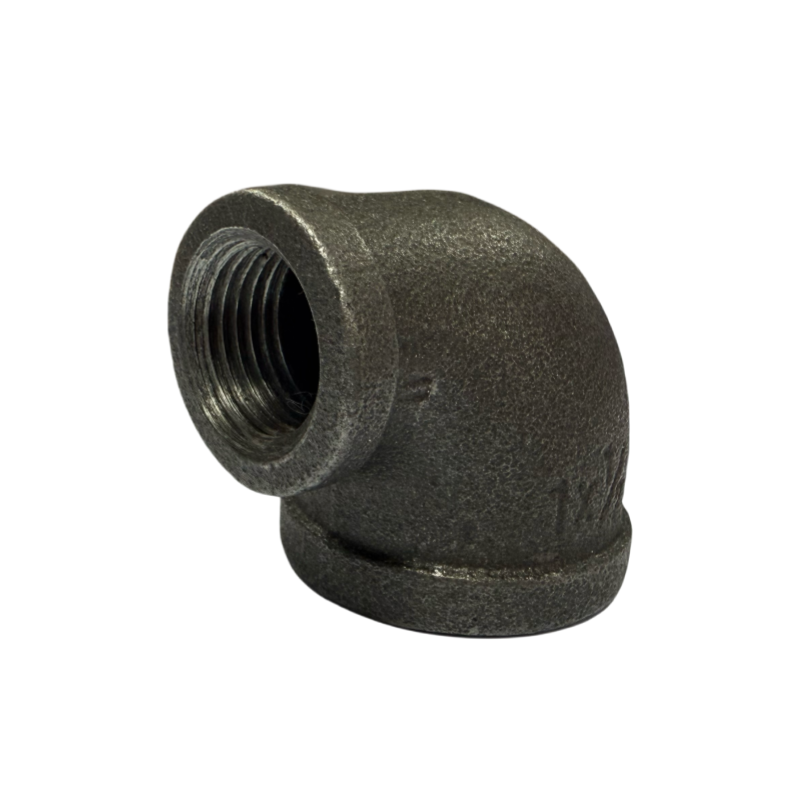

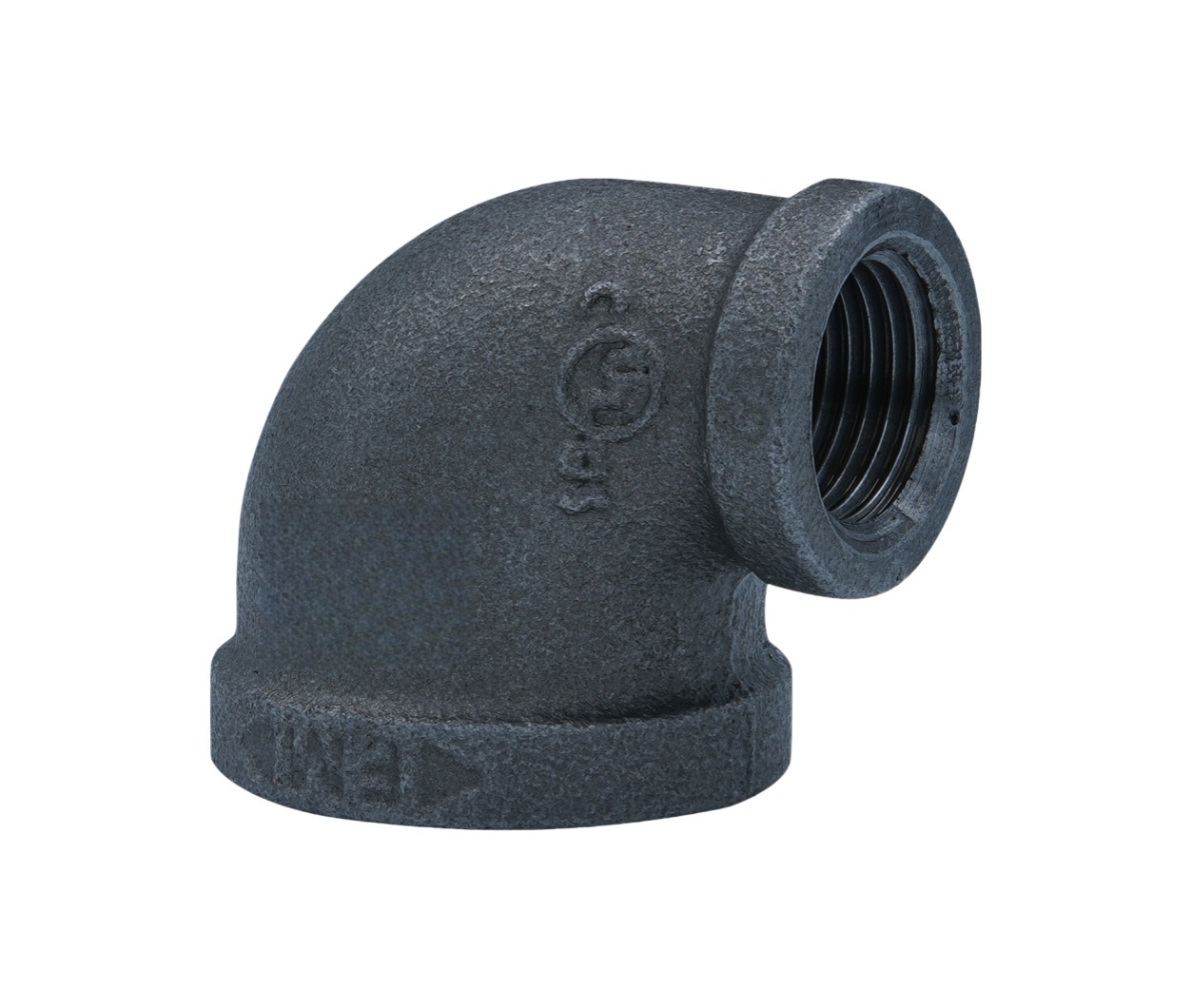

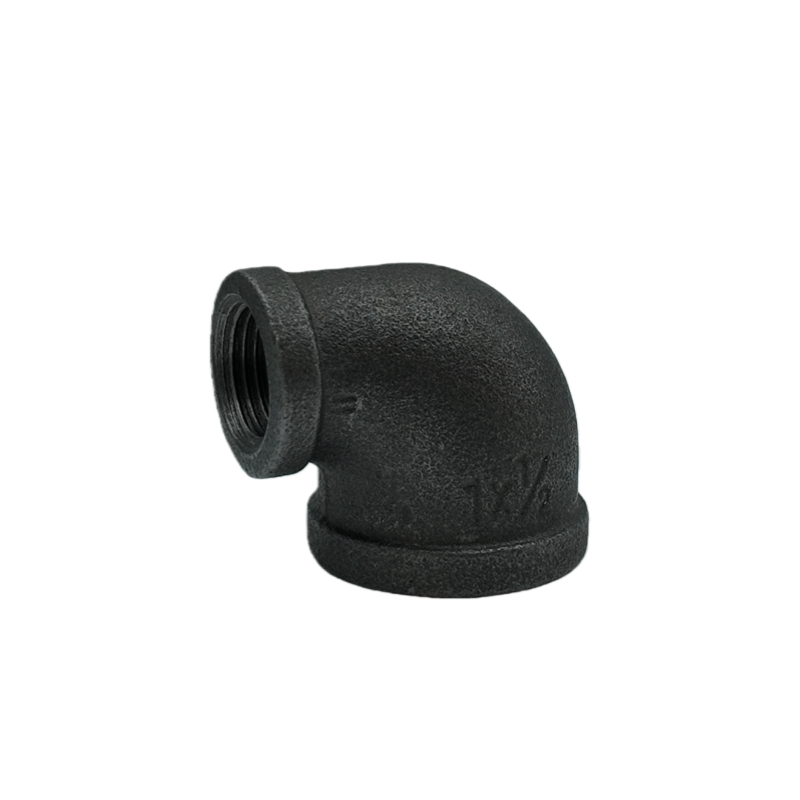

The black Reducing 90-degree elbow is a durable malleable iron pipe fitting designed to change the direction of water, gas, or fluid flow by 90 degrees. Available in long and short radius types, it connects directly to black iron pipes for secure and reliable installation.

MaitoLead black malleable iron fittings are widely used in fire protection systems, plumbing, natural gas and propane pipelines, and water supply networks. With excellent heat resistance, mechanical strength, and corrosion resistance, they are suitable for demanding piping applications. Standard sizes range from 1/4″ to 4″, and UL-listed and FM-approved options are available for fire protection projects.

Strict quality control and air pressure testing above 0.6 MPa ensure stable performance, helping to speed up installation and reduce overall project costs.

Product Description

The 90 Degree Reducing Elbow is a commonly used malleable iron pipe fitting designed to change the direction of a pipeline by 90 degrees. Featuring one male threaded end and one female threaded end, it allows direct connection to pipes or fittings, reducing the need for additional couplings and saving installation space.

Manufactured from high-quality malleable cast iron, this fitting offers superior mechanical strength, excellent pressure resistance, and long service life. Precision-machined threads ensure tight sealing and easy installation, making it a reliable solution for demanding piping systems.

The 90° malleable iron street elbow is widely used in fire protection systems, water supply pipelines, gas distribution networks, HVAC systems, and industrial piping applications.

Features

Made of premium malleable iron, providing high strength and impact resistance

90-degree angle design for efficient directional changes in piping systems

Male × male threaded ends for compact and flexible installation

Threads conforming to BS EN 10242 / ASME B16.3 standards

Available in black and hot-dip galvanized finishes

Galvanized surface offers enhanced corrosion resistance for longer service life

Suitable for high-pressure and long-term applications

Consistent quality control ensures stable performance in pipeline projects

Application

The 90 Degree Malleable Iron Street Elbow is suitable for a wide range of piping systems, including:

• Fire fighting and fire sprinkler systems

• Water supply and drainage pipelines

• Gas and fuel distribution systems

• HVAC and mechanical piping systems

• Industrial and commercial pipeline projects

It is especially ideal for installations where space is limited and a direct threaded connection is required.

Application Areas

fire	oil pipeline	gas pipeline	water  treatment	water Pipeline Systems	HVAC

Faq

Q: What materials are Tee Thread Fittings made from?

A: Tee Thread Fittings are manufactured from high-quality materials such as brass, stainless steel, or plastic, depending on the specific application needs.

Q: Can Tee Thread Fittings be used with gases or liquids?

A: Yes, Tee Thread Fittings are compatible with a variety of fluids, including gases and liquids. The precision threading ensures a tight, leak-proof seal for reliable performance.

Q: Are Tee Thread Fittings available in different sizes and thread types?

A: Yes, Tee Thread Fittings are available in a variety of sizes and thread types to meet the specific needs of your application.

Q: Can Tee Thread Fittings be used in high-pressure or high-temperature applications?

A: Yes, Tee Thread Fittings are designed to withstand high pressures and temperatures, making them suitable for a wide range of applications.

Q: How do I install a Tee Thread Fitting?

A: Installation of a Tee Thread Fitting typically involves threading it onto the pipes or tubes using a wrench or other suitable tool. Ensure that the threads are properly aligned and tightened to achieve a leak-proof seal. Always follow the manufacturer's instructions and safety guidelines during installation.
