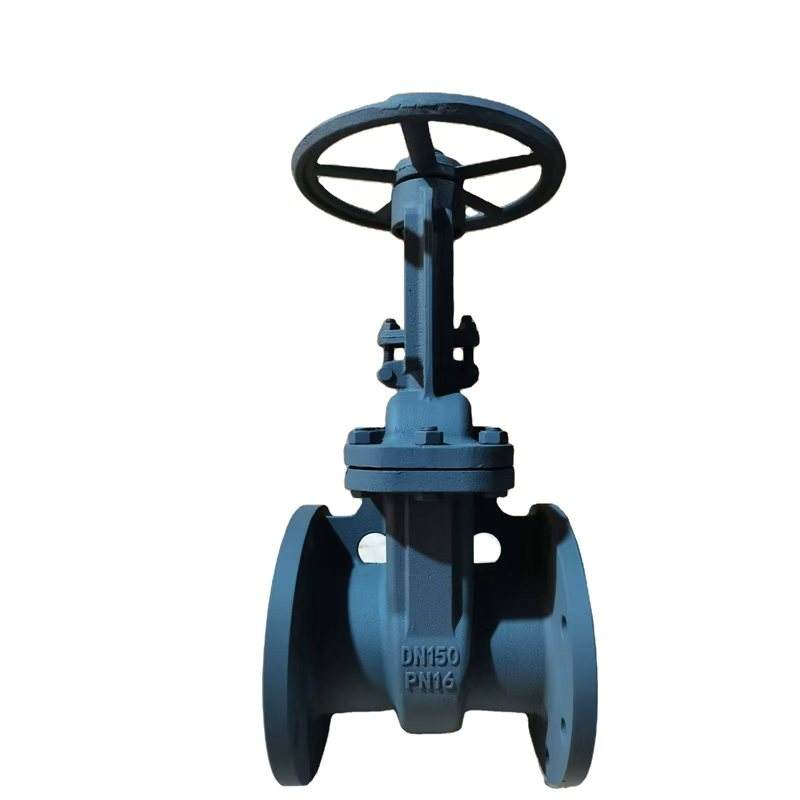

GOST Russian Standard Carbon Steel Parallel Double Disc Flanged Connect Metal Seal Wedge Gate Valve

Cast iron rising stem gate valve is mainly used as a shut-off valve in water supply, heating, cooling, drainage, irrigation and general industrial pipeline systems.

The valve adopts a rising stem structure. When the valve is opened, the stem rises upward, allowing the operator to clearly check the open or closed position of the valve.

The valve is connected to the pipeline by flanges and operated manually by handwheel. It is suitable for full open or full close service and is not recommended for long-term throttling operation.

Quantity:
Availability:





Inquire Add to Basket

Parallel Double Gate Valve GOST 5762 Pn10/Pn16 Cast Iron gate valve water valve OS&Y Valve for Water Supply FM/UL Flange OS&Y Valve OS&Y Valve for Fire Protection fire valve 300psi Flanged OS&Y Gate Valve Resilient Wedge os&Y Gate valve-Flanged End

Product Description

Overview

Z41T-10 cast iron rising stem gate valve is designed for pipeline shut-off service in water supply, steam, oil, heating, irrigation and general industrial pipeline systems.

The valve adopts flanged end connection and manual handwheel operation. With rising stem design, the valve open and closed position can be checked clearly during operation.

The valve body and bonnet are made of cast iron HT200. The disc is cast iron HT200 with brass sealing surface, providing stable sealing performance for water, steam and oil applications. Graphite packing and paronite gasket are used for reliable sealing under working conditions.

This valve is suitable for full-open and full-close service. It is not recommended for long-term throttling operation.

Product Description

The Resilient Seated NRS Gate Valve features a simple structure, low operating torque, reliable sealing performance, and a smooth

straight-through flow channel.

Its internal and external surfaces are coated with high-quality epoxy powder for excellent corrosion resistance and long service life. The valve is suitable for water supply, fire protection, HVAC, and industrial piping systems.

Item	Specification
Product Name	Cast Iron Rising Stem Gate Valve
Model No.	Z41T-10
Valve Type	Gate Valve
Structure	Rising Stem
Connection Type	Flanged End
Operation Type	Manual Handwheel
Nominal Pressure	PN10 / 1.0 MPa
Shell Strength Test	1.5 MPa
Sealing Test	1.1 MPa
Maximum Temperature	225°C
Suitable Medium	Water, Steam, Oil
Body Material	Cast Iron HT200
Sealing Surface	Brass
Packing	Graphite
Gasket	Paronite
Size Range	DN50-DN300
Color	Black body, red handwheel / Customized
Application	Water supply, steam pipeline, heating system, irrigation, industrial pipeline

DN	PN	L (mm)	D (mm)	D1 (mm)	Bolt Holes n×d	H (mm)	Weight (kg)
DN50	10	180	160	125	4×18	235	11
DN80	10	210	196	160	4×18	310	18
DN100	10	230	210	180	8×18	330	20
DN150	10	280	278	240	8×23	464	40
DN200	10	330	333	295	8×23	545	66
DN250	10	450	388	350	12×23	820	124
DN300	10	500	437	400	12×23	945	172
