MaitoLead Group is a professional supplier of piping system products from China, focusing on fire protection, water supply, HVAC, and industrial pipeline applications.
We supply a wide range of valves and pipe fittings, including butterfly valves, gate valves, check valves, grooved fittings, malleable iron fittings, steel pipes, butt weld fittings, flanges, and related pipeline accessories.
For butterfly valves, we can provide different connection types and operation options, such as wafer butterfly valves, grooved butterfly valves, butterfly valves with tamper switch, and butterfly valves with lever handle. Our products are designed for reliable performance, easy installation, and stable project supply.
Our valve products are commonly used in fire protection systems, sprinkler systems, pump rooms, commercial buildings, water supply lines, HVAC systems, and industrial piping projects.
We can support customers with technical datasheets, product drawings, certificates, inspection reports, packing solutions, and export documents according to project requirements.
With stable supply capacity, quality control, and one-stop procurement service, MaitoLead Group helps customers save sourcing time, reduce communication costs, and complete project purchasing more efficiently.
We welcome customers to send us their product list, drawings, standards, or project requirements. Our team will check carefully and provide a suitable purchasing solution.

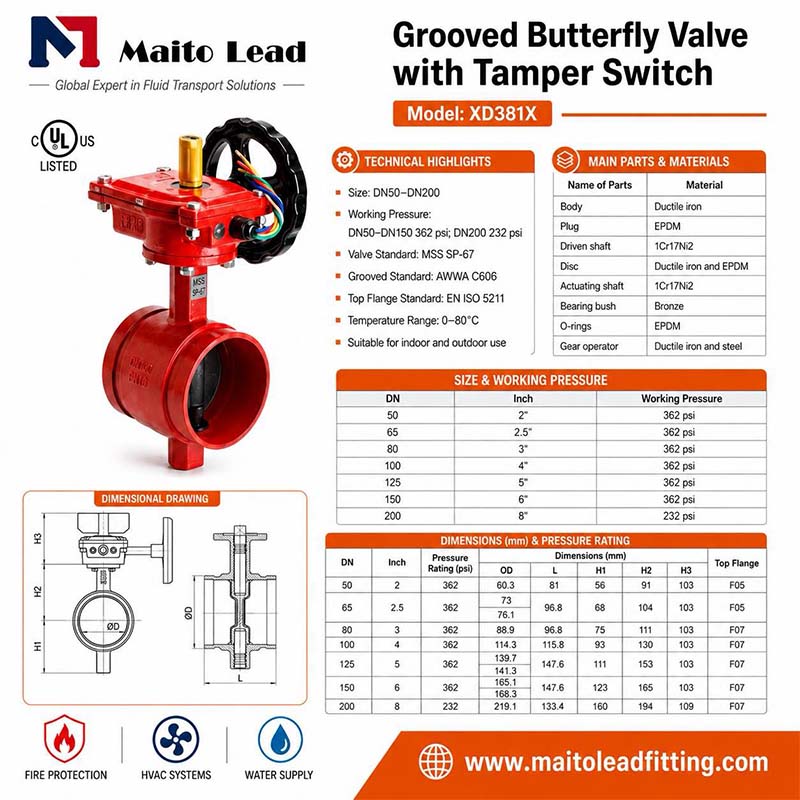

PRODUCT INFORMATION

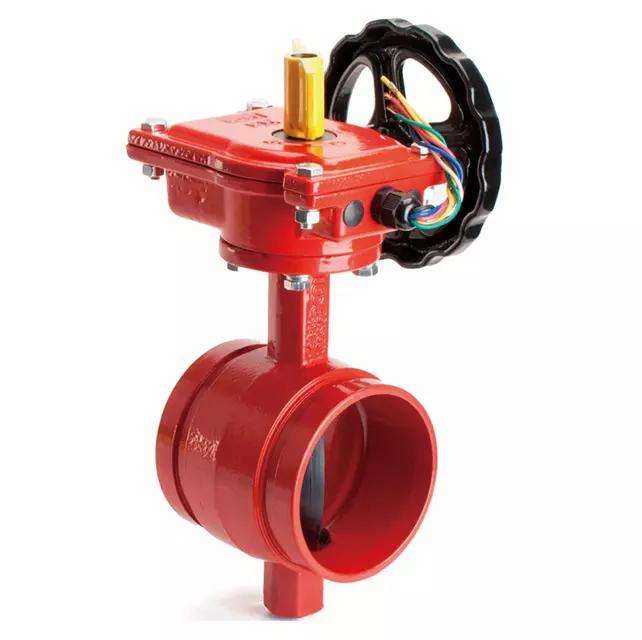

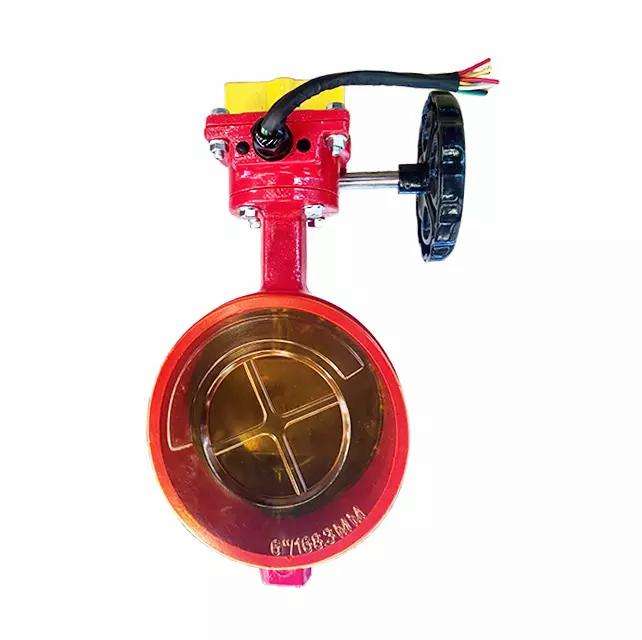

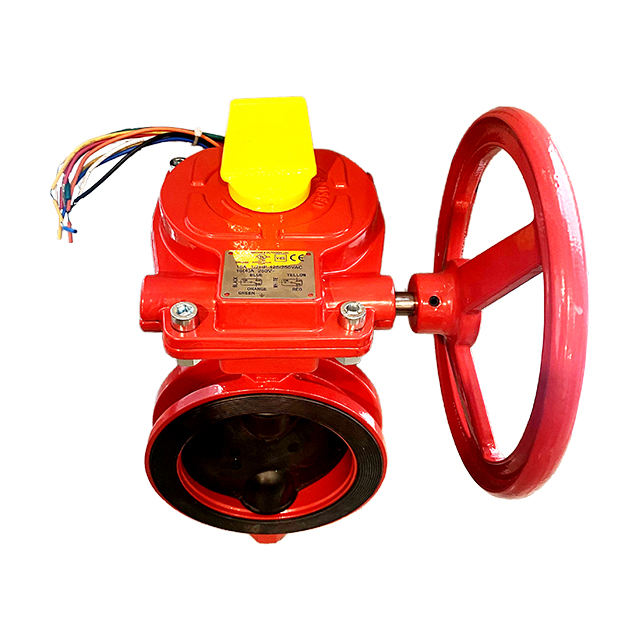

| Product Name | Grooved Butterfly Valve with Tamper Switch |
| Connection Type | Grooved End |
| Size Range | DN50–DN200 |
| Working Pressure | DN50–DN150: 362 psi; DN200: 232 psi |
| Valve Standard | MSS SP-67 |
| Grooved Standard | AWWA C606 |
| Top Flange Standard | EN ISO 5211 |
| Temperature Range | 0–80°C |
| Application | Fire protection, sprinkler system, water piping |
| Installation | Indoor and outdoor use |
| Operation | Gear operator with tamper switch |
| Body Material | Ductile Iron |
| Sealing Material | EPDM |
| Disc Material | Ductile Iron and EPDM |
| Shaft Material | 1Cr17Ni2 |
| Bearing Bush | Bronze |
| O-rings | EPDM |
| Gear Operator | Ductile Iron and Steel |
| Temperature Range | 0–80°C |
| Application | Fire Protection, Sprinkler System, Water Supply, HVAC, Industrial Pipeline |
| Suitable Medium | Water and neutral liquid |
| Installation | Indoor and outdoor use |
| Available Options | Lever handle, tamper switch, gear operator, different pressure ratings |
 |
Product Recommendation
 |
1. What is the primary function of the tamper switch on the Grooved Butterfly Valve?
The tamper switch is designed to detect any unauthorized attempts to alter the valve's position. When triggered, it sends an alert to the control system, ensuring that any unauthorized adjustments are immediately noticed, thus maintaining the integrity of the system.
2. Is the Grooved Butterfly Valve with Tamper Switch suitable for outdoor installations?
Yes, the valve is constructed with materials that are resistant to corrosion and weather conditions, making it suitable for both indoor and outdoor installations. However, it is always recommended to consider the specific environmental conditions of the installation site to ensure proper functioning.
3. How does the grooved design benefit the installation process?
The grooved design allows for quick and easy installation without the need for welding, reducing installation time and labor costs. This design also makes it easier to maintain and replace the valve if necessary, as it can be quickly disconnected from the pipeline.
4. What materials are used in the construction of the valve, and why?
The valve is constructed from high-grade materials that resist corrosion and wear, ensuring a long service life and reducing the need for frequent maintenance. These materials are chosen for their durability and ability to withstand the pressures and chemical interactions common in industrial applications.
5. Can the Grooved Butterfly Valve with Tamper Switch be used in high-pressure applications?
While the valve is designed for general industrial applications, its suitability for high-pressure scenarios depends on the specific pressure ratings of the model in question. It is essential to check the valve's pressure rating before using it in high-pressure applications to ensure it meets the required specifications.
