Incorrect flange sizing goes beyond a simple procurement mistake. It acts as a dangerous structural liability. These specific errors directly cause catastrophic system leaks. They force costly facility downtime and trigger severe compliance failures. Industrial piping networks always demand absolute precision. You must ensure exact dimensional and metallurgical matches every single time. A well-chosen Carbon Steel Flange provides an exceptional strength-to-cost ratio. However, maximizing this specific value requires deep technical understanding. You must firmly grasp how dimensions, pressure classes, and material grades interact daily. We created this comprehensive guide to break down essential standard dimensions. We thoroughly evaluate complex pressure ratings alongside material choices. This specific knowledge empowers your engineering teams. They can make highly informed, reliable procurement choices. You will learn how to confidently specify the right component. We will help you source the perfect fit for your unique application.
Standardization is Key: Most industrial carbon steel flanges adhere to ASME B16.5 (up to 24 inches) or ASME B16.47 (larger diameters), dictating exact outer diameters, bolt circles, and thicknesses.
Size vs. Pressure Class: Nominal Pipe Size (NPS) dictates the fit, but the Pressure Class (e.g., 150#, 300#, 600#) determines the physical bulk, flange thickness, and pressure-temperature capacity.
Grade Matters: Dimensions must be paired with the correct carbon steel grade (like ASTM A105 for high-temp or A350 LF2 for low-temp) to ensure operational safety.
Verification is Mandatory: Always require Material Test Reports (MTRs) during procurement to validate chemical composition and mechanical properties.
Undersized flanges introduce immense operational integrity issues. Incorrect pressure classes directly threaten your facility safety. These mismatched components cannot handle high fluid pressures. This physical mismatch leads directly to sudden gasket blowouts. Fugitive emissions escape into the surrounding environment rapidly. Such leaks violate strict environmental regulations immediately. Catastrophic joint failures cause extreme physical hazards. High-pressure steam endangers your facility workers. Toxic chemicals pose severe health risks. We must view proper sizing as a primary safety mechanism. You cannot compromise on required structural dimensions. The risks remain far too high for guesswork.
Many teams default to higher pressure classes unnecessarily. They might select a 600# class when a 300# version suffices safely. We call this practice over-engineering. It exponentially increases overall project expenses. Higher classes add substantial component weight quickly. Heavier flanges require much larger bolt sizing. Installation teams need more time for physical maneuvering. Cranes and hoists must lift heavier loads. Structural pipe supports must bear this unnecessary additional weight. We see procurement budgets drain rapidly through this over-engineering. You pay for physical steel bulk you simply do not need. Accurate specification keeps project budgets healthy. It keeps installation timelines efficient and manageable.
Regulatory bodies frame sizing adherence strictly around official ASME and ANSI codes. Non-compliant sizing complicates mandatory safety audits significantly. Inspectors look closely at physical dimensional tolerances. They measure wall thicknesses and face finishes meticulously. A mismatched joint voids your entire system warranty immediately. Manufacturers will not cover damages from poor specifications. You must maintain detailed records confirming code compliance. It guarantees operational legality during official reviews. It actively protects your corporate liability over time.
Engineers often confuse Nominal Pipe Size (NPS) and Outside Diameter (OD). NPS represents a standardized pipe identifier. It tells you the general size category for ordering. The actual physical outer dimensions vary widely from this number. A 2-inch NPS does not measure exactly 2 inches across the outer edge. You must consult standard dimensional tables for exact measurements. Physical dimensions change based on the specific pressure class. We rely on ASME standard charts for accuracy.
Pressure classes dictate the raw physical bulk. Common standard classes include 150, 300, 600, 900, 1500, and 2500. A Class 150 rating handles lower baseline pressures efficiently. Stepping up to Class 600 requires significantly more raw steel. The outer diameter expands noticeably to handle internal stress. The flange thickness increases to withstand immense internal forces. Bolt hole requirements also change drastically across classes. Higher classes require larger bolts. They also demand more bolt holes for even compression. This happens even if the NPS remains exactly the same.
Buyers must meticulously verify several critical structural variables. The Bolt Circle Diameter (BCD) dictates proper hole alignment. Mismatched BCDs prevent bolts from passing through joining plates. The Flange Thickness determines raw pressure retention capabilities. Hub Length impacts your welding space. It provides necessary structural support for the joint. Raised Face (RF) height influences gasket compression levels. A proper RF concentrates the bolting load onto the gasket. We recommend checking these measurement zones twice before finalizing orders.
Table 1: Example Dimensional Comparison (NPS 4)
Pressure Class | Outside Diameter (OD) | Flange Thickness | Number of Bolts |
|---|---|---|---|
Class 150 | 9.00 inches | 0.94 inches | 8 |
Class 300 | 10.00 inches | 1.25 inches | 8 |
Class 600 | 10.75 inches | 1.50 inches | 8 |
Weld Neck flanges demand precise bore size matching. The bore must match the adjoining pipe schedule exactly. This creates a highly seamless internal flow path. It prevents disruptive turbulence inside the pipeline. Smooth flows reduce internal erosion over time. We use these for high-pressure applications. They excel in severe-condition environments. The exact dimensional alignment provides unmatched structural integrity. Radiographic testing easily verifies the single butt weld.
Slip-On variants require a slightly larger inside diameter. They slip directly over the existing pipe end easily. You weld them inside and outside for basic strength. They are ideal for lower-pressure applications. They also limit complex installation space requirements. Workers find them easier to align initially. However, they do not suit highly corrosive fluids. The gap between the pipe end and flange face can trap fluids.

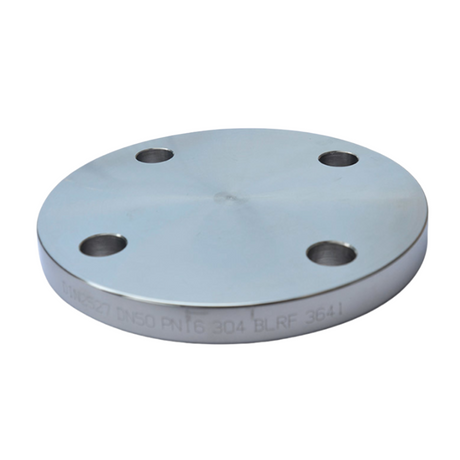

Blind flanges completely seal off open piping systems. Their dimensions differ structurally from other common types. They possess no center bore opening at all. We calculate their thickness strictly based on the pressure class. A higher pressure class demands a much thicker solid steel plate. A robust Carbon Steel Flange designed as a blind effectively stops flow. It withstands immense bending stresses at the pipeline terminus.

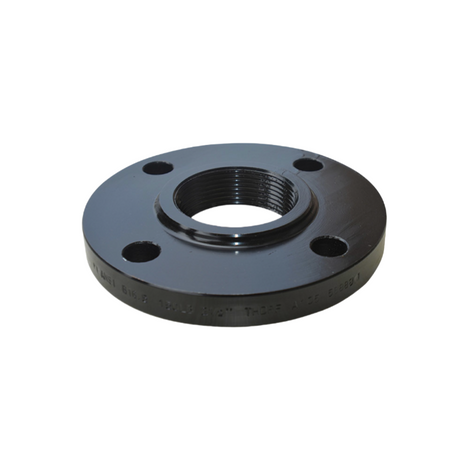

Threaded and Socket Weld flanges serve specialized roles. We typically reserve them for smaller NPS applications. They usually fit systems sized at 4 inches and under. Dimensional constraints dictate their specific industrial usage. Threaded versions require no welding at all. This makes them perfect for highly explosive environments. Socket welds provide a small internal recess. You insert the pipe and apply a single fillet weld. Both types offer quick installation for utility lines.
ASTM A105 represents the most common baseline specification. We use this standard extensively for high-temperature environments. It scales perfectly across standard ASME dimensional charts. The mechanical properties support ambient to high-temp operations efficiently. Machinists find A105 easy to work and shape. It offers excellent weldability for standard fabrication projects. You will find it in almost every standard refinery.
ASTM A350 LF2 handles specific low-temperature demands. You should shift to this grade for freezing environments. Its dimensions remain completely identical to A105 under ASME B16.5. However, the internal impact toughness changes dramatically. Manufacturers use normalized heat treatments to achieve this. This specific toughness prevents dangerous brittle fractures in extreme cold. It maintains structural integrity when temperatures drop below zero.
High-Yield carbon steel includes specialized grades like ASTM A694. We match these specific grades to high-yield pipe networks. High-pressure transmission lines rely heavily on these pairings. The flange dimensions must support elevated stress loads. These systems transport massive volumes over long geographic distances. They face severe external ground movements. Your material grade must match the physical dimensions perfectly. This pairing prevents catastrophic ruptures in remote pipeline locations.
Specifying industrial components requires a rigorous methodology. A tiny oversight can derail an entire construction schedule. We recommend following this strict decision framework carefully.
Step 1: Define the Application Parameters: Start by mapping out your maximum operating pressure accurately. Record all expected temperature extremes. Identify the specific fluid or gas medium flowing inside the system. Corrosive media might require different facing finishes.
Step 2: Match to Code Specifications: Open the standard pressure-temperature rating charts immediately. We use ASME B16.5 extensively for this critical task. Determine the absolute minimum required Class rating. This must align properly alongside your specific carbon steel grade.
Step 3: Select the Flange Type & Facing: Look closely at the intended joint connection style. Determine if the joint requires a Raised Face (RF). Assess if a Ring Type Joint (RTJ) works better for high pressures. Some brittle systems need a Flat Face (FF). Base this choice on your chosen gasket.
Step 4: Verify Pipe Schedule Compatibility: Double-check the internal bore dimensions closely. This remains especially critical for Weld Neck designs. The bore must perfectly match the wall thickness of the adjoining pipe. This matching is also known as the pipe schedule.
Sourcing materials introduces distinct vendor quality risks. You must evaluate suppliers thoroughly before signing any contracts. Every Carbon Steel Flange must meet rigorous quality standards.
Material traceability stands as a strict non-negotiable requirement. Buyers must actively demand fully traceable Material Test Reports (MTRs). We rely on EN 10204 3.1 standards for proper documentation. These reports verify the exact carbon content accurately. They also validate the critical heat treatment processes. An MTR provides the chemical composition breakdown. It proves the steel possesses the correct tensile strength.
Machining tolerances determine operational success out in the field. Cheap imports frequently exhibit incredibly poor facing finishes. They also suffer from severe bolt hole misalignment issues. These minute errors compromise the gasket sealing process completely. You will face immediate leaks upon system pressurization. The raw material might pass initial chemical inspection. However, poor machining ruins the component utility entirely.
Consider these criteria when shortlisting your potential vendors:
Evaluate their total inventory depth across various pressure classes. Deep inventory prevents project delays.
Compare the distinct benefits of domestic versus imported origins. Domestic sourcing often ensures faster delivery times.
Verify their current ISO 9001 quality certification status. This proves they follow standardized management practices.
Assess their ability to handle custom machining capabilities. You might need non-standard bore sizes eventually.
Specifying these components is a complex, multi-dimensional decision. It requires precise alignment between NPS and Pressure Class. You must also balance Flange Type and Material Grade properly.
Take these actionable next steps to secure your systems:
Audit your current pipeline requirements against official ASME B16.5 tables.
Cross-reference your operating temperatures to confirm your material grade choice.
Contact a certified manufacturer to discuss custom machining constraints.
Submit your exact dimensional specifications to an approved distributor for an accurate quote.
A: No. The bolt circle diameters, number of bolts, and flange thicknesses are completely different and will not align.
A: While the outer dimensions of the flange depend on the NPS and pressure class, the internal bore size (especially for weld neck flanges) must match the pipe schedule to ensure a smooth flow transition.
A: B16.5 covers flange sizes from NPS 1/2 through NPS 24. For large diameter carbon steel flanges (NPS 26 through NPS 60), buyers must refer to ASME B16.47 (Series A or B).
A: The facing finish (measured in AARH) must match the gasket type. A mismatched finish will result in leaks, regardless of whether the physical flange size is correct.
