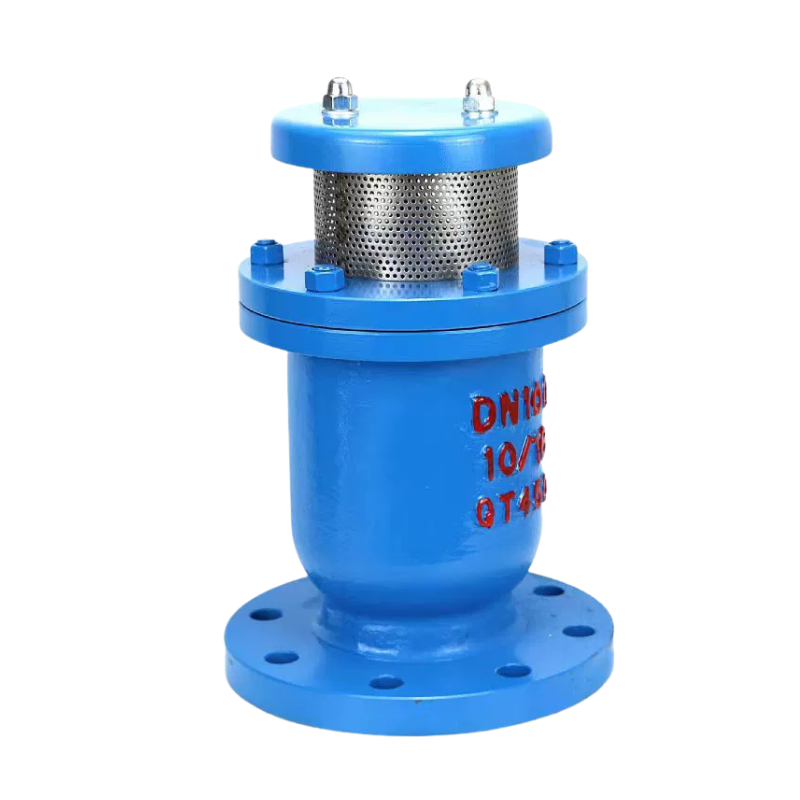

Flanged High-Speed Combination Air Valve PN16 for Water Supply And Fire Water Pipeline System

The High-Speed Combination Air Valve is designed for water supply, fire water, pump station and pipeline systems. It can quickly discharge large volumes of air during pipeline filling, admit air during pipeline draining or vacuum conditions, and release accumulated air during normal operation. This valve helps protect the pipeline system, improve flow efficiency and reduce pressure fluctuation.

Quantity:
Availability:





Inquire Add to Basket

high-speed combination air valve combination air valve high-speed air release valve compound air release valve air release valve air vent valve air and vacuum valve valve pipeline air valve flanged air valve

Product Description


Product Overview

MaitoLead air valves are designed for water supply, wastewater, irrigation, HVAC and industrial pipeline systems. They help release trapped air, prevent vacuum damage, reduce pressure fluctuation and improve pipeline efficiency.

Our product range includes flanged combination air valves, double-orifice air valves, easy-maintenance air valves, large-orifice air and vacuum valves and threaded automatic air release valves.

Vesta Home Co., Ltd. only uses renewable materials for packaging and transportation materials.

Technical Specification

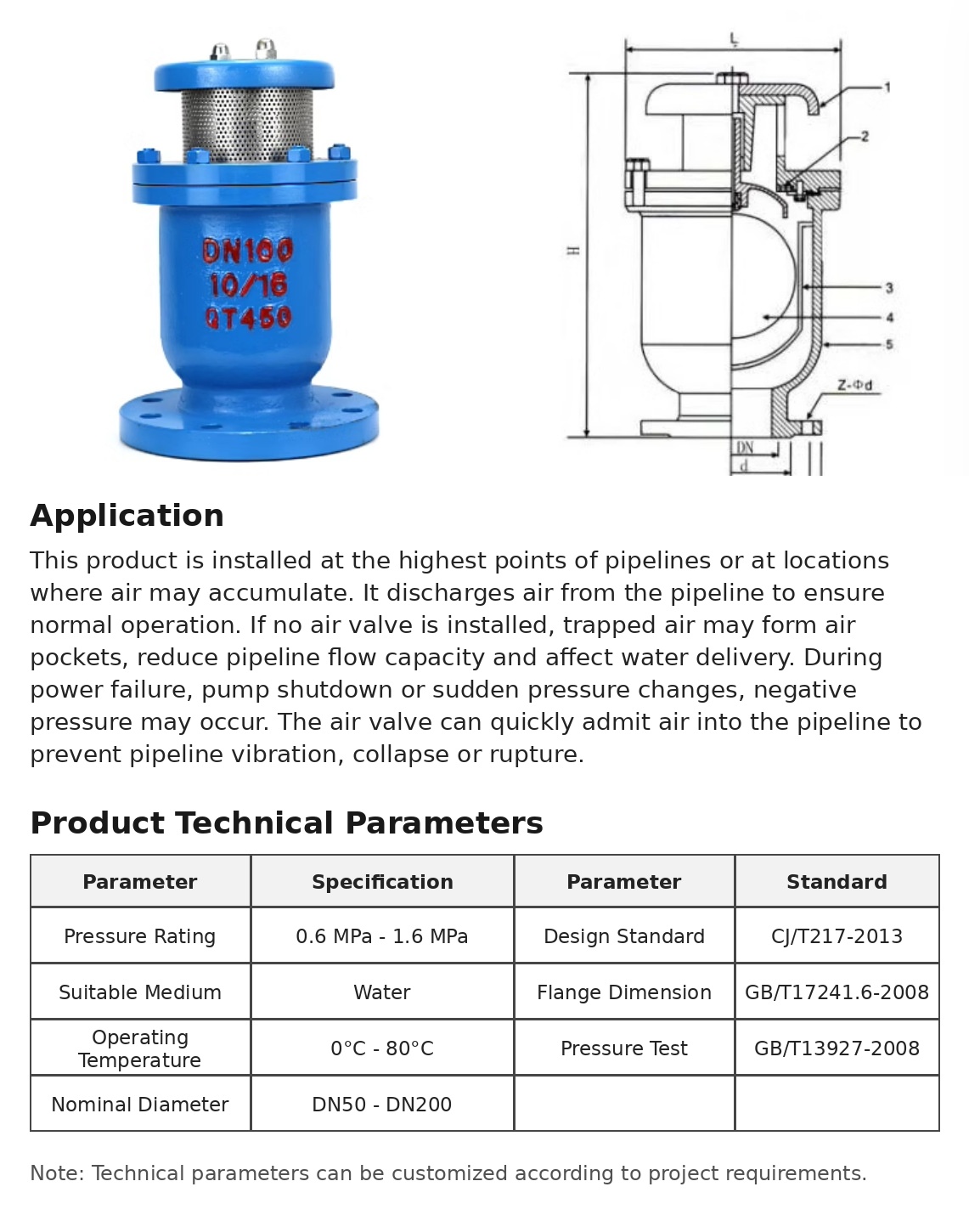

high-speed-combination-air-valve-parameters-english-complete

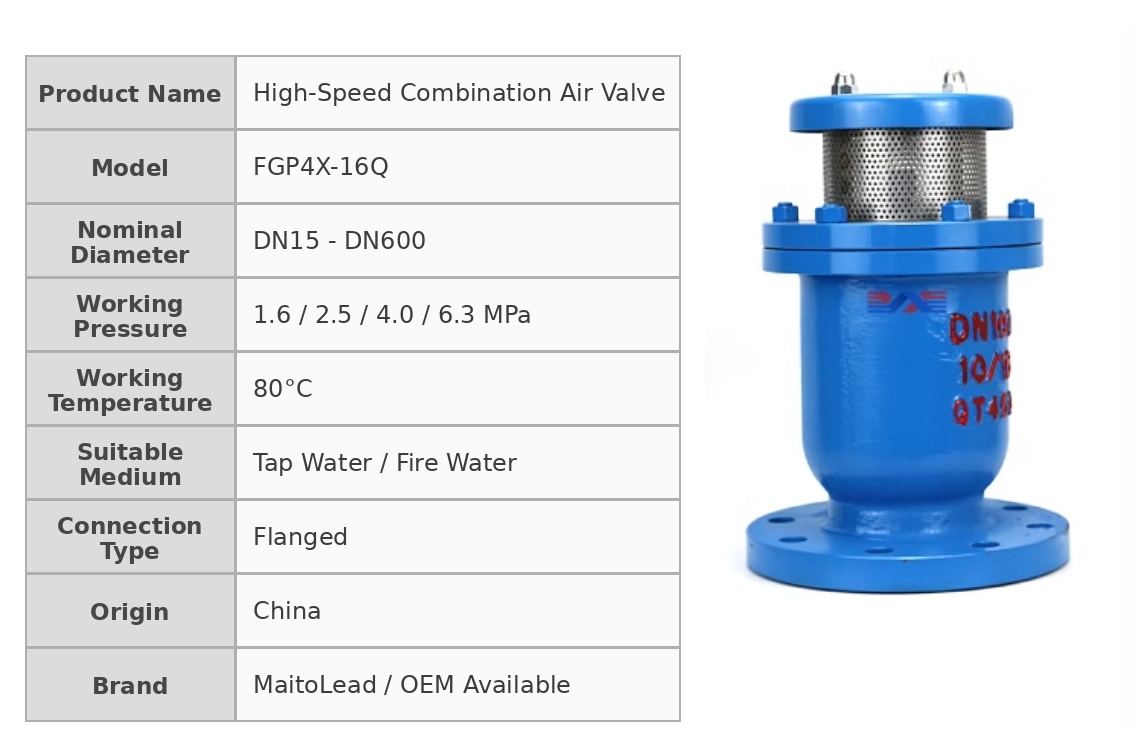

ITEM	Specification
Product Name	High-Speed Combination Air Valve
Model	FGP4X / Customized
Valve Type	Combination Air Valve / Air Release and Vacuum Valve
Size Range	DN15-DN600, subject to project requirement
Pressure Rating	PN16 / PN25 / PN40 / PN63 available
Working Pressure	1.6 / 2.5 / 4.0 / 6.3 MPa available
Body Material	Cast Iron / Ductile Iron
Internal Parts	Stainless Steel / Engineering Plastic / Brass, according to design
Suitable Medium	Tap Water / Fire Water / Clean Water
Working Temperature	Up to 80°C
Connection Type	Flanged
Flange Standard	GB / EN / DIN / BS / ANSI, according to project requirement
Surface Treatment	Blue epoxy coating
Application	Water supply, fire water, pump station, pipeline system
Origin	China
Brand	MaitoLead / OEM Available

FAQ

What is a high-speed combination air valve used for?

It is used to discharge air, admit air and protect the pipeline system from air blockage, vacuum damage and pressure fluctuation.

Where should this valve be installed?

It is usually installed at pipeline high points, pump outlets, long-distance pipelines and positions where air may accumulate.

Is this valve suitable for fire water pipelines?

Yes, it can be used for fire water pipeline systems, subject to project requirements and approval.

What is the difference between a combination air valve and an automatic air release valve?

An automatic air release valve mainly releases small amounts of air during operation. A combination air valve can discharge large volumes of air, admit air during vacuum conditions and release accumulated air during normal operation.

What pressure ratings are available?

PN16, PN25, PN40 and PN63 can be supplied according to project requirements.

Can the flange standard be customized?

Yes. EN, DIN, BS, ANSI or project-required flange standards can be supplied according to customer requirements.
