Selecting industrial pipe fittings demands strict attention to technical details. Engineers must balance upfront material expenses against long-term durability and system safety. Sourcing components for commercial or industrial piping systems brings significant procurement challenges. You need specific components to ensure flawless fluid transportation across facility networks.
Specifying the wrong thread standard, pressure class, or material grade carries heavy consequences. Mismatched components quickly lead to joint failure. They cause regulatory non-compliance and trigger catastrophic system downtime. We focus specifically on navigating the technical specifications, sizing variables, and compliance standards necessary when sourcing these critical components.
We will explore how to match pressure ratings and decode thread standards. You will learn how to verify material certifications to build a resilient piping network. Mastering these technical variables ensures your infrastructure remains safe, compliant, and highly functional.
Galvanized malleable iron is optimized for potable water, cooling, and compressed air systems, but generally prohibited for natural gas lines due to zinc flaking risks.
Proper selection hinges on matching the exact nominal pipe size (NPS) and thread standard (typically NPT in North America or BSPT internationally).
Class 150 fittings are standard for low-pressure ambient applications, while Class 300 is required for high-pressure or high-temperature environments.
Supplier evaluation must prioritize verified ASTM/ANSI material compliance, threading precision, and documented metallurgical testing.
Engineers constantly face a distinct business problem framing. Standard black iron rusts rapidly in moist environments. Higher-tier materials like stainless steel often stretch project budgets too far. Galvanized Malleable Iron Fittings bridge this gap perfectly. They provide robust structural integrity alongside superior external corrosion resistance. We use them strategically to protect fluid systems without over-engineering the material selection.
Fluid compatibility dictates your baseline material choice. These specialized components excel in cold and hot water lines. They perform flawlessly in commercial HVAC systems, compressed air networks, and lines carrying non-corrosive industrial fluids. The zinc coating acts as a reliable barrier against ambient moisture. However, you must avoid high-risk applications. Strong acids and highly caustic chemicals strip the protective zinc layer quickly. Once exposed, the underlying iron deteriorates rapidly.
The natural gas restriction often confuses procurement teams. Building codes generally prohibit galvanized materials for gas lines. Zinc coatings can flake off the interior walls over time. These microscopic zinc flakes travel through the gas stream. They eventually clog sensitive gas regulators, pilot lights, and shutoff valves. This creates a severe fire or explosion hazard. You must specify untreated black iron for natural gas applications.
Environmental exposure plays a massive role in material selection. Assess external corrosion factors carefully. Damp basements, outdoor irrigation setups, or coastal ambient environments demand strong protection. The zinc coating provides critical sacrificial protection. It undergoes galvanic corrosion first. This means the zinc sacrifices itself to protect the underlying iron structure. It keeps the piping system intact even in harsh weather conditions.
Understanding nominal pipe size (NPS) realities prevents immediate installation failures. NPS does not equal the actual outer diameter (OD) of the pipe or fitting. A 1-inch NPS fitting does not measure exactly one inch across its opening. The NPS standard designates the internal flow capacity rather than the physical outside measurement for sizes under 14 inches. You must consult standard dimensional charts to translate physical OD measurements to specific NPS standards ranging from 1/8" to 6".
Thread standards present another critical hurdle. Plumbers and pipefitters deal primarily with two dominant profiles: National Pipe Thread Taper (NPT) and British Standard Pipe Taper (BSPT). NPT rules the North American market. BSPT dominates internationally. NPT features flattened peaks and valleys on the thread profile. BSPT utilizes rounded peaks and valleys. Furthermore, their thread angles differ slightly.
Highlight the critical risk of mixing these standards. Forcing an NPT pipe into a BSPT fitting feels possible for the first few turns. However, the mismatched angles cause severe cross-threading. This destroys the threads and guarantees persistent micro-leaks under pressure.
Table 1: Comparison of NPT and BSPT Thread Standards
Feature | NPT (National Pipe Thread) | BSPT (British Standard Pipe Taper) |
|---|---|---|
Geographic Usage | North America | Europe, Asia, International |
Thread Angle | 60 degrees | 55 degrees |
Thread Shape | Flattened peaks and valleys | Rounded peaks and valleys |
Compatibility | Strictly NPT only | Strictly BSPT only |

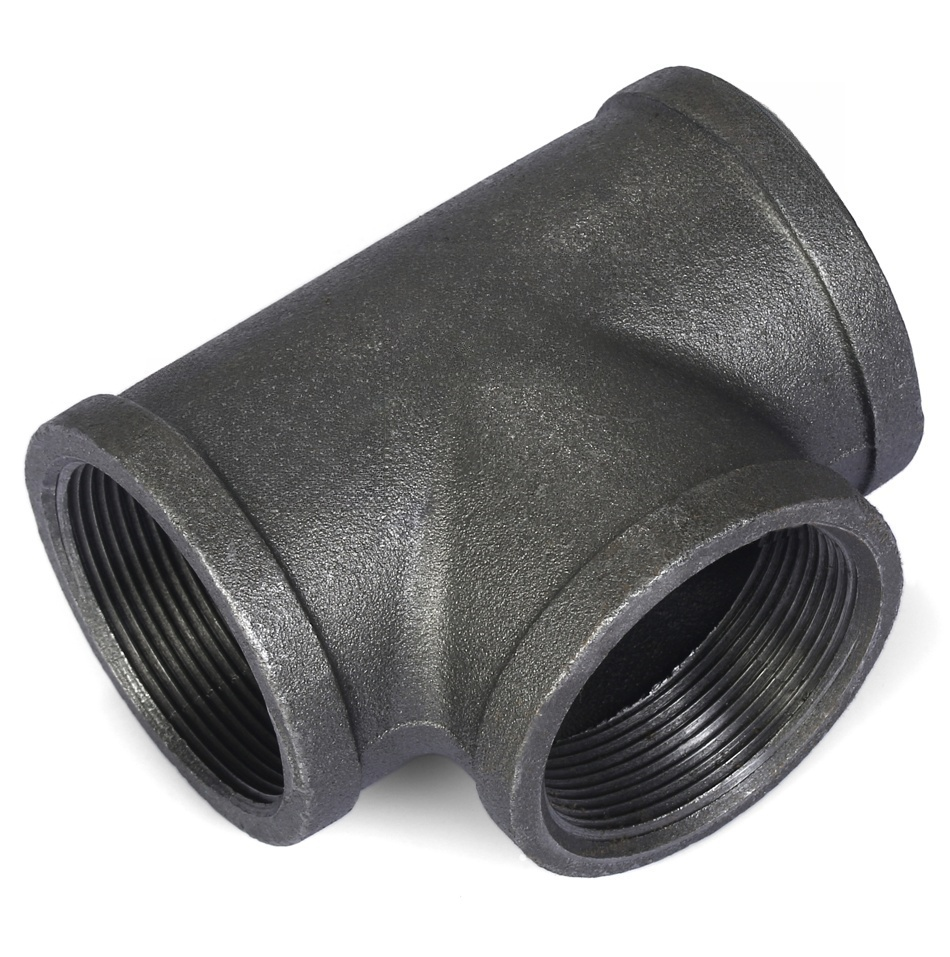

Form factor selection requires shortlisting logic based on flow dynamics and physical space. You must select specific shapes to route fluids efficiently. 90-degree street elbows work beautifully for tight clearances where standard elbows consume too much room. Reducing tees accommodate branch lines without requiring extra bushings. Unions allow easy disconnection points. They provide future maintenance access without cutting the pipe network apart.
Evaluation dimensions map fitting class designations directly to working pressure and temperature constraints. The term "Class" does not merely indicate a static pressure limit. It represents a sliding scale of capabilities. As internal fluid temperature rises, the maximum allowable pressure drops. You must evaluate the maximum spikes in your system before choosing a class designation.
Class 150 specifications outline standard limits for general plumbing and light industrial applications. These fittings handle 150 psi at 300°F safely. If the system operates at ambient room temperature, they can manage up to 300 psi. We see Class 150 specified most often for commercial potable water, low-pressure compressed air lines, and basic HVAC hydronic routing. They offer excellent performance for standard commercial needs.
Class 300 specifications justify the upgrade for demanding industrial systems. These components feature heavier, thicker walls. They resist deformation under extreme stress. A Class 300 component handles up to 300 psi at high temperatures (often approaching 500°F depending on specific manufacturing codes). If your facility manages high-pressure steam, heavy hydraulic lines, or aggressive temperature fluctuations, Class 300 provides the necessary safety margin.
Yield strength factors separate malleable iron from standard cast iron. Raw cast iron is extremely brittle. It shatters catastrophically under sudden pressure spikes or mechanical shocks. Manufacturers subject white cast iron to a multi-day annealing process. This extreme heat treatment alters the carbon microstructure. It transforms brittle metal into ductile malleable iron. This ductility allows the fitting to flex slightly under stress. It prevents brittle catastrophic failures and keeps factory floors safe.
Security and compliance frameworks verify engineering standards. You cannot rely on visual inspections alone. Industrial piping networks demand documented proof of quality. Galvanized Malleable Iron Fittings must meet stringent legal guidelines to ensure public safety and environmental protection.
Core ASTM standards define the metallurgical foundation. Procurement teams must look for specific stamps of approval.
ASTM A-197: This standard governs Cupola Malleable Iron. It dictates minimum tensile strength, yield point, and elongation percentages. It ensures the metal won't crack under typical mechanical loads.
ASTM A-153: This specification covers hot-dip galvanizing requirements. It mandates the minimum thickness and adherence of the zinc coating. It ensures the sacrificial barrier performs reliably over decades.
Dimensional standards ensure interoperability across different manufacturers. You must ensure adherence to ANSI/ASME B16.3. This standard dictates the exact dimensions for malleable iron threaded fittings. It governs thread length, wall thickness, and overall geometry. Parts conforming to B16.3 thread together seamlessly, regardless of the factory of origin.
Drinking water approvals carry immense legal weight. For potable water applications, you must detail the necessity of specific health certifications. NSF/ANSI 61 compliance guarantees the material will not leach dangerous chemicals or heavy metals into the drinking supply. Furthermore, modern low-lead compliance certifications are mandatory in North America. Fittings installed in public water networks must contain virtually zero lead.
Rollout realities address common installation failures. A high-quality component fails quickly if assembled poorly. Fitters often rush the assembly process. They ignore torque limits and basic sealing rules. We must mitigate these risks during system assembly through strict operational protocols.
Sealing protocols demand correct thread sealants. Tapered threads do not form a watertight seal on their own. They require a filler material to block microscopic gaps. We recommend using both high-density PTFE tape and a quality pipe dope. You must verify these sealants remain compatible with both the zinc coating and the fluid media. Some aggressive chemical pastes degrade zinc quickly.
Torque considerations require careful attention. Warn your installation teams against over-tightening. Malleable iron is ductile, but excessive torque causes severe damage. It warps the thread profile. Massive wrench pressure can actually crack female fittings wide open. Follow these installation best practices closely:
Clean all male and female threads with a wire brush before assembly.
Apply three wraps of PTFE tape in a clockwise direction.
Apply a thin layer of compatible pipe dope over the tape.
Hand-tighten the connection until snug.
Use a pipe wrench to turn it an additional 1.5 to 2 full rotations. Stop immediately if resistance spikes abruptly.
Galvanic corrosion risks destroy mixed-metal systems rapidly. Advise your teams carefully when transitioning from galvanized iron to dissimilar metals. Connecting zinc-coated iron directly to a copper pipe creates a powerful battery effect in the presence of water. The zinc anode corrodes rapidly to protect the copper cathode. The joint will rot and fail within months. Always install dielectric unions at these transitions. Dielectric unions use rubber or plastic gaskets to break the electrical connection. They prevent rapid electrochemical corrosion entirely.
Supplier evaluation criteria matter immensely. You need a reliable partner for bulk or critical procurement. Do not base decisions purely on unit cost. Cheap components lead to massive labor overruns when they fail during pressure testing. You must vet manufacturers and distributors rigorously.
Quality assurance testing separates premium suppliers from substandard importers. Demand proof of 100% pneumatic pressure testing. Every single fitting must undergo an air pressure test underwater before leaving the factory. This detects microscopic casting voids and pinhole leaks. If a supplier batch-tests only a few pieces per thousand, find a different vendor.
Thread precision impacts installation speed directly. Ensure the supplier utilizes CNC (Computer Numerical Control) machining for thread tapping. Older mechanical tapping machines wear out. They produce sloppy, inconsistent threads. CNC machining guarantees perfect, identical NPT or BSPT profiles on every part. Perfect threads reduce assembly time and eliminate cross-threading risks entirely.
Inventory scalability determines project timelines. Evaluate the supplier’s ability to maintain high fill rates on complex orders. A vendor might stock thousands of basic 1-inch elbows. However, can they supply niche sizes and reducing fittings immediately? Complex piping schematics require obscure components. Your supplier must stock these variations locally to prevent costly project delays.
Choosing the right industrial pipe components requires strict alignment across multiple variables. You must match the fluid type, pressure class, thread standards, and environmental conditions perfectly. Ignoring any of these factors compromises system integrity. Galvanized components provide exceptional corrosion resistance for water and air lines but fail dangerously in natural gas applications. Dimensional accuracy and proper torque application remain critical during installation.
We recommend prioritizing fittings featuring clear, stamped compliance marks. Look for visible ASTM and ANSI identifiers on the metal body. Always source from suppliers who provide transparent metallurgical testing protocols and 100% pneumatic leak testing. High-quality manufacturing standards protect your facility from disastrous leaks and regulatory fines.
Take action today to secure your infrastructure. Download a full technical spec sheet from a trusted manufacturer. Request a detailed quote for your next project. Contact an engineering sales representative immediately to review your specific piping schematic and ensure every connection remains perfectly optimized.
A: Yes, they are safe for potable water systems provided they meet strict modern health codes. You must verify they hold NSF/ANSI 61 compliance. They also must carry low-lead or lead-free certifications mandated by current plumbing regulations to prevent toxic leaching into the drinking supply.
A: Technically they thread together, but mixing them creates severe risks. Introducing bare black iron into a galvanized system triggers localized corrosion. The bare iron rusts rapidly. Mixing them also violates many application-specific building codes, especially in municipal water lines or natural gas routing.
A: Malleable iron starts as cast white iron and undergoes extensive heat treatment to improve ductility and prevent brittle snapping. Forged iron fittings are mechanically hammered or pressed into shape from solid steel blanks. Forged fittings offer vastly higher tensile strength and pressure resistance but cost significantly more.
A: Lifespan depends heavily on soil conditions. In neutral, well-draining soil, they can last 40 to 50 years. However, high soil acidity or stray electrical currents destroy the zinc coating rapidly. Underground applications typically require secondary wrapping or active cathodic protection to ensure long-term survival.
