Views: 0 Author: Site Editor Publish Time: 2026-03-12 Origin: Site
In modern industrial fluid systems, fire protection networks, and municipal waterworks, the demand for robust, reliable, and adaptable piping connections is paramount. Ductile iron grooved fittings have emerged as the industry standard for creating secure, leak-free mechanical joints without the need for welding, threading, or flanging. But what exactly makes these fittings indispensable for high-stakes engineering projects, and how are they deployed across various sectors?
This comprehensive technical guide explores the material science behind ductile iron, details the dimensional and operational specifications of grooved systems, and provides an in-depth look at how contractors, distributors, and engineering procurement professionals can specify the right fittings—such as those manufactured by Maitolead—for their exacting project requirements.
At the core of these mechanical piping systems is the housing material. High-quality ductile iron grooved fittings are cast from ductile iron conforming to ASTM A536 Grade 65-45-12 (equivalent to QT450-12). Unlike traditional gray cast iron, which is brittle and prone to fracturing under high stress, ductile iron is treated with magnesium before casting. This treatment causes the graphite within the iron to form spheroidal nodules rather than flakes.
The resulting metallurgical structure offers exceptional mechanical properties:
High Tensile Strength: With a minimum tensile strength of 65,000 PSI, ductile iron can withstand significant internal hydrostatic pressure.
Yield Strength: A minimum yield strength of 45,000 PSI ensures the fitting will not permanently deform under operational stresses.
Elongation: A 12% elongation rating allows the material to absorb impact, vibration, and seismic shifts without catastrophic failure—a critical factor in fire protection and seismic zone installations.
By leveraging these material properties, ductile iron grooved fittings provide the structural integrity of cast steel while maintaining the superior castability and corrosion resistance inherent to iron.
A standard grooved piping connection consists of four primary components, each engineered to perform a specific mechanical function:
The Grooved Pipe End: A standard groove (either roll-grooved or cut-grooved) is formed at the end of the pipe, adhering strictly to AWWA C606 standard dimensions.
The Gasket: A resilient, pressure-responsive elastomeric seal is stretched over the pipe ends. As internal system pressure increases, the gasket's sealing lips are forced tighter against the pipe surface, enhancing the seal.
The Housing (Fitting/Coupling): Manufactured from ductile iron, the housing completely encloses the gasket, protecting it from external elements. The keys of the housing engage seamlessly into the pipe grooves, locking the pipes together and providing substantial end-pull resistance.
Fasteners: Heavy-duty, heat-treated carbon steel track bolts and nuts are tightened to specific torque values, drawing the housing segments together and compressing the gasket to form a permanent, hydrostatic seal.
For distributors and project contractors, having a single-source manufacturer capable of supplying an extensive range of configurations is crucial for maintaining project timelines. Maitolead Pipeline Technology offers a comprehensive catalog of ductile iron grooved fittings designed to meet the rigorous demands of modern piping infrastructure.
Rigid Couplings (e.g., XGQT01, XGQT31): Engineered with an interlocking mechanism that securely clamps the pipe ends, preventing any axial, angular, or rotational movement. These are ideal for long, straight pipe runs, pump rooms, and risers where system rigidity is mandated.
Flexible Couplings (e.g., XGQT02, XGQT32): Designed to allow controlled linear and angular deflection. These couplings accommodate pipeline expansion and contraction, thermal changes, and seismic movement, eliminating the need for expensive expansion joints.
Mechanical Tees (XGQT03 Series): Available in grooved, threaded, and U-bolt configurations, mechanical tees allow engineers to create direct branch connections on existing pipe mains without cutting or welding, significantly reducing retrofitting downtime.

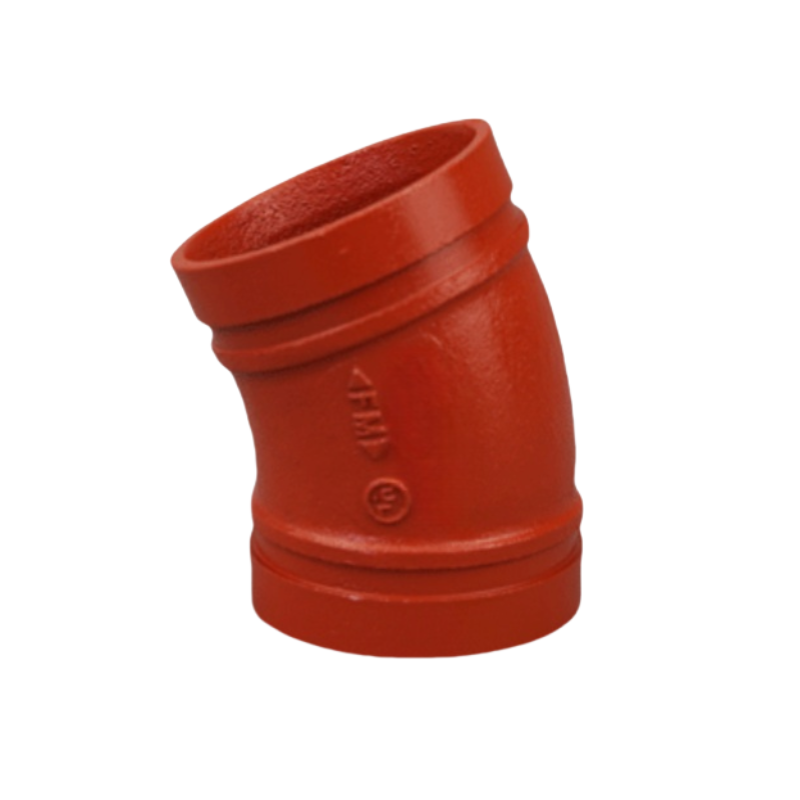

Directional and Flow Control Fittings: Including 90°, 45°, 22.5°, and 11.25° elbows, concentric and eccentric reducers, flange adaptors, and end caps.
Our manufacturing capabilities cover a vast dimensional footprint, typically ranging from DN15 (1/2") up to DN250 (10") and beyond, accommodating both metric (OD) and imperial (Inch) specifications. Depending on the product line and pipeline diameter, our ductile iron grooved fittings and integrated valve systems are rated for maximum working pressures ranging from 175 PSI to 363 PSI. For specialty heavy-duty applications, high-pressure ring joint couplings are also available.
The reliability of a grooved joint is heavily dependent on selecting the correct elastomeric gasket for the system's fluid media, operating temperature, and chemical environment. Maitolead offers specialized gasket compounds to suit diverse industrial applications:
EPDM (Ethylene Propylene Diene Monomer): The industry standard for cold and hot water systems, wastewater, dilute acids, and alkaline fluids. EPDM maintains its integrity in temperatures up to 110°C (230°F). It is widely specified for fire protection, municipal water, and HVAC networks. Note: EPDM is strictly incompatible with petroleum-based oils.
Nitrile (NBR): Engineered specifically for non-polar petroleum products, hydraulic fluids, lubricants, and hydrocarbon applications. NBR gaskets operate effectively in environments up to 65°C (149°F), making them the premier choice for industrial fluid processing lines.
Silicone: A specialty compound offering extreme temperature resilience, capable of withstanding dry heat up to 177°C (350°F). Due to its odorless and non-toxic properties, silicone is frequently utilized in the food & beverage sector, medical facilities, and specialized chemical processing. Note: Silicone is not recommended for high-temperature hot water or steam systems.
Corrosion mitigation is a critical aspect of pipeline longevity, particularly in subterranean, coastal, or chemically aggressive environments. To protect the ductile iron substrate, Maitolead provides multiple industrial-grade coating and finishing options:
Epoxy Coating (Red/White/Blue): Electrostatically applied and thermally bonded, epoxy coatings provide an excellent barrier against moisture and chemical attack. Red epoxy is universally recognized for fire sprinkler systems, while blue epoxy is standard for potable water and municipal applications.
Galvanized Finish: Hot-dip galvanizing provides robust sacrificial cathodic protection, ideal for outdoor installations, exposed HVAC cooling tower piping, and high-humidity environments.
Dacromet Coating: A high-performance inorganic zinc-aluminum dispersion coating. Dacromet offers superior salt-spray resistance compared to standard galvanizing, making it highly suitable for marine and heavy industrial applications without introducing hydrogen embrittlement risks.
The versatility, mechanical integrity, and certification compliance of our grooved fittings allow them to be deployed across a multitude of high-demand sectors:
In life-safety systems, failure is not an option. Ductile iron grooved fittings are the backbone of commercial and industrial wet, dry, pre-action, and deluge fire sprinkler systems. Our products hold rigorous FM Approvals and UL Listings, guaranteeing they meet the stringent hydrostatic pressure, vibration, and flow requirements dictated by NFPA 13 standards.
For potable water distribution, desalination plants, and wastewater treatment facilities, piping components must meet strict health and safety guidelines. Our fittings are designed to comply with AWWA standards and carry WRAS certification, ensuring that the EPDM gaskets and epoxy coatings do not leach harmful substances into the municipal water supply.
Large-scale heating, ventilation, and air conditioning systems require extensive networks of chilled and hot water piping. Flexible grooved couplings excel in HVAC applications by absorbing the vibration and noise generated by chillers, pumps, and cooling towers, while also accommodating the thermal expansion of the piping layout.
Mining operations, food and beverage processing, and chemical manufacturing require rapid installation and frequent maintenance intervals. Grooved systems allow plant operators to disassemble sections of pipe for cleaning or reconfiguration in a fraction of the time it would take to cut and re-weld flanged or welded joints, drastically reducing operational downtime.
At Maitolead Pipeline Technology, we understand that B2B procurement is not just about purchasing a product; it is about mitigating risk, ensuring compliance, and streamlining project execution. Our ISO 9001 certified manufacturing facilities are equipped to provide comprehensive support for complex engineering projects.
We provide full traceability and compliance documentation for all shipments. For project-based procurement, distributors and engineers can request:
Material Test Certificates (MTC): Documenting the exact chemical composition and physical properties of the ductile iron batch (EN 10204 3.1).
Hydrostatic Test Reports: Verifying the pressure-holding capacity of the manufactured lots.
Coating Thickness & Adhesion Reports: Ensuring the epoxy or galvanization meets standard micron specifications.
Technical Datasheets & CAD Models: Assisting design engineers in integrating our fittings into Building Information Modeling (BIM) software.
Whether you are outfitting a high-rise commercial tower, a remote mining facility, or seeking to expand your own brand's catalog, we offer comprehensive OEM packaging and product customization. We support our global partners with customized casting marks, tailored coating colors, and optimized logistics solutions.
We stand by the precision of our engineering. For large-scale project tenders and prospective distribution partnerships, we offer robust sample support. Engineers and QA technicians can physically evaluate our coupling housings, inspect the gasket molding quality, and verify dimensional tolerances against local piping standards before committing to bulk procurement.
While grooved piping is renowned for its rapid assembly, adherence to strict technical protocols is required to maintain system integrity:
Groove Profile Inspection: Prior to assembly, technicians must verify that the pipe groove depth, width, and flare meet standard specifications. An out-of-tolerance groove will prevent proper key engagement.
Gasket Lubrication: To prevent pinching or rolling during installation, the gasket exterior and sealing lips must be coated with a compatible lubricant. Petroleum-based lubricants must NEVER be used on EPDM gaskets.
Torque Verification: Track bolts must be tightened evenly, alternating from side to side, to ensure the housing keys engage the groove uniformly. Over-torquing can fracture the ductile iron clamp body or strip the bolt threads, while under-torquing compromises the hydrostatic seal. Always refer to the manufacturer's specified torque values.
Visual Confirmation: A properly installed rigid coupling will show metal-to-metal contact at the bolt pads. For flexible couplings, a uniform gap at the bolt pads is normal, allowing for the designed deflection.
Q: Can ductile iron grooved fittings be used on High-Density Polyethylene (HDPE) pipes?
A: Standard ductile iron couplings for steel pipes cannot be used directly on HDPE due to the difference in outside diameters and material behavior. However, specialized HDPE transitional couplings (such as our H305 and H307 series) are specifically engineered with a wider housing and unique gasket profile to grip the HDPE pipe securely without biting into the softer plastic.
Q: How do grooved fittings handle seismic activity compared to welded joints?
A: Flexible grooved couplings provide superior seismic performance. While welded joints are rigid and can fracture under severe sheer stress, flexible couplings allow for controlled articulation, axial displacement, and rotation. This flexibility dissipates seismic energy throughout the piping network, significantly reducing the risk of catastrophic pipeline rupture.
Q: Are your fittings compliant with European pressure equipment directives?
A: Yes. In addition to UL and FM approvals, our manufacturing processes and product lines comply with the European Pressure Equipment Directive (PED), ATEX for explosive atmospheres, as well as REACH and ROHS environmental standards, ensuring seamless integration into EU-based engineering projects.
Q: What is the lead time for large-scale project procurement?
A: With an annual production capacity of over 2 million sets of valves and thousands of tons of fittings across our dual-plant manufacturing base in Cangzhou, we maintain robust inventory levels. Lead times depend on specific customization requirements (like special coatings) and order volume, but our integrated foundry-to-assembly line ensures highly competitive turnaround times for bulk project supply.
Ductile iron grooved fittings represent the intersection of advanced metallurgy, precision mechanical engineering, and fluid dynamics. By specifying high-grade ASTM A536 materials, selecting the precise elastomeric gaskets, and ensuring compliance with global certifications like FM, UL, and AWWA, engineers can construct piping networks that deliver decades of safe, maintenance-friendly operation.
For contractors, engineering firms, and distributors seeking a reliable manufacturing partner, Maitolead Pipeline Technology delivers not just products, but complete fluid control solutions backed by rigorous testing, comprehensive documentation, and a commitment to industrial excellence. Contact our engineering support team today to request technical datasheets, MTCs, or physical samples for your next major installation.
