Material selection for commercial and industrial piping represents a critical risk-management decision. Material failure often brings catastrophic consequences to active operations. It routinely causes costly fluid leaks, unscheduled system downtime, and severe compliance violations. You often see Galvanized Malleable Iron Fittings used as a legacy, highly reliable standard across multiple industries. They provide immense strength and reliable corrosion resistance for many demanding environments. However, they do not serve as a universal solution for every project. These heavy-duty components cannot accommodate every specific fluid type, gas application, or strict budget constraint. This article provides a purely technical, application-based breakdown of piping materials. We will help engineers, contractors, and procurement managers evaluate various metals accurately. You will discover exactly how to make the right choice for your specific system requirements.
Application Dictates Choice: Galvanized malleable iron fittings are optimal for outdoor, water, and mildly corrosive environments, whereas black iron is the strict standard for gas lines.
Structural Integrity: Malleable iron offers superior tensile strength and shock resistance compared to standard cast iron, preventing catastrophic cracking under pressure or vibration.
Cost vs. Lifespan: While more expensive than untreated iron or PVC, galvanized malleable iron delivers a lower Total Cost of Ownership (TCO) in high-stress, moisture-heavy applications.
Compliance is Mandatory: Proper selection requires adherence to specific ASTM (e.g., A197) and ASME standards, dictating pressure classes and thread compatibility.
Piping material choice drives critical operational outcomes across any facility. You must consider installation labor and ongoing maintenance cycles carefully. The wrong metal demands frequent replacements and constant supervision. It also increases your risk of sudden mechanical failures. We see many facilities suffer from poorly specified piping systems. These operational interruptions drain resources rapidly. Workers spend hours diagnosing hidden leaks behind walls. They spend even more time replacing fractured joints.
Let us establish a strong baseline for Galvanized Malleable Iron Fittings. Foundries begin the manufacturing process by casting raw white iron. They bake this extremely brittle material inside specialized ovens. The prolonged heat treatment alters the internal carbon structure fundamentally. It transforms the rigid metal into a highly ductile material. Workers call this critical process annealing. After annealing, they submerge the parts into molten zinc. The hot-dip galvanizing process creates a thick sacrificial barrier. This exterior barrier protects the underlying iron from rapid oxidation.
Engineers must adopt a specific evaluation mindset during procurement. The "best" material remains entirely subjective for every project. You base this vital decision on three primary factors. First, identify the exact fluid flowing through the system. Second, determine your maximum operating pressure limits. Third, assess your external environmental exposure conditions. A metal surviving indoors might disintegrate quickly outside. You must balance these physical realities against project requirements.

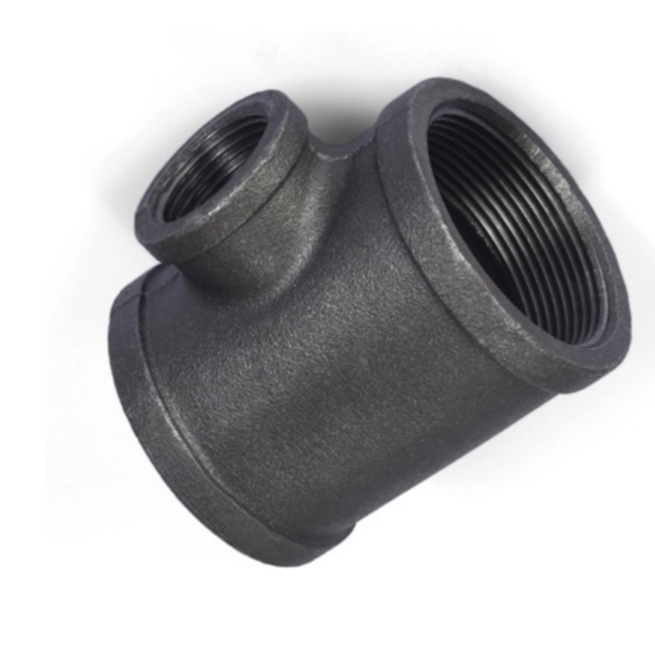

Engineers often debate between galvanized and black iron components. Both options utilize the exact same malleable iron core. They share identical physical strength and thread profiles. The core manufacturing distinction lies entirely in the exterior finish. Galvanized fittings feature a thick, weather-resistant zinc coating. Black iron relies entirely on a light oil or lacquer coating. Manufacturers apply this dark coating simply to prevent rust during shipping. It offers zero long-term corrosion protection.
You should specify galvanized materials for challenging exterior applications. Rain, snow, and ambient humidity attack bare metal relentlessly. The zinc coating resists these harsh weather conditions effectively. We strongly recommend these fittings for potable water distribution. Local building codes frequently mandate them for cold water lines. You also need this material in environments requiring high rust resistance. Coastal facilities benefit greatly from this robust zinc protection.
You must never use galvanized fittings for natural gas lines. This universal rule prevents critical system failures and explosions. Natural gas flows under significant pressure through the network. The internal zinc coating often flakes off over time. These sharp metal flakes travel rapidly downstream. They will clog sensitive gas regulators and vital safety valves. Black iron remains the strict industry standard for gas transfer.
You can also use black iron confidently for steam systems. It works exceptionally well for closed-loop hot water heating. Internal rust does not threaten these closed systems heavily. Boiling water continuously removes dissolved oxygen from the lines. Without oxygen, internal corrosion slows to a near halt.
We need to examine the metallurgical realities dividing these metals. You must understand these structural differences in plain engineering terms. The internal shape of the carbon molecules dictates everything. It controls how the metal reacts to mechanical stress.
Cast iron remains heavily utilized but highly brittle. The carbon inside forms long, sharp graphite flakes. These flakes create natural fault lines throughout the metal. Impact forces cause immediate cracks along these microscopic lines. You will find cast iron cost-effective for low-pressure applications. Plumbers use it mostly for gravity-fed drainage systems. However, you cannot use cast iron for high-pressure industrial systems. It will likely fracture completely under heavy vibration.
Galvanized Malleable Iron Fittings solve this dangerous brittleness problem entirely. The prolonged heat treatment changes the graphite into irregular nodules. This molecular change stops crack propagation dead in its tracks. The resulting metal absorbs heavy physical shock easily. It handles thermal expansion and contraction cycles effortlessly. You can rely on them in commercial plumbing networks. They survive rough handling without fearing sudden cracks.
Ductile iron serves as your ultimate heavy-duty alternative. Foundries use magnesium to create perfect graphite spheres inside the iron. This process gives it substantially higher yield strength than malleable iron. Engineers typically reserve ductile iron for massive municipal water mains. You might also specify it for extreme industrial pumping applications. It steps in exactly when your system exceeds malleable iron's limits.
Table 1: Metallurgical and Structural Characteristics Comparison
Material Type | Carbon Structure | Shock Resistance | Primary Application |
|---|---|---|---|
Standard Cast Iron | Sharp Graphite Flakes | Very Low (Brittle) | Gravity Drainage, DWV Systems |
Malleable Iron | Irregular Carbon Nodules | High (Ductile) | Commercial Plumbing, Light Industrial |
Ductile Iron | Perfect Graphite Spheres | Extremely High | Municipal Water Mains, Heavy Industrial |
You must evaluate piping components based on strict engineering criteria. Visual inspections cannot reveal hidden manufacturing flaws. You must rely on established industrial standards and ratings.
Pressure ratings dictate the safe operational limits of your system. You will primarily encounter Class 150 and Class 300 fittings. Class 150 easily handles standard commercial water applications. Class 300 features noticeably thicker walls and broader metal bands. You need Class 300 strictly for high-pressure industrial fluid lines. Remember the inverse relationship between temperature and pressure limits. Higher system temperatures dramatically reduce the maximum allowable pressure. A fitting holding 300 PSI at room temperature weakens at 400 degrees.
Standard compliance remains absolutely mandatory during the procurement process. You must verify ASTM A197 certifications for the base material. This guarantees the iron possesses the correct tensile strength. You also need ASTM A153 compliance for the galvanizing process. This standard dictates the required zinc coating thickness. Finally, ensure ASME B16.3 compliance for dimensions and threading. These three certifications protect you from substandard imports.
Thread precision directly impacts your overall installation time. Quality NPT (National Pipe Thread) machining ensures exceptionally tight seals. The tapered threads wedge firmly together during final assembly. Poor threading on cheaper alternatives creates enormous on-site problems. Installers must use excessive sealant to compensate for sloppy machining. This poor manufacturing drastically increases your risk of cross-threading. It ultimately guarantees higher leak rates across the entire system.
Even premium materials fail if installed incorrectly by untrained technicians. You must manage several common risks during the physical assembly.
Galvanic corrosion presents a massive implementation risk everywhere. You must avoid mixing dissimilar metals directly under any circumstances. Do not connect galvanized fittings directly to bare copper pipe. You must also keep them physically separated from brass valves. Zinc acts as a sacrificial anode when touching these noble metals. Electrons flow rapidly away from the zinc coating. The fitting disintegrates incredibly fast, causing massive leaks. Always install a dielectric union between these different metals. The union utilizes a plastic sleeve to break the electrical path. This simple component stops rapid galvanic corrosion completely.
Many installers mistakenly assume tighter is always better. This dangerous assumption causes severe damage during daily assembly. Plumbers often use massive pipe wrenches for maximum leverage. Over-torquing malleable fittings causes invisible micro-fractures inside the metal. Their high ductility cannot survive excessive, targeted mechanical abuse. The threads deform and stretch under too much rotational pressure. You must follow recommended torque specifications strictly. Train your crews to recognize proper joint engagement depths.
You must carefully consider your sealant compatibility beforehand. Galvanized threads require appropriate sealing mechanisms to prevent tiny drips. They do not seal perfectly bare.
PTFE Tape: You should use high-density, professional-grade Teflon tape. It lubricates the threads during assembly, preventing galling.
Pipe Dope: You might also choose an approved liquid pipe dope. This paste fills microscopic voids within the machined threads.
System Matching: Ensure your selected sealant matches the specific system medium. Certain harsh chemicals dissolve standard pipe dopes instantly.
Chemical incompatibility degrades the seal slowly over time. This leads to frustrating, hard-to-trace slow leaks inside walls.
Material selection ultimately determines your piping system's long-term success. Galvanized Malleable Iron Fittings stand out as a premium choice. They provide incredibly durable, corrosion-resistant performance for diverse water systems. They also excel in various mechanical and structural applications outdoors. However, you must keep them entirely away from natural gas lines. Their metallurgical properties offer immense shock resistance and reliability.
Take decisive action before finalizing your upcoming procurement list. Review your project's specific pressure and fluid requirements thoroughly. We encourage you to consult a dedicated technical sales rep. You can also engage a mechanical engineer for complex systems. Request actual specification sheets and compliance documents upfront. Ask for comprehensive quotes covering only certified, fully tested fittings. Proper diligence today prevents catastrophic operational failures tomorrow.
A: No, you must never use them for natural gas. The internal zinc coating tends to flake off under gas pressure. These sharp zinc flakes travel through the piping network. They easily clog sensitive gas regulators and pilot light orifices. This creates severe safety hazards and violates strict plumbing codes. Always use uncoated black iron fittings for natural gas lines.
A: They typically last 40 to 50 years under normal conditions. Some well-maintained indoor systems survive significantly longer. Lifespan depends heavily on local water chemistry and environmental exposure. Highly acidic water strips the internal zinc coating much faster. If buried underground, aggressive soil conditions will shorten their useful life.
A: You cannot connect them directly together. Copper and brass act as noble metals against zinc. Direct contact creates an electrical current in the presence of water. This causes rapid galvanic corrosion, destroying the galvanized fitting quickly. You must install a dielectric union to separate the dissimilar metals safely.
A: These classes define the maximum pressure threshold. Class 150 handles standard commercial applications effectively. Class 300 handles significantly higher industrial pressures and temperatures. Visually, Class 300 components feature noticeably thicker metal walls. They also have broader reinforcing bands around the threaded openings for added strength.
