Views: 0 Author: Site Editor Publish Time: 2026-04-28 Origin: Site

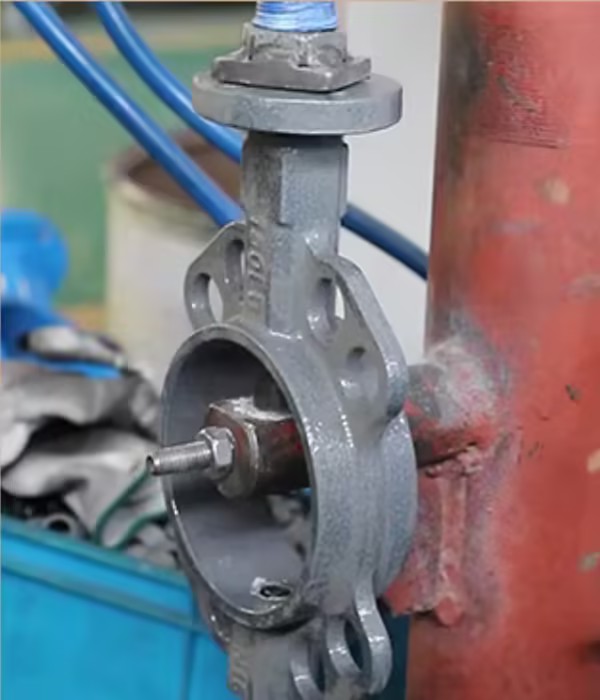

A butterfly valve is a quarter-turn valve used to open, close, or regulate the flow of water, air, gas, and other fluids in a pipeline system. It works by rotating a disc inside the pipe. When the disc is parallel to the flow, the valve is open; when the disc turns 90 degrees, the valve is closed.
Because of its compact structure, light weight, quick operation, and cost-effective design, butterfly valves are widely used in HVAC systems, fire protection pipelines, water supply, irrigation, water treatment plants, and industrial piping projects.
MaitoLead supplies different types of butterfly valves, including wafer type, lug type, flanged type, and grooved butterfly valves. Options such as ductile iron body, EPDM or NBR seat, stainless steel disc, lever operation, worm gear operation, PN10, PN16, and 150LB pressure ratings can be selected according to project requirements.
In this article, we will explain how a butterfly valve works, its main components, common types, actuation methods, advantages, and how to choose the right butterfly valve for your pipeline system.
A butterfly valve can stop or let liquid or gas flow. You turn the handle only a quarter of the way. The valve is small and light. It is easy to put in places with little space. Butterfly valves do not have many parts. They do not need much fixing, so they cost less. You can use butterfly valves to turn flow on or off. You can also use them to control how much flows. There are different actuator types. These include manual, electric, and pneumatic. This gives you more ways to use the valve. Picking the right materials for the valve is important. It helps the valve last long and stay safe in many uses. Butterfly valves are used in many industries. These include water treatment, oil and gas, and HVAC systems. Knowing how butterfly valves work helps you choose the best one for your needs.
A butterfly valve helps you control liquids or gases in pipes. It has a round disc that spins inside the pipe. When you move the handle, the disc turns a quarter turn. This lets you open or close the flow fast. You can also turn the disc partway to let some fluid through. This helps you change how much flows. The design is simple, so it is easy to use and fix. People use butterfly valves where there is not much space. They are also good when you need to open or close the valve quickly.
Tip: A butterfly valve works for both on-off and flow control jobs. This makes it a good choice for many systems.
Here is a table that shows how a butterfly valve is different from other valves:
Feature | Description |
|---|---|
Quarter-turn operation | Needs only a 90-degree turn to open or close. |
Flow regulation capabilities | Works for both shut-off and throttling. |
Compact and lightweight design | Takes up less space and is easier to install than gate or globe valves. |
Lower pressure drop | The disc creates little resistance when fully open. |
Suitable for large pipelines | Handles large flow rates in big pipes. |
There are many good things about using a butterfly valve. The design is small and light, so you can put it in tight spots. You save money because it costs less and has fewer parts. You can open or close it fast with just a quarter turn. This is helpful if you need to change the flow often. You can also set it up to work by remote control.
Here is a table that shows the main features and benefits:
Feature | Description | Benefit |
|---|---|---|
High-pressure Capability | Handles high-pressure conditions. | Keeps your system safe in tough situations. |
Corrosion Resistance | Uses materials that resist rust and damage. | Lasts longer and needs less repair. |
Easy Maintenance | Lets you reach parts quickly for service. | Reduces downtime and keeps things running. |
Lightweight Design | Weighs less than other valves. | Makes installation and handling simple. |
Versatility | Works with water, gas, and chemicals. | Fits many different jobs and industries. |
You see butterfly valves in many places because they work well. In water plants, they control water and chemicals. Oil and gas refineries use them for liquids and gases. Power plants use them for steam and cooling water. You also find them in HVAC, chemical factories, and food and drink plants. These valves help you control, stop, or block flow in pipes.
Some common uses are:
Cooling air, water, and gases
Slurry and vacuum services
High-pressure and high-temperature service
Compressed air or gas applications
Regulating and isolating flow
Preventing backflow
In food, drink, and medicine factories, people pick butterfly valves because they are easy to clean. They also meet health rules. About 30% of fluid control jobs in water and wastewater plants use this valve. You can count on a butterfly valve to work well in many systems.
To know how a butterfly valve works, you need to learn about its main parts. Each part has a job to help control flow and keep things safe.
Component | Function | Key Features |
|---|---|---|
Valve Body | Holds all the inside parts | Wafer, lug, or flanged design |
Disc | Changes how fluid moves | Round shape, many materials |
Stem | Connects disc to actuator | Sends turning force |
Seat | Makes a seal for the valve | Soft or metal seat choices |
Actuator | Moves the valve | Manual, pneumatic, or electric |
The disc and stem are very important. The disc sits in the middle of the pipe. When you turn the handle, the stem spins the disc. The disc can block or let fluid go through. The stem links the disc to the actuator. It helps the disc move easily.
You can pick from many disc materials. The material changes how the valve handles pressure, chemicals, and heat. Stainless steel discs do not rust and work in tough places. Alloy steel discs can take high heat and strong chemicals. Some discs have special coatings to stop wear and make cleaning simple.
Tip: Choose the disc material for your fluid and system conditions. This helps your butterfly valve last longer.
The stem joins the disc to the actuator. It sends force so you can open or close the valve. The stem must be strong and smooth to stop leaks and help the disc move. A good stem helps the disc seal tight against the seat. This keeps leaks away and keeps your system safe.
The disc pushes on the seat to seal when closed.
The stem lets the disc turn to open or close.
The disc turns 90 degrees to change flow.
The disc’s shape changes how fluid moves and pressure drops.
The body holds all the parts together. Bodies can be ductile iron, stainless steel, or cast steel. Ductile iron is strong and bends, so it is good for water pipes. Stainless steel is best for food and jobs with lots of rust. Cast steel is tough and may need a coating for hard jobs.
The seat is where the valve seals. You can pick soft seats or metal seats. Soft seats use EPDM, NBR, PTFE, Viton®, silicone, or neoprene. Metal seats use alloy steels for hot and rough jobs.
Material | Main Composition | Temperature Range | Suitable Media | Key Features | Common Applications |
|---|---|---|---|---|---|
EPDM | Synthetic rubber | -30°C to +120°C | Water, steam, acids | Great for drinking water | HVAC, waterworks |
NBR | Nitrile rubber | -20°C to +100°C | Oil, gas, air | Good with oil | Fuel systems, compressors |
PTFE | Polytetrafluoroethylene | -50°C to +200°C | Acids, alkalis, solvents | Does not react, non-stick | Chemical lines, pharma |
Viton® | Fluoroelastomer | -10°C to +200°C | Fuels, chemicals | Handles high heat | Chemical reactors, refineries |
Silicone | Silicone rubber | -60°C to +180°C | Clean fluids, water | Safe for food, flexible | Food-grade, pharma |
Neoprene | Chloroprene rubber | -20°C to +90°C | Acids, water, coolants | Handles some chemicals | HVAC, marine, fire protection |
Metal Seat | Alloy steels | Up to 600°C+ | Steam, slurry, gas | Handles heat, resists wear | Power plants, steam isolation |
Note: The body and seat materials change how long your valve lasts and how well it works. Pick what fits your system best.
The seat and disc work together to stop leaks. When you close the valve, the disc presses on the seat. This blocks fluid from moving. Soft seats seal tight for low pressure. Metal seats work for high heat and tough fluids. The seal keeps your system safe and stops leaks.
You can move a butterfly valve in different ways. The actuator moves the stem and disc to control flow.
Manual actuators use a lever or wheel. You turn the handle to open or close the valve. Manual types are good for small pipes and easy jobs. They give you control and are simple to use.
Electric actuators use motors to move the disc. You can control the valve from far away or set it to work by itself. Electric types are good for exact control and systems that change a lot. They are used in chemical, medicine, and water plants.
Pneumatic actuators use air to move the valve. They work fast and can open and close often. Pneumatic types are good where you need quick action or where electric ones are not safe.
Manual actuators are easy for small jobs.
Electric actuators give exact and remote control.
Pneumatic actuators are fast and work well often.
Pick the actuator type for your system, how much you use the valve, and how much control you need.
Tip: Always check the torque and if the actuator fits your butterfly valve. This helps it work smoothly.
Now you know the main parts of a butterfly valve and how each one helps control flow and keep things safe. The right materials and actuator type help your valve last longer and work better.
You control the flow of liquids or gases with a butterfly valve by turning a disc inside the pipe. This disc sits in the center of the valve body. When you turn the handle or actuator, the disc rotates. If you want the valve open, you turn the disc so it lines up with the direction of flow. This lets fluid move through the pipe with little resistance. If you want to stop the flow, you turn the disc so it stands across the pipe. This blocks the passage and seals the valve.
The way a butterfly valve works gives you fast and easy control. You can open, close, or adjust the flow with a simple movement. Many people use this valve because it is quick to operate and fits well in tight spaces. You often see butterfly valve operation in water treatment, chemical plants, and HVAC systems.
The quarter-turn mechanism is what makes a butterfly valve special. You only need to turn the handle or actuator 90 degrees to go from fully open to fully closed. Here is how it works:
The disc rotates 90 degrees inside the valve body.
When the disc is parallel to the flow, the valve is fully open and fluid passes through easily.
When the disc is perpendicular to the flow, the valve is closed and the flow stops.
You can also set the disc at any angle between open and closed to control how much fluid moves through.
This simple quarter-turn action means you can operate the valve quickly. You do not need to turn the handle many times like with other valves. The design also makes it easy to see if the valve is open or closed just by looking at the handle position.
You can use a butterfly valve for more than just on or off control. By turning the disc to different angles, you can adjust the flow rate. When the disc is fully open, it sits parallel to the flow, so you get the most fluid passing through with a small pressure drop. As you start to close the valve, the disc blocks more of the pipe. This reduces the flow. The biggest changes in flow happen in the first 30 degrees as you move from open toward closed. The last part of the turn gives you fine control and a tight shut-off.
Here is a table that shows how pressure drop compares between butterfly valves and ball valves:
Valve Type | Pressure Drop Comparison |
|---|---|
Butterfly Valve | Creates a larger pressure drop |
Ball Valve | Has less pressure drop compared to butterfly valves |
You may notice that a butterfly valve creates a bit more resistance to flow than a ball valve, even when fully open. This happens because the disc always stays in the flow path. Still, the design gives you good control and quick operation, which is why many industries choose butterfly valve operation for their systems.
Tip: If you need fast shut-off and easy flow control, a butterfly valve is a smart choice. You can see how it works and adjust it with just a simple turn.
Resilient-seated butterfly valves are common in water systems. They work well for jobs with low pressure. The disc sits in the middle of the pipe. When you turn the handle, the disc pushes against a soft seat. The seat is usually rubber or something like it. This soft seat stops leaks and seals tightly. You can use these valves for water, HVAC, and places with low pressure. The design is simple. You can install and fix it easily.
Tip: Pick a resilient-seated butterfly valve for clean water or mild chemicals.
Double-offset butterfly valves are good for higher pressure and heat. The disc moves a bit away from the seat. This makes opening and closing easier. The offset keeps the seat from wearing out fast. You get better sealing and longer use. These valves are used in oil, gas, and steam systems. They work well for tough jobs. You get strong shut-off and flow control.
Maitolead Pipeline Technology (Tianjin) Co., Ltd. sells double flange butterfly valves. They also have handwheel and worm gear wafer butterfly valves. These choices give you strong performance and easy use in pipelines.
Triple-offset butterfly valves are best for harsh jobs. The disc and seat are shaped like a cone. The disc wedges into the seat only when closed. This gives zero leaks and a tight seal. The valve handles high heat, steam, and chemicals. You can use it in power plants and refineries. It is good where safety matters most. The metal seat lasts longer and resists wear.
Note: Triple-offset valves are best for extreme jobs. They give strong sealing and reliable use.
Here is a table that shows how the three types are different:
Valve Type | Structural Features | Sealing Mechanism |
|---|---|---|
Resilient-Seated | Used for low pressure; simple design | Soft seat seals tightly |
Double-Offset | Disc moves away from seat; handles more pressure | Better sealing with less wear |
Triple-Offset | Cone-shaped disc and seat; made for harsh jobs | Wedge design stops leaks |
You can pick the right butterfly valve by checking your system’s pressure, heat, and what flows through it. Maitolead Pipeline Technology (Tianjin) Co., Ltd. has valves for many uses. They fit simple water jobs and tough industrial work.
Resilient-seated valves are good for water and mild chemicals.
Double-offset valves handle more pressure and heat.
Triple-offset valves work in extreme conditions.
When picking a butterfly valve, you must choose how it connects. Wafer and lug connections are the most common types. Each has its own good points. Maitolead Pipeline Technology (Tianjin) Co., Ltd. sells both kinds.
A wafer butterfly valve goes between two pipe flanges. You use bolts to hold the valve in place. The valve does not have threaded holes. Bolts go through the flanges and the valve body. This makes the valve small and light. You can put it in tight spots. Wafer valves are good for low or medium pressure. They cost less and use fewer parts.
A lug butterfly valve has threaded lugs on its body. You bolt each flange right to the valve. This lets you take off one side of the pipeline without stopping everything. You can fix or check things more easily. Lug valves are stronger and heavier. They work well in high-pressure systems. They help you block off parts of the pipeline.
Here is a table that shows how wafer and lug butterfly valves are different:
Feature | Wafer Butterfly Valve | Lug Butterfly Valve |
|---|---|---|
Connection Type | Sandwiched between flanges, relies on flange bolts | Has threaded lugs for direct bolting to flanges |
Installation Complexity | Requires full line shutdown for maintenance | Allows dead-end service, easier maintenance |
Weight and Size | Compact and lightweight, suitable for space-constrained | More robust, potentially heavier due to lugs |
Cost | Generally more economical, especially in larger sizes | May be more expensive due to additional components |
Operational Flexibility | Less flexible, both sides must be accessed simultaneously | More flexible, can isolate one side without affecting the other |
Ideal Use Cases | Low- to medium-pressure applications, simple setups | High-pressure applications, frequent maintenance needs |
Wafer valves are best for simple jobs. They fit in small spaces. You spend less money and install them fast. Lug valves give you more choices. You can block off one side of the pipeline. You do not need to stop the whole line to fix things.
Wafer Butterfly Valve Advantages:
Small and light design.
Costs less than other valves.
Works fast with low force, good for automation.
Wafer Butterfly Valve Disadvantages:
You must shut down the whole line to fix it.
Not as flexible for installing or servicing.
Lug Butterfly Valve Advantages:
Lets you work on one side, easier to fix.
Stronger connection.
More ways to use it.
Lug Butterfly Valve Disadvantages:
Usually heavier and may cost more.
Tip: For simple, low-pressure jobs, pick a wafer butterfly valve. For blocking parts of your pipeline or higher pressure, choose a lug butterfly valve.
Maitolead Pipeline Technology (Tianjin) Co., Ltd. has both wafer and lug butterfly valves. You can pick the best connection for your system. You get good performance and easy setup. You make fixing things simpler and keep your pipeline working well.

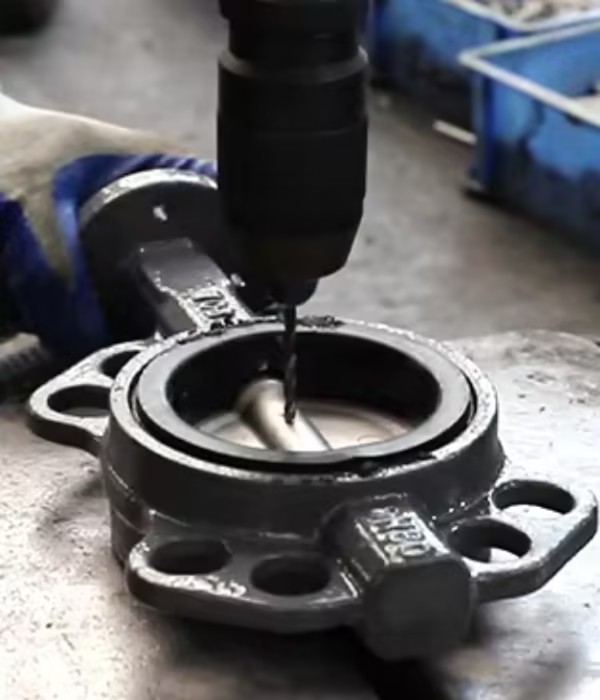

When you pick how to run a butterfly valve, you have a few actuation choices. Each way works best for different jobs and places. Let’s see the main types and how to pick the right one for your system.
Manual operation uses a lever or handwheel. You turn the handle to open or close the valve. This way is easy and works well. You do not need power or air. Manual operation is good if you do not open or close the valve a lot. You see this in small pipes, water systems, or places where safety matters and you do not need machines.
Advantages of Manual Operation:
Low price
Simple to use
No power needed
Typical Applications:
Home plumbing
Small work systems
Emergency shut-off
Tip: Pick manual operation if you want it simple and do not need to change the valve often.
Electric actuators use a motor to move the valve. You can control the valve from far away. This helps if the valve is hard to reach or in a risky spot. Electric actuation gives you exact control. You can set the valve to any spot and even make it work by itself.
Here is a table that shows the main features and benefits of electric actuation:
Feature/Benefit | Description |
|---|---|
Remote Operation | Lets you control the valve from far away, keeping you safe in risky areas. |
High Precision | Allows you to adjust flow very accurately. |
Energy Efficiency | Uses less energy and stops using power when the valve is in place. |
Easy Installation and Maintenance | Small size makes it simple to install and keep working. |
Typical Applications:
Water plants
Oil and gas systems
Building controls
Note: Electric actuators need the right power and enough force to move the valve. Always check your power and what your system needs.
Pneumatic actuators use air to move the valve. You get fast and strong movement. This way works well where you need quick action or where power is not safe. Pneumatic actuation is common in factories, chemical plants, and systems that run by themselves.
Advantages of Pneumatic Actuation:
Fast response
Good for machines
Safe in risky places
Typical Applications:
Chemical plants
HVAC systems
Automated lines
Tip: Pneumatic actuators need steady air. Make sure your system gives enough air pressure.
You should think about these things when picking an actuation way:
How often you use the valve
If you need remote or automatic control
The speed and control you want
The place (wet, hot, or risky)
The power or air you have
The force needed to move the valve
Here is a table to help you compare the main actuation types:
Actuation Type | Key Advantages | Ideal Applications | Typical Operating Conditions |
|---|---|---|---|
Manual | Simple, low-cost | Home, low-use work | Low-pressure, not used much |
Pneumatic | Fast, strong, exact | Chemical, HVAC, machines | Medium/high-pressure, automated |
Electric | Remote, exact, programmable | Water, oil & gas, machines | High-pressure, big systems |
Remember: Manual actuation is best for simple, low-use jobs. Pneumatic is great for fast, repeated actions. Electric is perfect for remote and exact control.
You can match the actuation way to your needs and make your butterfly valve system work better and safer.
When you look at a butterfly valve and a gate valve, you notice they are different. A butterfly valve gives you quick control and is easy to fix. Gate valves are heavier and have more parts. This means you spend more time and money to keep them working.
A butterfly valve needs less fixing because it is simple.
Gate valves can leak if you do not check them often.
You can open or close a butterfly valve fast, but a gate valve takes longer.
A butterfly valve costs less to buy and put in. Gate valves cost more because they use more material and are built in a complex way.
Valve Type | Cost Effectiveness |
|---|---|
Butterfly Valve | Usually costs less to make and install because it is simple and uses less material. |
Gate Valve | Costs more at first but can save money later in tough jobs. |
Butterfly valves are cheaper for most jobs. You also spend less time fixing them.
You might wonder how a butterfly valve is different from a ball valve. Both can start or stop flow with a quick turn, but each has its own good points.
Parameter | Butterfly Valve | Ball Valve |
|---|---|---|
Weight | Lighter, puts less weight on pipe supports. | Heavier, needs strong support. |
Leakage | Can leak at high pressure. | Seals tight for high-pressure jobs. |
Flow Control | Good for ON/OFF, but slows flow down. | Good for ON/OFF and flow control, with less pressure drop. |
Cost | Usually cheaper, especially for big sizes. | Costs more, especially for big sizes. |
Application | Best for big pipes (over DN 150). | Works best for small pipes (under DN 50). |
Pick a butterfly valve for big pipes, saving space and money. Ball valves are better for small pipes and high-pressure jobs. Ball valves seal tighter, but cost more and need stronger supports.
Butterfly valves are used in many industries because they have special benefits. Here are some reasons to pick one:
Advantage | Description |
|---|---|
Fast Response Time | The quarter-turn design lets you open or close it quickly. |
Ease of Automation | You can add pneumatic, electric, or hydraulic actuators for remote control. |
Emergency Shut-Off Capabilities | Good for systems that need to stop flow fast. |
Throttling Capabilities | You can control flow by moving the disc. |
Bi-Directional Flow Control | Lets fluid move both ways. |
Lower Pressure Drop | The disc shape makes it easy for fluid to pass, so you use less energy. |
Available in a Wide Range of Materials | Made from many materials, so it works with different fluids. |
You see butterfly valves in water lines, cooling towers, and chemical plants. They are used when you need fast shut-off, have little space, or use big pipes. They are also good for emergency systems, fire safety, and wastewater plants.
Tip: Pick a butterfly valve if you want quick action, easy automation, and steady flow control in your system.
You can now see that a butterfly valve controls flow quickly and easily with just a 90° turn. Its small size, low price, and simple upkeep make it a good pick for many uses. Maitolead Pipeline Technology (Tianjin) Co., Ltd. sells valves made from strong materials. These valves have safe connections and safety features like tamper-proof switches. If you want a valve that works well and is easy to put in, think about using these valves for your next job.
You use a butterfly valve to start, stop, or control the flow of liquids or gases in a pipe. You see them in water plants, factories, and HVAC systems.
Yes, you can use a butterfly valve for gas. You must choose the right materials for safety. Always check the valve’s rating before using it with gas.
Most butterfly valves have a preferred flow direction. You can find an arrow on the valve body. This helps you install it the right way.
Many butterfly valves have built-in seats that seal without gaskets. If you use a metal-seated valve, you may need a gasket for a tight seal.
Yes, you can use a butterfly valve to control flow. You turn the disc to different angles. This lets you adjust how much fluid passes through.
You look at the handle or actuator position. If the handle lines up with the pipe, the valve is open. If it stands across the pipe, the valve is closed.
