Butterfly valves and gate valves are both used for pipeline shut-off and flow isolation. In many water, fire protection, HVAC, and utility pipeline systems, both valve types can open or close the flow of water or other compatible media. The right choice depends on pipe size, installation space, operating frequency, pressure loss requirements, and project standards.
A butterfly valve is usually a practical choice for large-diameter water pipelines, limited installation spaces, and systems that require quick operation or easier automation. Its compact body, light weight, and quarter-turn operation make it suitable for water supply, wastewater treatment, HVAC chilled water, cooling water, and fire protection branch lines.
A gate valve is more suitable when the project requires a full-bore flow path, very low pressure drop, pipeline pigging, or more severe pressure and temperature conditions. For main pipelines, high-pressure service, or applications where the valve must stay fully open for long periods, a gate valve may be the better option.
For contractors, distributors, and engineering buyers, the decision should not be based only on valve price. It should also consider installation cost, maintenance access, control requirements, approval standards, and the long-term operating condition of the pipeline.
Butterfly valves and gate valves are both common pipeline isolation valves, but they are designed for different working conditions.
Butterfly valves are often preferred for large-diameter water systems because they are compact, lightweight, and cost-effective.
Butterfly valves are easier to operate frequently because they open and close with a 90-degree quarter turn.
Gate valves provide a straight-through flow path and are better for applications requiring very low pressure drop.
Gate valves are usually more suitable for main pipelines that require pigging or full-bore passage.
For HVAC, water treatment, and many fire protection pipelines, butterfly valves can reduce installation space and simplify automation.
For high-pressure, high-temperature, or severe-service applications, gate valves should be evaluated first.
Valve selection should follow project specifications, pressure rating, media type, approval requirements, and installation conditions.

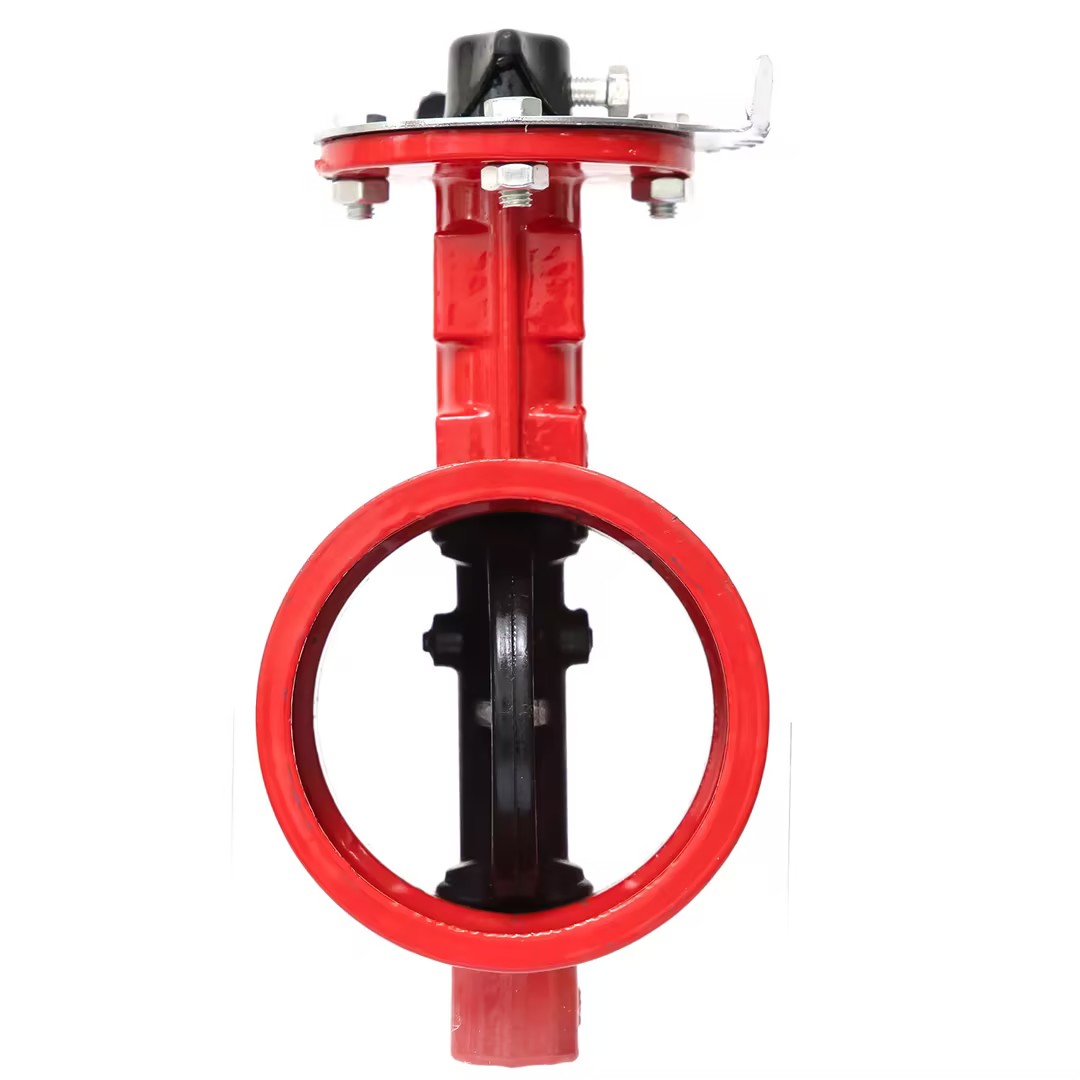

A butterfly valve uses a rotating disc installed on a central shaft. When the stem turns 90 degrees, the disc moves from the open position to the closed position. This quarter-turn structure allows fast operation and makes the valve suitable for frequent open-close service.
A gate valve uses a gate or wedge that moves up and down through a multi-turn handwheel or actuator. When the gate is lifted, the flow path opens. When the gate is lowered, the flow path closes. This operation is slower but provides a straight-through passage when the valve is fully open.
Valve Type | Movement Type | Operation Method | Typical Use |
|---|---|---|---|
Butterfly Valve | Rotational motion | Disc rotates 90 degrees | Fast shut-off, flow control, automation |
Gate Valve | Linear motion | Gate moves up and down | Full open or full close isolation |
Butterfly valves are commonly used in water distribution, wastewater treatment, HVAC chilled water systems, cooling towers, fire protection systems, and general utility pipelines. Their compact structure makes them useful where the pipeline is large but installation space is limited.

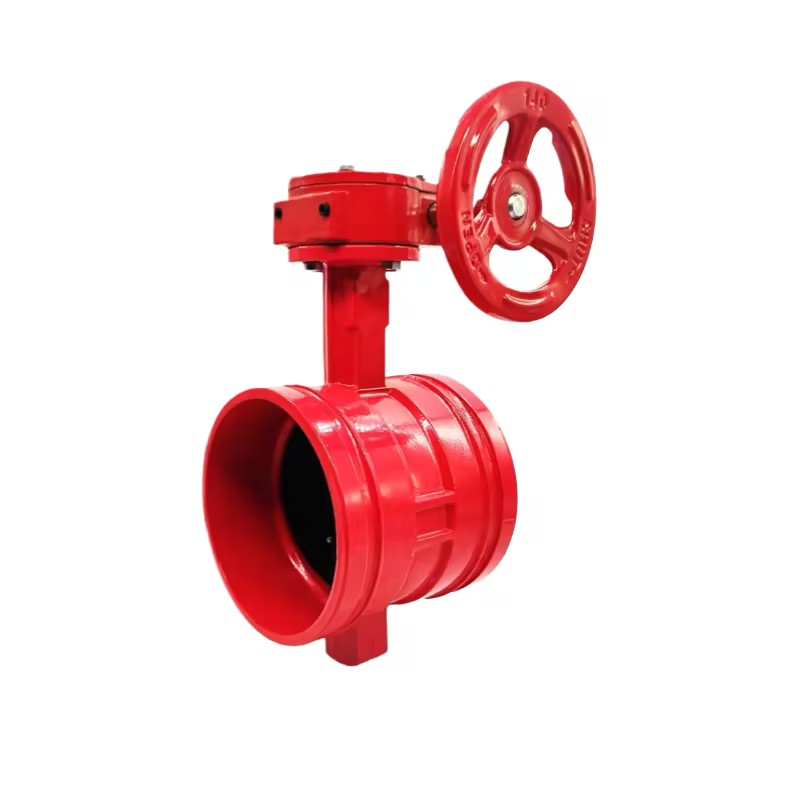

Different connection types are available for different pipeline layouts. A wafer butterfly valve is often used between flanges where a compact and economical installation is required. A lug type butterfly valve can provide more installation flexibility. A grooved butterfly valve is suitable for grooved piping systems, especially in fire protection and water pipelines. A flanged butterfly valve is often selected when a more stable flanged connection is required.

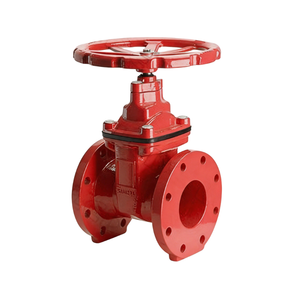

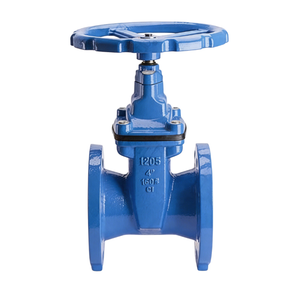

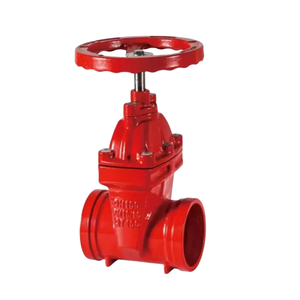

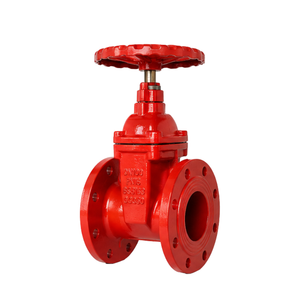

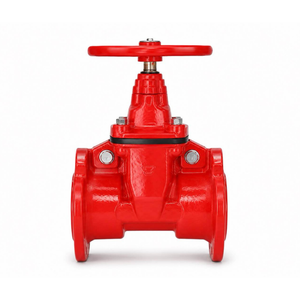

Gate valves are commonly used in water mains, fire protection main lines, municipal pipelines, and systems where the valve remains fully open or fully closed most of the time. A resilient seated gate valve is often selected for water supply, wastewater, irrigation, and fire protection applications where reliable shut-off is required.
From a valve supplier’s point of view, the best recommendation depends on the actual working condition rather than a simple butterfly valve vs gate valve comparison. The following table can help project buyers, contractors, and distributors make an initial selection before confirming detailed specifications.
Project Condition | Recommended Valve | Reason |
|---|---|---|
Large diameter water pipeline | Butterfly valve | Lightweight, compact, lower cost |
Limited installation space | Butterfly valve | Short face-to-face dimension |
Frequent open/close operation | Butterfly valve | Quarter-turn operation |
HVAC chilled water system | Butterfly valve | Easy control and automation |
Fire protection pipeline | Butterfly valve / Gate valve | Depends on project standard and approval |
Main pipeline requiring pigging | Gate valve | Full bore design |
Very low pressure drop required | Gate valve | Straight-through flow path |
High pressure / high temperature | Gate valve | Better for severe service |
For projects involving water and fire valves, the final selection should also consider required certifications, working pressure, end connection type, coating, seat material, and local project approval rules.
Butterfly valves usually use less body material than gate valves, especially in larger sizes. This often makes them more economical for large-diameter pipelines. As pipe size increases, the cost difference between the two valve types can become more significant.
Gate valves are generally heavier and have a larger body structure. Their purchase cost may be higher in large sizes, but they may still be the better value when the system requires full-bore flow, low pressure loss, or long-term isolation service.
Cost Factor | Butterfly Valve | Gate Valve |
|---|---|---|
Initial purchase cost | Usually lower in medium and large sizes | Usually higher in large sizes |
Material usage | Lower due to compact body | Higher due to larger body and gate structure |
Installation cost | Often lower because of lighter weight | May require more labor or lifting equipment |
Long-term value | Strong for space-saving and frequent operation | Strong for full-bore isolation and severe service |
Butterfly valves have a short face-to-face dimension. This makes them suitable for pump rooms, mechanical rooms, risers, branch lines, and other crowded pipeline areas. In large-diameter pipelines, the compact structure can reduce the need for heavy support and simplify installation.

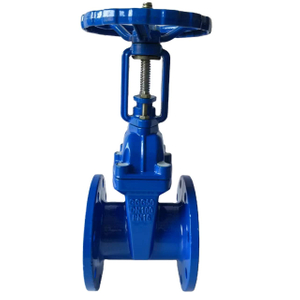

Gate valves require more installation height because the gate must move up and down inside the valve body. Rising stem designs may need even more vertical clearance. For underground or limited-space systems, non-rising stem gate valves may be selected, but they are still generally heavier than butterfly valves.
Weight is one of the main reasons many water pipeline projects use butterfly valves. A lighter valve is easier to transport, lift, position, and install. This can reduce labor demand and improve installation efficiency.
Gate valves may require stronger supports and more careful handling, especially in large sizes. For contractors managing many valves on the same project, the difference in handling cost can affect overall project efficiency.
Butterfly valves can be used for basic flow regulation because the disc can be positioned between fully open and fully closed. This makes them suitable for many water and HVAC systems where moderate flow control is required.
In an HVAC valve solutions application, butterfly valves are often used in chilled water, cooling water, and mechanical piping systems because they are easy to operate and can be paired with electric or pneumatic actuators.
Gate valves are not ideal for throttling. When a gate valve is partially open, the gate can experience vibration, erosion, or uneven wear. For this reason, gate valves are normally selected for full-open or full-close service rather than continuous flow modulation.
A butterfly valve has a disc in the flow path. Even when fully open, the disc remains inside the pipe and may create some pressure loss. In most water systems, this pressure drop is acceptable, especially when the benefits of compact design and fast operation are important.
A gate valve provides a straight-through flow path when fully open. This design creates very low pressure drop and is better for applications where hydraulic loss must be minimized. Main pipelines, gravity flow lines, and systems with strict energy-efficiency requirements may prefer gate valves for this reason.
Flow Factor | Butterfly Valve | Gate Valve |
|---|---|---|
Flow path | Disc remains in the pipeline | Straight-through when fully open |
Pressure drop | Moderate, depending on size and design | Very low when fully open |
Flow regulation | Suitable for many water control applications | Not recommended for throttling |
Best operating position | Open, closed, or partially open depending on design | Fully open or fully closed |
Butterfly valves open and close quickly because they use a quarter-turn mechanism. This is useful in systems where operators need fast shut-off, frequent operation, or remote control.
Gate valves require multiple turns to open or close. This slower movement can help reduce sudden flow changes, but it is less convenient where fast response is required.
Valve Type | Operation | Speed | Suitable Scenario |
|---|---|---|---|
Butterfly Valve | 90-degree quarter turn | Fast | Frequent operation, remote control, automation |
Gate Valve | Multi-turn handwheel or actuator | Slow | Main isolation, gradual opening and closing |
Butterfly valves are easier to automate because they only require 90-degree rotation. Smaller actuators can often be used, which helps reduce space, weight, and automation cost. This is why butterfly valves are common in HVAC systems, water treatment plants, pump rooms, and fire protection monitoring systems.
Gate valves can also be automated, but the multi-turn movement usually requires larger or more complex actuators. This may increase cost and installation requirements.
Butterfly valves have a simple structure with fewer major moving parts. Routine inspection usually focuses on the seat, disc, shaft, sealing condition, and actuator or gearbox. In many water applications, this simple structure helps reduce maintenance time.
Gate valves require inspection of the stem, wedge, body seat, packing, and handwheel or actuator. If the valve is used incorrectly for throttling, the wedge and seat may wear faster. Gate valves can provide long service life when used properly, but they should be operated according to the intended full-open or full-close design.
Maintenance Item | Butterfly Valve | Gate Valve |
|---|---|---|
Main inspection points | Seat, disc, shaft, operator | Stem, wedge, seat, packing |
Structure | Simple and compact | Larger and more complex |
Frequent operation | Generally suitable | Less suitable than butterfly valve |
Incorrect throttling risk | Lower in many water control applications | Higher risk of vibration and wear |
Durability depends on valve design, material, coating, seat material, pressure rating, media compatibility, and installation quality. Butterfly valves can provide reliable service in water supply, wastewater, HVAC, and fire protection systems when correctly selected.
Gate valves are durable in isolation service and are often preferred for main pipelines or buried water lines. Their full-bore design and tight shut-off performance make them suitable for long-term service where frequent operation is not required.
Pipeline pigging is an important selection factor. A butterfly valve has a disc located in the flow path, so it is generally not suitable for main pipelines that require pigging.
A gate valve has a full-bore opening when fully open. This allows cleaning tools or pigs to pass through more easily. For pipelines that require regular pigging, inspection, or cleaning access, a gate valve is usually the better choice.
Butterfly valves are suitable for branch lines, pump rooms, HVAC systems, and space-limited water pipelines.
Gate valves are suitable for main pipelines requiring full-bore passage.
For pigging requirements, the valve supplier should confirm bore size, valve structure, and pipeline cleaning method before selection.
Butterfly valves are widely used in low- to medium-pressure water systems. Their exact pressure and temperature limits depend on body material, seat material, disc material, connection type, and manufacturing standard.
Gate valves are generally better suited for higher pressure, higher temperature, and more severe operating conditions. When the system involves steam, oil, chemical media, or extreme temperatures, gate valve specifications should be reviewed carefully.
For water treatment pipeline products, material compatibility and corrosion resistance should also be checked. Water quality, chlorine content, wastewater characteristics, and outdoor installation conditions can all affect valve service life.
Both butterfly valves and gate valves can provide reliable shut-off when properly selected and tested. Butterfly valve sealing performance depends heavily on seat material, disc design, and pressure rating. Gate valve sealing performance depends on wedge design, seat structure, and stem operation.
For fire protection, potable water, and municipal pipelines, project approvals and applicable standards should be confirmed before ordering. Valve selection should not rely only on general leakage claims; it should be supported by test standards, certificates, and project documentation.
Butterfly valves can close quickly. In some systems, rapid closure may increase the risk of water hammer. This risk can be reduced through proper operating procedures, gearbox selection, actuator speed control, surge analysis, and system design.
Gate valves close more slowly due to their multi-turn operation. This can help reduce sudden flow changes, but it also means the valve is less suitable for fast emergency operation.
A butterfly valve is usually a better choice when the project requires compact installation, lower weight, fast operation, or easier automation. It is especially suitable for large-diameter water pipelines where valve weight and cost are important.

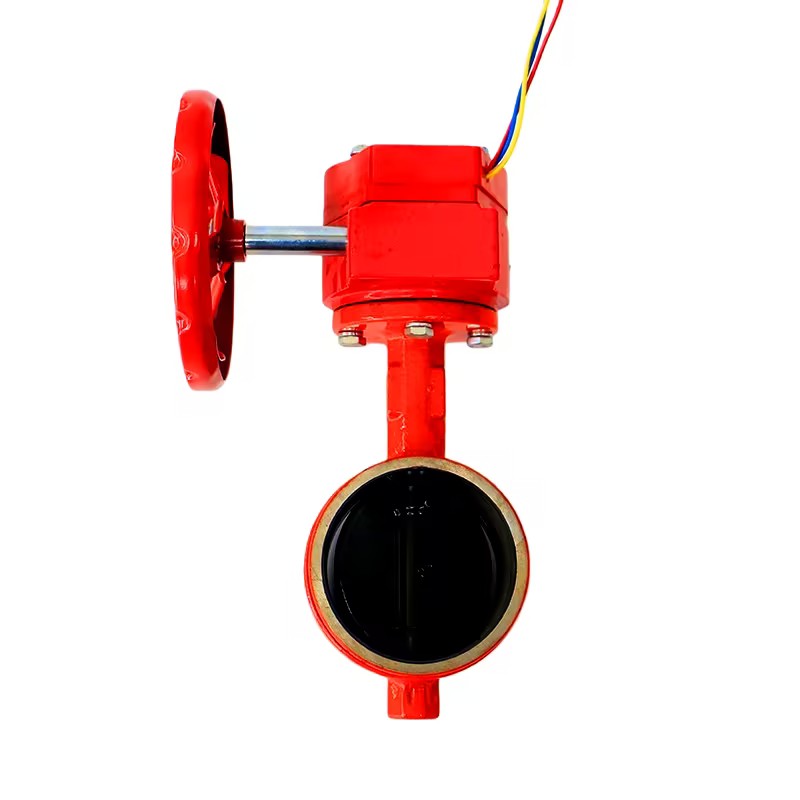

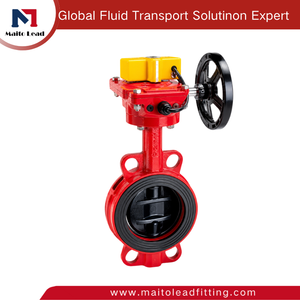

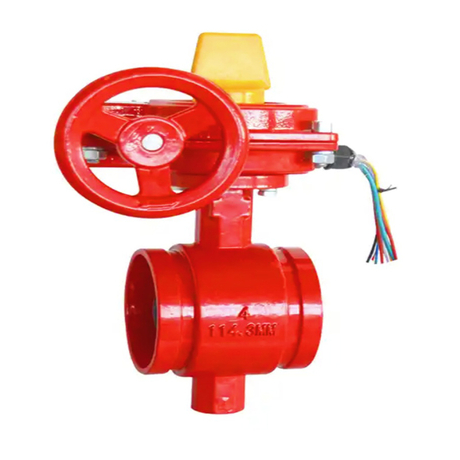

Application | Why Butterfly Valve Fits |
|---|---|
Water supply pipeline | Compact structure and lower installation weight |
Wastewater treatment | Suitable for many water and neutral liquid control applications |
HVAC chilled water system | Easy to automate and operate frequently |
Cooling tower pipeline | Fast shut-off and space-saving installation |
Fire protection branch line | Available with grooved end, signal gearbox, or tamper switch options |
A gate valve is usually a better choice when the pipeline requires a full-bore flow path, very low pressure drop, pigging, or severe-service performance. It is also commonly used in main water lines and fire protection systems where the valve stays fully open under normal operating conditions.
Application | Why Gate Valve Fits |
|---|---|
Main pipeline isolation | Full-bore design and low pressure drop |
Pipeline requiring pigging | Straight-through opening allows pig passage |
High-pressure pipeline | More suitable for severe service when properly specified |
High-temperature application | Metal-seated or special gate valve designs may be required |
Long-term isolation service | Reliable shut-off when fully open or fully closed operation is required |
Before choosing between a butterfly valve and a gate valve, buyers should confirm the project parameters with the valve supplier. A reliable supplier should review not only the valve type but also the pipeline layout, media condition, connection standard, operation method, and certification requirements.
Pipeline size and pressure rating
Working temperature and media type
Required connection type: wafer, lug, grooved, flanged, or threaded
Operation method: lever, gearbox, handwheel, electric actuator, or pneumatic actuator
Installation space and valve access
Frequency of opening and closing
Need for flow regulation or only shut-off
Pressure drop requirements
Need for pigging or full-bore passage
Required standards, approvals, and inspection documents
Butterfly valves and gate valves are not direct replacements in every pipeline. A butterfly valve is usually preferred for large-diameter water systems, limited installation space, frequent operation, and automation-friendly projects. Its compact structure and quarter-turn operation can reduce installation complexity and improve operating efficiency.
A gate valve is usually preferred for full-bore pipelines, very low pressure drop, pigging requirements, high-pressure conditions, and severe-service applications. Its straight-through flow path and isolation performance make it suitable for main lines and systems where the valve remains fully open or fully closed.
For water supply, fire protection, HVAC, and water treatment projects, the most reliable selection comes from matching the valve design to the actual project condition. Maitolead Pipeline Technology can support project buyers with butterfly valves, gate valves, and related pipeline products for different water, fire protection, HVAC, and utility applications.
A butterfly valve can replace a gate valve in many water systems where compact design, fast operation, and basic flow control are more important than full-bore passage. It should not replace a gate valve when the pipeline requires pigging, very low pressure drop, or severe pressure and temperature service.
Butterfly valves are compact and lightweight compared with gate valves of similar size. This can reduce material cost, handling difficulty, support requirements, and installation time in large-diameter water pipelines.
Yes. Butterfly valves are commonly used in HVAC chilled water and cooling water systems because they are compact, easy to operate, and suitable for automation.
Yes. A gate valve provides a straight-through flow path when fully open, which usually results in lower pressure drop than a butterfly valve.
Both butterfly valves and gate valves can be used in fire protection pipelines. The correct choice depends on project standards, approval requirements, monitoring needs, installation space, and whether the valve is installed on a branch line or main line.
A butterfly valve is usually easier to automate because it only requires a 90-degree rotation. This allows the use of compact electric or pneumatic actuators.
A gate valve is usually better for pigging because its full-bore design allows cleaning tools to pass through the pipeline more easily.
Buyers should provide valve size, pressure rating, connection standard, working temperature, media type, coating requirement, operation method, certification requirement, and application details. This helps the valve supplier recommend a suitable butterfly valve or gate valve for the project.
