BMI Bushing Pipe Fitting with NPT Threads for Plumbing Systems

Overview

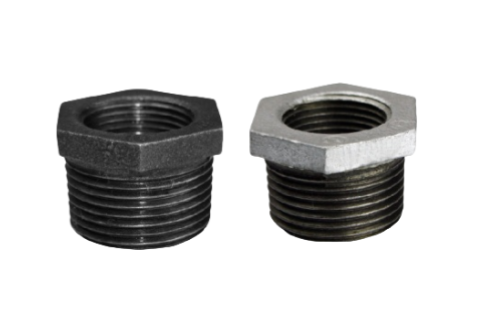

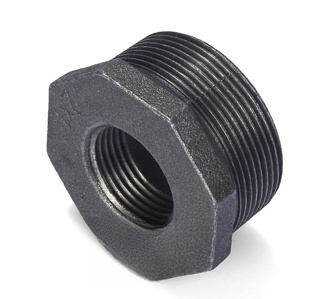

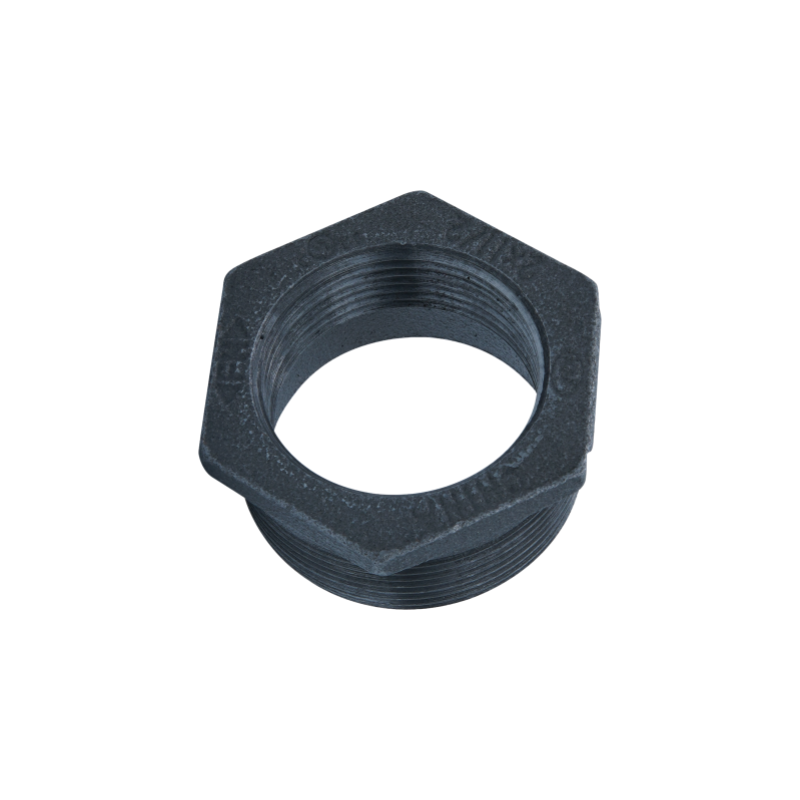

 Black Malleable Iron Hex Bushing (Fig. 241)

Black malleable iron threaded hex bushings (Fig. 241) are designed to reduce pipe size and connect threaded pipes or fittings of different diameters in piping systems. Manufactured from high-quality malleable iron, these bushings offer excellent mechanical strength, durability, and resistance to impact and pressure.

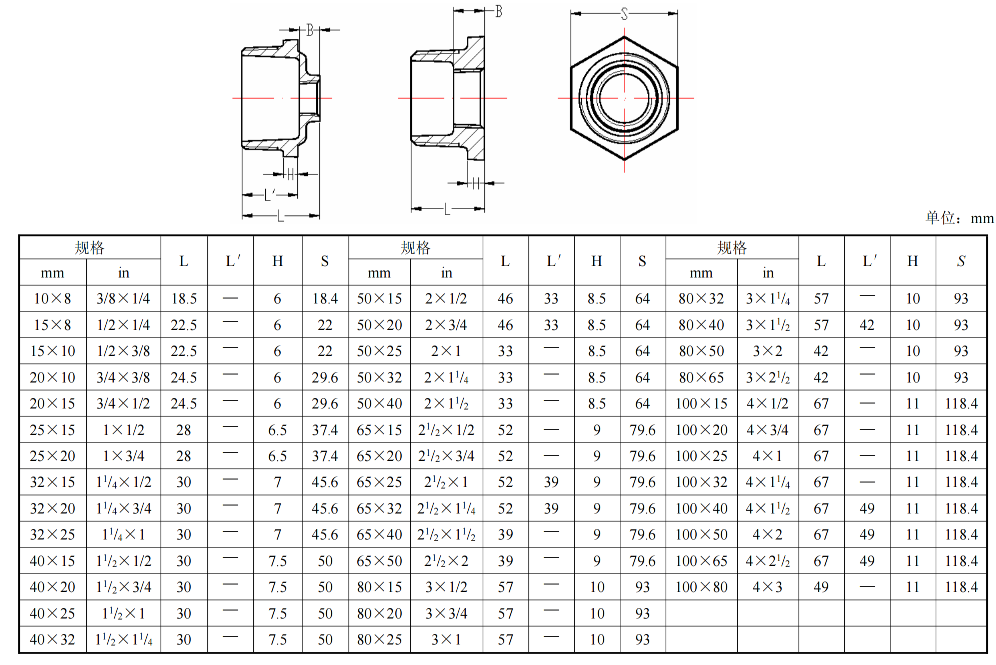

Available in sizes from 1/8" to 6" (DN6–DN150), the fittings comply with major international standards including EN 10242, ASME B16.3, DIN 2950, ISO 49, BS EN 10242, and other equivalent specifications. Threading is produced in accordance with EN 10226, ASME B1.20.1, DIN 2999, ISO 7-1, ISO 228, ensuring tight, leak-free connections and full interchangeability with global piping systems.

Designed for working pressures up to PN25 / 25 Bar (2.5 MPa, Class 150), black malleable iron hex bushings are suitable for water supply, fire protection, gas, oil, and general industrial applications.

The products are UL Listed and FM Approved, and also comply with CE, ABNT, TSE, SNI, and ISI certifications, meeting the requirements of international projects and regulated markets worldwide.

Product Description

A threaded bushing (also known as a reducing or hex bushing) is a piping fitting designed to connect pipes or fittings of different diameters within a threaded piping system. It typically features male threads on one end and female threads on the other, allowing a smooth and reliable transition between different pipe sizes. Bushings are widely used in water supply, fire protection, gas, HVAC, and industrial piping systems.

Key Features

• Size reduction function: Enables efficient connection between pipes of different nominal diameters without changing the pipeline layout

• Male × female threaded design: Manufactured with standard threads to ensure tight, leak-free connections

• Compact and robust structure: High mechanical strength with excellent resistance to pressure and impact

• Easy installation: Simple threaded connection allows quick assembly and convenient maintenance

• Wide compatibility: Suitable for use with valves, meters, pumps, and other threaded piping components

Functions & Applications

Threaded bushings are primarily used to reduce pipe size and connect internal and external threaded components in piping systems. They provide a reliable and economical solution for diameter conversion while maintaining system integrity and sealing performance.

Common applications include:

• Water supply and drainage systems

• Fire sprinkler and fire protection piping

• Gas and air pipelines

• HVAC systems

• General industrial fluid conveying systems

Application Areas

fire	oil pipeline	gas pipeline	water  treatment	water Pipeline Systems	HVAC

Faq

Q: What materials are Tee Thread Fittings made from?

A: Tee Thread Fittings are manufactured from high-quality materials such as brass, stainless steel, or plastic, depending on the specific application needs.

Q: Can Tee Thread Fittings be used with gases or liquids?

A: Yes, Tee Thread Fittings are compatible with a variety of fluids, including gases and liquids. The precision threading ensures a tight, leak-proof seal for reliable performance.

Q: Are Tee Thread Fittings available in different sizes and thread types?

A: Yes, Tee Thread Fittings are available in a variety of sizes and thread types to meet the specific needs of your application.

Q: Can Tee Thread Fittings be used in high-pressure or high-temperature applications?

A: Yes, Tee Thread Fittings are designed to withstand high pressures and temperatures, making them suitable for a wide range of applications.

Q: How do I install a Tee Thread Fitting?

A: Installation of a Tee Thread Fitting typically involves threading it onto the pipes or tubes using a wrench or other suitable tool. Ensure that the threads are properly aligned and tightened to achieve a leak-proof seal. Always follow the manufacturer's instructions and safety guidelines during installation.
