Product Overview

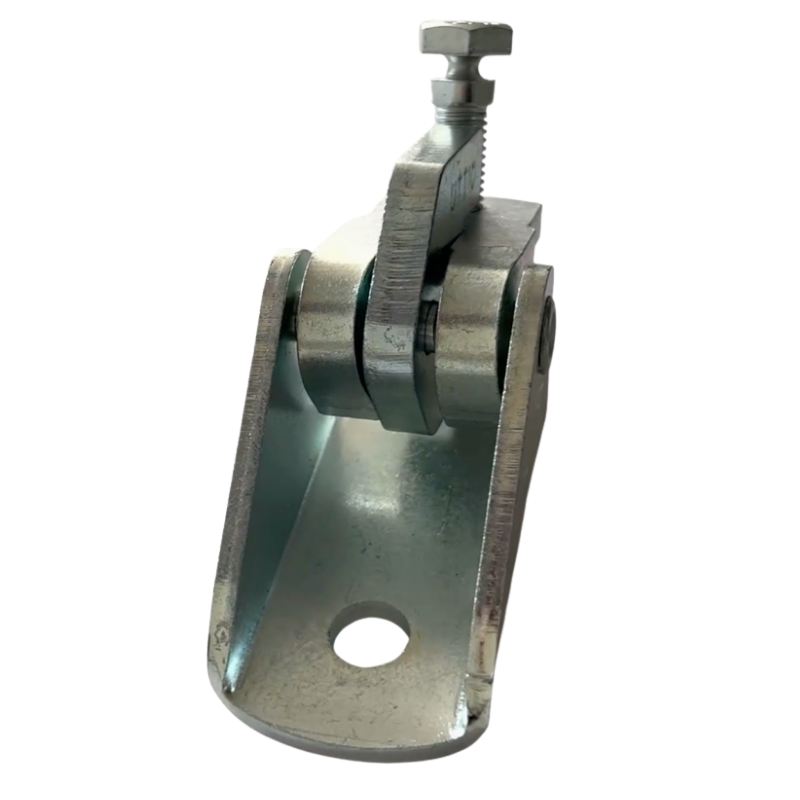

This product is a structural attachment used in seismic pipe restraint systems. It is intended to connect sway brace members to the supporting structure while allowing rotational movement for easier alignment in the field. The universal swivel configuration helps installers adjust the brace angle more efficiently and simplifies installation where the piping layout or support direction varies.
It is commonly used in fire sprinkler piping, HVAC piping, mechanical pipe systems, and other suspended pipe networks where seismic protection is required. The attachment is designed for use with common steel pipe standards and can support bracing applications for pipe sizes up to 8 inches. The body is manufactured from durable metal materials and finished with electro-galvanized protection for better corrosion resistance.
Product Parameters
| Item | Description |
|---|---|
| Product Name | Universal Rotation Swivel Sway Brace Attachment |
| Product Type | Structure Attachment |
| Application | Seismic sway bracing for piping systems |
| Typical Use | Fire protection, HVAC, plumbing, mechanical piping |
| Pipe Standards | Sch10, Sch40, GB/T 3091, JIS G3454 |
| Pipe Size Range | Up to 8" |
| Bolt Hole | 1/2" hole or M12 bolt hole |
| Main Material | QT450 ductile iron and carbon steel components |
| Surface Finish | Electro-galvanized |
| Certifications | UL / FM / CE |
The swivel mechanism allows the attachment to rotate during installation, helping installers achieve proper brace alignment more efficiently.
The product is designed to form a stable connection between the seismic brace and the building structure, improving system restraint against lateral movement.
It is intended for use in pipe sway bracing systems where resistance to vibration and seismic disturbance is required.
The electro-galvanized finish helps improve durability in indoor service environments.
Fire sprinkler piping systems
HVAC pipe support systems
Mechanical piping systems
Plumbing installations
Commercial and industrial buildings requiring seismic restraint
It is used to connect a seismic sway brace assembly to the building structure, helping restrain suspended piping against lateral movement and seismic disturbance.
It is commonly used in fire protection piping, HVAC systems, plumbing lines, and mechanical piping installations.
The swivel design allows angle adjustment during installation, making field alignment easier and improving installation flexibility.
According to the catalog, it is suitable for Sch10, Sch40, GB/T 3091, and JIS G3454 piping systems.
The product sheet states it is suitable for pipe sizes up to 8 inches.
The catalog lists QT450 ductile iron together with carbon steel parts.
The product is shown with an electro-galvanized finish for corrosion resistance.
Yes. This type of structure attachment is commonly used in seismic bracing systems for fire sprinkler piping.
The catalog indicates 1/2" hole or M12 bolt hole configuration.
Yes. The catalog page shows UL / FM / CE markings for this product type. Final compliance should still be confirmed according to project requirements.
