Views: 0 Author: Site Editor Publish Time: 2026-06-26 Origin: Site
Air valves are essential components in water supply, wastewater, irrigation, HVAC, fire protection auxiliary pipelines and industrial pipeline systems. Although an air valve is usually smaller than a gate valve, butterfly valve or check valve, it plays a very important role in protecting the whole pipeline system.
During pipeline filling, draining, pump start-up, pump shutdown and normal operation, air may enter or accumulate inside the pipeline. If the trapped air is not discharged in time, it may cause air pockets, unstable flow, pressure fluctuation, water hammer, reduced pump efficiency and even pipeline damage.
A properly selected air valve can help the pipeline system discharge air, admit air when vacuum occurs, reduce pressure surge and improve the overall working efficiency of the pipeline.
For contractors, distributors and project buyers, it is important to understand the difference between different types of air valves before purchasing. This article introduces five common air valve types, their features, functions, applications, suitable working conditions and international market demand.

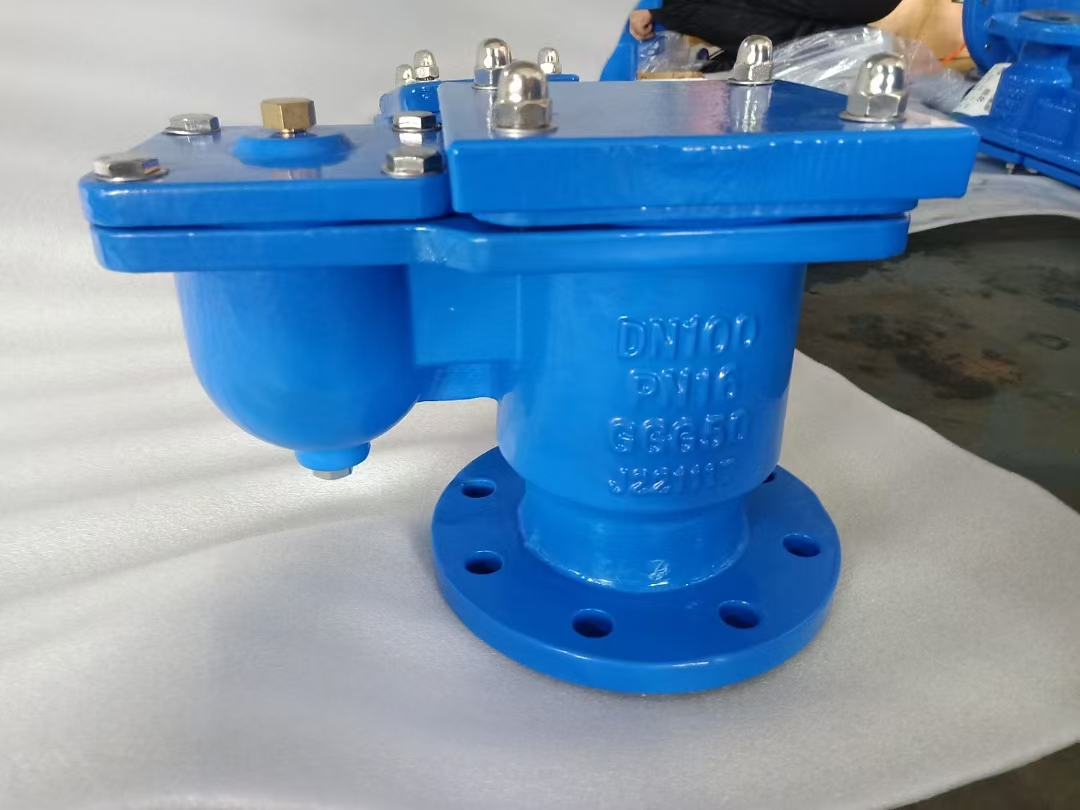

The flanged double-chamber combination air valve is widely used in municipal water supply, raw water transmission, irrigation and long-distance pipeline systems. It normally combines two major functions in one valve body: large-volume air discharge and intake, and small-volume automatic air release during normal operation.
This type of air valve is usually designed with a cast iron or ductile iron body, epoxy coating, stainless steel or engineering plastic internal parts and PN10 or PN16 pressure rating. The flanged connection makes it suitable for medium and large pipeline systems.
The double-chamber structure provides stable operation and allows the valve to handle both large air volume and small accumulated air pockets.
During pipeline filling, the valve quickly releases large amounts of air from the pipeline. During pipeline draining or vacuum conditions, it admits air into the pipeline to prevent negative pressure. During normal pressurized operation, it releases small air pockets that accumulate at high points.
This valve is suitable for municipal water supply pipelines, pump stations, long-distance water transmission pipelines, irrigation main lines, industrial circulating water systems and water treatment plants.
It is one of the most commonly used air valves for clean water and general water pipeline projects.

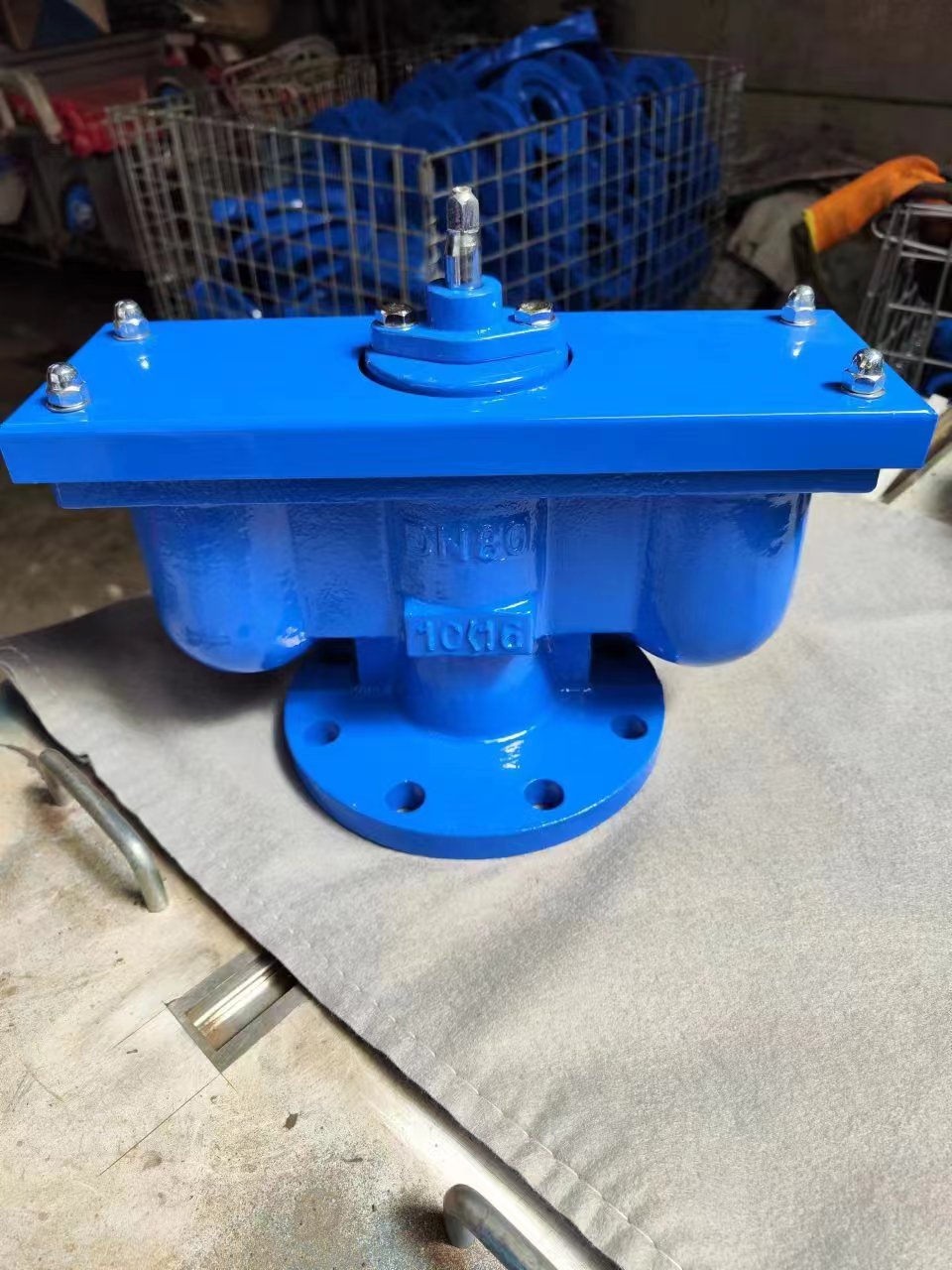

The flanged double-orifice air valve is another common design used in water pipeline projects. Compared with a compact automatic air release valve, this valve has a larger air passage and is designed for faster air discharge and air intake.
The valve body is commonly made of cast iron or ductile iron with epoxy coating. It can be supplied with PN10 or PN16 flanges and can be matched with project-required flange standards such as EN, DIN, BS or other standards.
The double-orifice structure allows the valve to handle different operating conditions, including pipeline filling, pipeline draining and normal air release.
The main function is to protect the pipeline from air blockage and vacuum damage. It also helps improve flow efficiency by removing trapped air at pipeline high points.
This type of air valve is suitable for water distribution networks, agricultural irrigation systems, pump stations, water treatment plants and general industrial water pipelines.
It is especially suitable for projects that require reliable performance, simple structure and competitive cost.

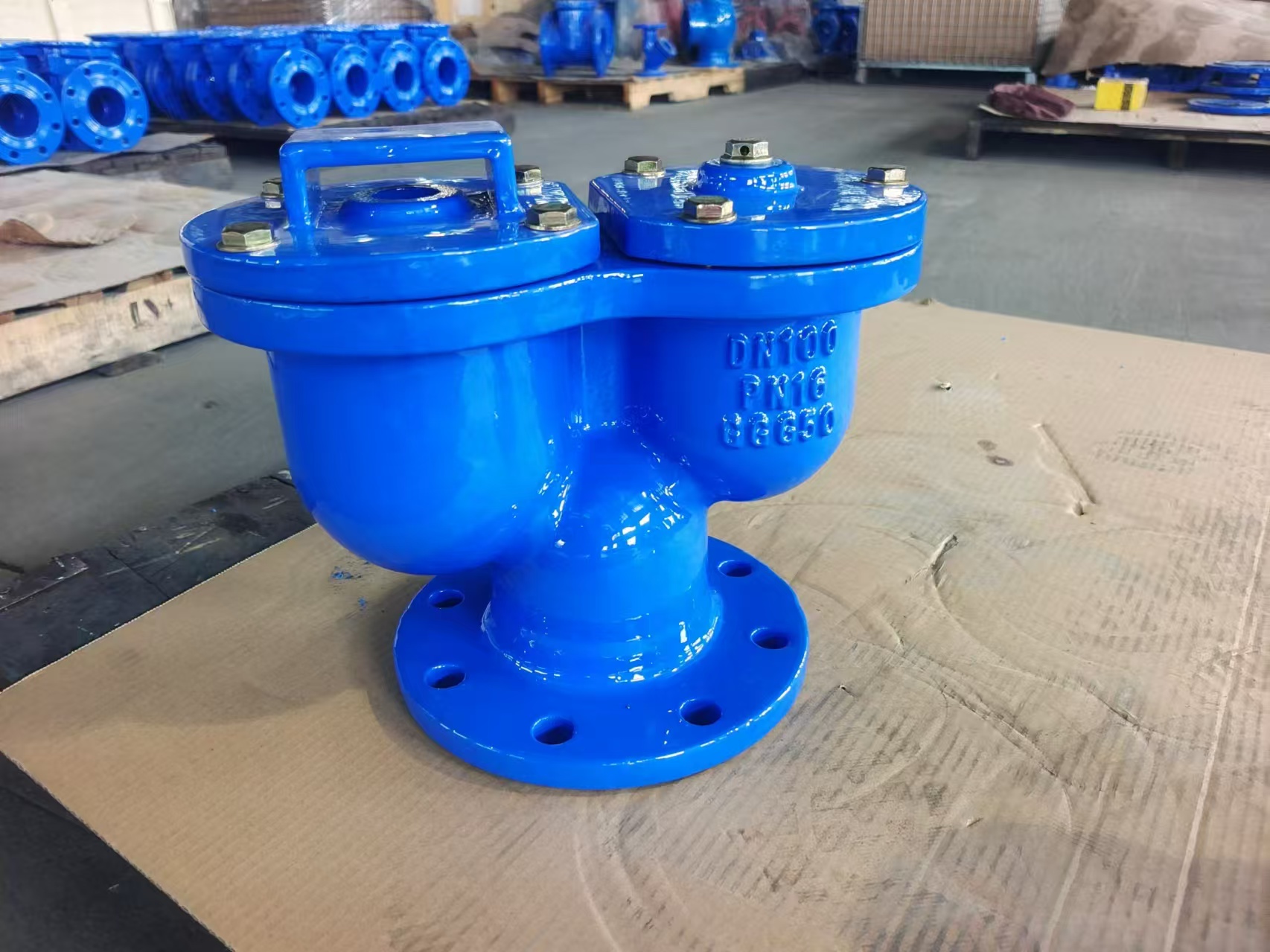

The easy-maintenance combination air valve is designed for projects where regular inspection and maintenance are important. Its visible top cover or handle design allows operators to inspect and maintain internal parts more conveniently.
This type of valve normally has a flanged body, removable top cover, internal float structure and automatic air release device. The maintenance-friendly design helps reduce downtime and makes the valve more suitable for waterworks, pump stations and wastewater treatment plants.
For wastewater or sewage applications, the valve should be specially designed with an anti-clogging structure, larger air separation chamber and corrosion-resistant internal components.
Like a standard combination air valve, it can release large volumes of air, admit air during vacuum conditions and discharge small air pockets during normal pressurized operation. Its advantage is easier inspection and maintenance.
This valve is suitable for municipal water supply systems, wastewater treatment plants, sewage pressure pipelines, pump stations, industrial pipeline systems and waterworks projects.
For wastewater applications, buyers should confirm whether the valve is designed for clean water or wastewater service. A wastewater air valve normally requires better anti-clogging performance and more suitable internal materials.

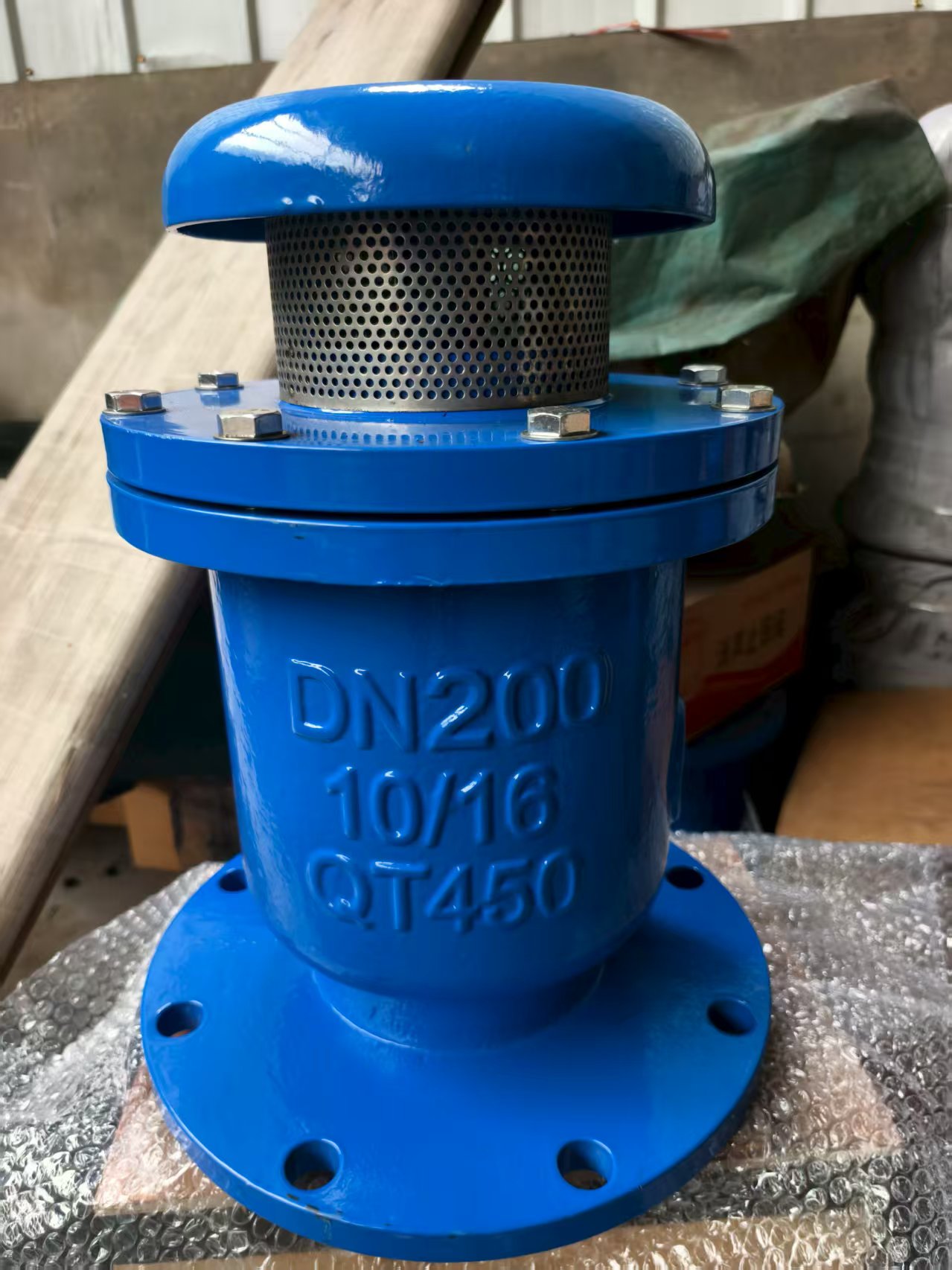

The DN200 large-orifice air and vacuum valve is designed for large pipelines that require high air flow capacity. It is commonly installed on main water transmission pipelines, raw water pipelines and large pump station systems.
This type of valve has a large air passage and a protective outlet screen. The large-orifice design allows high-volume air discharge and intake. The valve body is normally made of cast iron or ductile iron with epoxy coating, making it suitable for outdoor and heavy-duty pipeline projects.
During pipeline filling, the valve quickly releases large amounts of air. During pipeline draining, pipe burst or pump shutdown, it admits air into the pipeline to prevent vacuum pressure. This is very important for protecting large-diameter pipelines from collapse, vibration and serious pressure fluctuation.
This valve is suitable for large-diameter water transmission pipelines, raw water intake systems, long-distance water supply pipelines, pump stations, mining water systems, agricultural irrigation main lines and municipal infrastructure projects.
For large water projects, the air valve size should be selected according to pipeline diameter, flow rate, filling speed, pipeline slope and vacuum protection requirements.

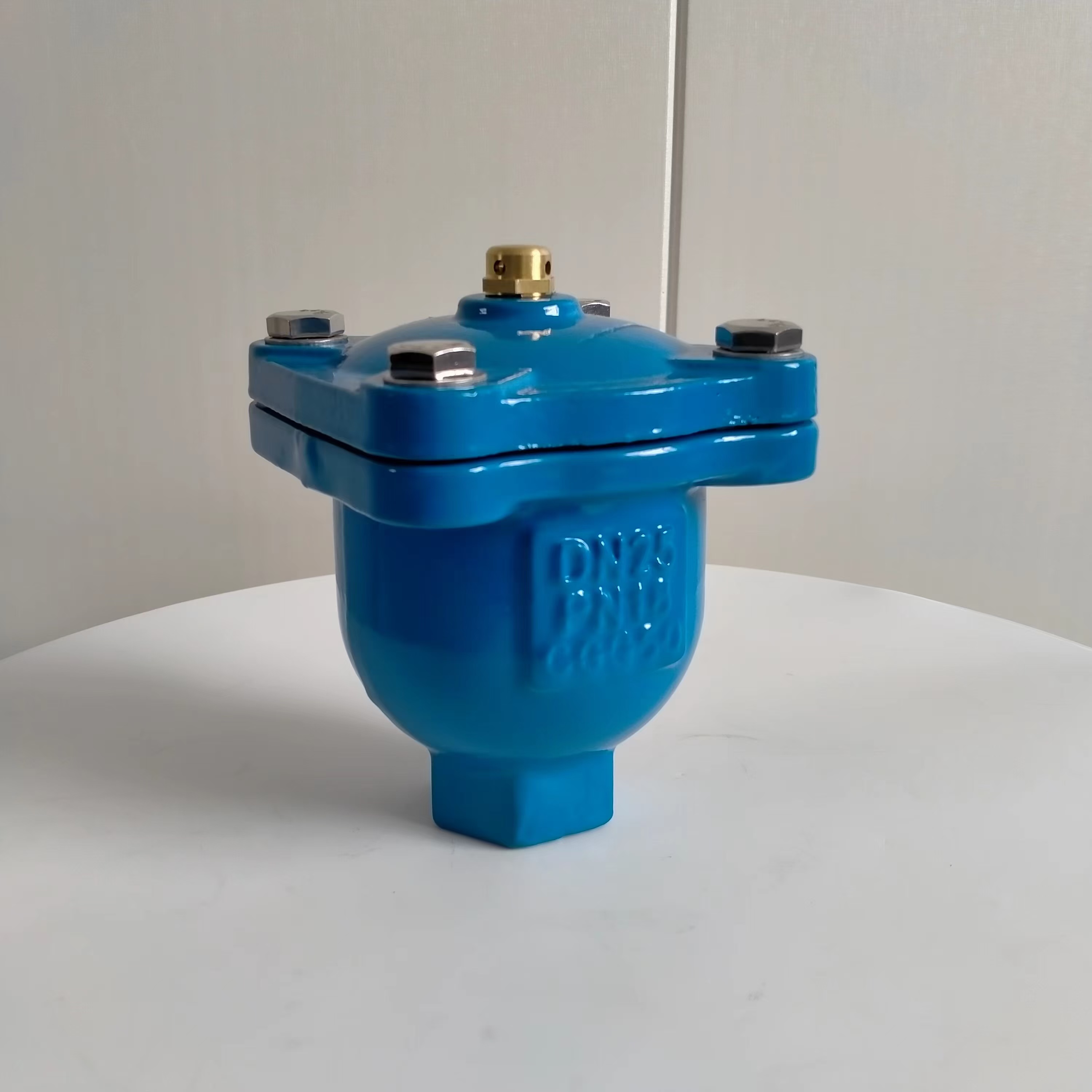

The threaded automatic air release valve is a compact air valve used for small pipeline systems. It is commonly installed in building water supply systems, HVAC systems, small pump rooms and equipment pipelines.
This valve usually has a threaded connection, compact body and automatic float mechanism. When air accumulates inside the valve chamber, the float drops and opens the air outlet. When the air is discharged and water enters the chamber, the float rises and closes the outlet automatically.
Its main function is to release small amounts of air during normal system operation. It is not designed for large-volume air intake or discharge in main transmission pipelines.
This valve is suitable for building water supply systems, HVAC heating and cooling systems, boiler systems, small pump rooms, fire protection auxiliary pipelines and commercial or residential building projects.
For international markets, the threaded type should be selected according to the required thread standard, such as BSP, BSPT or NPT.
Different pipeline systems require different air valve structures. The table below helps buyers compare the main features, functions and applications of common air valve types.
Air Valve Type | Connection Type | Main Function | Key Features | Suitable Medium | Typical Application |
|---|---|---|---|---|---|
Flanged Double-Chamber Combination Air Valve | Flanged | Large air discharge, air intake and automatic air release | Double-chamber design, stable operation, suitable for medium and large pipelines | Clean water, raw water, general industrial water | Municipal water supply, pump stations, long-distance water pipelines |
Flanged Double-Orifice Air Valve | Flanged | Fast air discharge and vacuum protection | Large and small orifice structure, simple design, cost-effective | Clean water, irrigation water, general water systems | Water distribution networks, irrigation systems, water treatment plants |
Easy-Maintenance Combination Air Valve | Flanged | Combination air release with easier inspection and maintenance | Removable cover or handle design, convenient for maintenance | Clean water, wastewater if special design is confirmed | Waterworks, wastewater treatment plants, sewage pressure pipelines, pump stations |
DN200 Large-Orifice Air and Vacuum Valve | Flanged | High-volume air discharge and air intake | Large air passage, high flow capacity, suitable for large-diameter pipelines | Clean water, raw water, irrigation water | Main transmission pipelines, raw water pipelines, mining water systems, large pump stations |
Threaded Automatic Air Release Valve | Threaded | Small amount of air release during normal operation | Compact structure, automatic float design, easy installation | Clean water, hot water, HVAC water | Building water supply, HVAC systems, boiler systems, small pump rooms |
Item | Double-Chamber Combination Air Valve | Double-Orifice Air Valve | Easy-Maintenance Combination Air Valve | Large-Orifice Air & Vacuum Valve | Threaded Automatic Air Release Valve |
|---|---|---|---|---|---|
Air Discharge Capacity | Medium to high | Medium to high | Medium to high | Very high | Low |
Air Intake Capacity | Yes | Yes | Yes | Very high | Limited |
Automatic Air Release Under Pressure | Yes | Yes, depending on design | Yes | Limited or optional | Yes |
Vacuum Protection | Yes | Yes | Yes | Excellent | Limited |
Maintenance Convenience | Medium | Medium | High | Medium | High |
Recommended Pipeline Size | DN50 and above | DN50 and above | DN50 and above | Large pipelines, DN150/DN200 and above | Small pipelines |
Installation Position | Pipeline high points, pump outlet, long-distance pipeline | Pipeline high points, water networks | Pump stations, waterworks, wastewater plants | Main pipeline high points, long-distance pipeline, pump station | Building system high points, small equipment pipelines |
Cost Level | Medium | Economical | Medium to high | Higher | Economical |
Clean water and wastewater applications have different requirements.
For clean water systems, the medium is relatively clean, so standard cast iron or ductile iron combination air valves with epoxy coating are commonly used.
For wastewater or sewage systems, the medium may contain solids, grease, foam, sediment and corrosive gases. Therefore, wastewater air valves should have larger internal space, anti-clogging structure, corrosion-resistant internal parts and easy maintenance design.
When selecting an air valve for wastewater projects, buyers should pay attention to:
Anti-clogging design
Large air separation chamber
Stainless steel or engineering plastic internal components
Easy-cleaning structure
Suitable sealing material
Epoxy coating or corrosion-resistant coating
Application suitability for wastewater service
A standard clean-water air valve should not be used directly for wastewater unless the manufacturer confirms its suitability.
Selecting the correct air valve depends on pipeline medium, pressure, pipe size, installation position and working conditions.
The following information should be confirmed before quotation or purchase:
Pipeline medium: clean water, wastewater, irrigation water, hot water or industrial water
Pipeline size and flow rate
Working pressure and pressure rating, such as PN10, PN16 or PN25
Connection type: flanged or threaded
Flange standard: EN, DIN, BS, ANSI, JIS or project-required standard
Required function: air release, air intake, vacuum protection or combination function
Installation position: pipeline high point, pump outlet, long-distance pipeline or equipment point
Working temperature
Body material and coating requirement
Certification requirement, such as ISO, CE, WRAS, NSF, GOST, EAC or local project approval
For most municipal water projects, flanged combination air valves are recommended. For large-diameter main pipelines, large-orifice air and vacuum valves are more suitable. For building systems, threaded automatic air release valves are usually sufficient.
Application Condition | Recommended Air Valve Type | Reason |
|---|---|---|
Municipal water supply pipeline | Flanged combination air valve | Provides air discharge, air intake and automatic air release in one valve |
Long-distance water transmission pipeline | Combination air valve or large-orifice air and vacuum valve | Protects the pipeline during filling, draining and pressure fluctuation |
Large-diameter main pipeline | DN200 large-orifice air and vacuum valve | Large air flow capacity is required for big pipelines |
Pump station outlet pipeline | Combination air valve or anti-shock air valve | Helps reduce trapped air and vacuum risk after pump start/stop |
Wastewater or sewage pipeline | Wastewater combination air valve with anti-clogging design | Wastewater contains solids, gas and impurities, so special design is required |
Irrigation system | Double-orifice air valve or large-orifice air valve | Suitable for frequent filling and draining conditions |
Building water supply system | Threaded automatic air release valve | Compact, easy to install and suitable for small pipelines |
HVAC or heating system | Threaded automatic air release valve | Removes small air pockets during circulation |
Mining or industrial water pipeline | Large-orifice air and vacuum valve | Suitable for heavy-duty pipeline systems and high flow demand |
Fire protection auxiliary pipeline | Automatic air release valve, subject to project approval | Certification and project approval should be confirmed before use |
Countries such as Saudi Arabia, UAE, Qatar, Oman and Kuwait often require PN16 ductile iron or cast iron valves with epoxy coating and flanged connection. Flanged combination air valves and large-orifice air valves are suitable for water supply, irrigation and infrastructure projects.
Kenya, Nigeria, Tanzania, Ghana and South Africa have strong demand for water supply, pump station and municipal pipeline products. Cost-effective PN10/PN16 flanged air valves are suitable for distributors and project contractors.
The Philippines, Malaysia, Indonesia, Vietnam and Thailand commonly use air valves in waterworks, sewage treatment plants, fire protection auxiliary pipelines and building projects. BSP threaded air valves and EN/BS flange standards are commonly requested.
Peru, Chile, Ecuador, Colombia and Brazil have demand for municipal water supply, irrigation, mining water and infrastructure projects. EN, ISO or ANSI standards may be required depending on the project.
Russia, Kazakhstan, Uzbekistan and other Central Asian markets often focus on low-temperature resistance, GOST/EAC documents and durable coating. Air valves for water supply and heating pipeline systems should be selected according to local temperature and project standard requirements.
European and UK markets pay more attention to product standards, documentation and water contact approvals. For drinking water applications, WRAS, ACS, DVGW or equivalent approvals may be required depending on the country and project.
For the United States and Canada, air valves may need to meet ANSI flange, NPT thread, AWWA or NSF-related requirements depending on the application and project specification.
Air valves play a critical role in pipeline protection. They help release trapped air, prevent vacuum damage, improve water flow efficiency and reduce the risk of pressure fluctuation and water hammer. Different air valves are designed for different pipeline systems and working conditions.
For municipal water supply and long-distance pipelines, flanged combination air valves are recommended. For large-diameter main pipelines, large-orifice air and vacuum valves are more suitable. For building water supply and HVAC systems, threaded automatic air release valves are commonly used. For wastewater systems, special wastewater air valves with anti-clogging and easy-maintenance design should be selected.
By choosing the correct air valve type, project owners, contractors and distributors can improve pipeline safety, reduce maintenance risk and ensure stable system operation.
