Overview

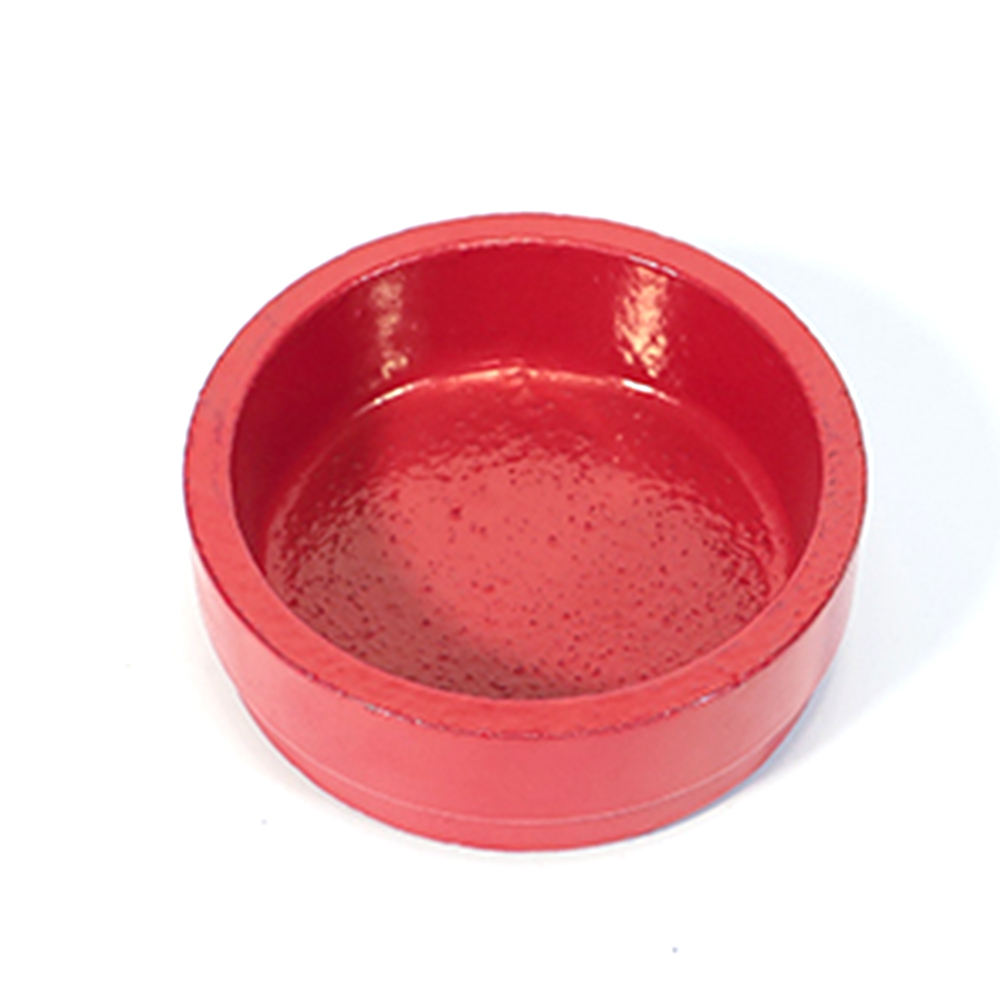

Grooved Pipe Caps are essential components used to close the ends of grooved piping systems, providing a secure and pressure-resistant termination. Designed for quick installation and reliable sealing, these caps protect the pipeline, isolate sections, and ensure system integrity in various industrial and commercial applications.
Product Description
Grooved Pipe Caps feature a mechanical grooved end that allows for fast and easy installation without welding or threading. They are primarily used with couplings and fittings to safely seal off open pipe ends. The blind plate design enables full isolation of the pipeline, preventing leaks and ensuring system reliability. Rated for pressures up to 300 PSI, these caps are constructed to withstand standard operating conditions while providing durable and long-lasting performance.
| Sizes: | DN40–DN250 (1½″–10″) threaded outlet |
| Materials: | ASTM A536,GRADE 65-45-12,QT450-10 |
| Threads: | ASME B1.20.1,ISO 7-1,BS21,BSPT,NPT,GB 7306 |
| Surface Treatment: | Electrophoretic painted,Electroplated, Epoxy, Hot-dip Galvanized |
 |
Grooved-end design for fast, tool-free installation
Suitable for closing and isolating pipe ends
Rated for pressures up to 300 PSI (20.7 bar)
Durable construction ensures long-term reliability
Excellent sealing performance with standard gaskets
Compatible with standard grooved piping systems
Seals and closes open pipe ends securely
Provides full isolation for maintenance or system modifications
Protects the pipeline from contamination or debris
Simplifies installation and reduces labor time
Maintains system integrity under operational pressure
Grooved Pipe Caps are widely used in:
Fire protection and sprinkler systems
HVAC and chilled water pipelines
Industrial water supply and process piping
Pump rooms and mechanical equipment connections
Retrofit and maintenance projects requiring temporary or permanent pipe closure
They are ideal for scenarios where a secure and reliable pipe termination or isolation is required.
Main production process
Installation Instruction For Threaded &Grooved Mechanical Tee
  |
|
|  | |||||
| 1.Take out the Rigid &Flexible Coupling Clean the gasket sealing surface within 16mm of the hole and visually inspect the sealing surface for defects that may prevent proper sealing of the gasket.Don't drill the hole on weld line. | 2.Split the Rigid &Flexible Coupling If any burrs or slug exists at the pipe hole,please remove them before assembly,to protect the gasket and avoid leakage. | 3.Pipe preparation Insert the gasket into outlet housing making sure the tab in the gasket line up with the tab recesses in the housing.Align outlet housing over the pipe hole making sure that the locating collar is in the pipe hole. | 4.Lubricate gasket Align the strap around the pipe,inser the bolts and tighten the nuts finger tight. | |||||
 |
| |||||||
| 5.Gasket installation Alternatively and evenly tighten the nuts to the specified bolt torque. | 6.Housing installation There should be even gaps on two sides between upper and lower housings. | |||||||
FAQ
Q1: What is the primary purpose of a grooved pipe cap?
A: To close off open pipe ends and provide full isolation in a grooved piping system.
Q2: Can grooved pipe caps handle high pressure?
A: Yes. They are rated for pressures up to 300 PSI (20.7 bar).
Q3: Does installation require welding or threading?
A: No. The grooved end allows for mechanical installation using standard couplings.
Q4: Where are these caps typically used?
A: In fire protection, HVAC, industrial water supply, and maintenance or retrofit applications.
Q5: Can these caps be used for temporary isolation?
A: Yes. They are suitable for both temporary and permanent pipeline isolation.
