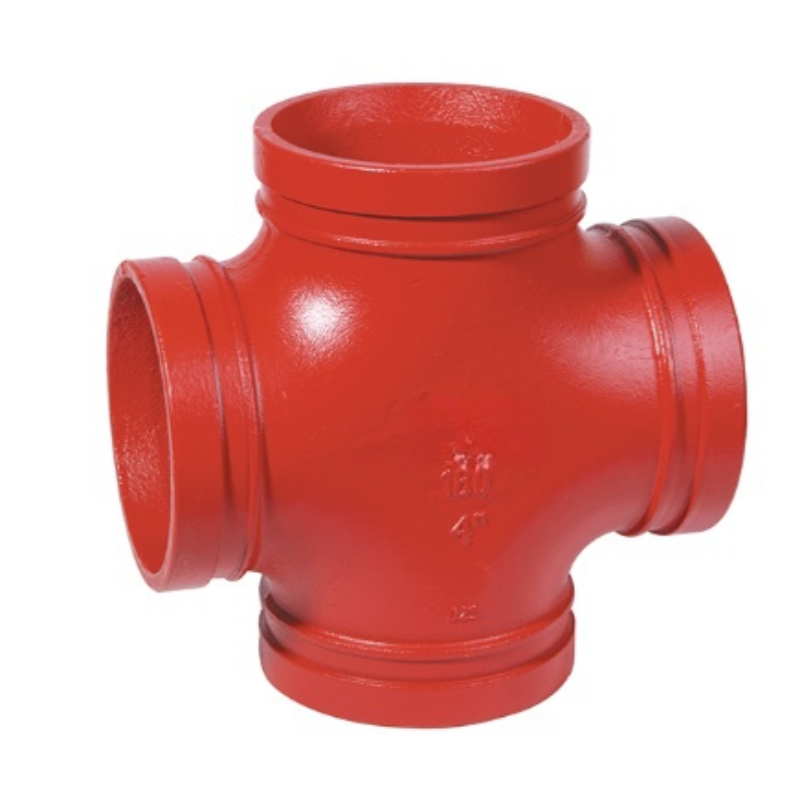

The cross in the groove is to connect four pipes to form a cross structure. It is usually used in pipe systems that need to distribute or converge fluids in multiple directions, and can achieve effective connection between four pipes. In applications such as fire protection systems and water supply pipes, the cross can help the flexible layout of the pipe system to ensure the smooth flow of fluids in multiple directions. It is widely used in complex pipe networks, especially in situations where four pipes need to be connected at the same time.
Material: ASTM A536,GRADE 65-45-12,QT450-10
Threads: ASME B1.20.1,ISO 7-1,BS21,BSPT,NPT,GB 7306
Size: ISO6182,AWWA C606
Size Available: 1"-12"
Surface Treatment: Electrophoretic painted
| Air pressure and holding pressure schedule | ||||
| NO. | Size | Pressure | Time to keep the pressure | Remark |
| 1 | ≤DN50 | ≥0.5MPa | ≥5s | Air pressure |
| 2 | >DN50~DN350 | ≥0.5MPa | ≥10s | Air pressure |
| 3 | >DN350 | 1.5times the rated working pressure | 5min | water pressure |
| Rubber gasket | |||
| Name | Recommended Application Medium | Related Standards | Recommended Application Temperature Range |
| E:EPDM | water supply,drainage, sewage,normal temperature air,weak acid,and weak alkali | GB5135.11 | -30℃~+130℃ |
| GB/T 21873 | -22°F~+266°F | ||
| continuous supply of 110℃ hot water | GB/T 27572 | ||
| D:NITRILE | petroleum,vegetable oil, mineral oil | GB5135.11 | -20℃~+80℃ |
| GB/T 23658 | -4°F~+176°F | ||
| S:SIUCON | drinking water | GB/T 28604 | -40℃~+180℃ |
| high-temperature dry air and some high-temperature chemicals | GB5135.11 | -40°F~+356°F | |
| F:FLUORINE | the acid,alkaline solution,and hot lubricating oil | HG/T 2181 | -20℃~+180° |
| -4°F~+356F | |||
| V:NEOPRENE | seawater | '-20°℃~+100℃ -4°F~+212°F | |
| Size | Pipe O.D. | Working Pressure | Cross Standard L | UL | UL |
| DN in | mm in | PSI MPa | mm in | ||
| 32 1-1/4 | 42.4 1.660 | 300 2.07 | 60 2.362 | UL | FM |
| 40 1-1/2 | 48.3 1.900 | 300 2.07 | 60 2.362 | UL | FM |
| 50 2 | 60.3 2.375 | 300 2.07 | 70 2.755 | UL | FM |
| 65 2-1/2 | 73.0 2.875 | 300 2.07 | 76 2.992 | UL | FM |
| 65 2-1/2 | 76.1 3.000 | 300 2.07 | 76 2.992 | UL | FM |
| 80 3 | 88.9 3.500 | 300 2.07 | 86 3.386 | UL | FM |
| 100 4 | 108.0 4.252 | 300 2.07 | 102 4.016 | UL | FM |
| 100 4 | 114.3 4.500 | 300 2.07 | 102 4.016 | UL | FM |
| 125 5 | 139.7 5.500 | 300 2.07 | 123 4.843 | UL | FM |
| 125 5 | 141.3 5.563 | 300 2.07 | 123 4.843 | UL | FM |
| 150 6 | 165.1 6.500 | 300 2.07 | 140 5.511 | UL | FM |
| 150 6 | 168.3 6.625 | 300 2.07 | 140 5.511 | UL | FM |
| 250 10 | 273 10.75 | 300 2.07 | 215 8.464 | UL | FM |
| 300 12 | 323.9 12.75 | 300 2.07 | 245 9.645 | UL | FM |
The Grooved Cross Connector Fitting is an innovative and versatile product designed to meet the diverse needs of industrial and plumbing applications. This fitting features a unique grooved design that allows for easy installation and secure connection to a variety of piping systems. Constructed from high-quality materials, the Grooved Cross Connector Fitting is built to withstand the rigors of harsh environments and provide long-lasting performance.
The fitting's compact design minimizes space requirements, making it ideal for use in tight or confined areas. Its robust construction ensures that it can handle high pressures and temperatures, making it suitable for a wide range of applications. The Grooved Cross Connector Fitting is compatible with a variety of pipe materials, including steel, copper, and plastic, providing users with a versatile and reliable solution for their piping needs.
The Grooved Cross Connector Fitting offers a number of features that make it an excellent choice for industrial and plumbing applications. Its grooved design allows for quick and easy installation, significantly reducing the time and labor required to connect pipes. The fitting is also designed to be leak-resistant, providing a secure and reliable connection that can withstand the pressures and temperatures of harsh environments.
In addition, the Grooved Cross Connector Fitting is compatible with a wide range of pipe sizes and materials, making it a versatile solution for a variety of applications. Its compact design minimizes space requirements, making it ideal for use in tight or confined areas. The fitting is also designed to be durable and corrosion-resistant, ensuring that it can provide long-lasting performance in a variety of environments.
The Grooved Cross Connector Fitting is ideal for use in a wide range of industrial and plumbing applications. Its versatile design makes it suitable for use in a variety of piping systems, including water, steam, and gas lines. The fitting can be used to connect pipes of different materials and sizes, making it a valuable tool for engineers and plumbers.
In addition, the Grooved Cross Connector Fitting is commonly used in HVAC systems, fire sprinkler systems, and other industrial applications that require reliable and durable piping connections. Its ability to withstand high pressures and temperatures makes it an excellent choice for applications that require high-performance piping solutions. The fitting's leak-resistant design also makes it suitable for use in environments where leaks could cause significant damage or hazards.
Q: What materials is the Grooved Cross Connector Fitting made from?
A: The Grooved Cross Connector Fitting is constructed from high-quality materials that are designed to withstand the rigors of harsh environments. The specific materials used may vary depending on the application and the requirements of the piping system.
Q: Is the Grooved Cross Connector Fitting compatible with all types of pipe materials?
A: The Grooved Cross Connector Fitting is compatible with a wide range of pipe materials, including steel, copper, and plastic. However, it is always important to check the compatibility of the fitting with the specific pipe material being used to ensure a secure and reliable connection.
Q: How easy is it to install the Grooved Cross Connector Fitting?
A: The Grooved Cross Connector Fitting features a unique grooved design that allows for quick and easy installation. This significantly reduces the time and labor required to connect pipes, making it an excellent choice for applications that require fast and efficient installation.
Q: Can the Grooved Cross Connector Fitting be used in high-pressure applications?
A: Yes, the Grooved Cross Connector Fitting is designed to withstand high pressures and temperatures, making it suitable for a wide range of applications. However, it is important to consult the product specifications and the requirements of the piping system to ensure that the fitting can handle the specific pressures and temperatures being used.
