Overview

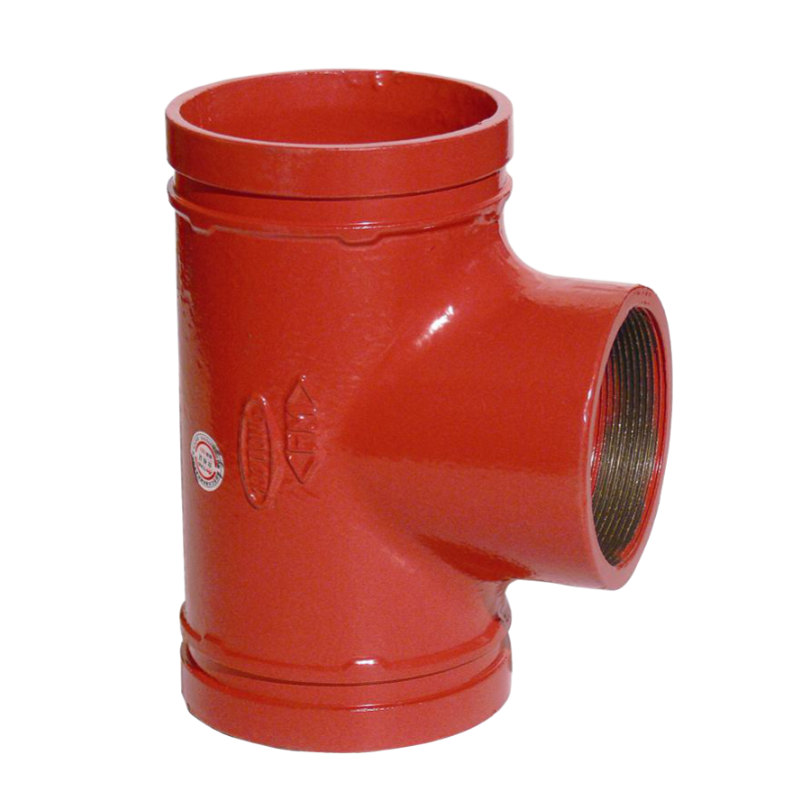

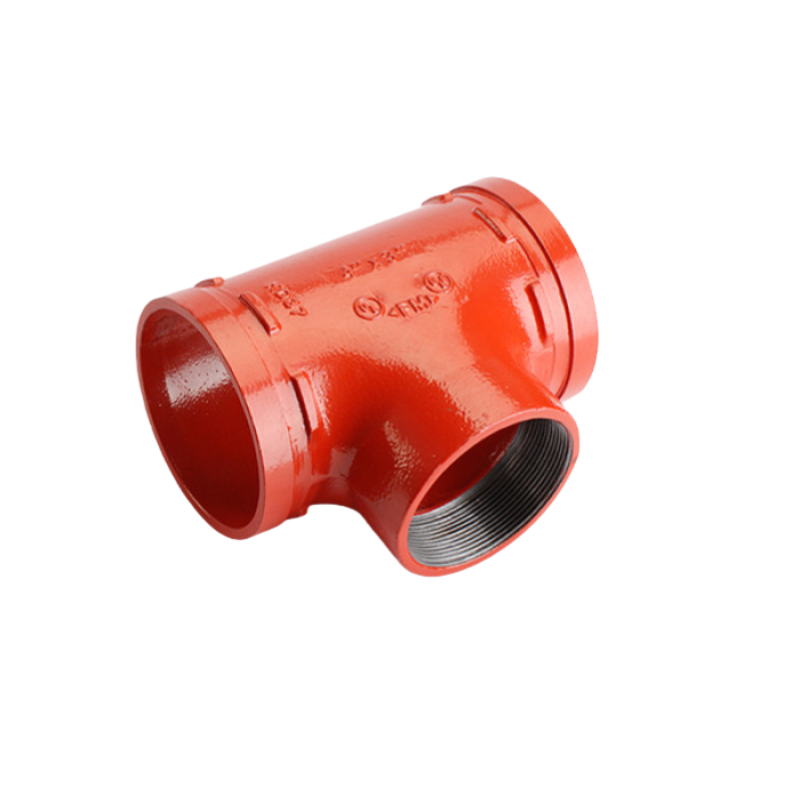

The Threaded Grooved Reducing Tee is designed to create a reduced threaded branch outlet from a grooved main pipeline. It enables efficient branching where the outlet size is smaller than the main pipe, making it especially suitable for systems that commonly use threaded connections on small-diameter branch lines. This fitting combines the advantages of grooved installation speed and threaded connection compatibility, offering a practical and reliable solution for complex piping networks.
Product Description
This fitting features a grooved inlet and outlet for the main pipeline, along with a threaded branch connection for reduced-size piping. It allows branch lines to be installed directly without welding or cutting, significantly reducing installation time and labor requirements. The compact structure supports precise flow diversion while maintaining system pressure and sealing performance. Clearly cast markings provide essential technical information such as certification status, pressure rating, and branch size for easy identification during installation and inspection.
 | |
 |  |
| Air pressure and holding pressure schedule | ||||
| NO. | Size | Pressure | Time to keep the pressure | Remark |
| 1 | ≤DN50 | ≥0.5MPa | ≥5s | Air pressure |
| 2 | >DN50~DN350 | ≥0.5MPa | ≥10s | Air pressure |
| 3 | >DN350 | 1.5times the rated working pressure | 5min | water pressure |
| Rubber gasket | |||
| Name | Recommended Application Medium | Related Standards | Recommended Application Temperature Range |
| E:EPDM | water supply,drainage, sewage,normal temperature air,weak acid,and weak alkali | GB5135.11 | -30℃~+130℃ |
| GB/T 21873 | -22°F~+266°F | ||
| continuous supply of 110℃ hot water | GB/T 27572 | ||
| D:NITRILE | petroleum,vegetable oil, mineral oil | GB5135.11 | -20℃~+80℃ |
| GB/T 23658 | -4°F~+176°F | ||
| S:SIUCON | drinking water | GB/T 28604 | -40℃~+180℃ |
| high-temperature dry air and some high-temperature chemicals | GB5135.11 | -40°F~+356°F | |
| F:FLUORINE | the acid,alkaline solution,and hot lubricating oil | HG/T 2181 | -20℃~+180° |
| -4°F~+356F | |||
| V:NEOPRENE | seawater | '-20°℃~+100℃ -4°F~+212°F | |
Threaded reducing branch outlet for easy connection to small-diameter pipes
Grooved main connections enabling fast and secure installation
No welding required, improving safety and reducing on-site work
Clear identification markings for pressure rating, certifications, and size
Lower installation cost with minimal labor and training requirements
Reliable sealing and pressure performance for long-term operation
Fire protection and sprinkler systems
Chemical processing pipelines
Refineries and petrochemical plants
Industrial utility piping systems
Commercial building services
This fitting is especially suitable where threaded branch outlets are preferred for instrumentation, valves, or smaller pipeline connections.
Application Areas
 |  |  |  |  |  |
| fire | oil pipeline | gas pipeline | water treatment | water Pipeline Systems | HVAC |
It is used to create a smaller threaded branch connection from a grooved main pipeline without welding.
Smaller-diameter pipes and accessories commonly use threaded connections, making this design practical and widely compatible.
No. Installation is straightforward and does not require highly skilled workers or special tools, helping reduce labor costs.
Yes. It is suitable for a wide range of industries, including chemical, petrochemical, refining, and general industrial piping systems.
Key information such as pressure rating, certification marks, and branch size is clearly marked on the fitting surface for easy reference.
It offers faster installation, easier maintenance, lower cost, and eliminates hot work, improving safety and efficiency on site.
