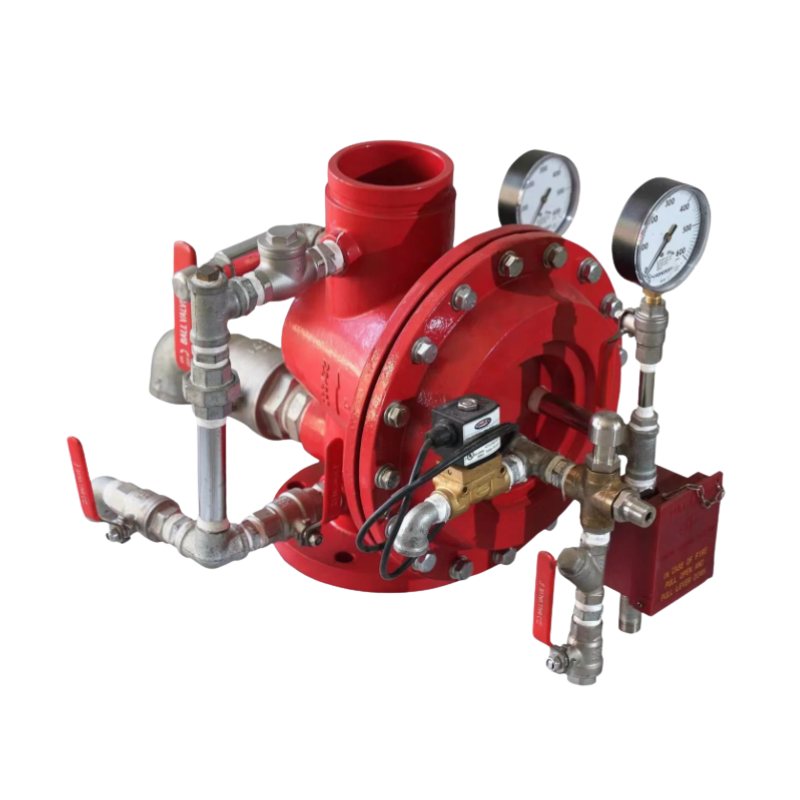

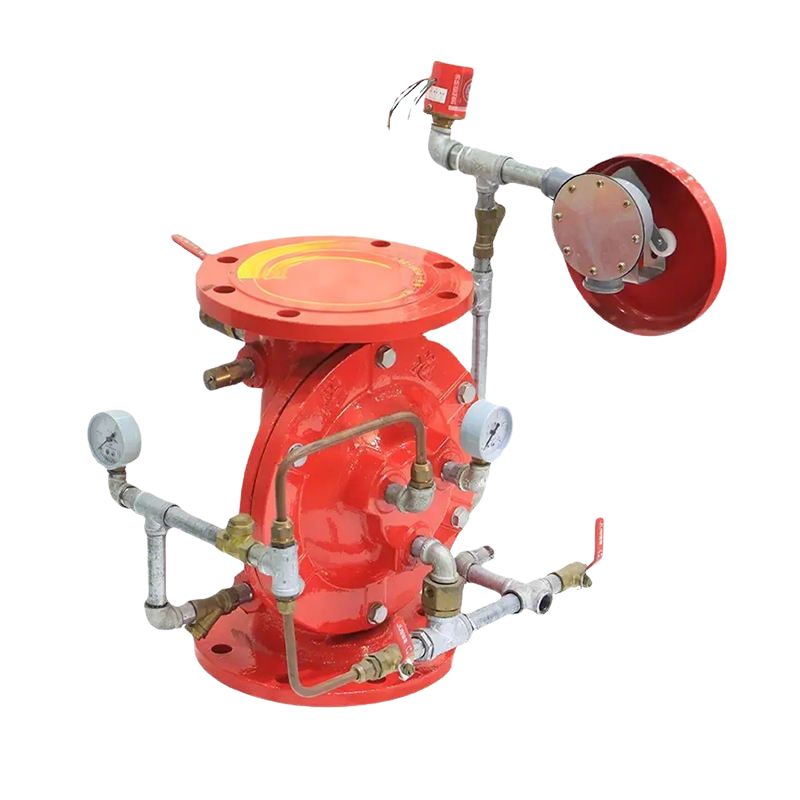

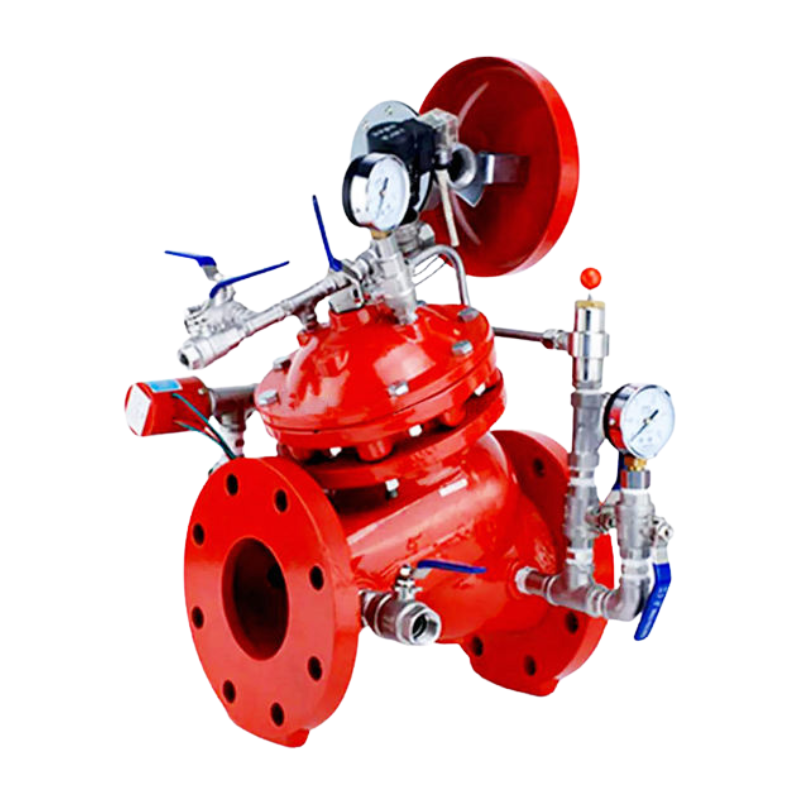

Deluge Valve

Overview

The Deluge Valve is a normally closed control valve designed for use in deluge fire protection systems. It operates through electric, pneumatic, or manual actuation to rapidly release water into open sprinkler or spray nozzles when a fire is detected.

Featuring a straight-through cone diaphragm sealing structure, the valve provides reliable self-sealing performance, fast response, and stable operation. Once activated, the valve opens automatically, allowing water to flow in one direction into the system while simultaneously initiating alarm devices.

Product Description

The Deluge Valve adopts a straight-through cone diaphragm seal, utilizing the self-sealing characteristics of the cone structure to ensure tight closure under normal conditions.

When pressure in the diaphragm chamber is released by electric, pneumatic, or manual activation, the valve disc opens instantly. Water then flows freely into the downstream fire protection system, supplying sprinklers or spray nozzles and activating alarm devices at the same time.

The valve can be integrated with various detection, control, and alarm components to form multiple types of deluge alarm and firefighting systems. Grooved end connections are available, and the valve may be supplied with or without control valves depending on system requirements.

Technical Features

Features

• Straight-Through Cone Diaphragm Design
  Ensures excellent self-sealing performance, minimal pressure loss, and reliable opening and closing.

• Multiple Actuation Methods
  Supports electric, pneumatic, and manual release to meet different fire protection system designs.

• Fast Response & Full Flow
  Opens instantly upon activation, delivering maximum water flow to the protected area.

• One-Way Flow Control
  Allows water to flow into the system in a single direction, preventing backflow.

• Alarm Activation Capability
  Simultaneously initiates alarm devices when water is released.

• Flexible System Configuration
  Can be combined with detectors, control panels, alarm devices, and auxiliary valves to form various deluge and firefighting systems.

• Grooved End Connection Option
  Enables quick installation and easy maintenance.

Application

• The Deluge Valve is suitable for automatic fire protection systems in locations with high fire risk or where rapid water discharge is required, including:

• Residential buildings

• Hospitals and healthcare facilities

• Hotels and commercial complexes

• Shopping malls

• Industrial plants and factories

• Airports and transportation hubs

• Casinos

• Libraries and archives

• Stadiums and sports venues

• Convention and exhibition centers

• Operating ambient temperature:
  4℃ to 52℃

FAQ

Q1: What is the main function of a deluge valve?

A deluge valve controls the rapid release of water into a fire protection system when activated by a detection or manual control signal.

Q2: How does the deluge valve operate?

The valve remains closed under normal conditions. When pressure in the diaphragm chamber is released through electric, pneumatic, or manual means, the valve opens automatically.

Q3: What type of sealing structure does the valve use?

It uses a straight-through cone diaphragm seal, providing excellent self-sealing and reliable operation.

Q4: Can the valve be supplied with control valves?

Yes. The deluge valve can be ordered with or without control valves depending on system design requirements.

Q5: What systems can this valve be used in?

It is used in deluge systems, spray systems, foam-water systems, and other special fire protection systems requiring rapid water discharge.

Q6: What is the suitable operating environment temperature range?

The valve is designed to operate in environments with ambient temperatures between 4℃ and 52℃.
