Product Overview

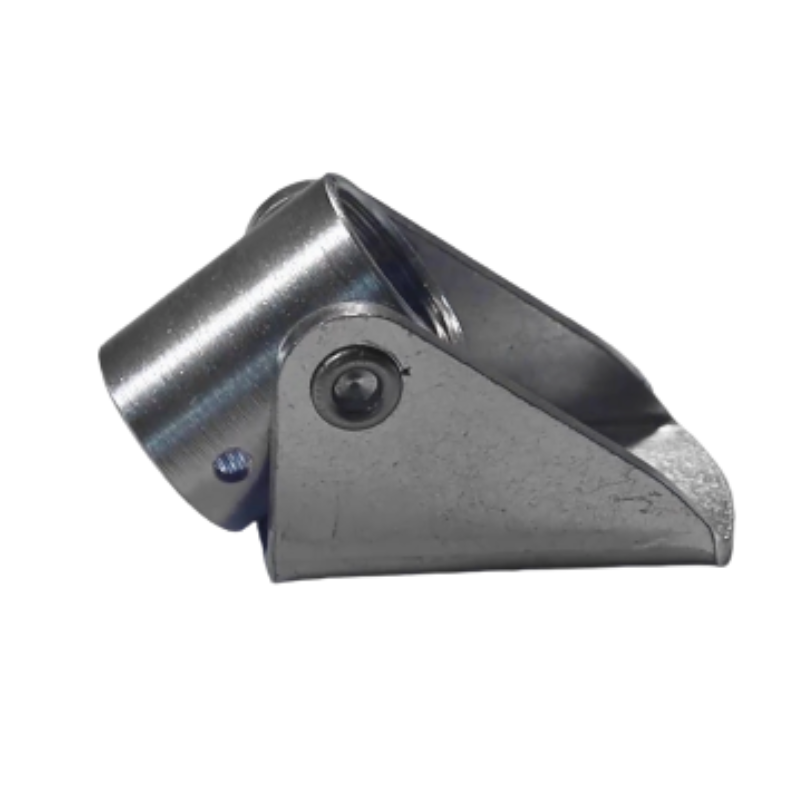

A threaded seismic structural attachment is an important part of a complete sway brace assembly. It provides a connection point between the structural support and the bracing member, helping transfer lateral loads away from suspended piping during vibration or seismic events. Structural attachments are widely used in fire sprinkler, HVAC, and mechanical pipe support systems where seismic restraint is required.

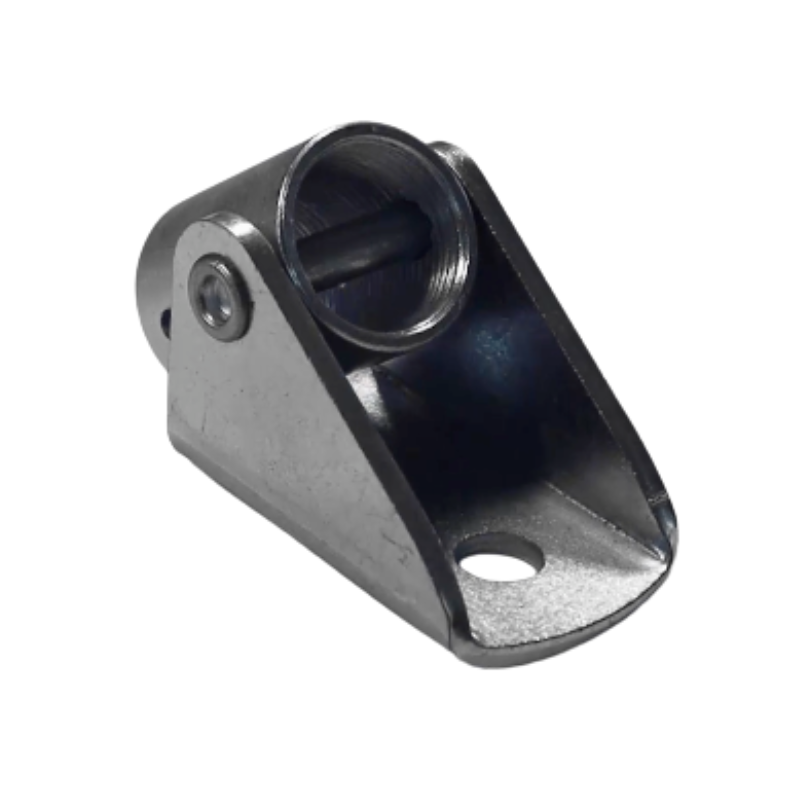

This product features a female threaded top connection and is designed for use with 1 inch round pipe, making it suitable for rigid brace assemblies in building service installations. According to the catalog, it is specifically described as being designed for bracing pipe against sway and seismic disturbance, used in combination with 1" round pipes, and made of carbon steel with an electro-galvanized finish.
Product Parameters
| Item | Description |
|---|---|
| Product Name | Female Threaded Seismic Structural Attachment |
| Product Type | Structure Attachment for Sway Bracing |
| Application | Pipe sway bracing / seismic restraint connection |
| Typical Use | Fire sprinkler piping, HVAC piping, mechanical pipe systems |
| Connection Type | Female threaded top connection |
| Matching Brace Member | 1" round pipe |
| Function | Structural connection for seismic sway bracing |
| Material | Carbon steel |
| Surface Finish | Electro-galvanized |
The swivel mechanism allows the attachment to rotate during installation, helping installers achieve proper brace alignment more efficiently.
The product is designed to form a stable connection between the seismic brace and the building structure, improving system restraint against lateral movement.
It is intended for use in pipe sway bracing systems where resistance to vibration and seismic disturbance is required.
The electro-galvanized finish helps improve durability in indoor service environments.
Fire sprinkler piping systems
HVAC pipe support systems
Mechanical piping systems
Plumbing installations
Commercial and industrial buildings requiring seismic restraint
It is used to connect a sway brace assembly to the building structure and help restrain suspended piping against sway and seismic disturbance.
According to the catalog, it is used in combination with 1 inch round pipes.
A female threaded connection allows the brace member to be installed directly into the attachment, helping create a secure and practical connection point in rigid sway bracing assemblies.
It is suitable for fire sprinkler systems, HVAC piping, and other mechanical piping systems that require seismic restraint and structural bracing.
The catalog lists the material as carbon steel.
The product is shown with an electro-galvanized finish for corrosion resistance.
Yes. The product description states that it is designed for bracing pipe against sway and seismic disturbance.
Yes. Structural attachments of this type are commonly used in fire sprinkler seismic bracing systems.
It helps transfer lateral loads from the bracing member to the structure, improving piping stability and reducing movement during seismic events.
Yes. Structural attachments are a standard category within seismic bracing and fire sprinkler support systems.
